Dualoy Diesel Pistons · 7224DKT.5MM
Part #: 7224DKT.5MM
UPC: 800745278562
Log in for inventory
Notify me when this item is in stock.
Description: Dualoy Cummins 409CI/6.7L (L6) 2013-18 Piston & Ring Kit
Description:
Description

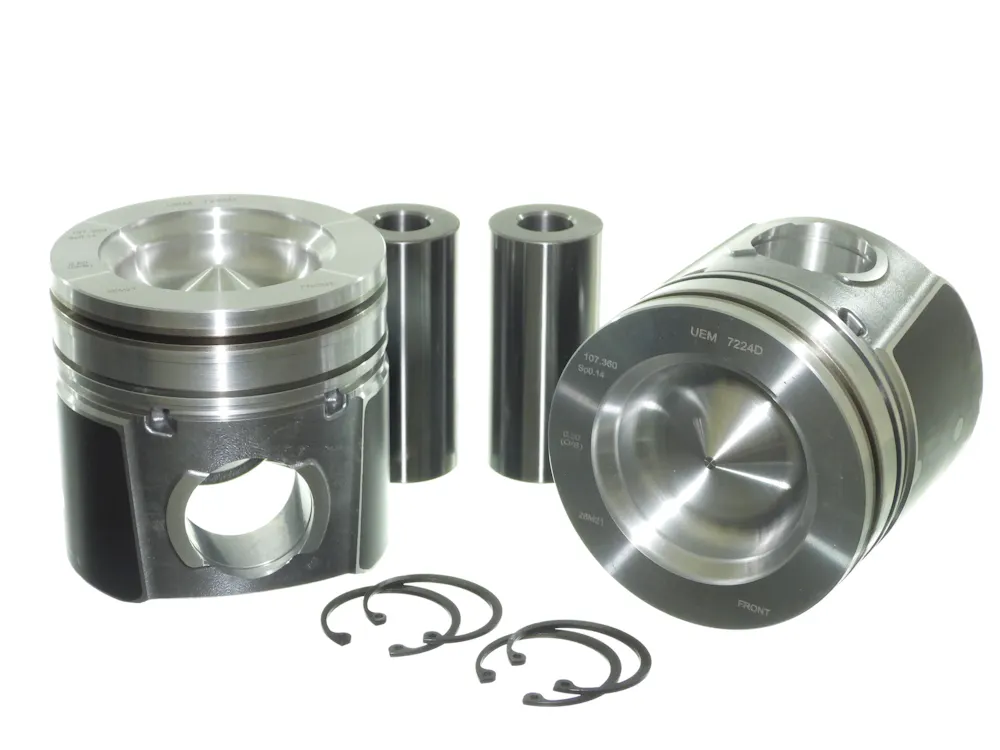

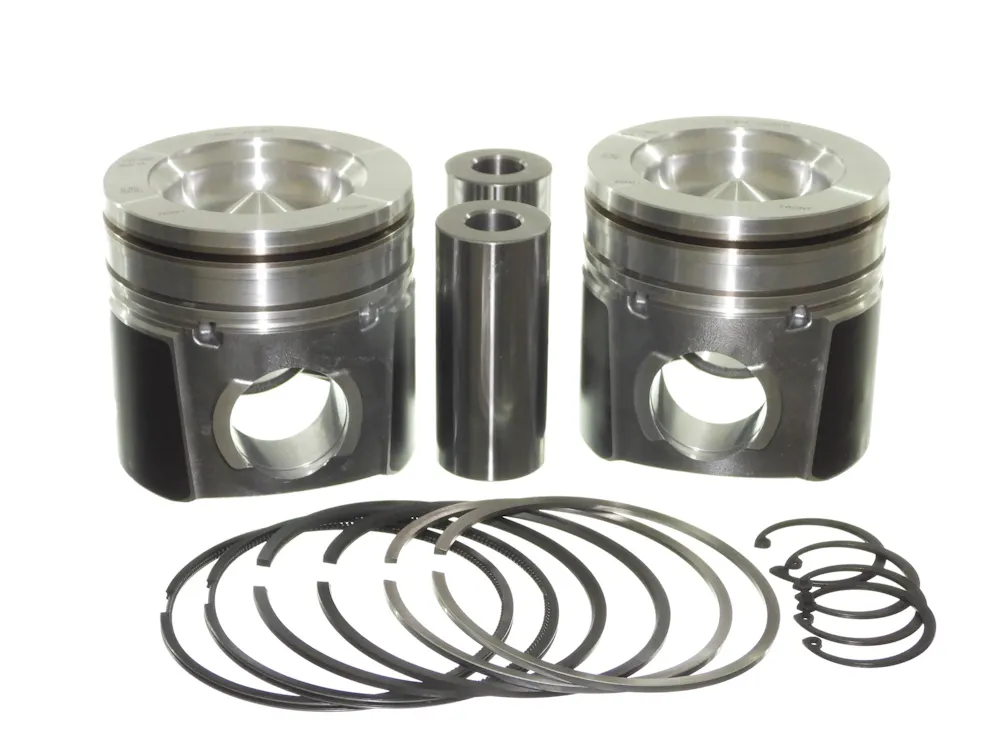

Dualoy Cummins 409CI/6.7L (L6) 2013-18 Piston & Ring Kit
Features & benefits
- 24V, iron ring insert in top groove. Keystone top ring.
Application summary
| Year | Make / model |
|---|---|
| 2013-2018 | Ram 2500 |
| 2013-2018 | Ram 3500 |
Specifications
- GTIN
- 00800745278562
- Weight
- 26 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- DDP
- Warehouse brand code
- JCLJ
- AAIA brand code
- JCLJ
Attributes
- Base Number
- 7224D
- Bore (in)
- 4.212
- Bore (mm)
- 107
- Bore Diameter
- 4.212
- Crown (cc)
- 54.8
- Crown Type
- Bowl
- Eng. Disp Liters
- 6.7
- Eng. Disp. In.
- 406
- Eng. Disp. Liters
- 6.7
- Engine Family
- Cummins ISB
- Engine Manufacturer
- Cummins ISB
- Includes Ring Set
- 20006.5MM
- Includes Ring Set Part Number
- 20006.5MM
- Model
- Dodge Truck
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .50mm 1.0mm
- Pin Configuration
- Offset
- Pin Diameter (in)
- 1.574
- Pin Diameter (mm)
- 39.99
- Pin Number
- 7201D-GP
- Pin Type
- Floating
- Piston Head Type
- Bowl
- Ring Pack
- 2.8K, 2.5mm, 3.5mm
- Rod (in)
- 7.559
- Rod (mm)
- 192
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.921
- Stroke (mm)
- 124
- Top Land
- 0.315
- Year From
- 2013
- Year Range
- 2013-2018
- Year To
- 2018
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2013-2018 Ram 2500; 2013-2018 Ram 3500
