Dualoy Diesel Pistons · 7222DKT.75MM
Part #: 7222DKT.75MM
UPC: 800745263667
Log in for inventory
Notify me when this item is in stock.
Description: 1 Set 7222D.75MM/1 Set 20018.75MM
Description:
Description
1 Set 7222D.75MM/1 Set 20018.75MM
Features & benefits
- PowerStroke V8 Maxx Force 7. OHV, 32 valve. Iron ring insert in top groove. Keystone top ring. DLC Wrist Pin.
Optional .010" reduced compression height 7212D.
Specifications
- GTIN
- 00800745263667
- Weight
- 26 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- DDP
- Warehouse brand code
- JCLJ
- AAIA brand code
- JCLJ
Attributes
- Alloy
- Cast KSA-1295
- Base Number
- 7222D
- Bore (in)
- 3.866
- Bore (mm)
- 98.2
- Bore Diameter
- 3.866
- Crown (cc)
- +38.1cc
- Crown Type
- DISH
- Eng. Disp Liters
- 6.4
- Eng. Disp. In.
- 390
- Eng. Disp. Liters
- 6.4
- Engine Family
- 6.4L Power Stroke
- Engine Manufacturer
- Ford
- Includes Ring Set
- 20018.75MM
- Includes Ring Set Part Number
- 20018.75MM
- Model
- F-Series Truck
- Oversize
- .75mm
- Oversized
- Yes
- Oversizes
- STD .25mm .50mm .75mm 1.0mm
- Pin Configuration
- Centered
- Pin Diameter (in)
- 1.515
- Pin Diameter (mm)
- 38.5
- Pin Number
- 7205D-PP
- Pin Type
- Floating
- Piston Head Type
- Dish
- Ring Pack
- 2.5K, 2.0mm, 2.5mm
- Rod (in)
- 6.929
- Rod (mm)
- 176.000
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.134
- Stroke (mm)
- 105.0
- Top Land
- .368
- Year From
- 2008
- Year Range
- 2008-2010
- Year To
- 2010
Fitment status
This product is universal and will fit your application.

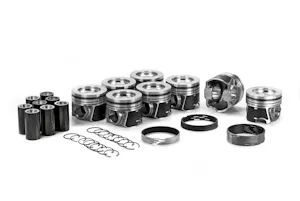

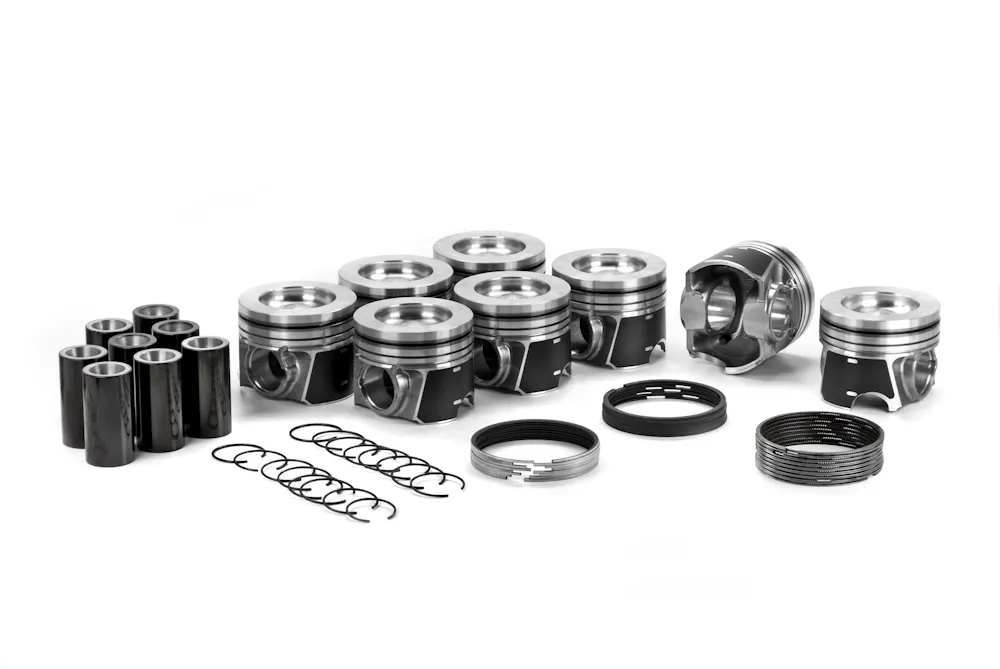

Dualoy Diesel Pistons 7222DKT.75MM
