Dualoy Diesel Pistons · 7206DKT.1.0MM
Part #: 7206DKT.1.0MM
UPC: 800745252432
Log in for inventory
Notify me when this item is in stock.
Description: Dualoy Piston Ford Power Stroke 6.7L (V8) 2011-16 Piston & Ring Kit
Description:
Description

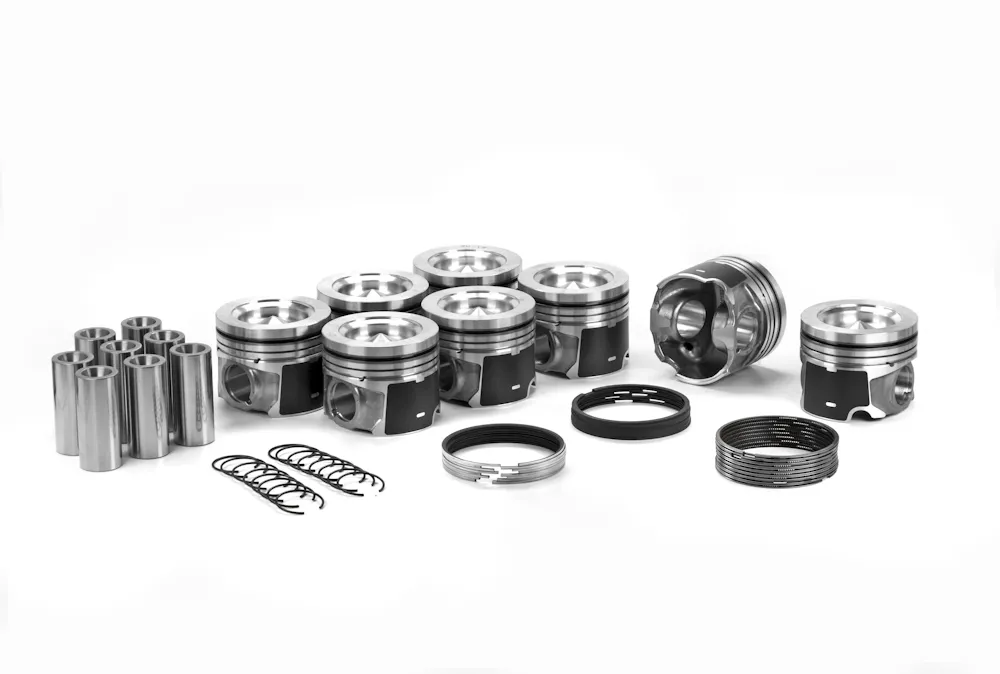

Dualoy Piston Ford Power Stroke 6.7L (V8) 2011-16 Piston & Ring Kit
Features & benefits
- PowerStroke V8 up to 1/7/2016. OHV, 32 valve. Iron ring insert in top groove. 34mm Pin.
7216DKT .010" reduced compression height piston & ring kits also available.
Application summary
| Year | Make / model |
|---|---|
| 2015-2016 | Ford F-250 Super Duty |
| 2015-2016 | Ford F-350 Super Duty |
Specifications
- GTIN
- 00800745252432
- Weight
- 26 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- DDP
- Warehouse brand code
- JCLJ
- AAIA brand code
- JCLJ
Attributes
- Alloy
- Cast KSA-1295
- Base Number
- 7206D
- Bore (in)
- 3.898
- Bore (mm)
- 99.0
- Bore Diameter
- 3.898
- Compression Ratio
- 16.2:1
- Crown (cc)
- +39.7
- Crown Type
- CONTOURED HEAD
- Cylinder Bore Diameter
- 3.898
- Eng. Disp Liters
- 6.7
- Eng. Disp. In.
- 406
- Eng. Disp. Liters
- 6.7
- Engine Family
- 6.7L Power Stroke
- Engine Manufacturer
- Ford
- Includes Ring Set
- 20001.1.0MM
- Includes Ring Set Part Number
- 20001.1.0MM
- Lock
- 503-CP
- Oe Assembly
- BC3Z6108D
- Oversize
- 1.0mm
- Oversized
- Yes
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Centered
- Pin Diameter (in)
- 1.339
- Pin Diameter (mm)
- 34
- Pin Number
- 7206D-CP
- Pin Type
- Floating
- Ring Pack
- 3.0K, 2.0mm, 2.5mm
- Rod (in)
- 6.97
- Rod (mm)
- 177.038
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.251
- Stroke (mm)
- 108.0
- Top Land
- .382
- Vin Code
- T
- Year From
- 2011
- Year Range
- 2011-2015
- Year To
- 2015
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2015-2016 Ford F-250 Super Duty; 2015-2016 Ford F-350 Super Duty
Dualoy Diesel Pistons 7206DKT.1.0MM
