Dualoy Diesel Pistons · 7204DKT.5MM
Part #: 7204DKT.5MM
UPC: 800745251374
Log in for inventory
Notify me when this item is in stock.
Description: Dualoy Piston Ford Power Stroke 6.0L (V8) 2004-07
Description:
Description

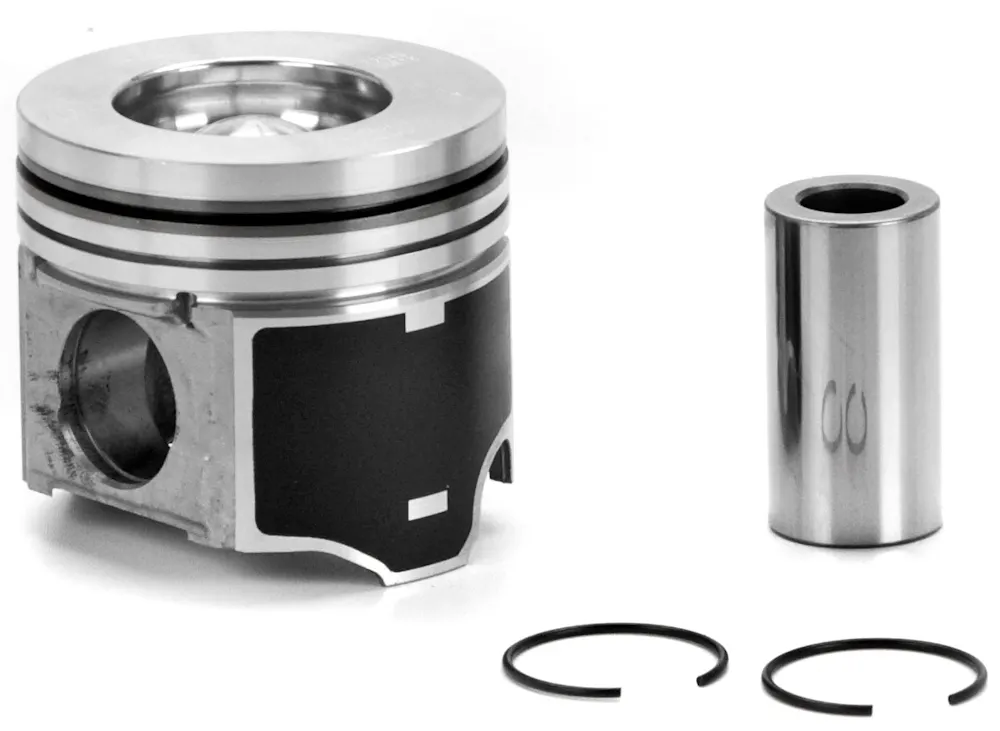

Dualoy Piston Ford Power Stroke 6.0L (V8) 2004-07
Features & benefits
- PowerStroke V8. OHV, 16 and 32 valve. Iron ring insert in top groove. Keystone top ring.
Optional .010" reduced compression height - 7214D - piston also available.
Application summary
| Year | Make / model |
|---|---|
| 2004-2005 | Ford E-350 Club Wagon |
| 2004-2007 | Ford E-350 Super Duty |
| 2004-2007 | Ford E-450 Super Duty |
| 2004-2005 | Ford Excursion |
| 2004-2007 | Ford F-250 Super Duty |
| 2004-2007 | Ford F-350 Super Duty |
| 2004-2007 | Ford F-450 Super Duty |
| 2004-2007 | Ford F-550 Super Duty |
Specifications
- GTIN
- 00800745251374
- Weight
- 26 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- DDP
- Warehouse brand code
- JCLJ
- AAIA brand code
- JCLJ
Attributes
- Alloy
- Cast KSA-1295
- Base Number
- 7204D
- Bore (in)
- 3.74
- Bore (mm)
- 95.0
- Bore Diameter
- 3.74
- Compression Ratio
- 0.7506944444
- Crown (cc)
- +31.9
- Crown Type
- CONTOURED HEAD
- Cylinder Bore Diameter
- 3.74
- Eng. Disp Liters
- 6.0
- Eng. Disp. In.
- 363
- Eng. Disp. Liters
- 6
- Engine Family
- 6.0L Power Stroke
- Engine Manufacturer
- Ford
- Includes Ring Set
- 20002.5MM
- Includes Ring Set Part Number
- 20002.5MM
- Lock
- 7204D-CP
- Oe Assembly
- 1843285C2
- Oe Deck Height
- 9.315
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .25mm .5mm .75mm 1.0mm
- Pin Configuration
- Centered
- Pin Diameter (in)
- 1.339
- Pin Diameter (mm)
- 34.0
- Pin Number
- 7203D-PP
- Pin Type
- Floating
- Ring Pack
- 2.3K, 2.0mm, 3.5mm
- Rod (in)
- 6.929
- Rod (mm)
- 175.9966
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.134
- Stroke (mm)
- 105.0
- Top Land
- .374
- Vin Code
- P
- Year From
- 2004
- Year Range
- 2004-2007
- Year To
- 2007
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2005 Ford E-350 Club Wagon; 2004-2007 Ford E-350 Super Duty; 2004-2007 Ford E-450 Super Duty; 2004-2005 Ford Excursion; 2004-2007 Ford F-250 Super Duty; 2004-2007 Ford F-350 Super Duty; 2004-2007 Ford F-450 Super Duty; 2004-2007 Ford F-550 Super Duty

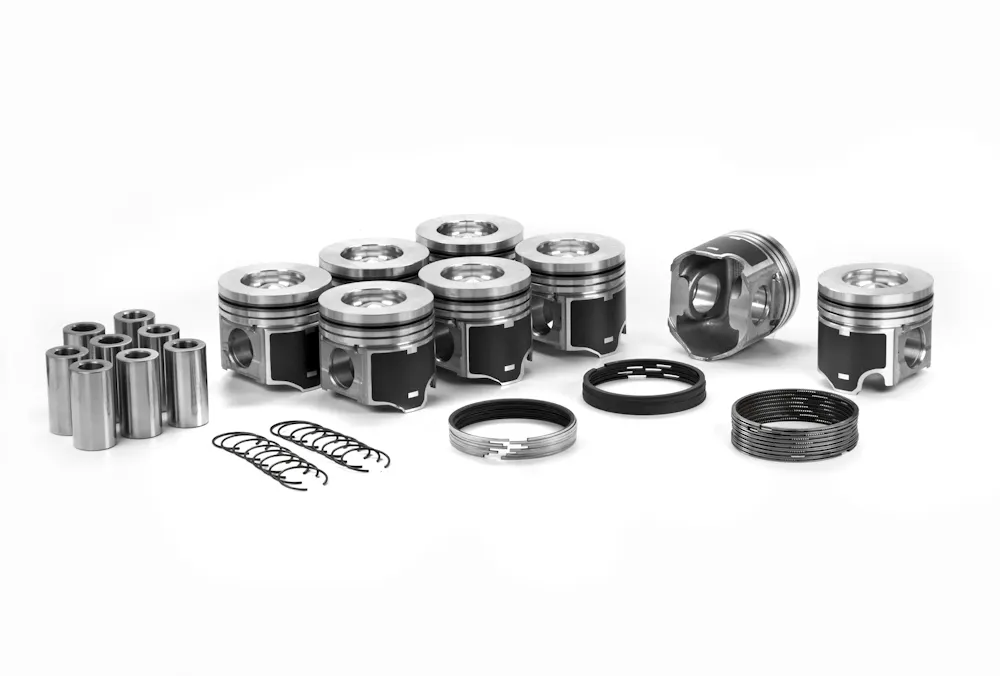

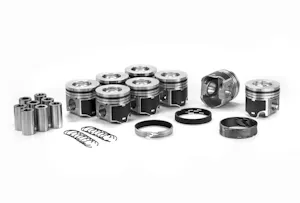

Dualoy Diesel Pistons 7204DKT.5MM
