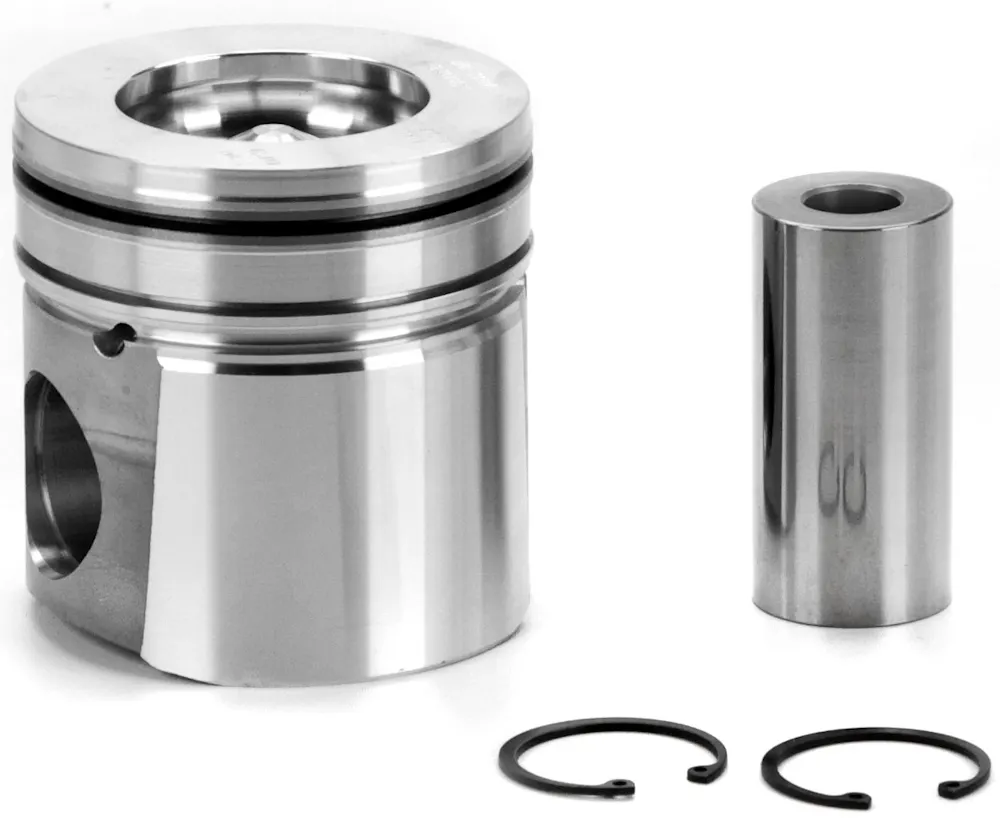

Dualoy Diesel Pistons / 7198DKT.STD
Part #: 7198DKT.STD
UPC: 800745256966
Loading...
Notify me when this item is in stock.
Description: DUALOY - Cummins 369CI/5.9L
Description:
Description
DUALOY - Cummins 369CI/5.9L
Features & benefits
- Standard output. ISB 24 valve. Iron ring insert in top groove. Keystone top ring.
Specifications
- GTIN
- 00800745256966
- Weight
- 20 lb
- Height
- 5 in
- Length
- 17.75 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- DDP
- Warehouse brand code
- JCLJ
- AAIA brand code
- JCLJ
Attributes
- Alloy
- Cast KSA-1295
- Base Number
- 7198D
- Bore (in)
- 4.015
- Bore (mm)
- 102.0
- Bore Diameter
- 4.015
- Compression Ratio
- 17.2
- Crown (cc)
- +47.2cc
- Crown Type
- CONTOURED HEAD
- Cylinder Bore Diameter
- 4.015
- Eng. Disp Liters
- 5.9
- Eng. Disp. In.
- 369
- Eng. Disp. Liters
- 5.9
- Engine Family
- Cummins
- Engine Manufacturer
- Dodge
- Includes Ring Set
- 20014.STD
- Includes Ring Set Part Number
- 20014.STD
- Model
- Truck
- Oe Assembly
- 3946153
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD .50mm 1.0mm
- Pin Configuration
- Centered
- Pin Diameter (in)
- 1.575
- Pin Diameter (mm)
- 40.0
- Pin Number
- 7195D-PP
- Pin Type
- Floating
- Ring Pack
- 3.0K, 2.35mm, 4.0mm
- Rod (in)
- 7.56
- Rod (mm)
- 192
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 4.724
- Stroke (mm)
- 120.0
- Top Land
- .405
- Vin Code
- 6
- Year From
- 1998.5
- Year Range
- 1998.5-2002
- Year To
- 2002
Fitment status
This product is universal and will fit your application.

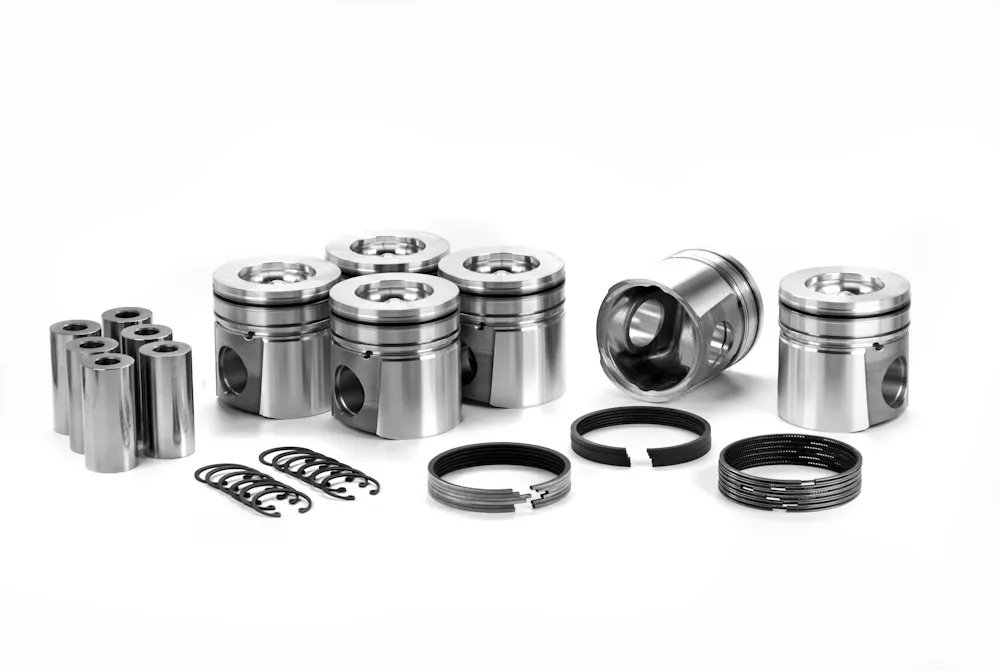

Dualoy Diesel Pistons 7198DKT.STD
