Dualoy Diesel Pistons · 7195DKT.STD

Dualoy Diesel Pistons 7195DKT.STD

Part #: 7195DKT.STD
UPC: 800745258281

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Dualoy Diesel Pistons Series: Dualoy Piston and Ring Kits

Log in to order

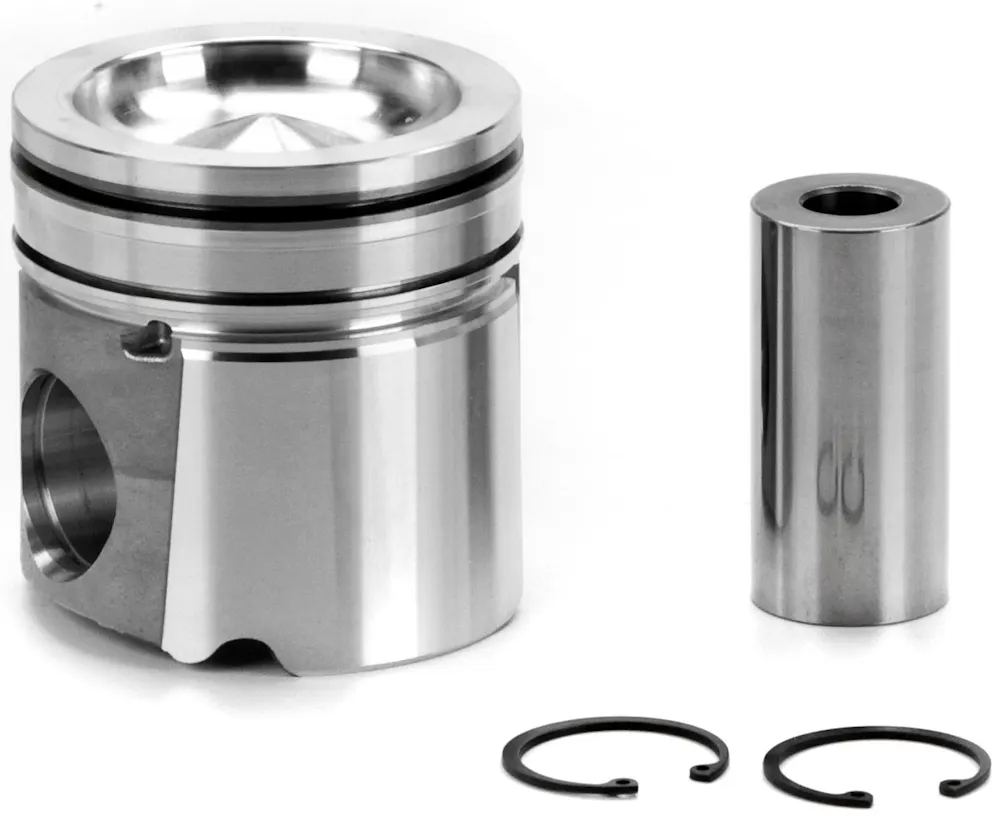

Description: Dualoy Piston Dodge Cummins 5.9L 24V (L6) 2005-09

Description

Dualoy Piston Dodge Cummins 5.9L 24V (L6) 2005-09

Features & benefits

Engine Model ETH and HO. Iron ring insert in top groove. Keystone top ring.

Application summary

Year	Make / model
2006-2009	Dodge Ram 4000

Specifications

GTIN: 00800745258281
Weight: 20 lb
Height: 5 in
Length: 17.75 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: DDP
Warehouse brand code: JCLJ
AAIA brand code: JCLJ

Attributes

Alloy: Cast KSA-1295
Base Number: 7195D
Bore (in): 4.015
Bore (mm): 102
Bore Diameter: 102.0
Compression Ratio: 17.1
Crown (cc): +45.4cc
Crown Type: CONTOURED HEAD
Cylinder Bore Diameter: 4.015
Eng. Disp Liters: 5.9
Eng. Disp. In.: 369
Eng. Disp. Liters: 5.9
Engine Family: Cummins
Engine Manufacturer: Dodge
Includes Ring Set: 20004.STD
Includes Ring Set Part Number: 20004.STD
Lock: 7195D-CP
Oe Assembly: 3970192
Oe Deck Height: 12.7165
Oversize: STD
Oversized: No
Oversizes: STD .5mm 1.0mm
Pin Configuration: Centered
Pin Diameter (in): 1.575
Pin Diameter (mm): 40.0
Pin Number: 7195D-PP
Pin Type: Floating
Ring Pack: 3.0K, 2.39mm, 4.0mm
Rod (in): 7.568
Rod (mm): 192.227

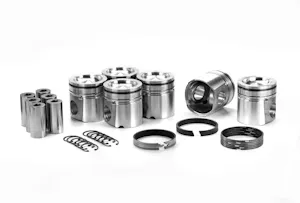

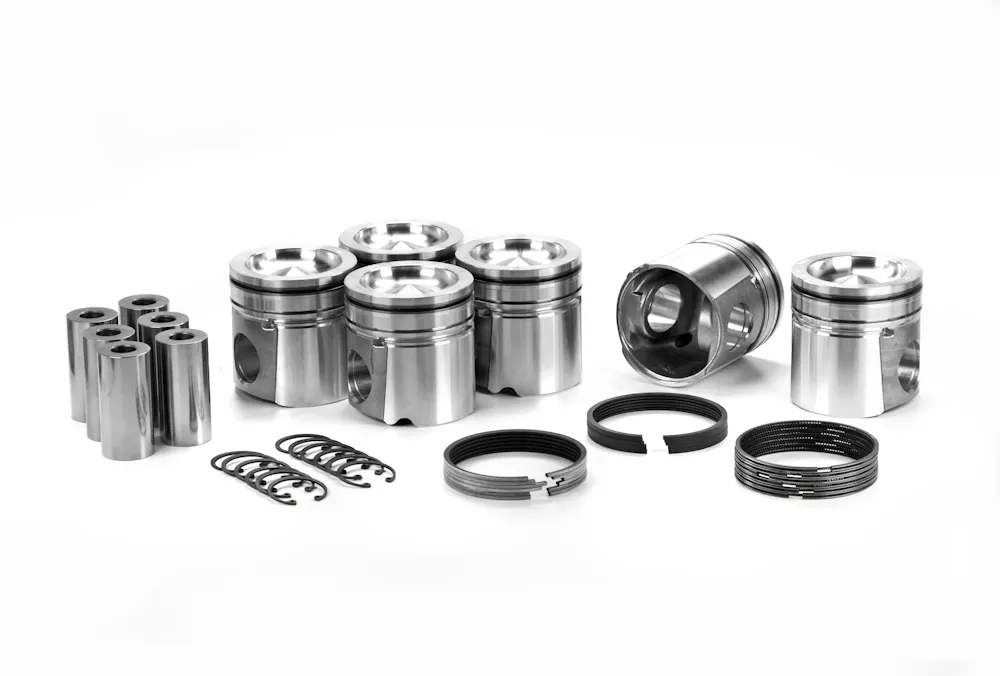

Sold As: Complete Piston and Ring Kit
Stroke (in): 4.724
Stroke (mm): 120
Top Land: .380
Year From: 2005
Year Range: 2005-2009
Year To: 2009

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2006-2009 Dodge Ram 4000
