Dualoy Diesel Pistons · 7099D.030

Dualoy Diesel Pistons 7099D.030

Part #: 7099D.030
UPC: 800745033420

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Dualoy Diesel Pistons Series: Dualoy Piston Sets

Log in to order

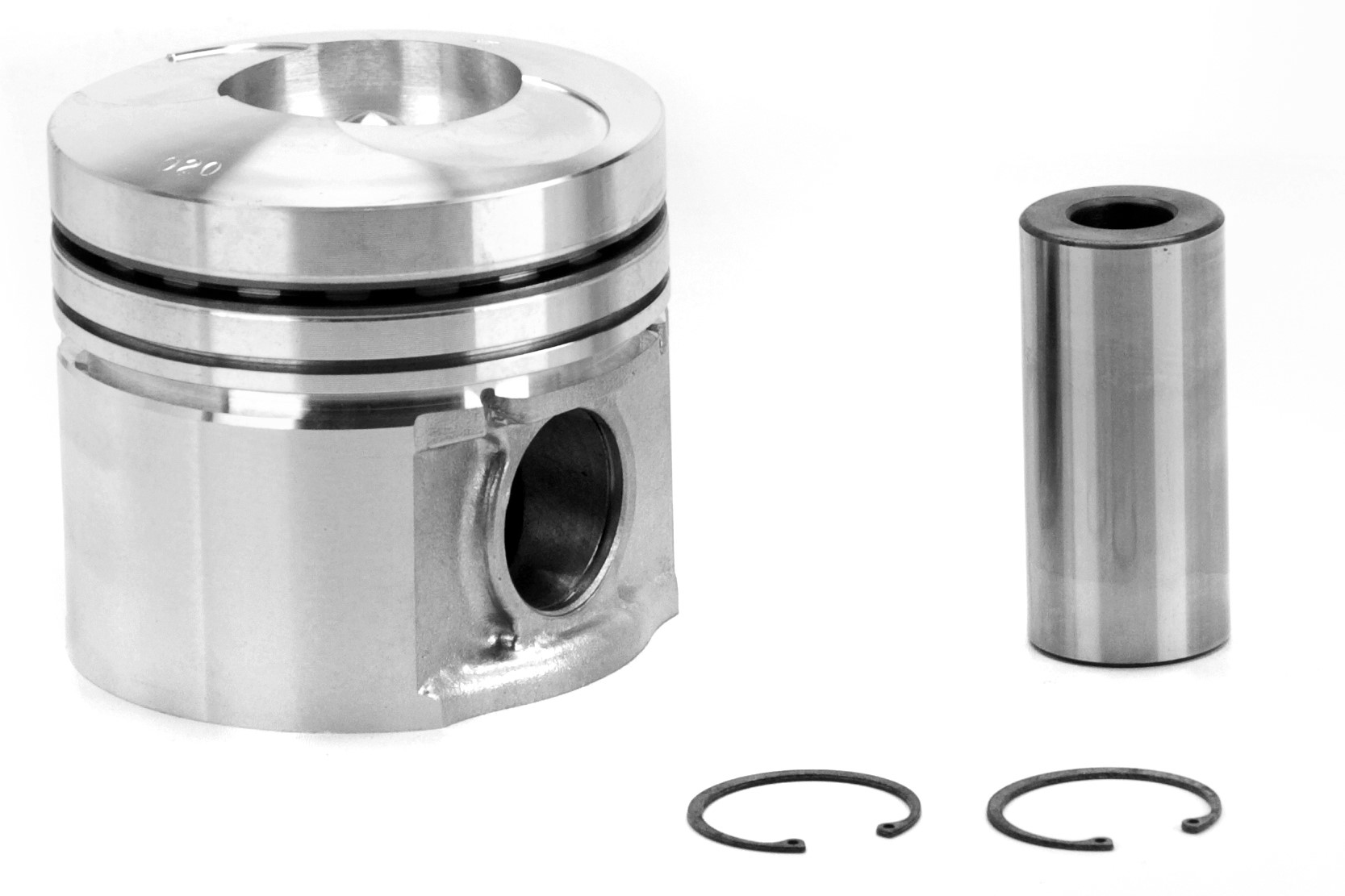

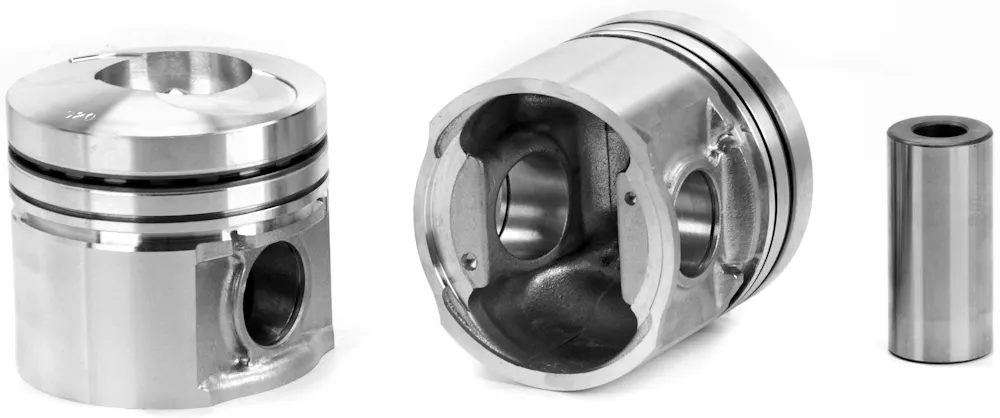

Description: Dualoy Piston 9.0L IHC/Navistar (V8)

Description

Dualoy Piston 9.0L IHC/Navistar (V8)

Features & benefits

Spherical dome with combustion bowl and 2 valve reliefs. Not destroked.

Specifications

GTIN: 00800745033420
Life cycle: Available to Order
AAM brand code: DDP
Warehouse brand code: JCLJ
AAIA brand code: JCLJ

Attributes

Alloy: Cast KSA-1295
Base Number: 7099D
Bore (in): 4.51
Bore (mm): 114.6
Bore Diameter: 4.51
Crown Type: DOME
Cylinder Bore Diameter: 4.51
Eng. Disp Liters: 9.0
Eng. Disp. In.: 551
Eng. Disp. Liters: 9
Engine Family: International Diesel V8
Engine Manufacturer: IHC
Lock: 150
Oversize: .030
Oversized: Yes
Oversizes: STD .020 .030
Pin Configuration: Centered
Pin Diameter (in): 1.5
Pin Diameter (mm): 38.1
Pin Number: 1500x308B
Pin Type: Floating
Piston Head Type: Dome
Ring Pack: 1/8K, 3/32, 3/16 Iron Top Groove
Sold As: Complete Piston Set
Top Land: .608
Year Range: -

Fitment status

This product is universal and will fit your application.
