Sealed Power · 12886CP
Part #: 12886CP
UPC: 614046845244
Loading...
Notify me when this item is in stock.

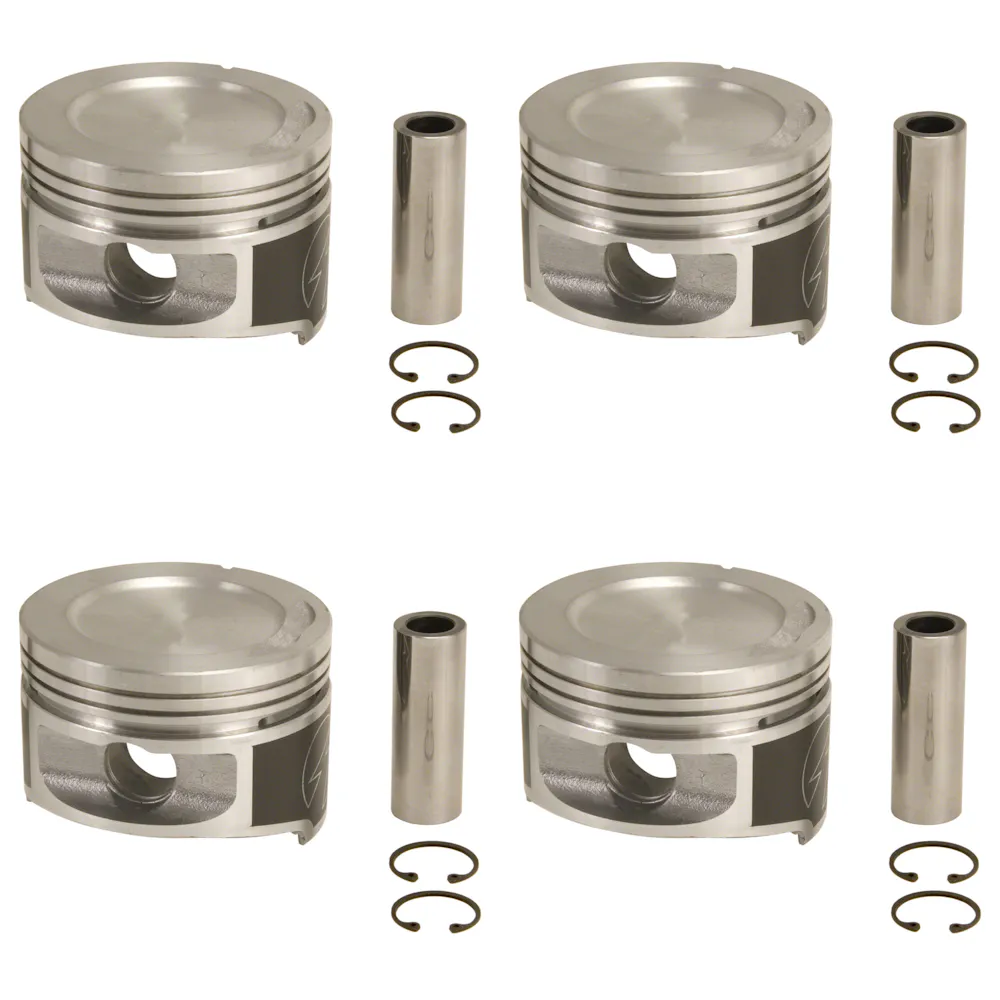

Description: Sealed Power 12886CP Engine Piston Set for Toyota Pickup
Description:
Description
Built for the demands of today?s engines, Sealed Power(R) parts deliver the dependability that engine professionals trust. Designed to help restore engine performance, Sealed Power application-specific components help ensure the job is done right the first time? because downtime is not an option.
Features & benefits
- Performance & dependability of original equipment pistons
- DUROSHIELD(R) skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy & eliminates scuffing and wear
- Helps improve cylinder sealing for less blow-by
- Prevents damage from inadequate lubrication on start-up
Application summary
| Year | Make / model |
|---|---|
| 1985-1995 | Toyota 4Runner |
| 1985-1995 | Toyota Pickup |
Specifications
- GTIN
- 00614046845244
- Weight
- 1.31 lb
- Height
- 4.18 in
- Length
- 10.32 in
- Width
- 9.31 in
- Life cycle
- Available to Order
- Alt. part number
- 12886CP
- AAM brand code
- SEA
- Warehouse brand code
- BDBR
- AAIA brand code
- BDBR
Attributes
- Alternate Part Number
- 12886CP
- Assembly Lubricant Included
- No
- Bore Diameter
- 3.6220
- California Proposition 65
- No
- Grade Type
- Premium

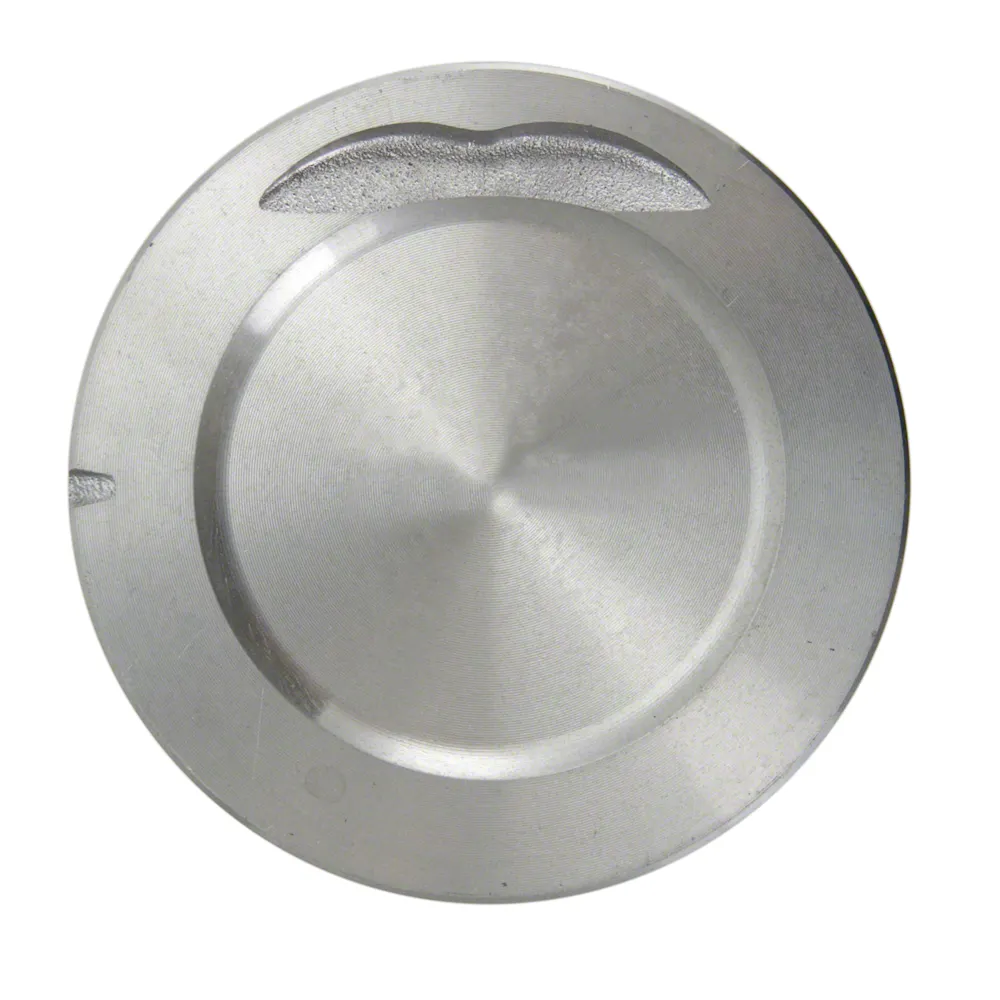

- Head Illustration
- 216
- Head Type
- Recessed Head 2.28mm deep x 34.36mm dia. w/1 valve relief
- Minimum Clearance
- See Piston Fitting Information on carton label
- Oil Ring Thickness
- 4.00
- Oversized
- No
- Part Description
- Engine Piston
- Pin Offset (Inch)
- 0.04
- Pin Offset (MM)
- 1.016
- Pin Type
- F
- Piston Head Type
- Recessed
- Piston Material
- Cast Aluminum
- Piston Pin Outside Diameter
- 0.866
- Second Compression Ring Thickness
- 1.50
- Top Compression Ring Thickness
- 1.50
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1985-1995 Toyota 4Runner; 1985-1995 Toyota Pickup
Equivalent Parts
Sealed Power 12886CP
