Sealed Power · 1220RA
Part #: 1220RA
UPC: 087674953757
Log in for inventory
Notify me when this item is in stock.

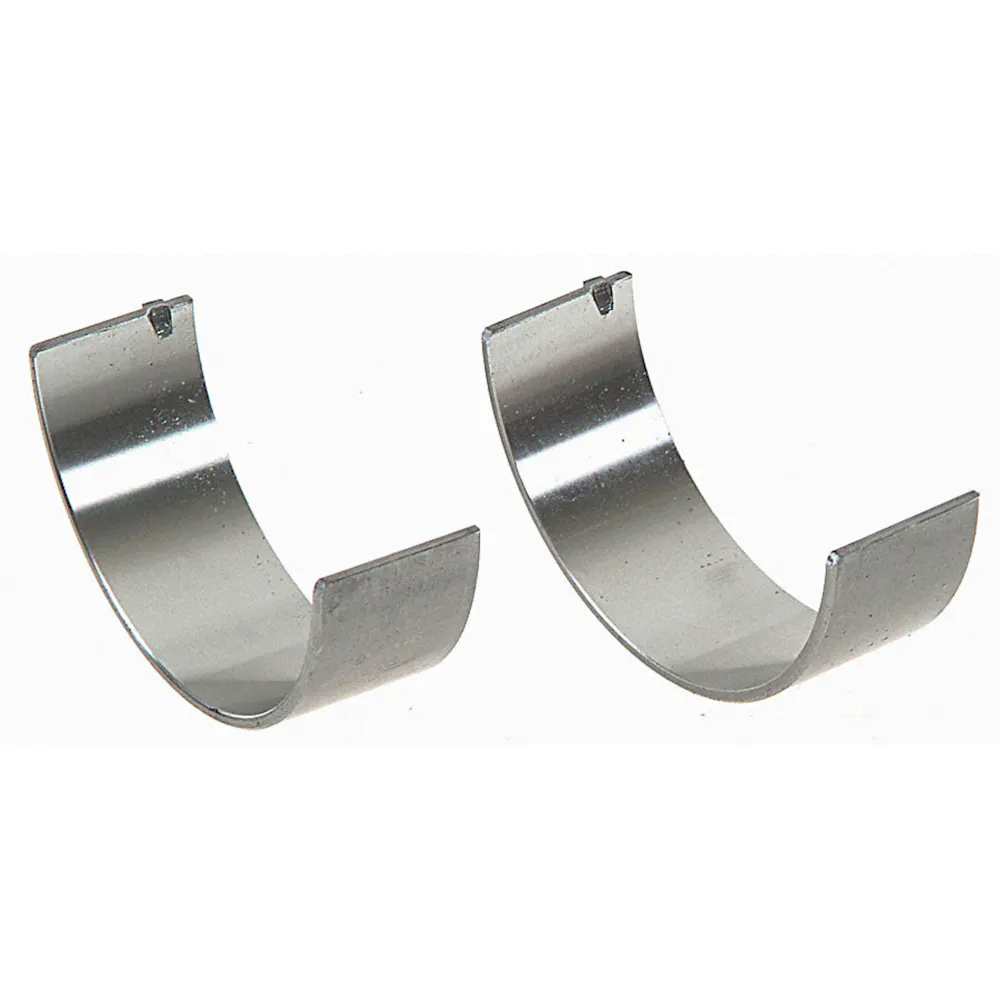

Description: Sealed Power 1220RA Engine Connecting Rod Bearing for Ford Ranger
Description:
Description
Built for the demands of today?s engines, Sealed Power(R) parts deliver the dependability that engine professionals trust. Designed to help restore engine performance, Sealed Power application-specific components help ensure the job is done right the first time? because downtime is not an option.
Features & benefits
- A-Series bi-metal aluminum alloy
- Greater seizure resistance than tri-metal material
- Dramatically reduces or eliminates bearing wear
- Made with silicon to provide greater surface hardness
- Silicon particles help polish crankshaft journal to further reduce wear during operation
- Utilizes ISO & QS certified manufacturing
Application summary
| Year | Make / model |
|---|---|
| 1986-1997 | Ford Aerostar |
| 1990-1992 | Ford Probe |
| 1991-2008 | Ford Ranger |
| 1986-2007 | Ford Taurus |
| 1992-1994 | Ford Tempo |
| 1995-2000 | Ford Windstar |
| 1994-1999 | Mazda B3000 |
| 2001-2008 | Mazda B3000 |
| 1986-2005 | Mercury Sable |
| 1992-1994 | Mercury Topaz |
Specifications
- GTIN
- 00087674953757
- Weight
- 0.11 lb
- Height
- 1.75 in
- Length
- 2.75 in
- Width
- 1 in
- Life cycle
- Available to Order
- Alt. part number
- 1220RA
- AAM brand code
- SEA
- Warehouse brand code
- BDBR
- AAIA brand code
- BDBR
Attributes
- Alternate Part Number
- 1220RA
- California Proposition 65
- No
- Design Feature 1
- Standard Size
- Grade Type
- Premium
- Housing Bore Max
- 2.2508
- Housing Bore Max (Inch)
- 2.2508
- Housing Bore Max (MM)
- 57.1700
- Housing Bore Min
- 2.2500
- Housing Bore Min (Inch)
- 2.2500
- Housing Bore Min (MM)
- 57.1500
- Oil Clearance Max
- 0.0026
- Oil Clearance Max (Inch)
- 0.0026
- Oil Clearance Max (MM)
- 0.0670
- Oil Clearance Min
- 0.0005
- Oil Clearance Min (Inch)
- 0.0005
- Oil Clearance Min (MM)
- 0.0110
- Overall Length Max
- 0.7630
- Overall Length Max (Inch)
- 0.7630
- Overall Length Max (MM)
- 19.3800
- Part Description
- Engine Connecting Rod Bearing
- Standard Shaft Max
- 2.1261
- Standard Shaft Max (Inch)
- 2.1261
- Standard Shaft Max (MM)
- 54.0030
- Standard Shaft Min
- 2.1253
- Standard Shaft Min (Inch)
- 2.1253
- Standard Shaft Min (MM)
- 53.9830
- Wall Thickness Max
- 0.0617
- Wall Thickness Max (Inch)
- 0.0617
- Wall thickness Max (MM)
- 1.5680
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986-1997 Ford Aerostar; 1990-1992 Ford Probe; 1991-2008 Ford Ranger; 1986-2007 Ford Taurus; 1992-1994 Ford Tempo; 1995-2000 Ford Windstar; 1994-1999 Mazda B3000; 2001-2008 Mazda B3000; 1986-2005 Mercury Sable; 1992-1994 Mercury Topaz
