Diamond Racing Products · 39300-6
Part #: 39300-6
UPC: 193564517128
Log in for inventory
Notify me when this item is in stock.

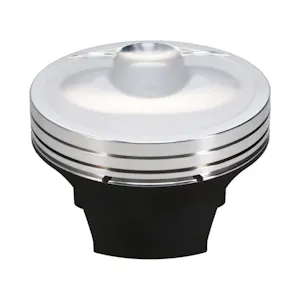

Description: Porsche 3.8L Turbo 991 Piston Kit - 102.00 mm Bore - 1.325 in. CH, -0.90 CC; 102.00 mm Bore - -0.90 CC Volume - 1.325 in. Comp Height
Description:
Description
Diamond's years of working alongside top sport compact race teams have helped generate an exceptionally robust line of sport compact pistons. Race proven designs are combined with precision CNC machining, strong 2618 forged aluminum, and premium Trend Performance wrist pins to deliver unmatched durability and performance. Whether you're looking more power, boost readiness, or chasing records and win lights on the racetrack, Diamond's mild-to-wild sport compact line is ready to help you get there. Don't see the exact part you need in our catalog' No problem, we can custom make you a piston to your exact specifications.
Application summary
| Year | Make / model |
|---|---|
| 2010-2019 | Porsche 911 |
Specifications
- GTIN
- 00193564517128
- Weight
- 14 lb
- Height
- 4 in
- Length
- 22 in
- Width
- 11 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- DRP
- Warehouse brand code
- DRP
- AAIA brand code
- BJBX
Attributes
- Add-On
- 015130-24
- Bore Diameter
- 102.00
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Pistons
- Compression Height
- 1.325
- Compression Ratio
- 9.80
- Cylinder Quantity
- 6
- EBAY Category ID
- 33623
- Engine
- 3.8L 991 Turbo
- Engine - Web
- 3.8L 991 Turbo
- Engine Type
- ICE
- Forging Type
- Forged Side Relief
- Industry
- Automotive
- Make
- Porsche
- Make - Web
- Porsche
- Oil Rail Support Included
- No
- Oil Ring Thickness
- 2.00
- Piston Line Series
- Street/Strip Series
- Piston Quantity
- 6
- Piston Series
- 3.8L 991 Turbo
- Piston Volume
- -0.90
- Product Market
- Sport Compact
- Product Type
- Engine Piston Kit
- Ring Set Included
- Yes
- Ring Set Part Number
- 09254016
- Ring Set Thickness
- 1.20 MM x 1.50 MM x 2.00 MM
- Rod Length
- 5.433
- Second Compression Ring Thickness
- 1.50
- Stroke
- 77.50
- Title
- Porsche 3.8L Turbo 991 Piston Kit - 102.00 mm Bore - 1.325 in. CH, -0.90 CC
- Title - Web
- Diamond Pistons Porsche 3.8L 991 Turbo Piston Kit
- Top Compression Ring Thickness
- 1.20
- VP Exhaust Depth
- 0.000
- VP Intake Depth
- 0.045
- Wrist Pin Dimensions
- 0.9055 x 2.250
- Wrist Pin Included
- Yes
- Wrist Pin Length
- 2.250
- Wrist Pin Outside Diameter
- 0.9055
- Wrist Pin Part Number
- H90552250200C
- Wrist Pin Retainer Included
- Yes
- Wrist Pin Retainer Part Number
- 015130-24
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010-2019 Porsche 911
