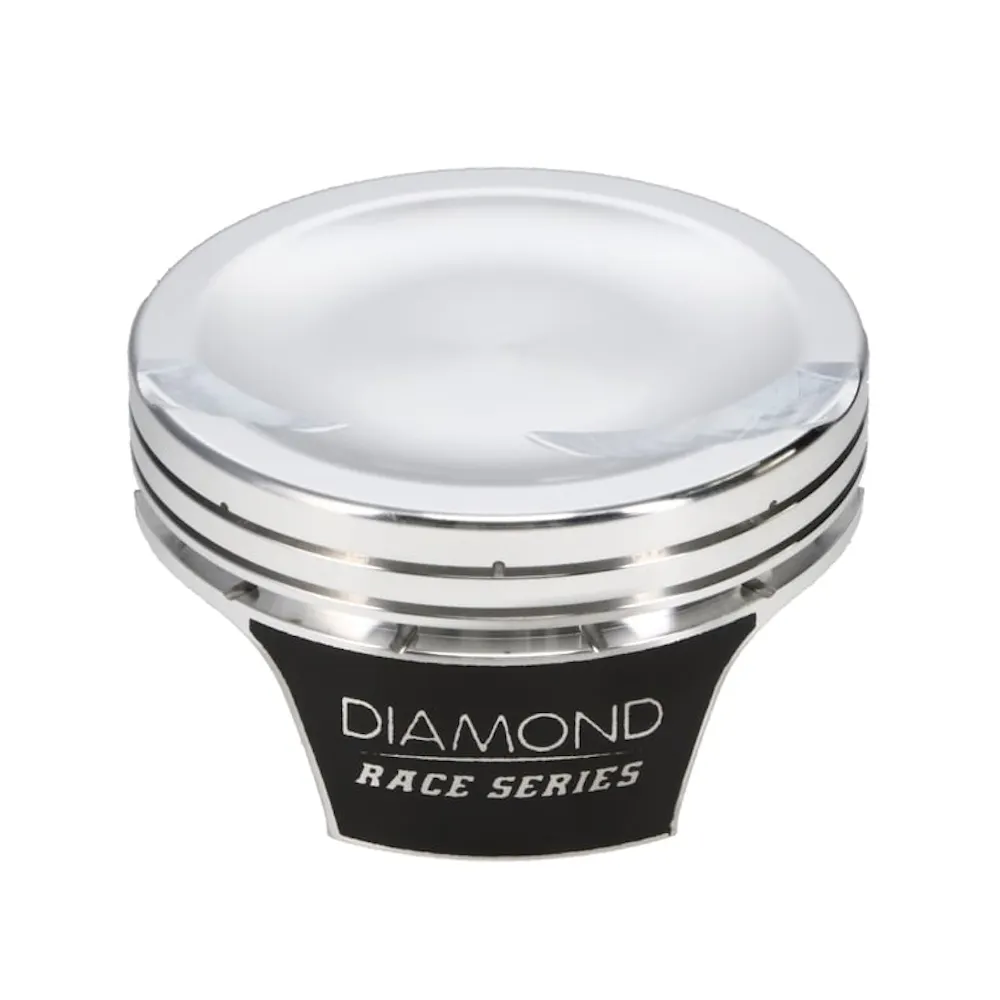

Diamond Racing Products · 21580-RS-8
Part #: 21580-RS-8
UPC: 193564525932
Log in for inventory
Notify me when this item is in stock.
Description: Piston Kit, Chevrolet, LSX 15°, Set of 8; 4.135 in. Bore - -21.00 CC Volume - 1.115 in. Comp Height - Standard Pin
Description:
Description
The muscle car era is back with a horsepower-fueled vengeance and Diamond has late-model muscle builders covered with a huge selection of performance pistons. Whether you’re building an LS, LT, Modular/Coyote, or a third generation Hemi, Diamond has the pistons you need to get the job done right. Pistons are available for builders seeking more cubic inches, higher compression, or nitrous/boost ready performance, and all of Diamonds Modern Muscle pistons are forged and machined 100% in the USA, utilize extremely strong 2618 aluminum and incorporate premium Trend Performance wrist pins.
Features & benefits
- 3D milling on piston crowns for ready to install finish
- Premium 1.5mm x 1.5mm x 3.0mm ring package included
- Premium H-13 .250W wrist pins included chamfered for round wire locks
- Valve pocket depth: 0.200" intake and .200" exhaust
- 2618 material for High HP-NOS-Boost applications - rated for 2000HP
- Inboard forging design with fully machined under crown for maximum strength
- Valve pockets designed to work with most aftermarket cylinder heads
- Side gas ports for better ring seal
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .300"
- Ratios figured for .053 head gasket
Information
Diamond Racing Products Piston Kit for Chevrolet LSX 15° 4.135 Bore x 4.000 Stroke x 6.125 Rod x 1.115 Comp Height - Std Kit.
Specifications
- GTIN
- 00193564525932
- Weight
- 18 lb
- Height
- 5 in
- Length
- 28 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- DRP
- Warehouse brand code
- DRP
- AAIA brand code
- BJBX
Attributes
- Add-On
- H9272250250C
- Bore Diameter
- 4.135
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Combustion Chamber Volume
- 69
- Compression Height
- 1.115
- Compression Ratio
- 9.50
- Cylinder Quantity
- 8
- Emissions Code
- 3
- Engine
- Gen III/IV LS
- Engine - Web
- Gen III/IV LS
- Engine Detail - Web
- LSX 15° LS2K
- Engine Type
- ICE
- Forging Type
- Inboard
- Industry
- Automotive
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Oil Rail Support Included
- Yes
- Oil Rail Support Part Number
- 019010120-8
- Oil Ring Thickness
- 3.00
- Out of Stock Message
- Estimated To Ship In ~5 Weeks
- Piston Average Weight
- Call
- Piston Line Series
- Street/Strip Series
- Piston Quantity
- 8
- Piston Series
- LS2K 15°
- Piston Volume
- -21.00
- Product Market
- Modern Muscle
- Product Type
- Engine Piston Kit
- Ring Set Included
- Yes
- Ring Set Part Number
- 09054135
- Ring Set Thickness
- 1.50 MM x 1.50 MM x 3.00 MM
- Rod Length
- 6.125
- Second Compression Ring Thickness
- 1.50
- Stroke
- 4.000
- Top Compression Ring Thickness
- 1.50
- VP Exhaust Depth
- 0.145
- VP Intake Depth
- 0.200
- Wrist Pin Dimensions
- 0.927 x 2.250
- Wrist Pin Included
- Yes
- Wrist Pin Length
- 2.250
- Wrist Pin Outside Diameter
- 0.927
- Wrist Pin Part Number
- H9272250250C
- Wrist Pin Retainer Included
- Yes
- Wrist Pin Retainer Part Number
- 015111-16
Fitment status
This product is universal and will fit your application.
