Design Engineering, Inc. · 902481
Part #: 902481
UPC: 607078024817
Log in for inventory
Notify me when this item is in stock.

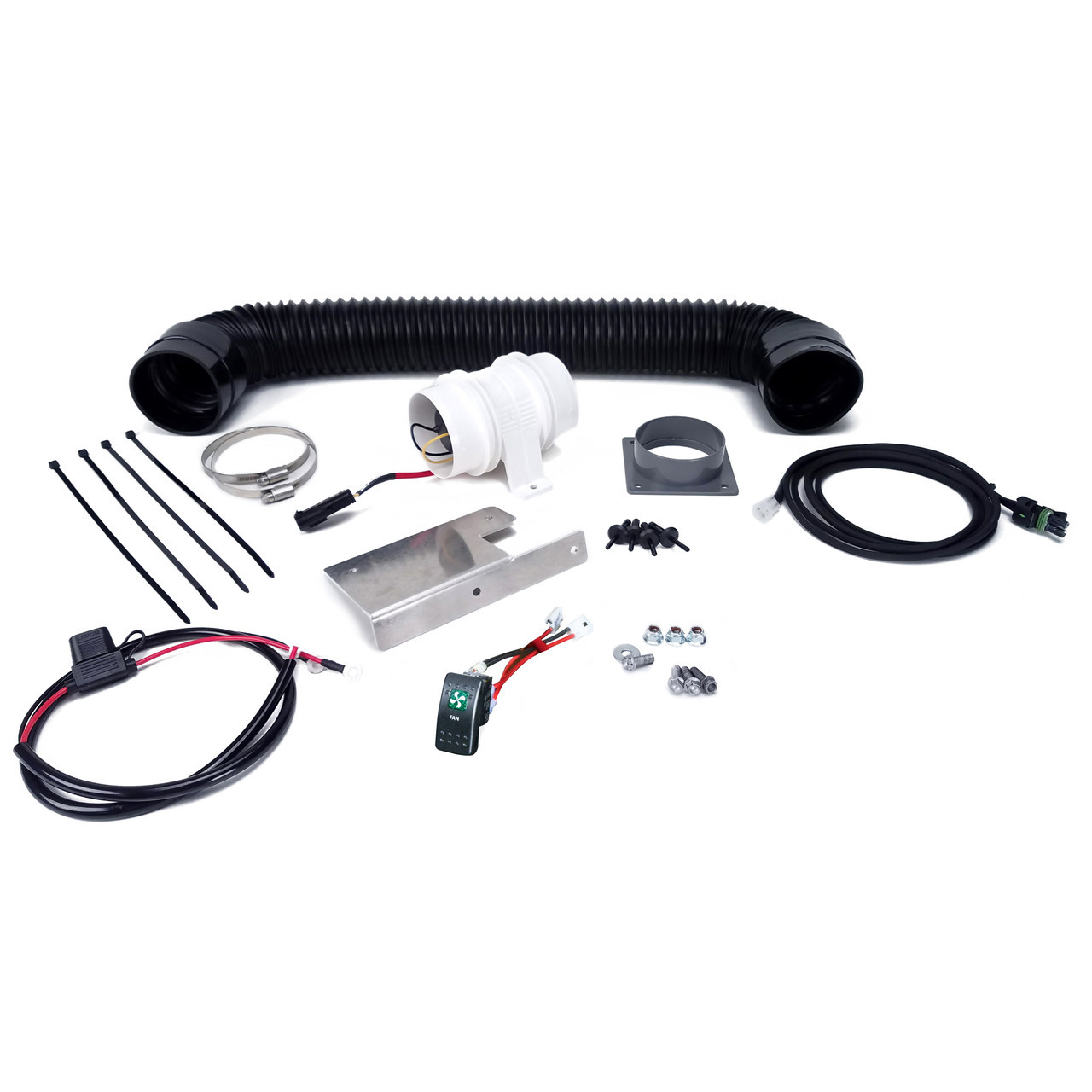

Description: Auxiliary Fan Kit w/Manual Switch, Honda Pioneer 2015-2021; One auxiliary fan kit with a manual on/off switch and all hardware included.
Description:
Description

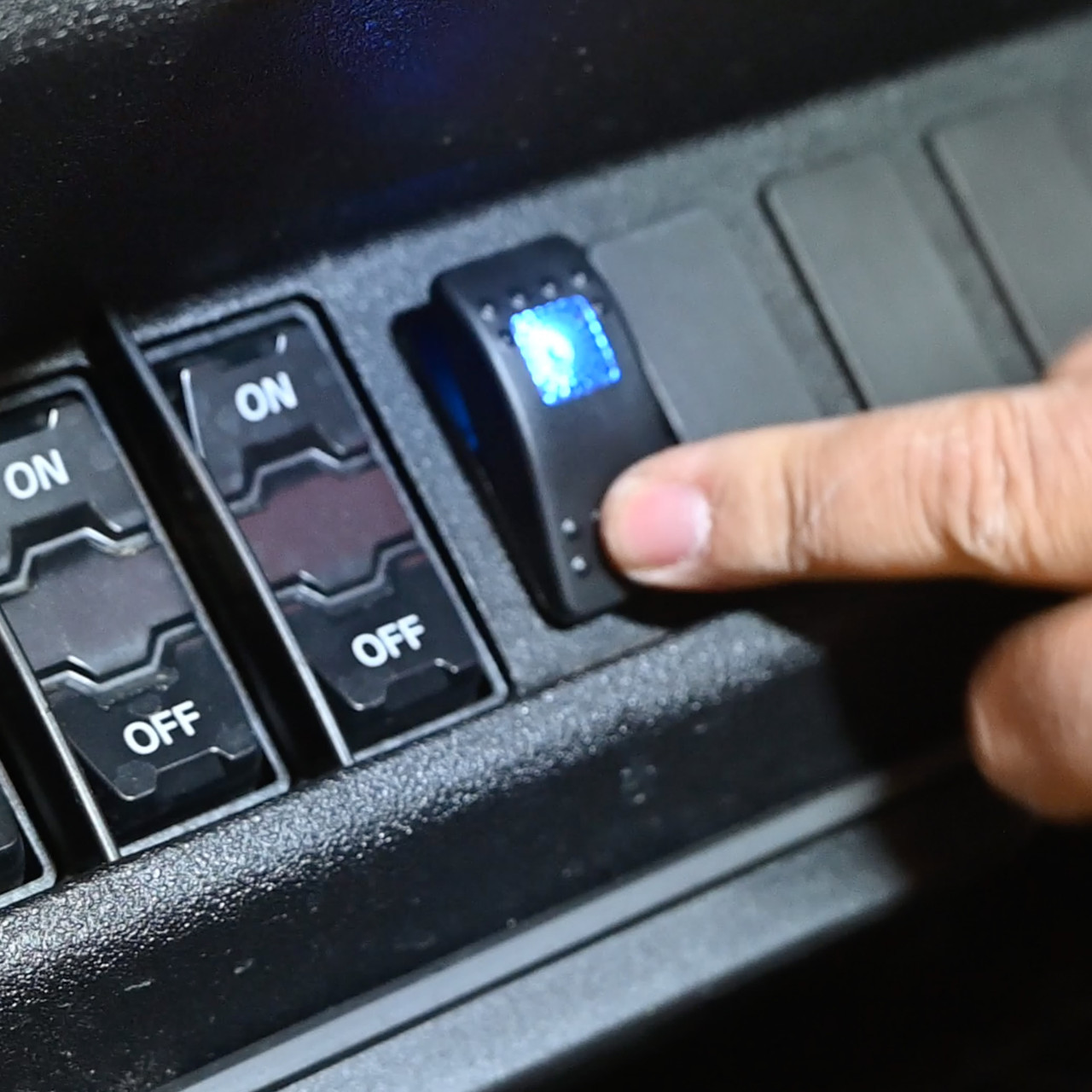

Does your Honda Pioneer have a heat problem? DEI now offers an auxiliary fan system to help evacuate the hot air that gets trapped in the engine compartment on the Honda® Pioneer SxS. Riders will welcome the cooling relief while slow going on trail rides or working on their property. The fan is manually operated with an on/off switch, so you can turn it on or off as needed. The compact 3 marine grade fan quickly draws down the excessive heat generated by the engine and exhaust system. The kit includes an OEM-quality, plug and play wire harness, so no cutting or splicing is need for installation.
Features & benefits
- Evacuates trapped hot air
- Marine grade fan assembly
- No cutting or splicing required
- Compatible with Honda Pioneer 2015-2021
- Does not fit California AC models or models equipped with an Evap Emissions Cannister
Information
Does your Honda Pioneer have a heat problem? DEI now offers an auxiliary fan system to help evacuate the hot air that gets trapped in the engine compartment on the Honda® Pioneer SxS. Riders will welcome the cooling relief while slow going on trail rides or working on their property. The fan is manually operated with an on/off switch, so you can turn it on or off as needed. The compact 3 marine grade fan quickly draws down the excessive heat generated by the engine and exhaust system. The kit includes an OEM-quality, plug and play wire harness, so no cutting or splicing is need for installation.
Application summary
| Year | Make / model |
|---|---|
| 2016-2021 | Honda SXS1000M3 Pioneer 1000 |
| 2020-2021 | Honda SXS1000M3 Pioneer 1000 Deluxe |
| 2016-2019 | Honda SXS1000M3 Pioneer 1000 EPS |
| 2017-2019 | Honda SXS1000M3 Pioneer 1000 Limited Edition |
| 2021 | Honda SXS1000M3 Pioneer 1000 Limited Edition |
| 2021 | Honda SXS1000M3 Pioneer 1000 Special Edition |
| 2016-2021 | Honda SXS1000M5 Pioneer 1000-5 |
| 2016-2021 | Honda SXS1000M5 Pioneer 1000-5 Deluxe |
| 2017-2021 | Honda SXS1000M5 Pioneer 1000-5 Limited Edition |
| 2021 | Honda SXS1000M5 Pioneer 1000-5 Special Edition |
| 2015-2020 | Honda SXS500M2 Pioneer 500 |
| 2021 | Honda SXS520M2 Pioneer 520 |
| 2015-2021 | Honda SXS700M2 Pioneer 700 |
| 2017-2021 | Honda SXS700M2 Pioneer 700 Deluxe |
| 2015-2021 | Honda SXS700M4 Pioneer 700-4 |
| 2017-2021 | Honda SXS700M4 Pioneer 700-4 Deluxe |
Specifications
- GTIN
- 00607078024817
- Weight
- 3.25 lb
- Height
- 6.5 in
- Length
- 12.5 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- DEI
- Warehouse brand code
- DEI
- AAIA brand code
- BGWZ
Attributes
- Blade Color
- White
- Blade Material
- Plastic
- Blade Type
- Rotary
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Connector Gender
- Male Female
- Connector Quantity
- 5
- Connector Type
- Blade Terminals and Connector Housings
- Control Unit Included
- No
- Cutting Required
- No
- Electrical Or Mechanical
- Electrical
- Fan Clutch Mounted
- No
- Fan Quantity
- 1
- Fan Rotation
- Clockwise (Right)
- Flat Side On Shaft
- No
- Grade Type
- Performance
- Hard Wired Or Plug In
- Hardwired
- Includes
- One auxiliary fan kit with a manual on/off switch and all hardware included.
- Material
- Plastic / Aluminum
- Motor Included
- Yes
- Reusable
- No
- Shroud Included
- Yes
- Shroud Material
- Plastic
- Terminal Gender
- Male Female
- Title
- DEI 902481 2015-2021 Honda Pioneer Auxiliary Fan Kit with Manual Switch
- Universal Or Specific Fit
- Specific
- Wiring Harness Included
- Yes
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2016-2021 Honda SXS1000M3 Pioneer 1000; 2020-2021 Honda SXS1000M3 Pioneer 1000 Deluxe; 2016-2019 Honda SXS1000M3 Pioneer 1000 EPS; 2017-2019 Honda SXS1000M3 Pioneer 1000 Limited Edition; 2021 Honda SXS1000M3 Pioneer 1000 Limited Edition; 2021 Honda SXS1000M3 Pioneer 1000 Special Edition; 2016-2021 Honda SXS1000M5 Pioneer 1000-5; 2016-2021 Honda SXS1000M5 Pioneer 1000-5 Deluxe; 2017-2021 Honda SXS1000M5 Pioneer 1000-5 Limited Edition; 2021 Honda SXS1000M5 Pioneer 1000-5 Special Edition; 2015-2020 Honda SXS500M2 Pioneer 500; 2021 Honda SXS520M2 Pioneer 520; 2015-2021 Honda SXS700M2 Pioneer 700; 2017-2021 Honda SXS700M2 Pioneer 700 Deluxe; 2015-2021 Honda SXS700M4 Pioneer 700-4; 2017-2021 Honda SXS700M4 Pioneer 700-4 Deluxe
