Design Engineering, Inc. · 902409
Part #: 902409
UPC: 607078024091
Log in for inventory
Notify me when this item is in stock.

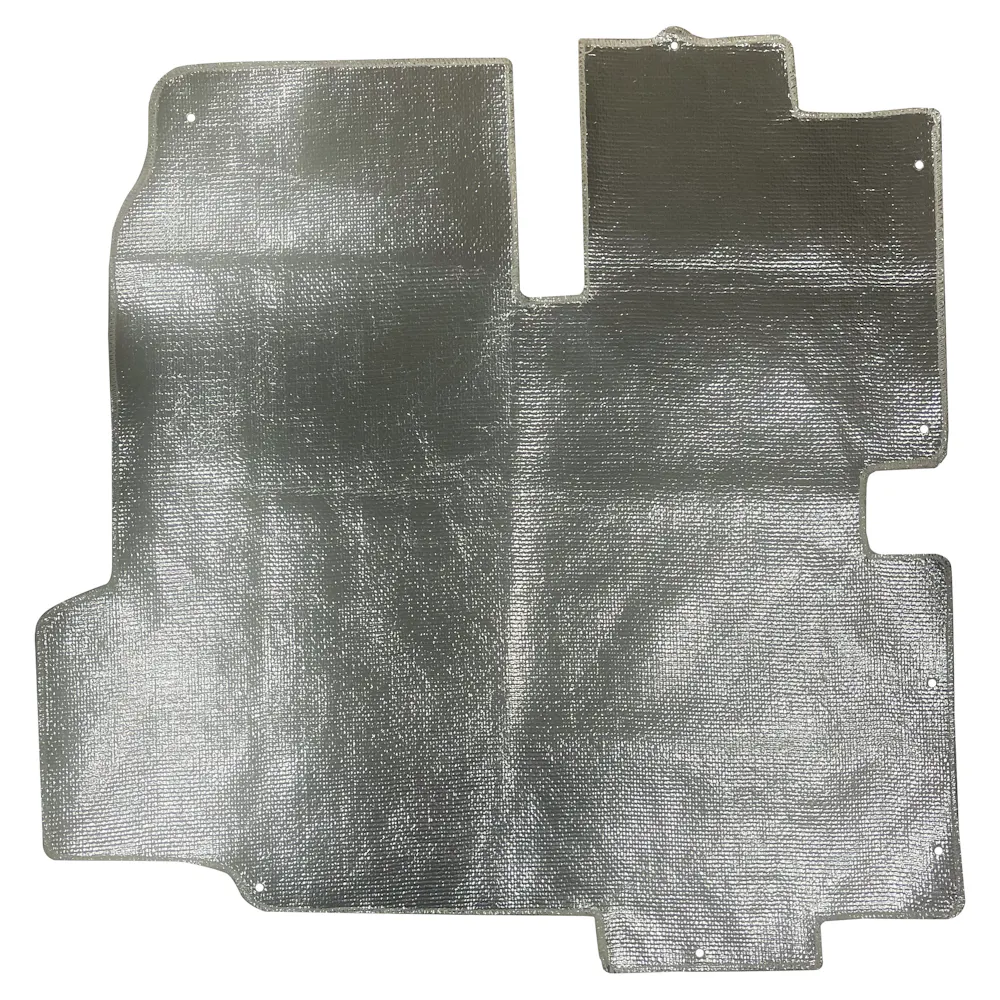

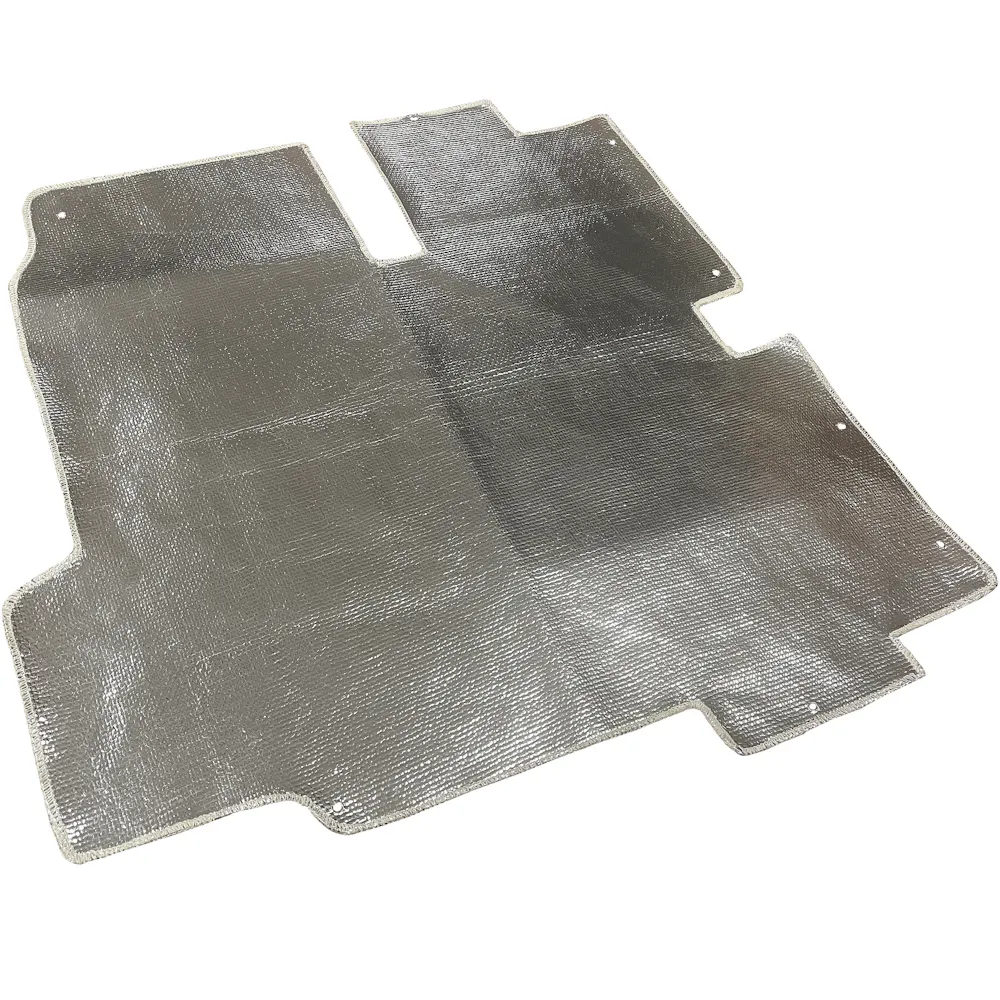

Description: Heat Shield Kit, Honda Pioneer 2022-2025; One multi-piece pre-cut insulation kit.
Description:
This part number superseded 010654B100.
Description
Tired of feeling the burn from your Honda Pioneer? DEI now offers a heat shield kit that reduces the seat temperatures. This kit will increase the riding comfort for you and your whole crew.
Features & benefits
- Sewn finished edges for durability

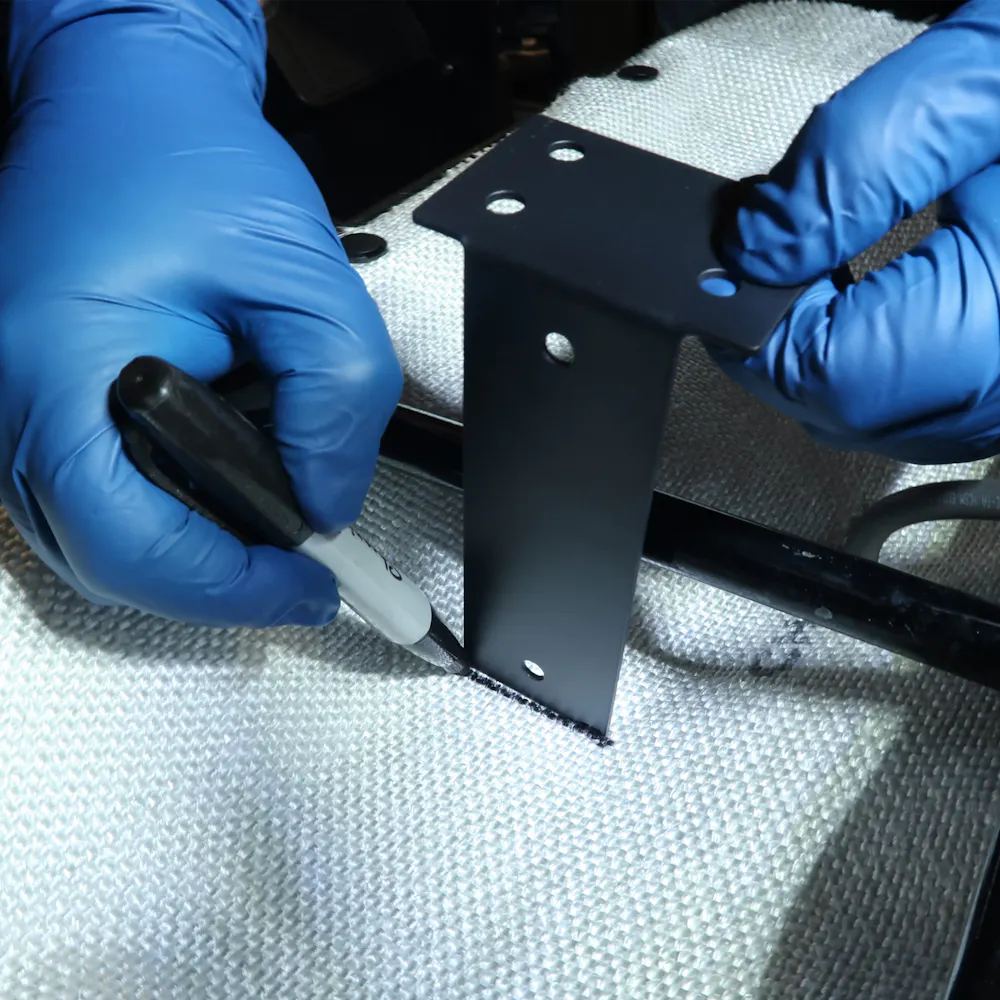

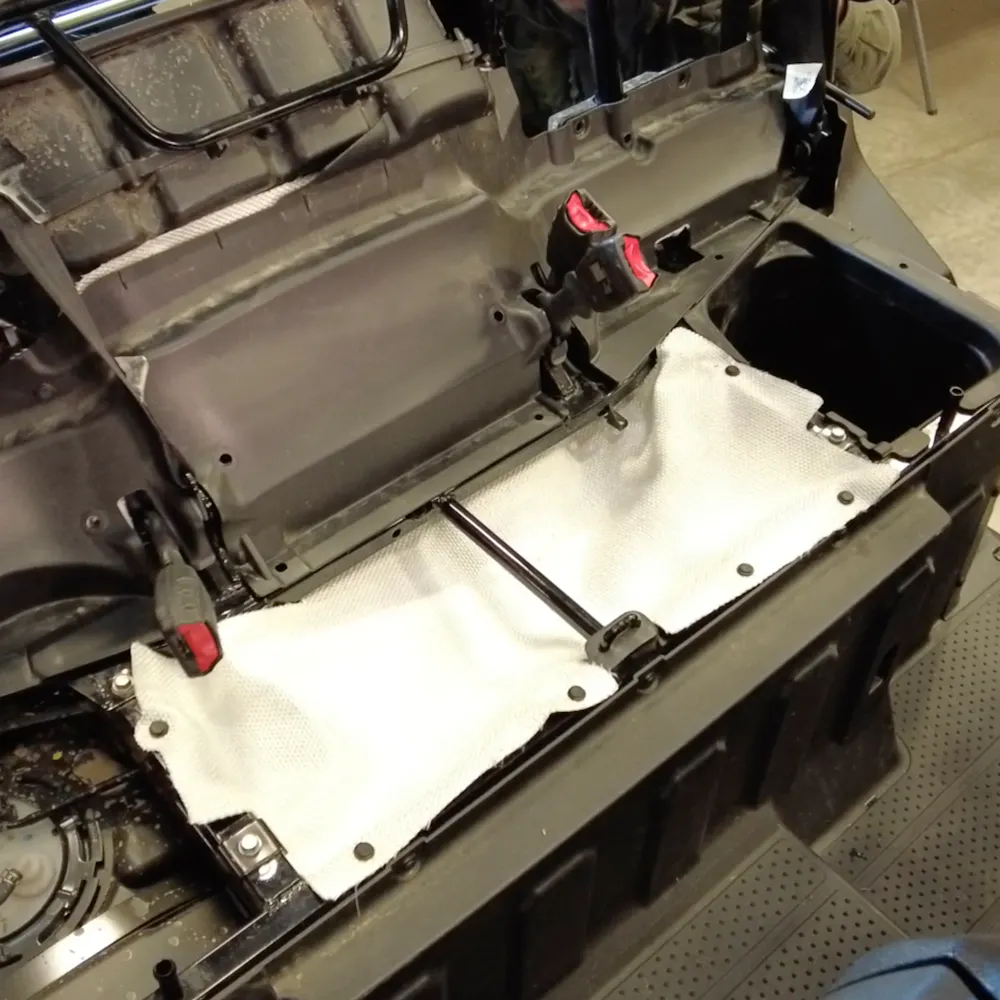

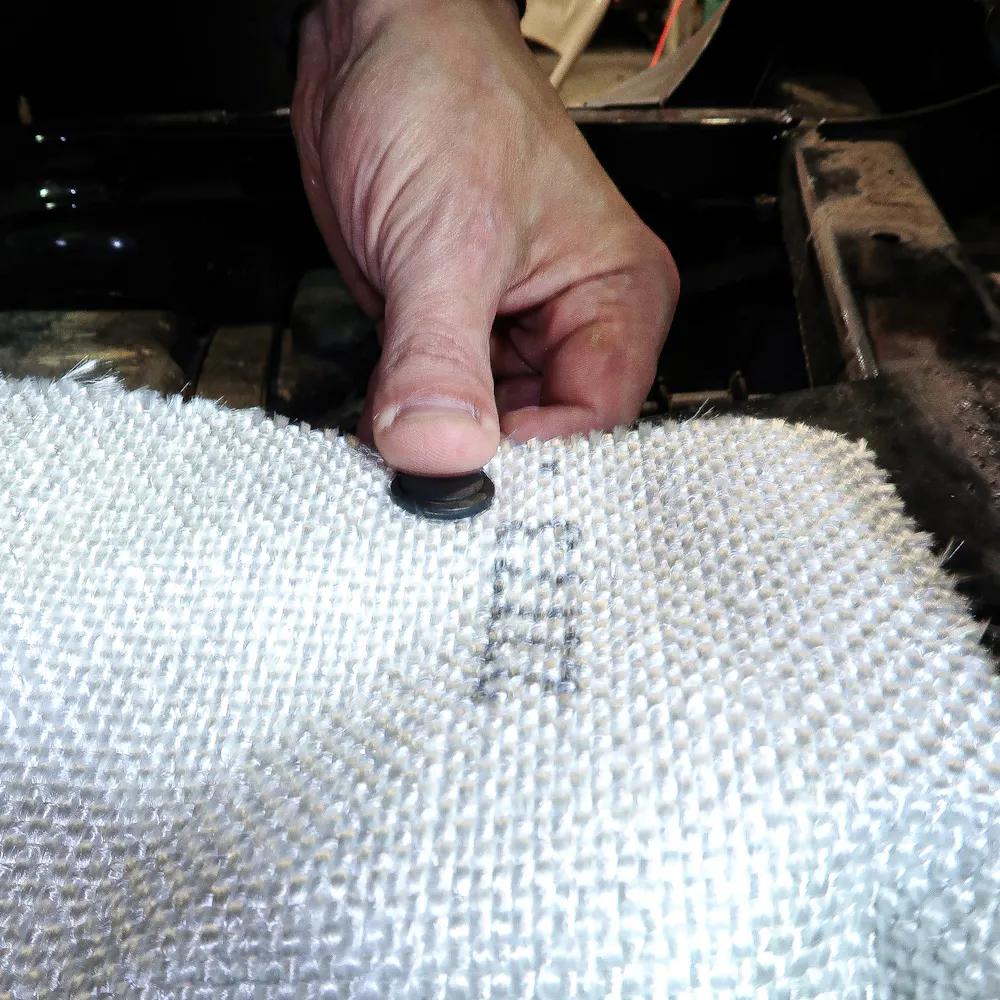

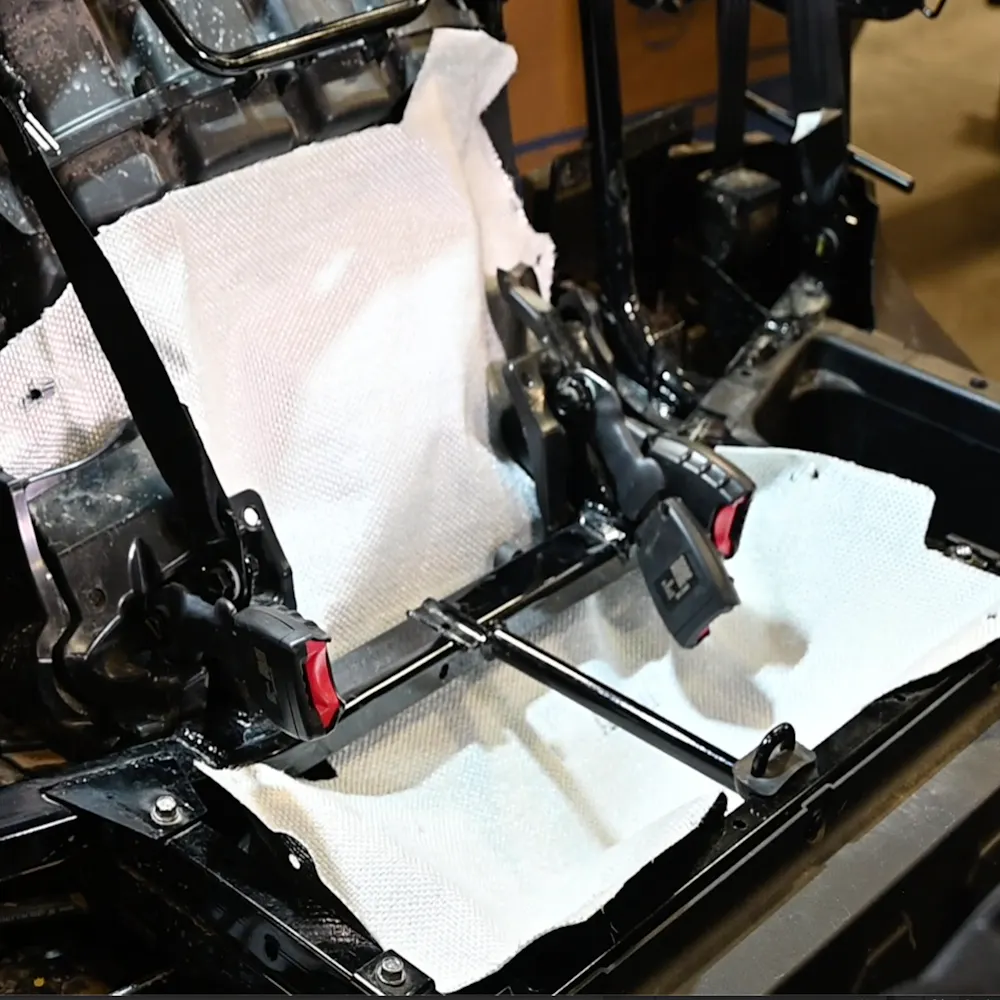

- Installs under the seat base and middle panel to block heat from the engine
- Average install time is 1.5-2 hours
- Easily removable for service
- Kit includes: Front seat heat shields and installation hardware
- Compatible with under seat storage trays and bins
- Fits 2022-2025 Honda Pioneer 1000-3, 1000-5, and 1000-6 models
- Does not fit California AC models or models equipped with an Evap Emissions Cannister
- On 1000-6 models, the heat shield installs under the rear seat.
- Blocks excessive heat from the engine bay
- Lowers temperatures on the seat and middle plastic panel
- Made from .060" thick glass fiber mat with an aluminum reflective surface
- Withstands up to 1200F direct heat
Information
Tired of feeling the burn from your Honda Pioneer? DEI now offers a heat shield kit that reduces the seat temperatures. This kit will increase the riding comfort for you and your whole crew.
Application summary
| Year | Make / model |
|---|---|
| 2022-2024 | Honda SXS1000M5 Pioneer 1000-5 Deluxe |
| 2022-2024 | Honda SXS1000M5 Pioneer 1000-5 Forest |
| 2022-2024 | Honda SXS1000M5 Pioneer 1000-5 Trail |
| 2023-2024 | Honda SXS10M6 Pioneer 1000-6 Deluxe Crew |
Specifications
- GTIN
- 00607078024091
- Weight
- 2 lb
- Height
- 3 in
- Length
- 14 in
- Width
- 14 in
- Life cycle
- Available to Order
- AAM brand code
- DEI
- Warehouse brand code
- DEI
- AAIA brand code
- BGWZ
Attributes
- Adhesive Backing
- No
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Configuration
- Multi Piece
- Cutting Required
- No
- Includes
- One multi-piece pre-cut insulation kit.
- Reusable
- No
- Title
- DEI 902409 '22-'23 Honda Pioneer 1000-3, 1000-5, 1000-6 Under Seat Heat Shield Kit
- Universal Or Specific Fit
- Specific
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2022-2024 Honda SXS1000M5 Pioneer 1000-5 Deluxe; 2022-2024 Honda SXS1000M5 Pioneer 1000-5 Forest; 2022-2024 Honda SXS1000M5 Pioneer 1000-5 Trail; 2023-2024 Honda SXS10M6 Pioneer 1000-6 Deluxe Crew
