Design Engineering, Inc. · 50560

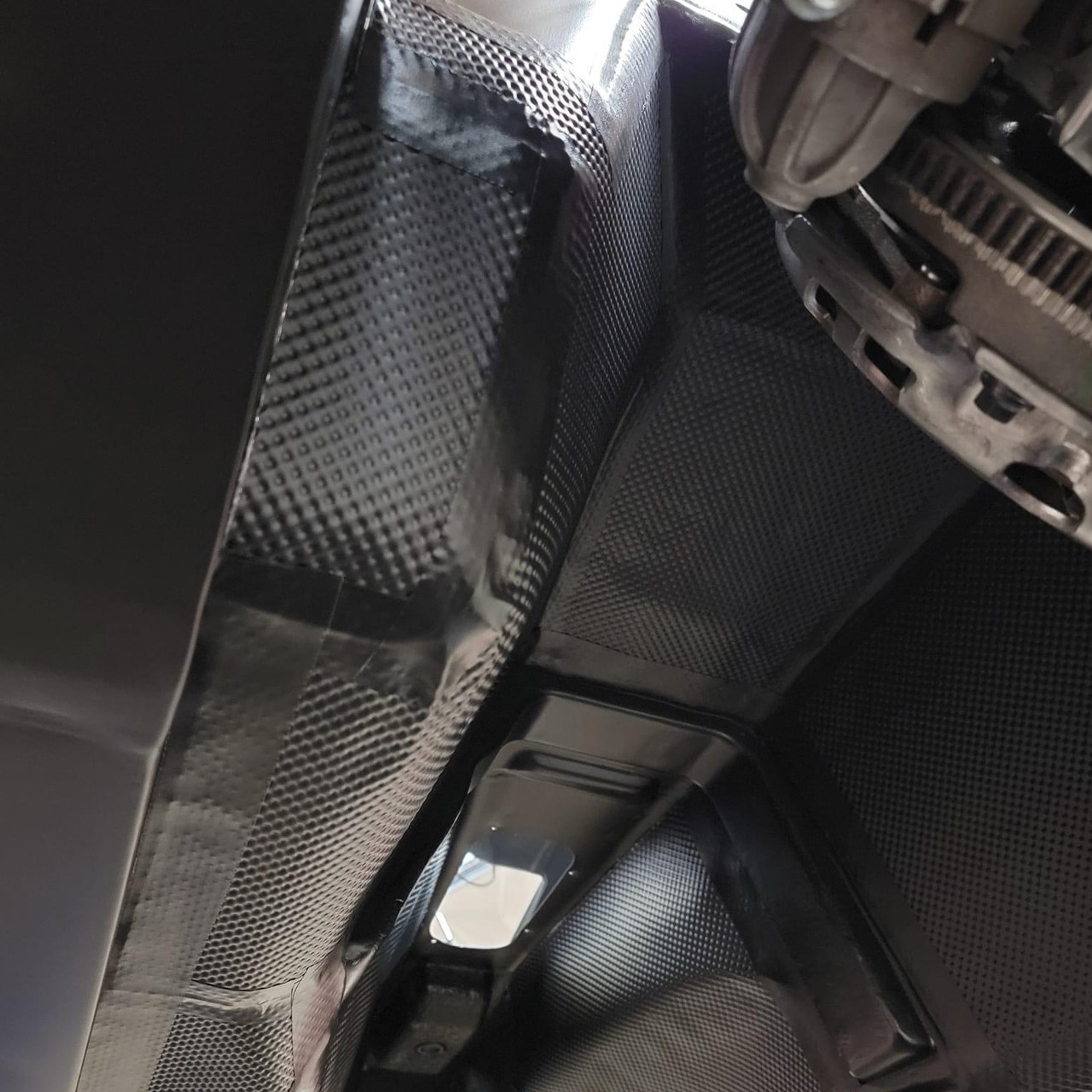

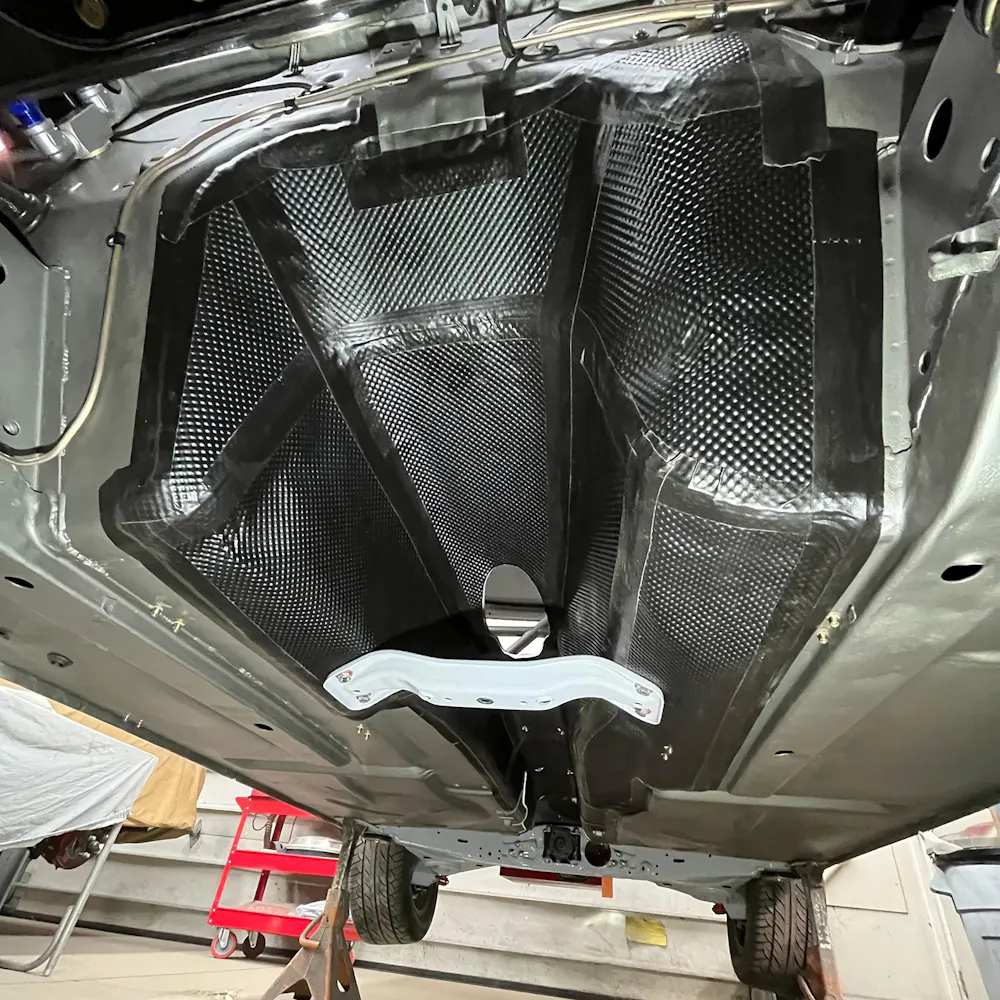

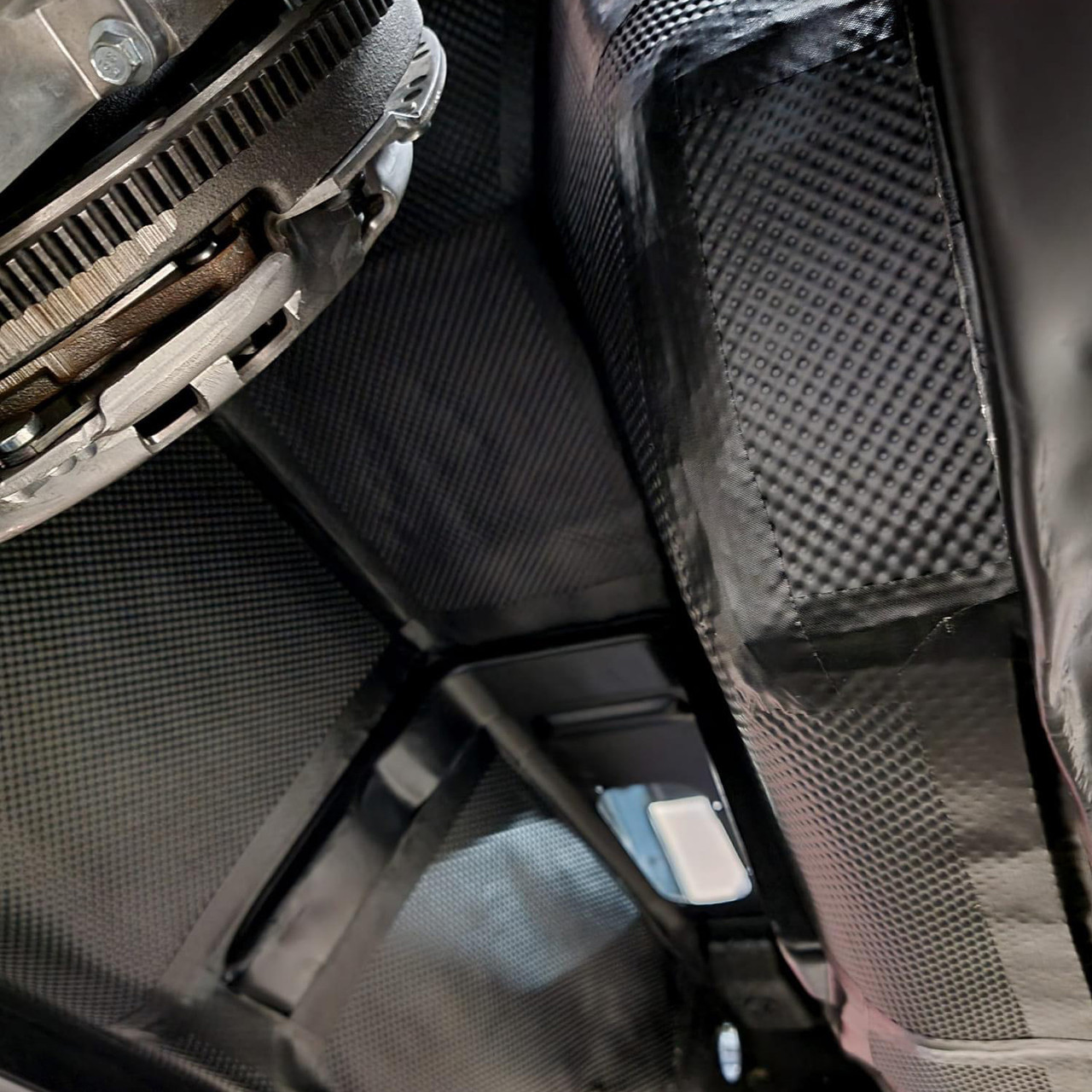

Floor & Tunnel Shield II™ solves the problem of needing a high heat barrier to block heat from any source intruding into interiors and damaging components and electronics. Use as a barrier to reflect and insulate from any heat source. Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor & Tunnel Shield II limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 mil aluminum face bonded to 1/8" composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor & Tunnel Shield II withstands up to 1750°F. The adhesive side holds past 450°F. Its improved multifaceted modern aluminum surface offers improved reflection and rigidity and allows for ease of installation - aluminum side must face the heat source. At only 3/16" thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fiber backing, Floor & Tunnel Shield II is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound. Floor & Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. Multiple uses include: fire walls, under hoods, transmission tunnels, floor pans, fuel cells, and exterior under vehicle locations - anywhere to reflect damaging heat.

New Black Floor and Tunnel Shield solves the problem of blocking engine and exhaust heat while wanting a great, flexible, black finish. With a proprietary high temperature black coating, Black Floor and Tunnel Shield controls heat from getting into interiors and protects components from damage. Aggressive adhesive backing makes installation easy. Flexible - easily shapes to firewalls, trans tunnels, floors, and more. Constructed with an embossed 10 mil aluminum face bonded to 1/8 in. composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor and Tunnel Shield II withstands up to 1750F. The adhesive side holds past 450F. Proprietary high temperature black coating Wind and water will not affect adhesive Minimum clearance required, only 3/16 in. thick Easily shape, trim, peel and stick Aggressive self-adhesive backing DO NOT apply directly to exhaust components.
