Design Engineering, Inc. · 10950
Part #: 10950
UPC: 607078109507
Log in for inventory
Notify me when this item is in stock.

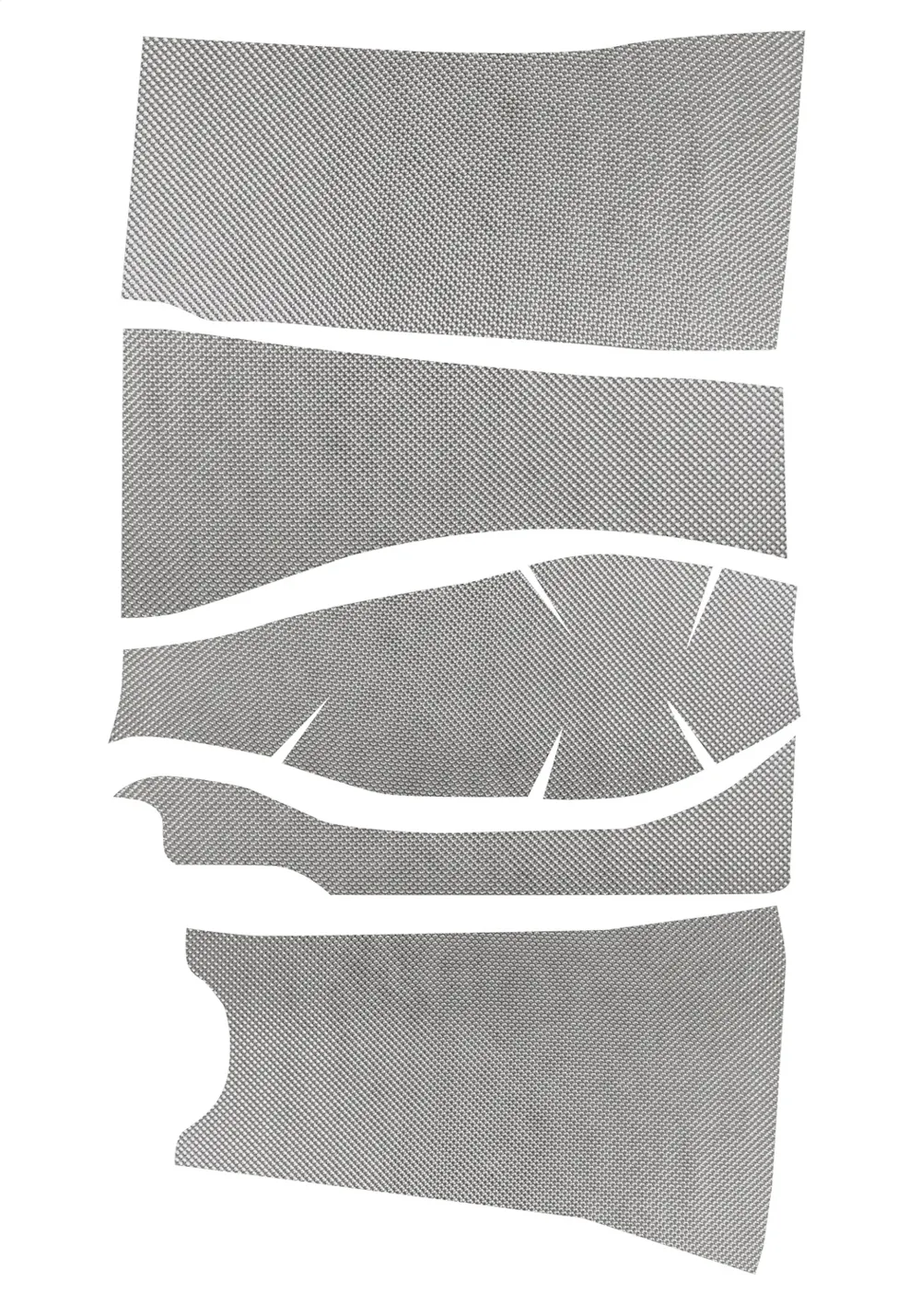

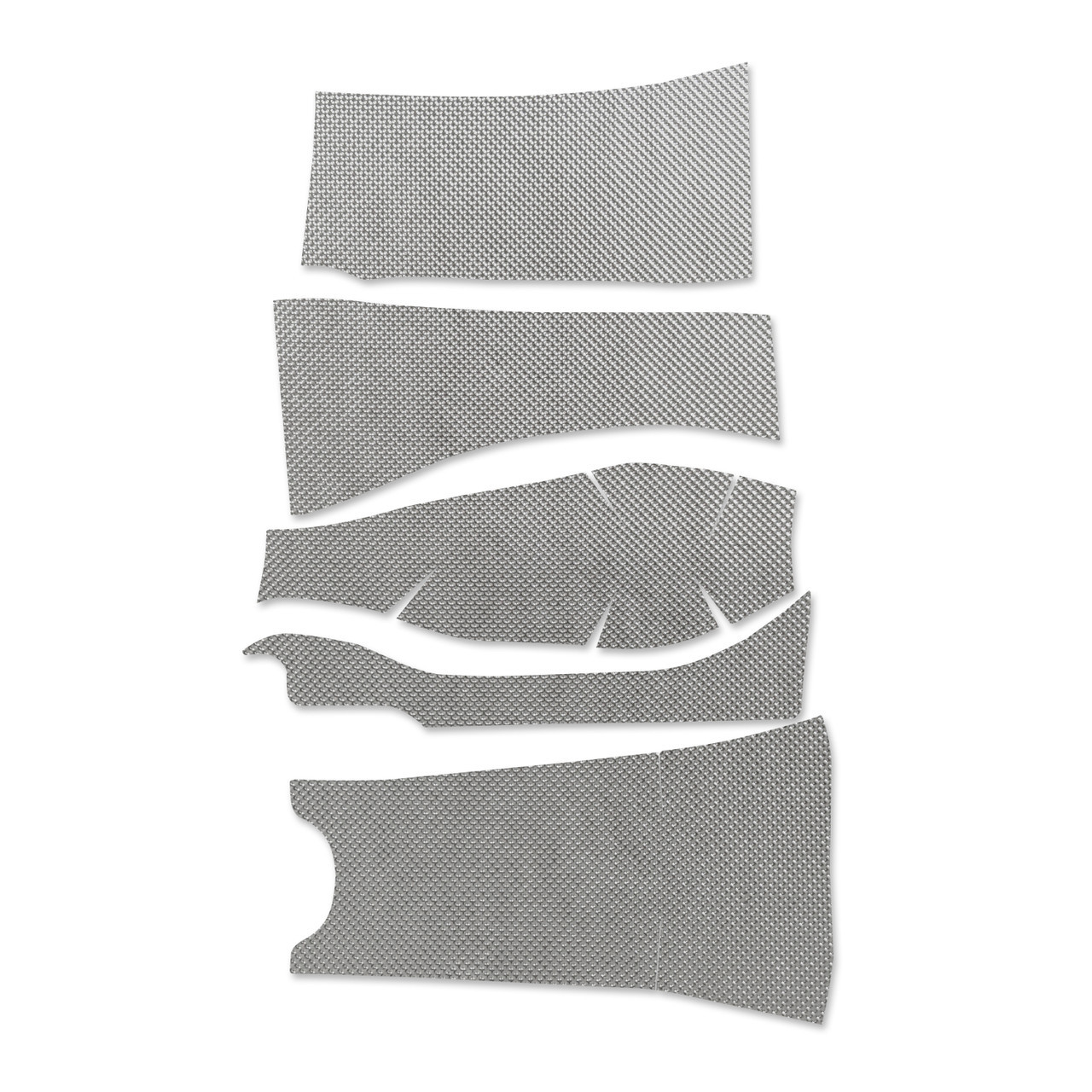

Description: Transmission Tunnel Shield Kit Mazda Miata NC 2006-2015; A 5 piece pre-cut heat shield kit plus one 1-1/2 inch by 15 foot roll of Cool Tape.
Description:
This part number superseded 040202.
Description

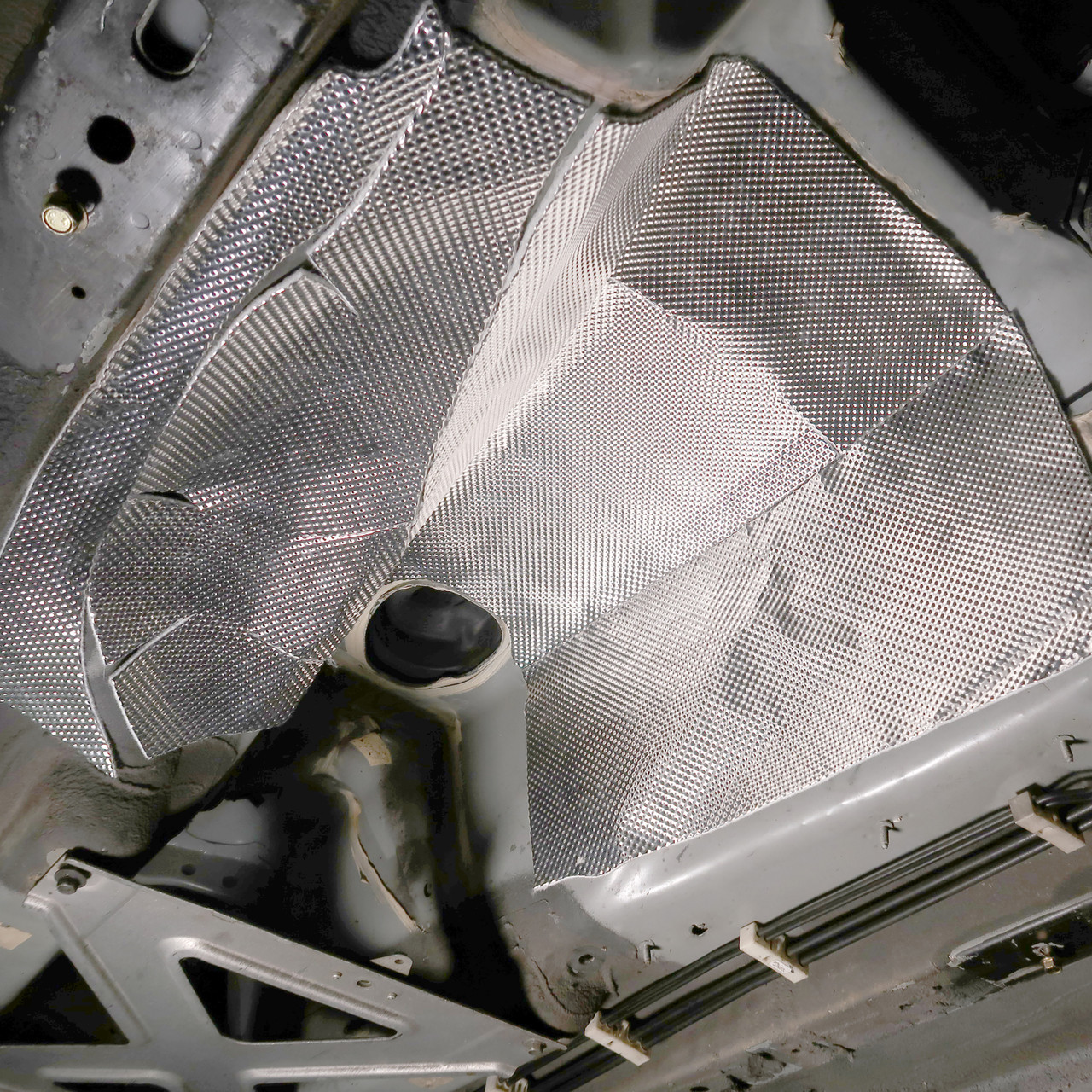

The Miata Transmission Tunnel Heat Shield Kit solves the problem of hot interiors in NC Miata's. Direct replacement for the factory heat shield that can get damaged or even missing. The transmission must be removed to install. The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16 in. thick for minimal clearance and rated to handle 1750F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above of the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2 in. w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions. Reduce interior heat for an improved & cooler driving experience Light weight precision die cut pieces for a perfect fit Withstands direct heat up to 1750F (954C) Super strong, self-adhesive backing Peel, position & apply for an easy and simply installation Replaces missing or damaged factory heat shield. KIT INCLUDES: 5 Custom cut pieces 1 Roll heat reflective tape Instructions
Features & benefits
- Transmission Tunnel Heat Shield
Information
The Miata Transmission Tunnel Heat Shield Kit solves the problem of hot interiors in NC Miata's. Direct replacement for the factory heat shield that can get damaged or even missing. The transmission must be removed to install. The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16 in. thick for minimal clearance and rated to handle 1750F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above of the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2 in. w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions. Reduce interior heat for an improved & cooler driving experience Light weight precision die cut pieces for a perfect fit Withstands direct heat up to 1750F (954C) Super strong, self-adhesive backing Peel, position & apply for an easy and simply installation Replaces missing or damaged factory heat shield. KIT INCLUDES: 5 Custom cut pieces 1 Roll heat reflective tape Instructions
Specifications
- GTIN
- 00607078109507
- Weight
- 2.5 lb
- Height
- 2 in
- Length
- 13 in
- Width
- 13 in
- Life cycle
- Available to Order
- AAM brand code
- DEI
- Warehouse brand code
- DEI
- AAIA brand code
- BGWZ
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Configuration
- Multi Piece
- Cutting Required
- No
- Includes
- A 5 piece pre-cut heat shield kit plus one 1-1/2 inch by 15 foot roll of Cool Tape.
- Reusable
- No
- Title
- DEI 10950 Miata Trans Tunnel Heat Shield Kit
- Universal Or Specific Fit
- Specific
- Universal of Specific Fit
- Specific
Fitment status
This product is universal and will fit your application.
