Design Engineering, Inc. · 10835
Part #: 10835
UPC: 607078108357
Loading...
Notify me when this item is in stock.

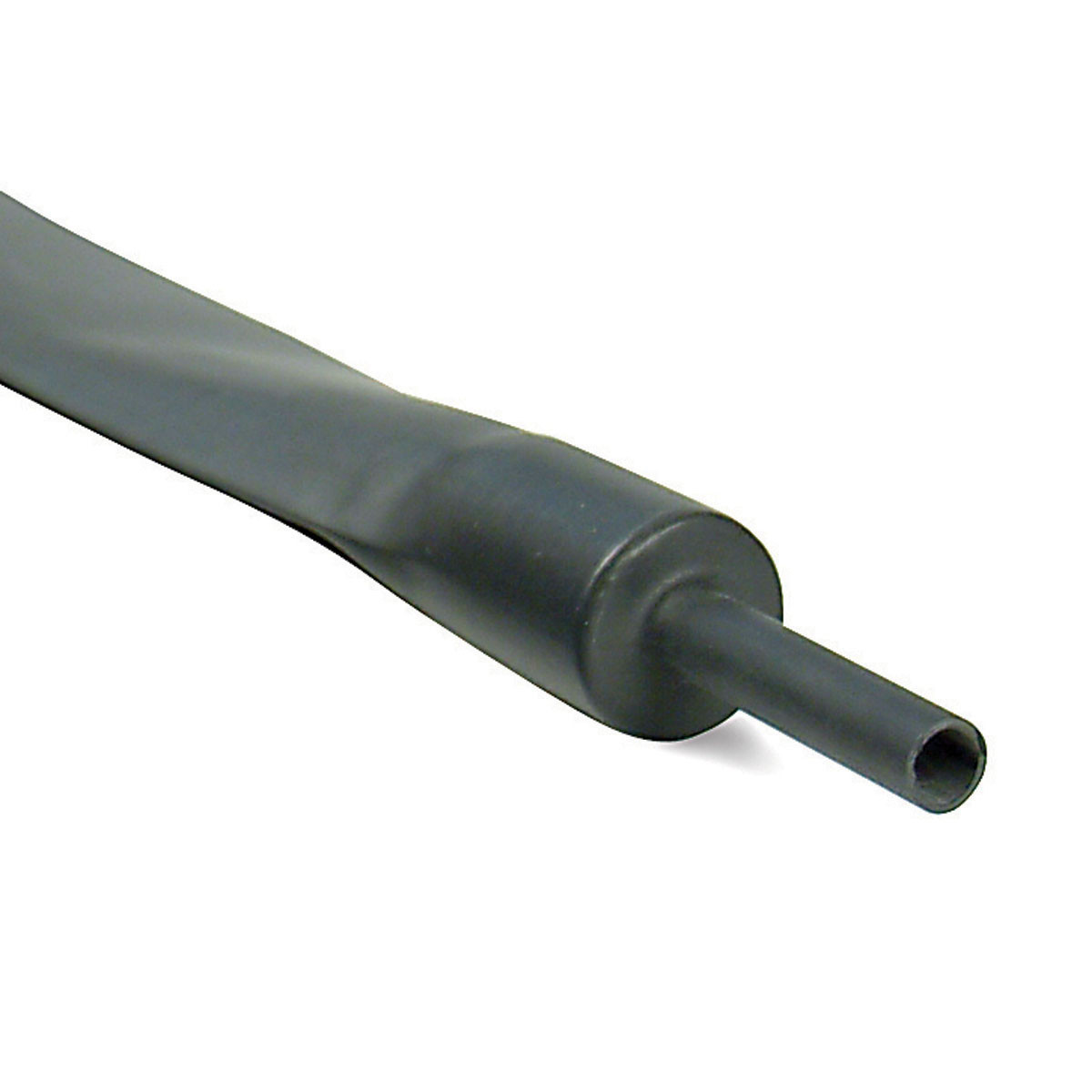

Description: Hi-Temp Shrink Tube 24mm x 48in Black; One 48 inch length of 24mm heat shrink tubing.
Description:
This part number superseded 010875.
Description

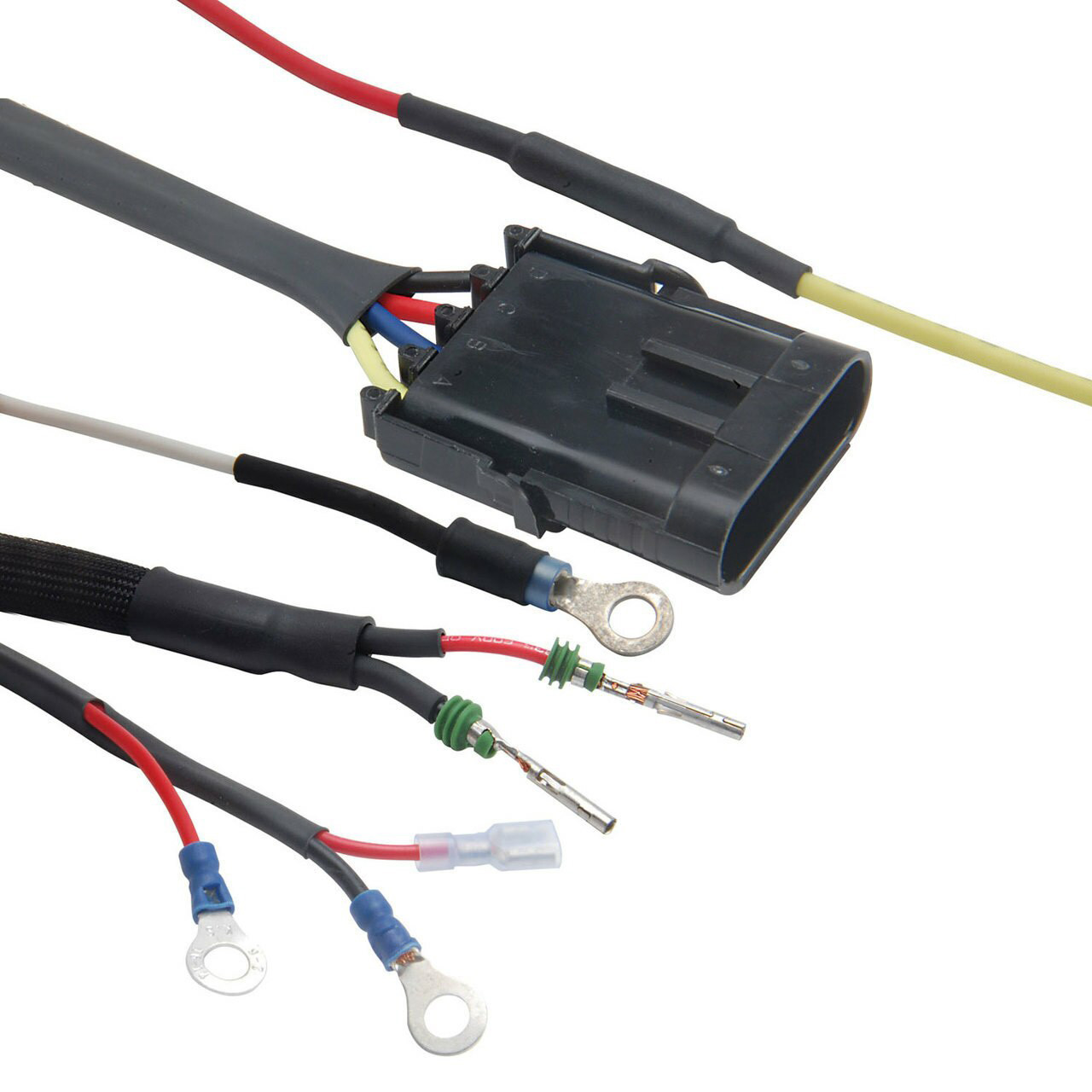

Professional grade military spec flexible polyolefin tubing provides excellent electrical insulation, protection from dirt, dust, solvents, and foreign materials as well as providing strain relief. Over expanded tubing easily fits over the end of wires and connectors and shrinks down to 33% of it's original diameter for a snug water-tight protective seal without a reduction in the tube's original length.Hi-Temp Shrink Tubes can be used to insulate wires, wire splicing, connections, terminals and meets the material functional properties of Military Spec DTL-23053DO NOT apply directly to exhaust components.
Features & benefits
- Use To Insulate Wires/Connections/Terminals/Wire Splitting
- Flame Retardant
- Alternate To Plastic Ties And Tape
- 3-1 Shrink Ratio
- Operating Temp Range -67Degrees F To 275Degrees F
- Thick Wall Construction And Remains Flexible
- Max Operating Temp 394 Degrees F For Short Duration
- Easy To Install Apply At 120 To 180 Degrees F Using Heat Gun
- Offers Clean Professional Look
- Meets MIL Spec DTL-23053/5C
Information
Professional grade military spec flexible polyolefin tubing provides excellent electrical insulation, protection from dirt, dust, solvents, and foreign materials as well as providing strain relief. Over expanded tubing easily fits over the end of wires and connectors and shrinks down to 33% of it's original diameter for a snug water-tight protective seal without a reduction in the tube's original length.Hi-Temp Shrink Tubes can be used to insulate wires, wire splicing, connections, terminals and meets the material functional properties of Military Spec DTL-23053DO NOT apply directly to exhaust components.
Specifications
- GTIN
- 00607078108357
- Weight
- 0.18 lb
- Height
- 2 in
- Length
- 7.25 in
- Width
- 5.25 in
- Life cycle
- Available to Order
- AAM brand code
- DEI
- Warehouse brand code
- DEI
- AAIA brand code
- BGWZ
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Case Included
- No
- Color
- Black
- ID Imperial
- 15/16 inch
- ID Metric
- 24 mm
- Includes
- One 48 inch length of 24mm heat shrink tubing.
- Length
- 1.5
- Material
- Heat Shrink Tubing
- Maximum Diameter
- 12
- Radiant Heat Resistance
- 275°F
- Title
- DEI 10835 Hi-Temp Shrink Tubes 24mm x 48" 010835
- Tube Wall Thickness
- 1
- Waterproof
- Yes
Fitment status
This product is universal and will fit your application.
