Design Engineering, Inc. / 10672

Design Engineering, Inc. 10672

Part #: 10672
UPC: 607078106728

Loading...
Notify me when this item is in stock.

Brand: Design Engineering, Inc. Series: Vapor Block Sleeving

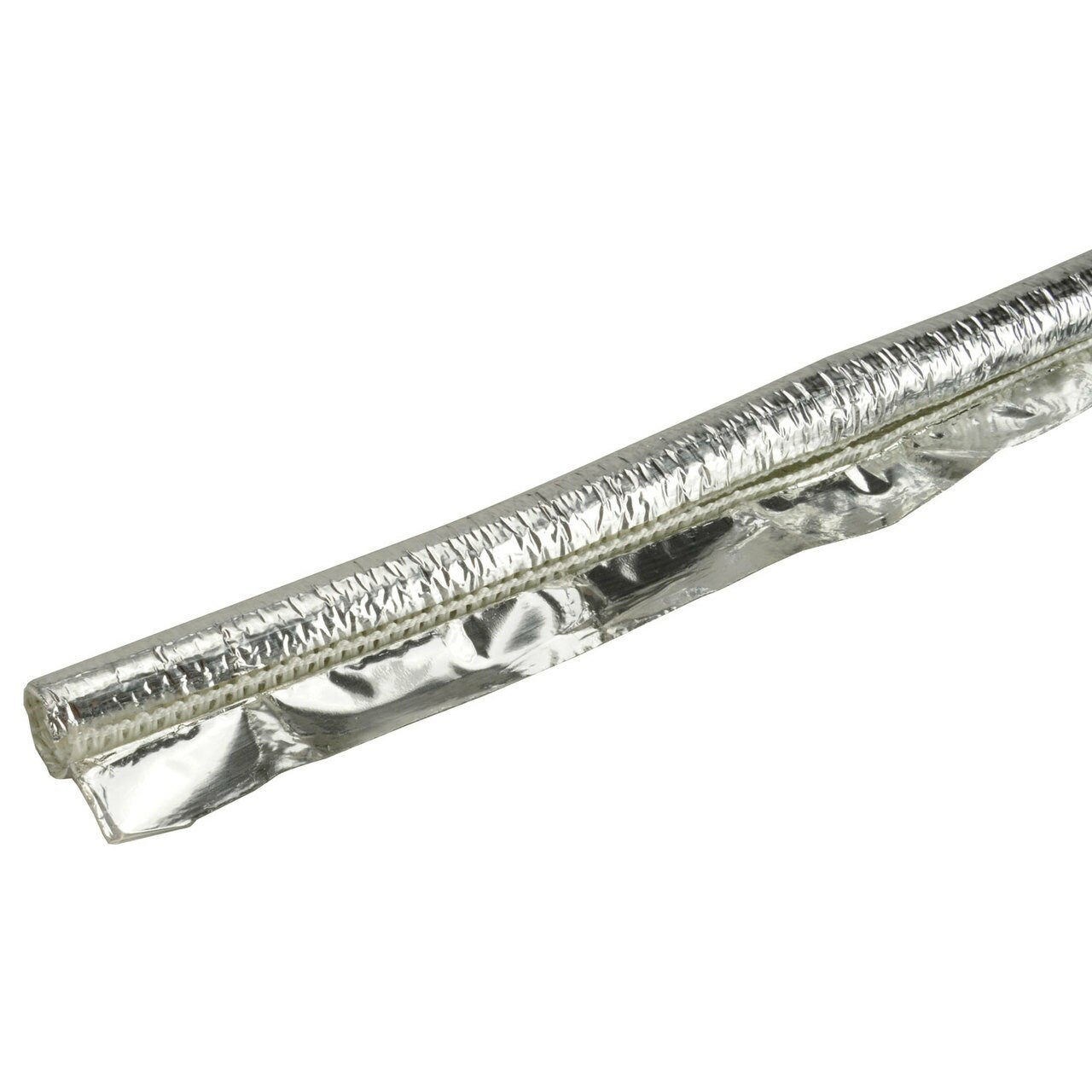

Description: Vapor Block Fuel Line Sleeve 1in x 36in; One 36 inch length of Vapor Block with a 1 inch inside diameter.

Description:

Log in to order

This part number superseded 010705.

Proposition 65 WarningCancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

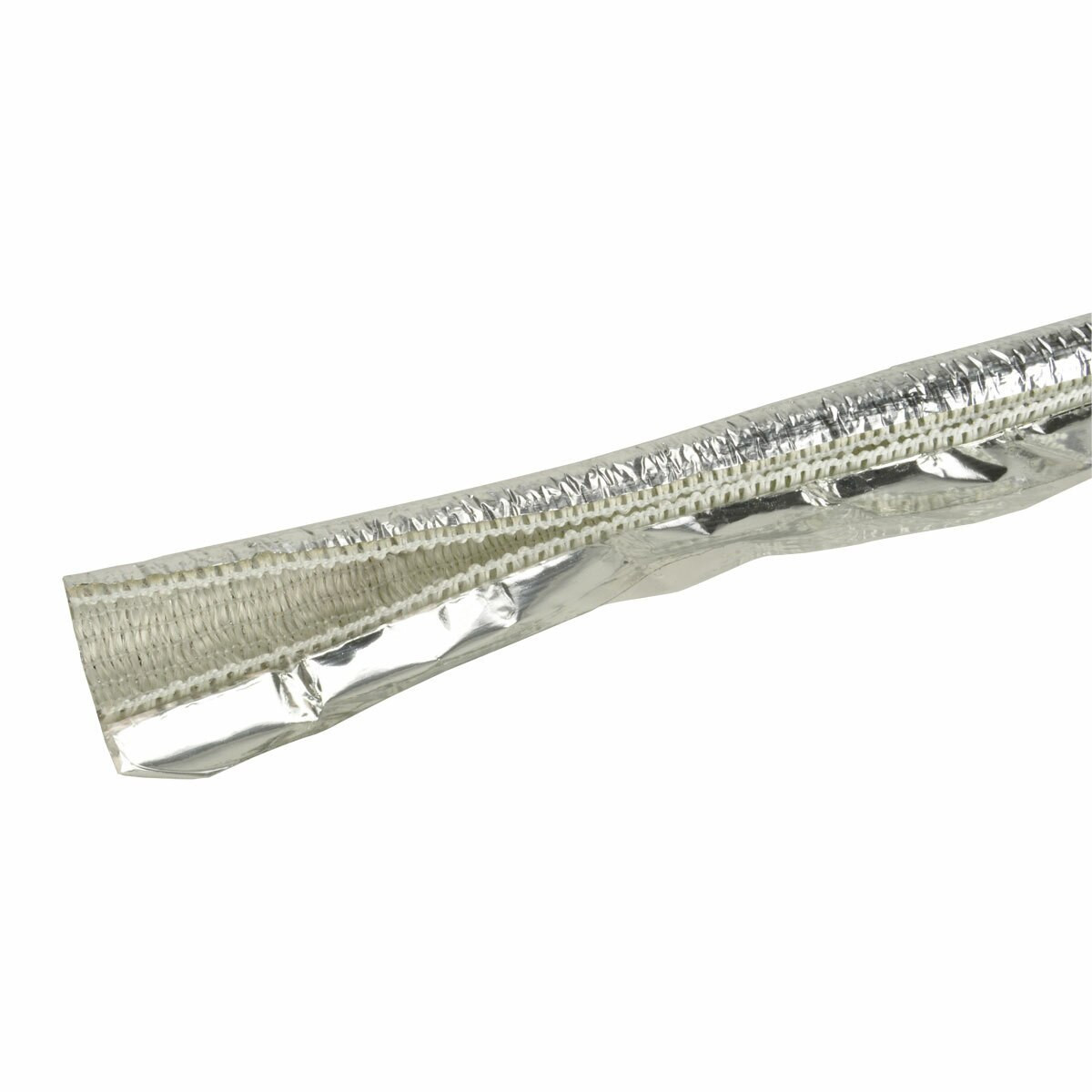

Vapor Block(TM) solves the problem of fuel and other fluids boiling from extreme heat and causing a vapor lock situation. Prevent rough idling and difficult starting caused by vapor lock with DEI Vapor Block(TM). Vapor Block(TM) fuel line sleeve was specifically developed to prevent vapor lock in fuel systems by greatly reducing heat in the line to keep fuel cooler and below boiling. Vapor Block(TM) installs easily with a split design and adhesive flap. There is no need to disconnect the fuel line to install. Simply wrap Vapor Block(TM) around the line, remove the adhesive liner and press the adhesive flap into place. Made of glass fiber and polyester laminated to an aluminum outer layer, Vapor Block(TM) offers excellent long lasting thermal protection without paying for expensive repairs or modifications. 5DO NOT apply directly to exhaust components.

Features & benefits

  • Split Design With Built In Adhesive Flap
  • Use On Fuel Lines To Prevent Vapor Lock
  • Easy To Cut To Size
  • Can Be Used On Any Cable/Hose Or Line For Added Heat Protection
  • 1 in 25mm I.D. x 36 in

Information

Vapor Block(TM) solves the problem of fuel and other fluids boiling from extreme heat and causing a vapor lock situation. Prevent rough idling and difficult starting caused by vapor lock with DEI Vapor Block(TM). Vapor Block(TM) fuel line sleeve was specifically developed to prevent vapor lock in fuel systems by greatly reducing heat in the line to keep fuel cooler and below boiling. Vapor Block(TM) installs easily with a split design and adhesive flap. There is no need to disconnect the fuel line to install. Simply wrap Vapor Block(TM) around the line, remove the adhesive liner and press the adhesive flap into place. Made of glass fiber and polyester laminated to an aluminum outer layer, Vapor Block(TM) offers excellent long lasting thermal protection without paying for expensive repairs or modifications. 5DO NOT apply directly to exhaust components.

Specifications

GTIN
00607078106728
Weight
0.3 lb
Height
2.5 in
Length
10 in
Width
3.75 in
Life cycle
Available to Order
AAM brand code
DEI
Warehouse brand code
DEI
AAIA brand code
BGWZ

Attributes

California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color
Chrome Finish
Direct Heat Resistance
340°F
ID Imperial
1 inch
ID Metric
25 mm
Includes
One 36 inch length of Vapor Block with a 1 inch inside diameter.
Inside Diameter
25
Length
36
Material
Glass Fiber/Polyester Laminated/Aluminum
Max Temperature Rating
N/A
Product Length
3 ft.
Size
1.000 in.
Style
Carbureted
Title
DEI 10672 Vapor Block Fuel Line Sleeve 1" (25mm) I.D. x 36" 010672
Width
1

Fitment status

This product is universal and will fit your application.
