Design Engineering, Inc. / 10393

Design Engineering, Inc. 10393

Part #: 10393
UPC: 607078103932

Loading...
Notify me when this item is in stock.

Brand: Design Engineering, Inc. Series: Reflect-A-Gold Heat Reflective Sheets

Description: Reflect-A-GOLD 24in x 24in; One 24 inch by 24 inch sheet of Reflect-A-Gold.

Description:

Log in to order

This part number superseded 010441.

Proposition 65 WarningCancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

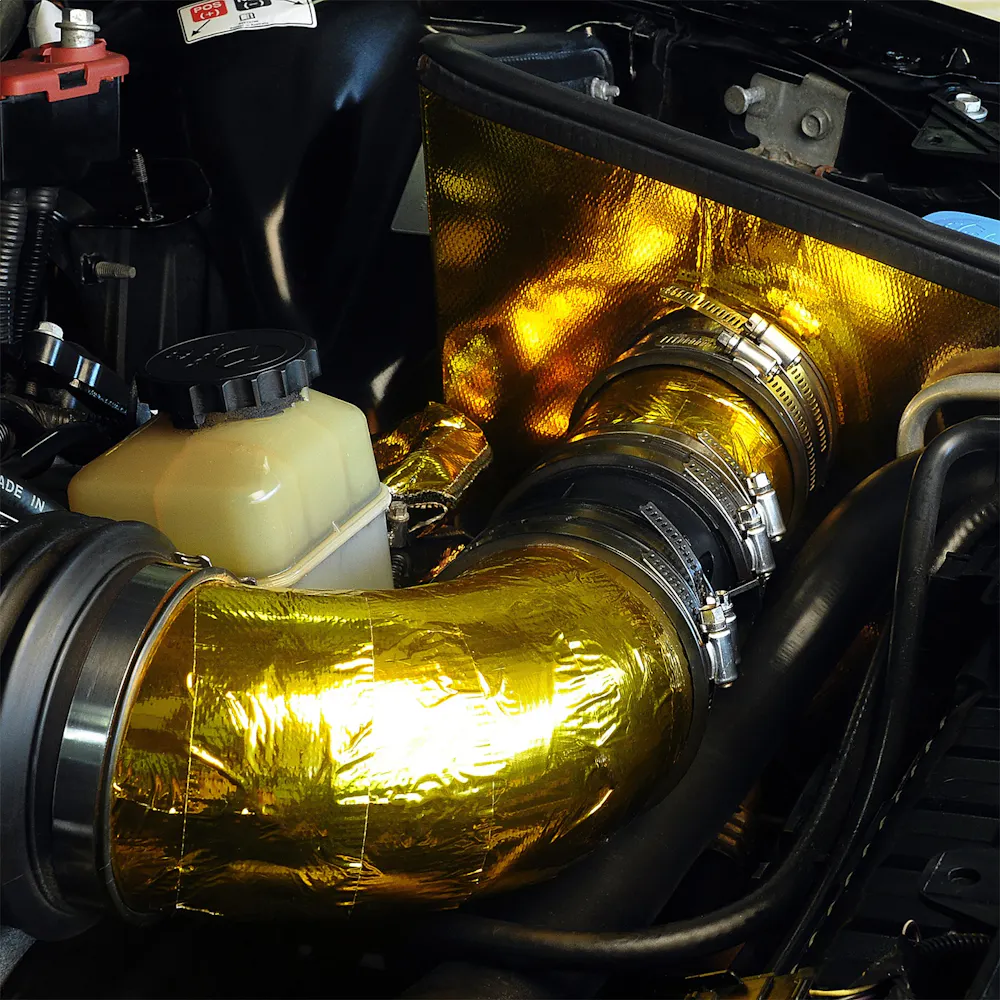

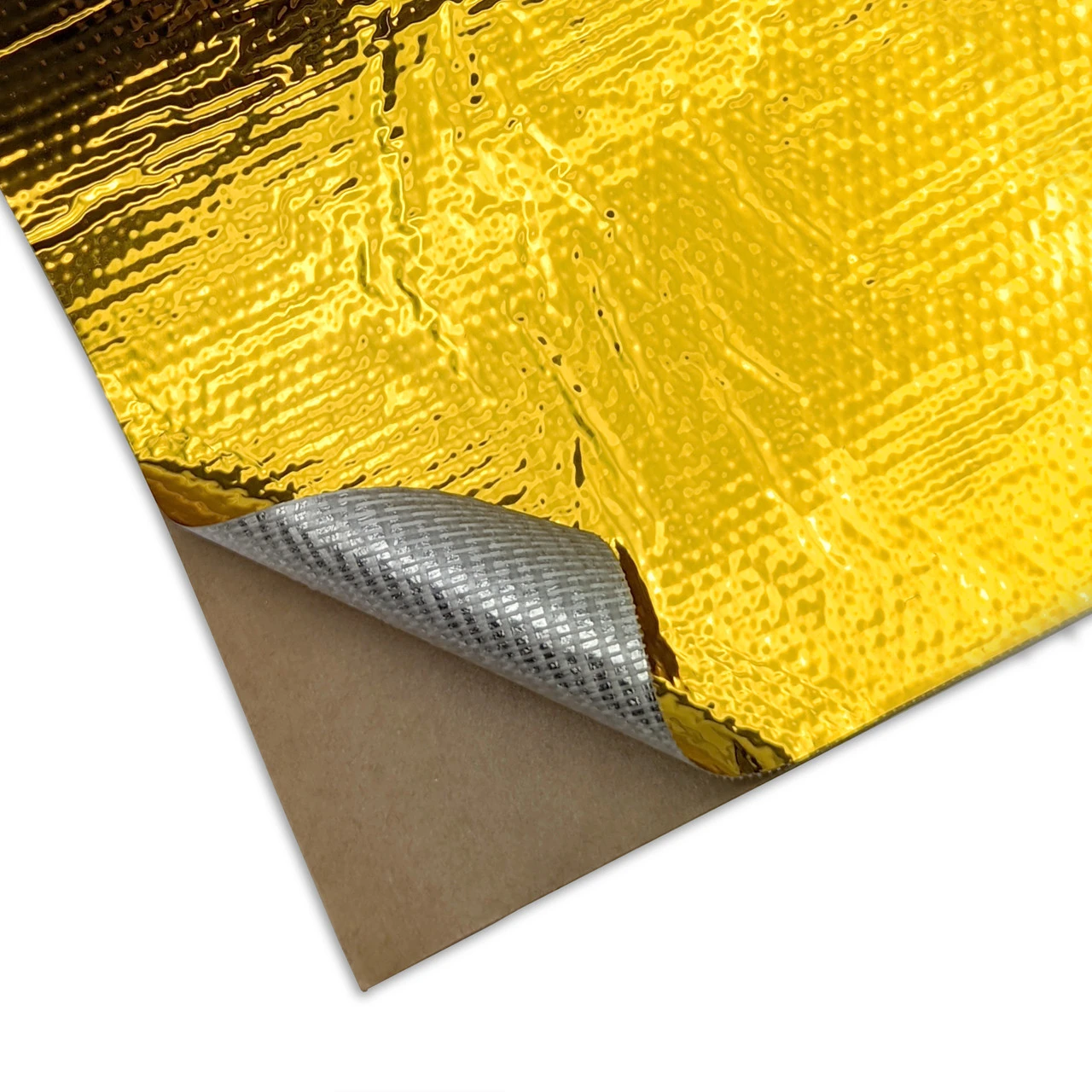

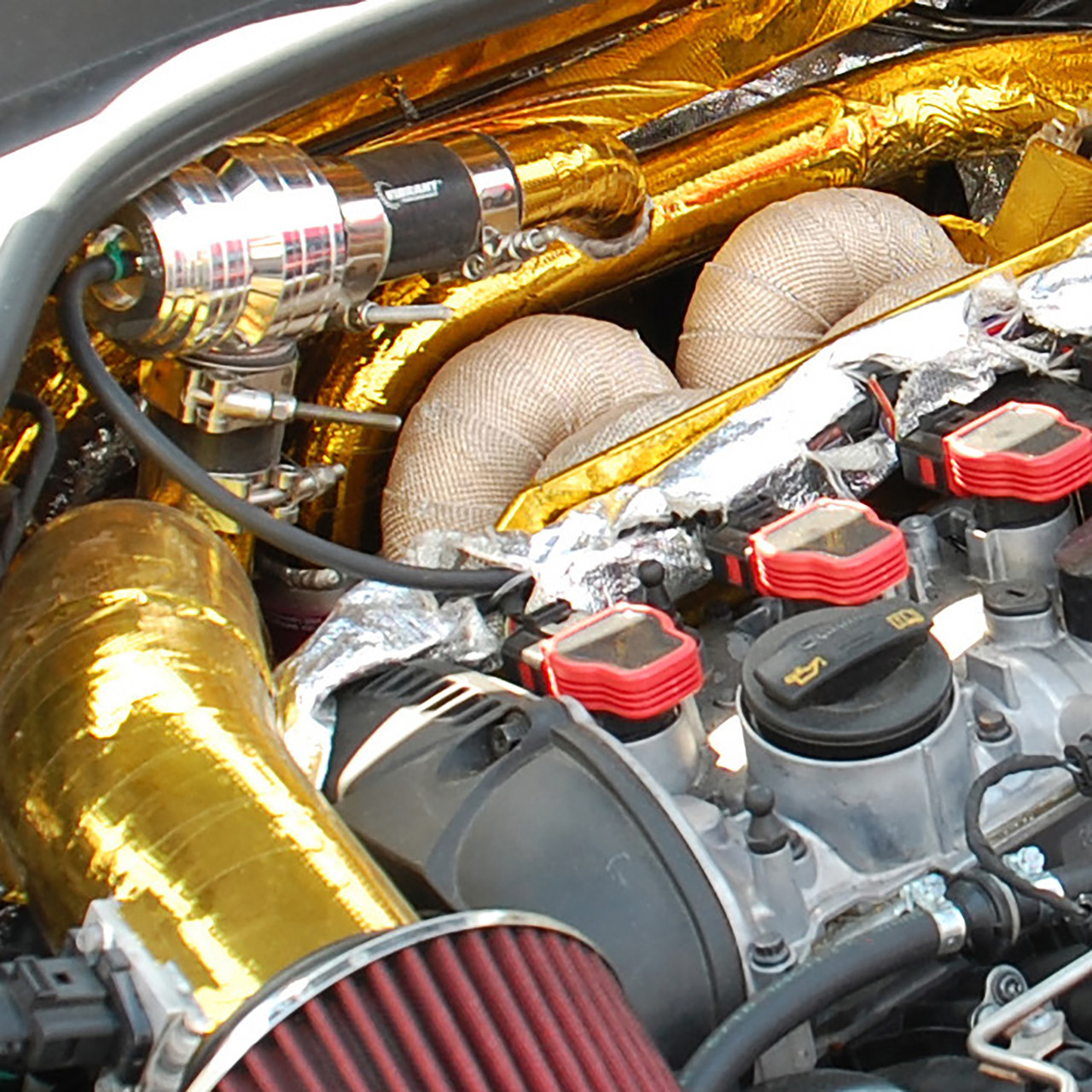

Reflect-A-GOLD(TM) solves the problem of heat soak into air boxes, seats, firewalls, transmission tunnels and intakes. Reflect-A-GOLD is an adhesive heat shield made from a metalized polyimide laminated to a light weight glass fiber cloth with a high temperature pressure sensitive adhesive for use in extreme temperature swing environments. Our lightweight, adhesive thermal shielding is easily applied and won't lift off. It's minimal clearance and ease of use makes Reflect-A-GOLD a highly effective material for firewalls, fuel cells, engine covers, under hoods, engine compartment, bulk heads, seat bottoms, and anything or area that needs protection from heat. For firewalls, bulkheads, engine covers, floors, seat bottoms & more Handles continuous temps up to 800F Resists UV degradation for long-term performance Adhesive protected by release liner rated up to 325F 0.0065 in. thick Easy to apply, won't lift off DO NOT apply directly to exhaust components.

Features & benefits

  • For Firewalls/Bulkheads/Engine Covers/Floors/Seat Bottoms
  • Handles Continuous Temps Up To 800 Degrees F
  • Resists UV Degradation For Long-Term Performance
  • Adhesive Protected By Release Liner Rated Up To 325 Degrees F
  • Virtually NO Clearance Needed
  • Light Weight And Flexible-Trim To Size
  • 0.0065 in. Thick
  • Easy To Apply- Wont Lift Off

Information

Reflect-A-GOLD(TM) solves the problem of heat soak into air boxes, seats, firewalls, transmission tunnels and intakes. Reflect-A-GOLD is an adhesive heat shield made from a metalized polyimide laminated to a light weight glass fiber cloth with a high temperature pressure sensitive adhesive for use in extreme temperature swing environments. Our lightweight, adhesive thermal shielding is easily applied and won't lift off. It's minimal clearance and ease of use makes Reflect-A-GOLD a highly effective material for firewalls, fuel cells, engine covers, under hoods, engine compartment, bulk heads, seat bottoms, and anything or area that needs protection from heat. For firewalls, bulkheads, engine covers, floors, seat bottoms & more Handles continuous temps up to 800F Resists UV degradation for long-term performance Adhesive protected by release liner rated up to 325F 0.0065 in. thick Easy to apply, won't lift off DO NOT apply directly to exhaust components.

Specifications

GTIN
00607078103932
Weight
0.46 lb
Height
2 in
Length
11 in
Width
8 in
Life cycle
Available to Order
AAM brand code
DEI
Warehouse brand code
DEI
AAIA brand code
BGWZ

Attributes

Adhesive Heat Resistance
325°F
Application Method
Stick
Backing
Adhesive
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color
Gold
Fiber Reinforced
Yes
Includes
One 24 inch by 24 inch sheet of Reflect-A-Gold.
Length
24
Material
Gold Polyimide over Glass Fiber Scrim
Maximum Temperature Rating
800
Radiant Heat Resistance
850°F
Resistant To
Heat
Thickness
.0625
Title
DEI 10393 Reflect-A-GOLD Heat Reflective Sheet 24" x 24" 010393
Width
24

Fitment status

This product is universal and will fit your application.
