Design Engineering, Inc. · 10390

View More

Part #: 10390
UPC: 607078103901

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Design Engineering, Inc. Series: Reflect-A-Gold Heat Reflective Sheets

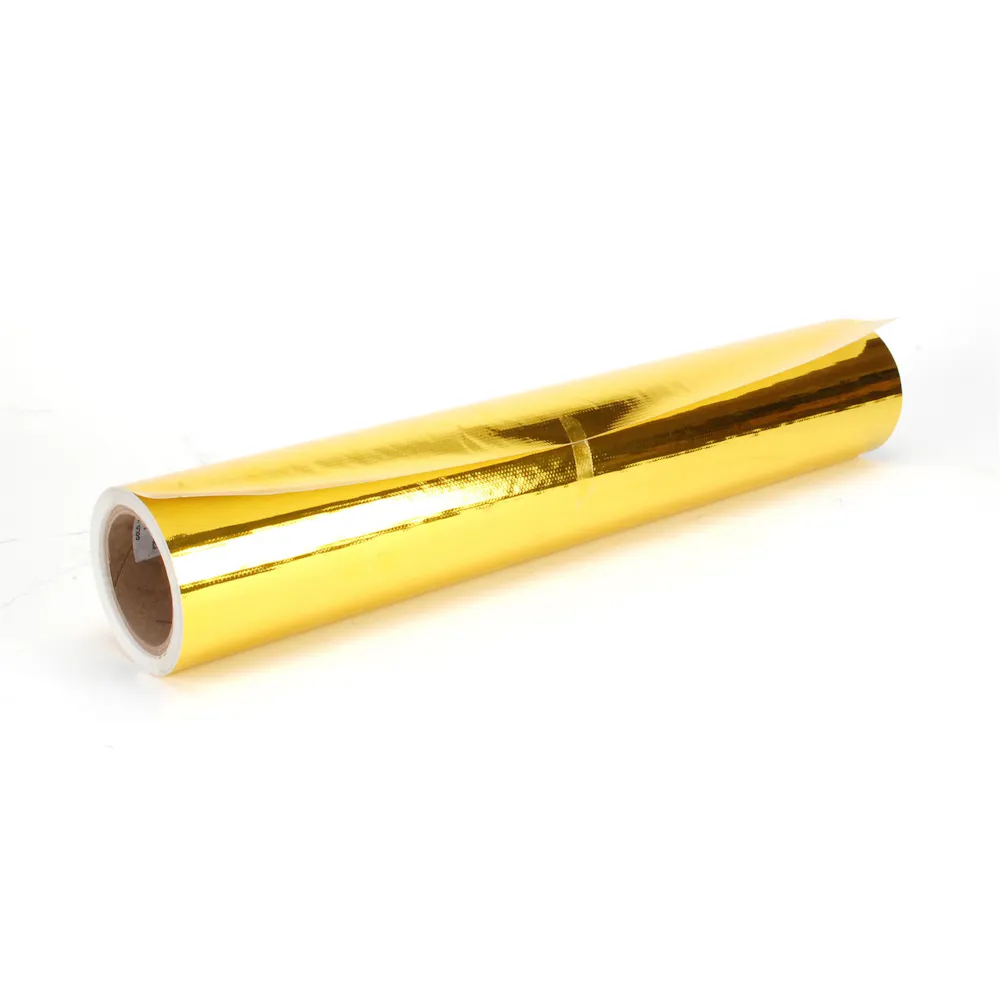

Description: Reflect-A-GOLD 24in x 150ft; One 24 inch by 150 foot roll of Reflect-A-Gold.

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

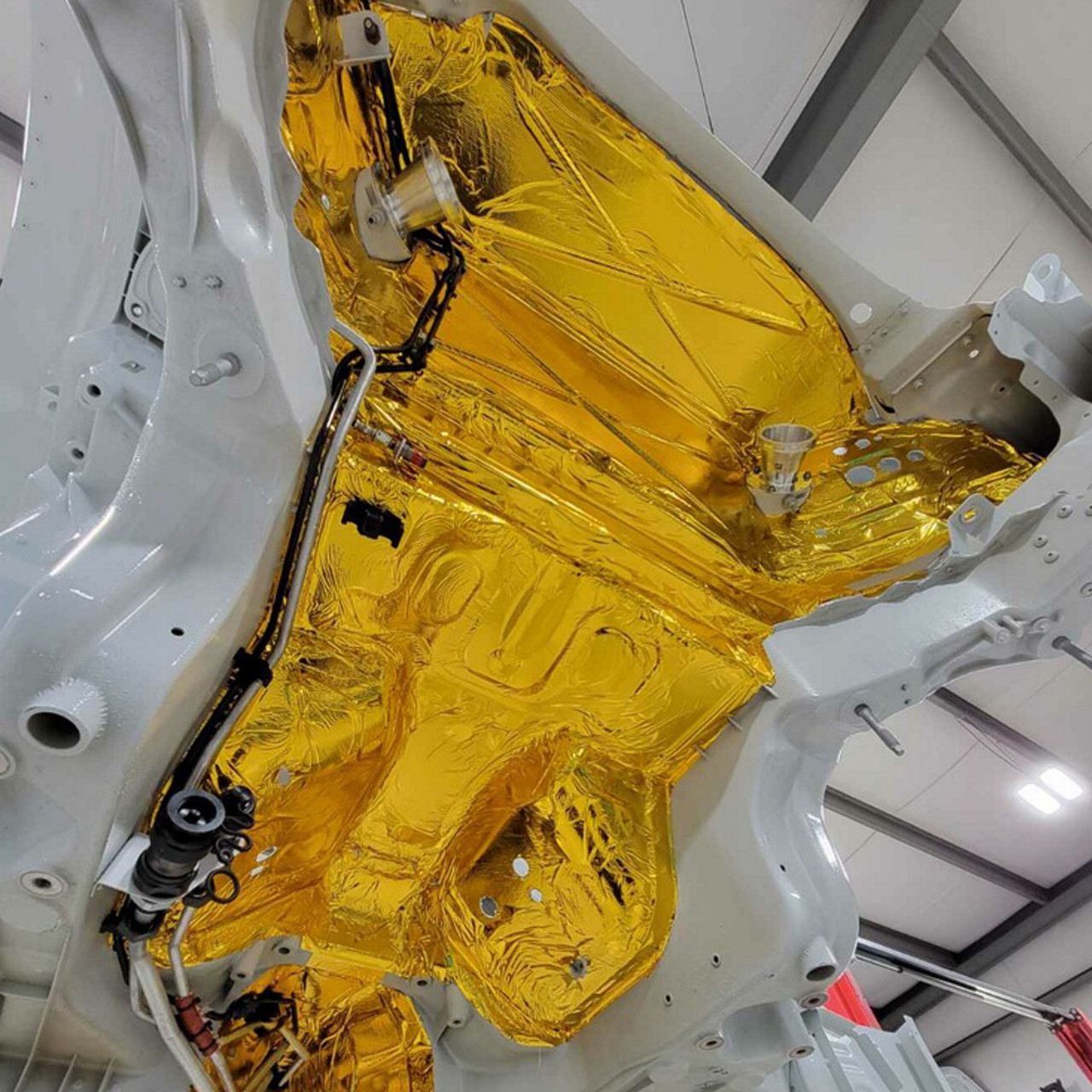

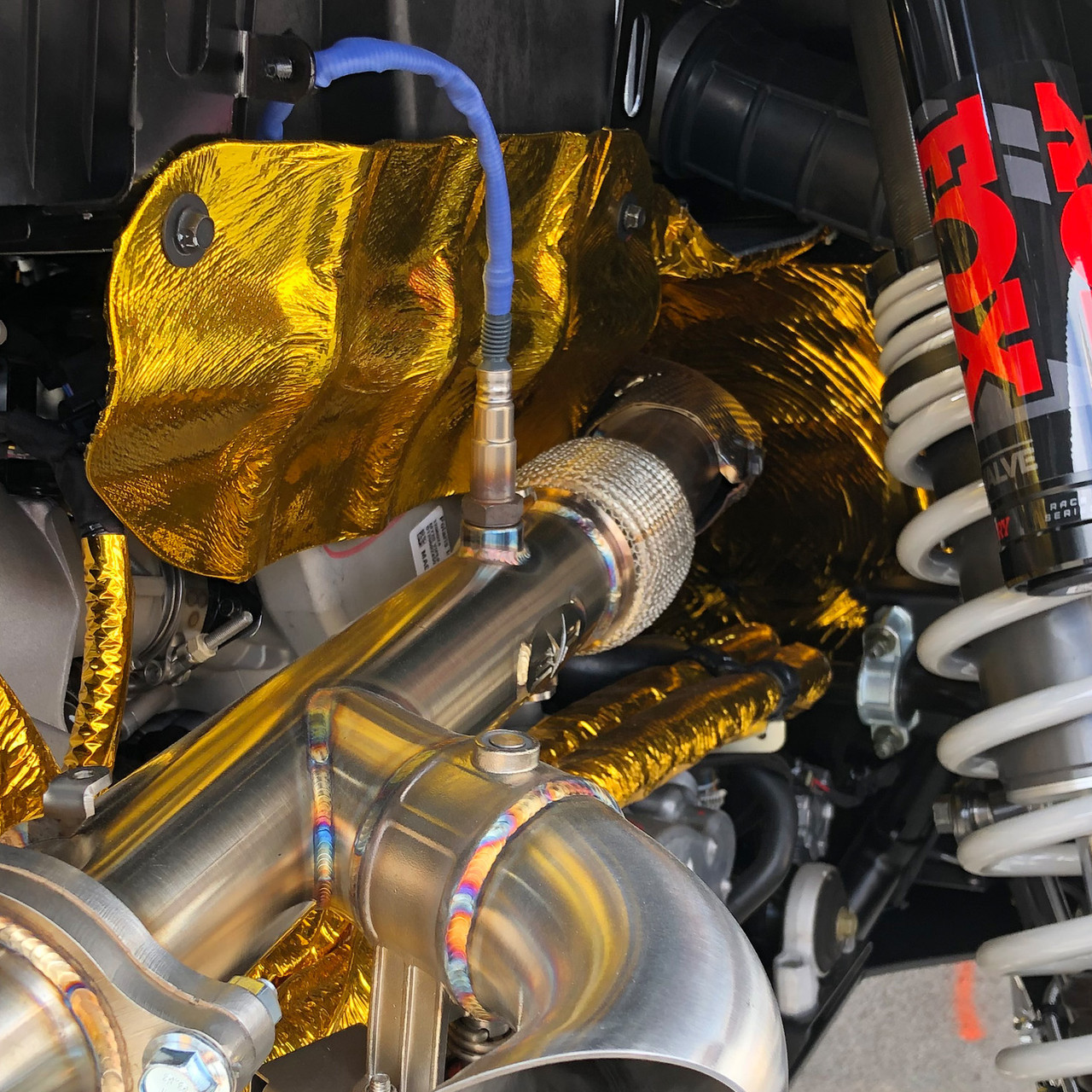

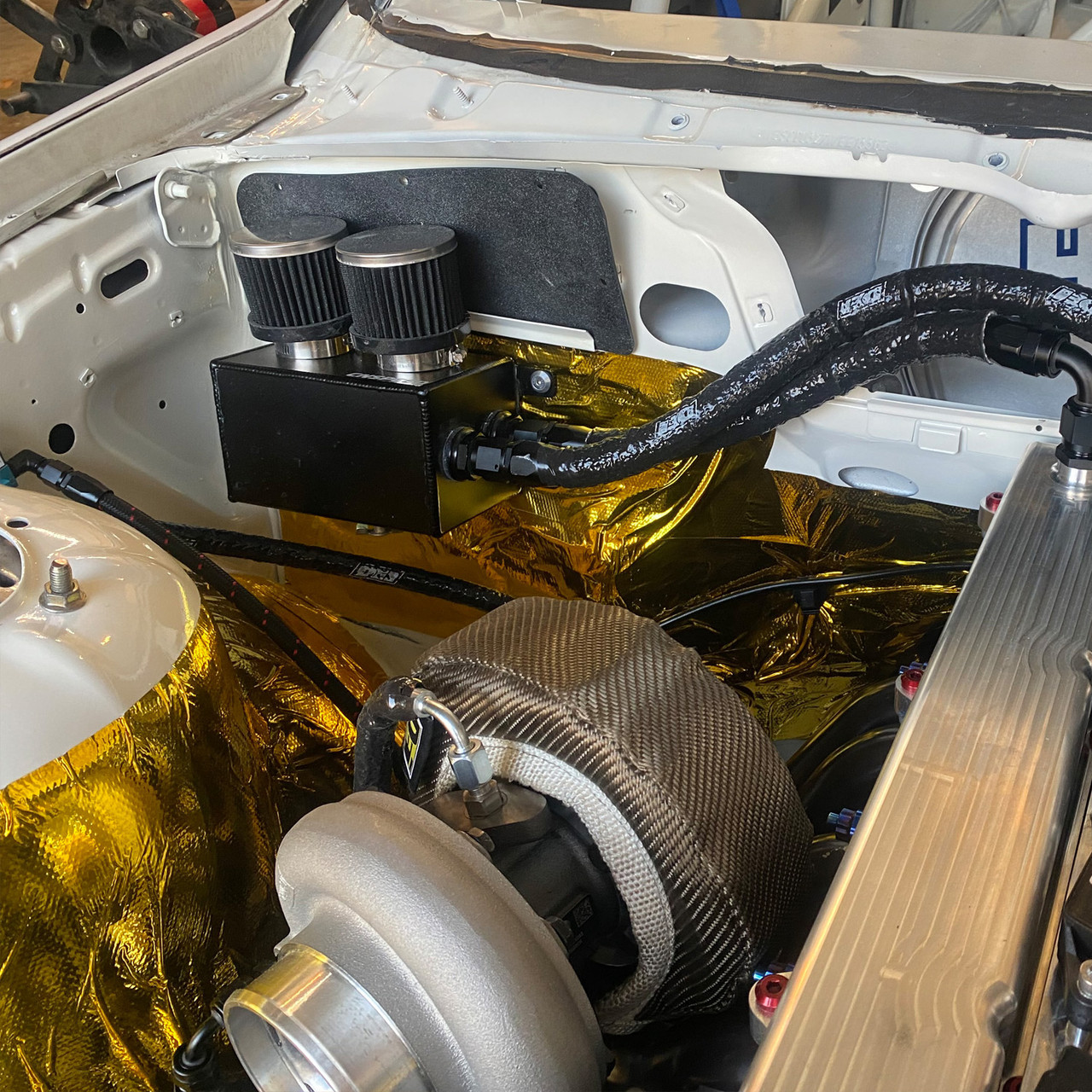

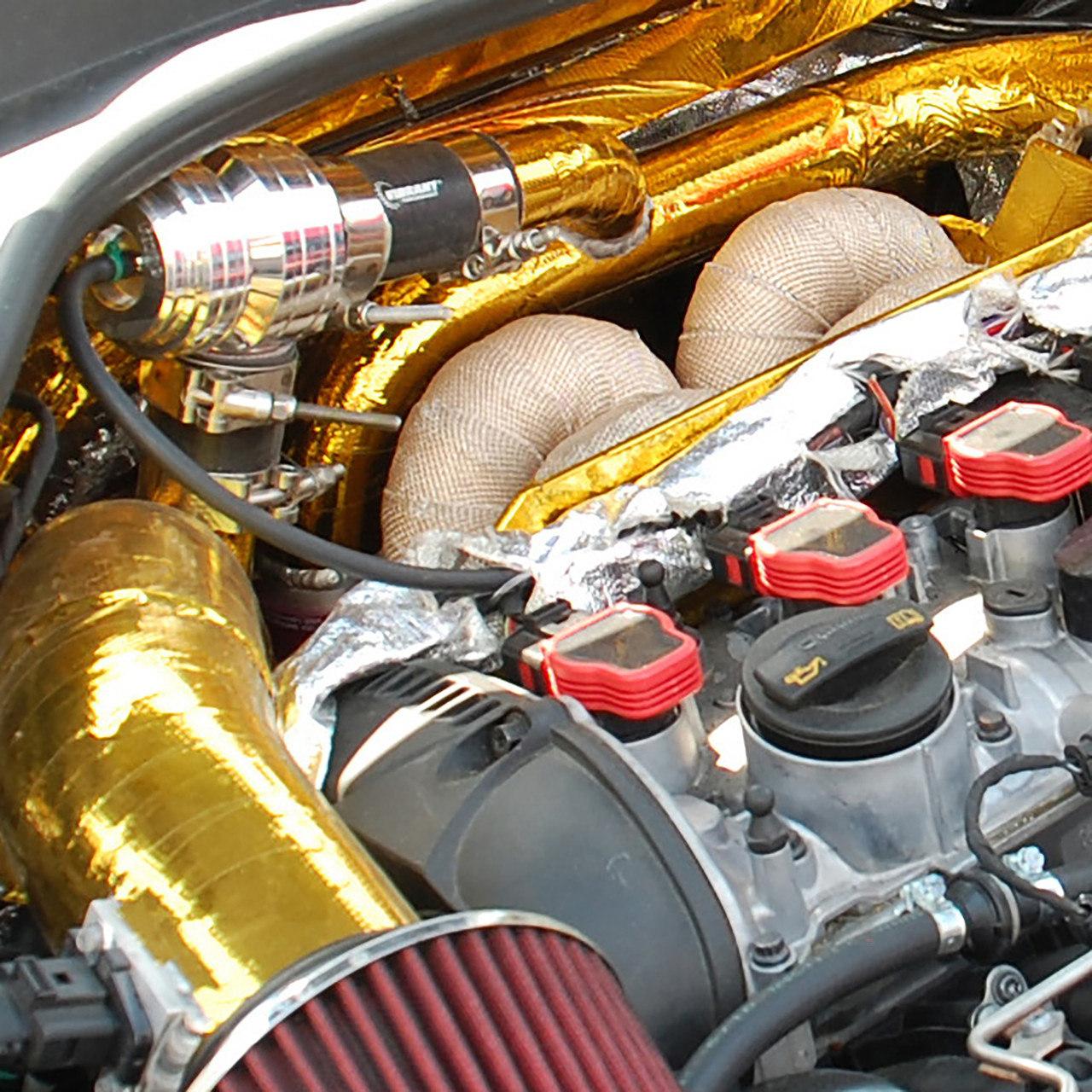

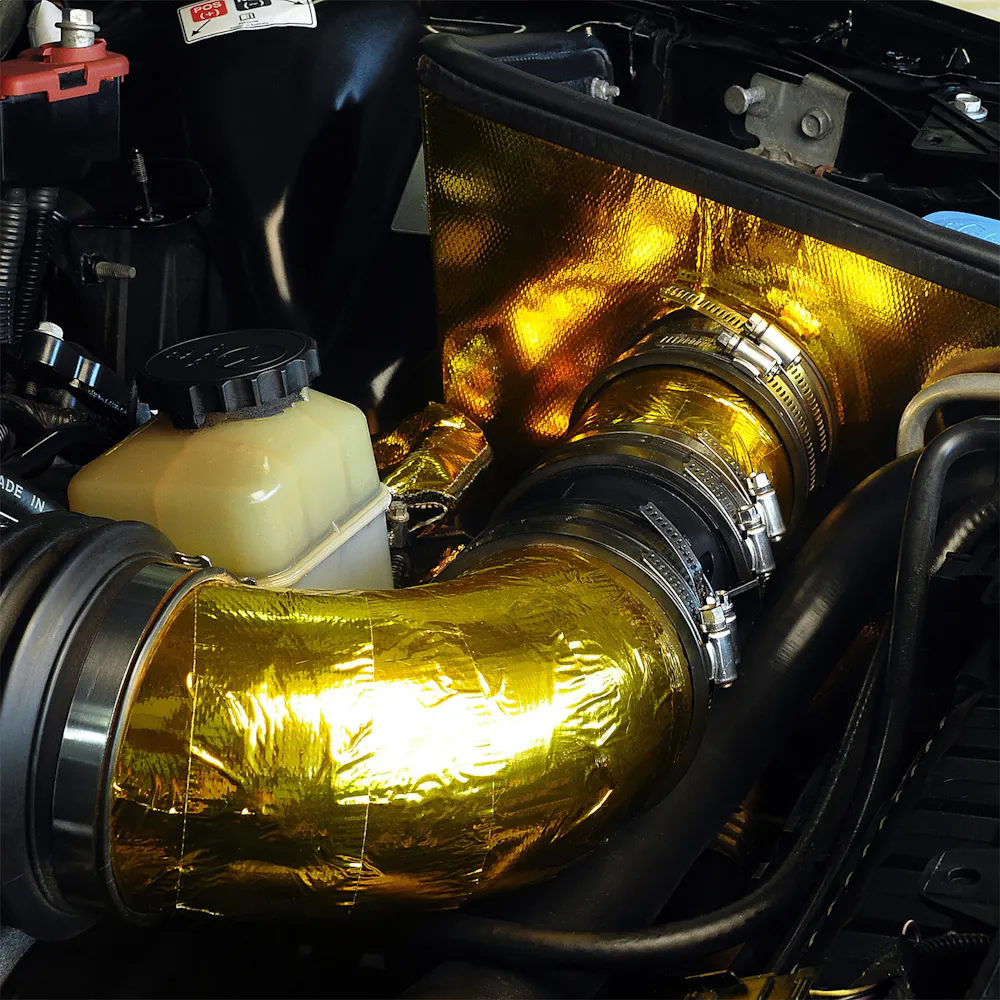

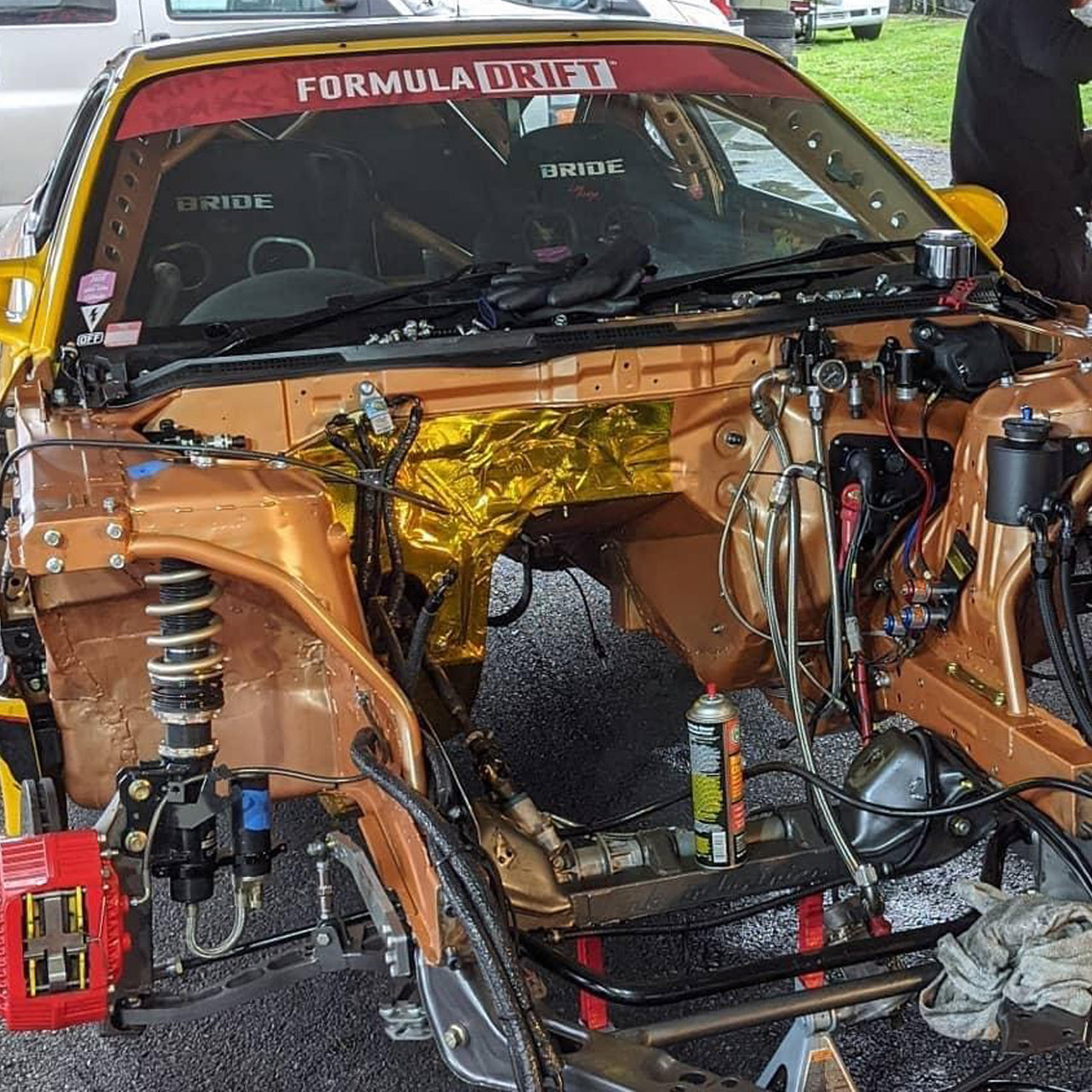

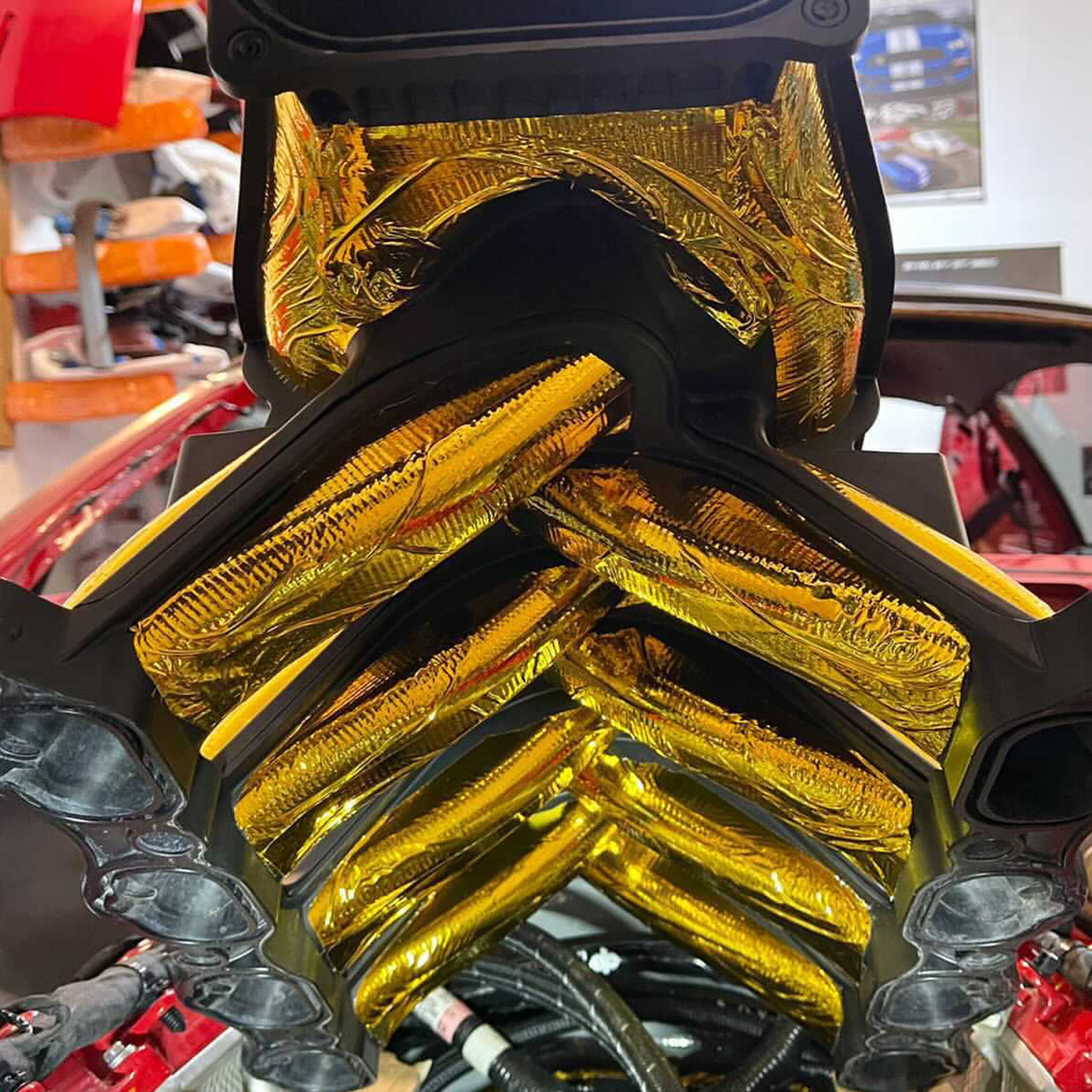

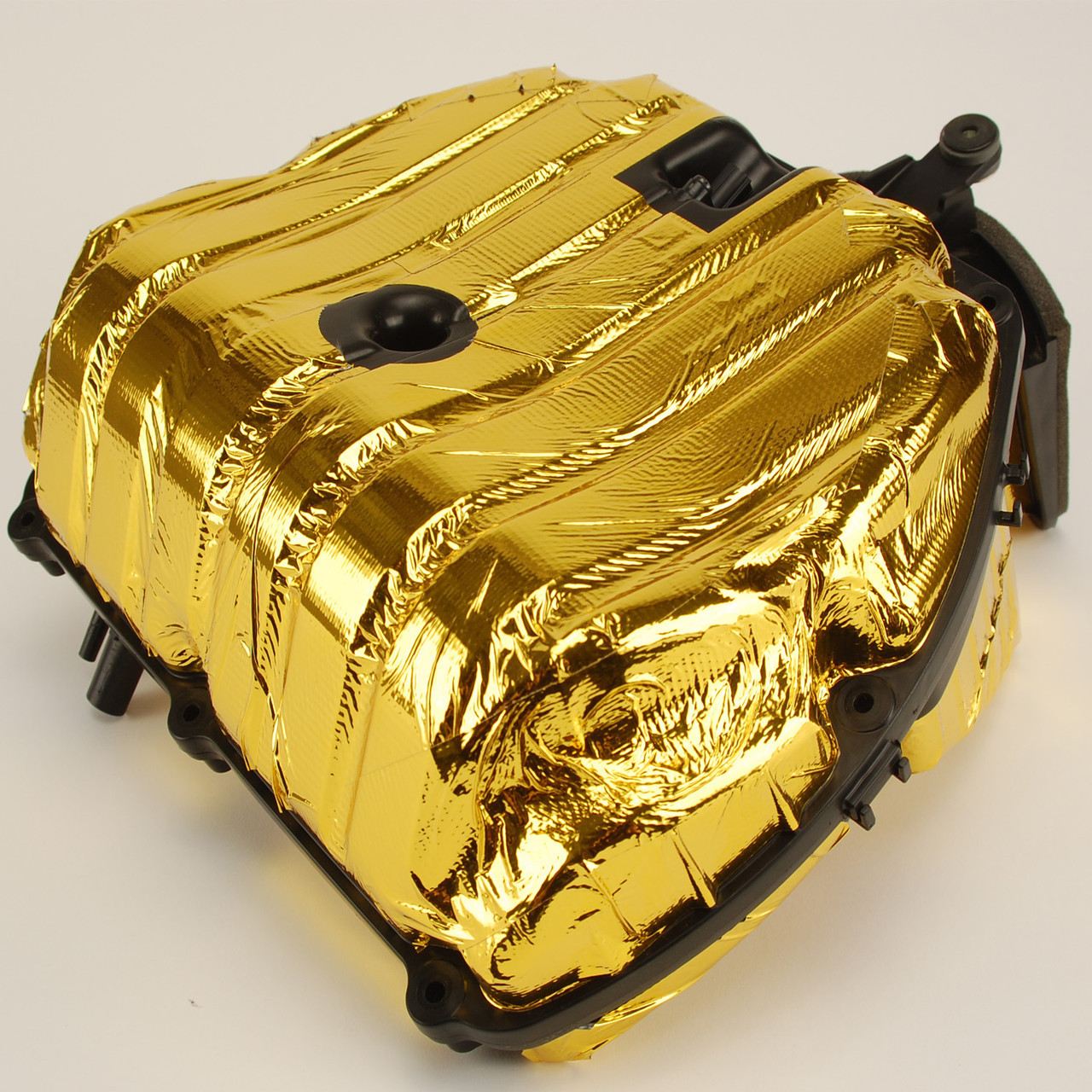

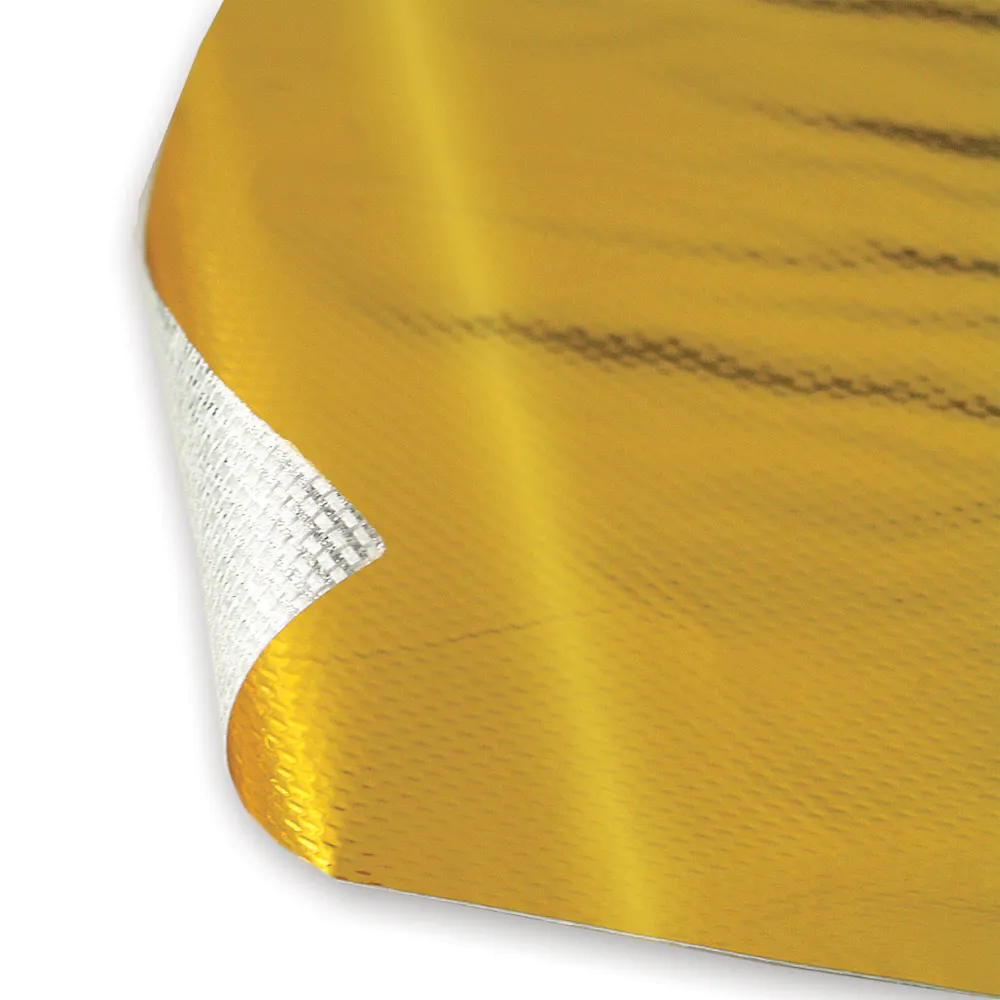

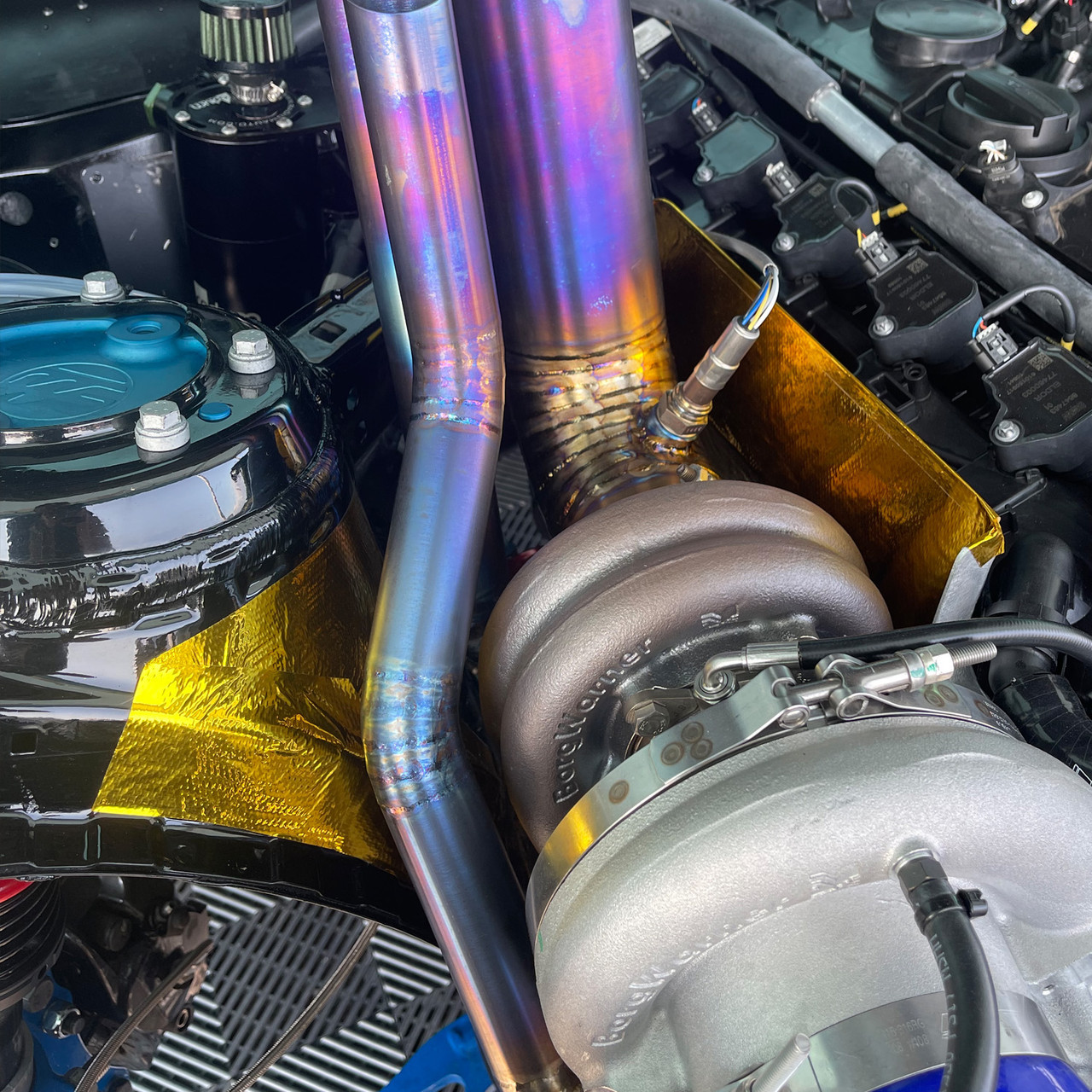

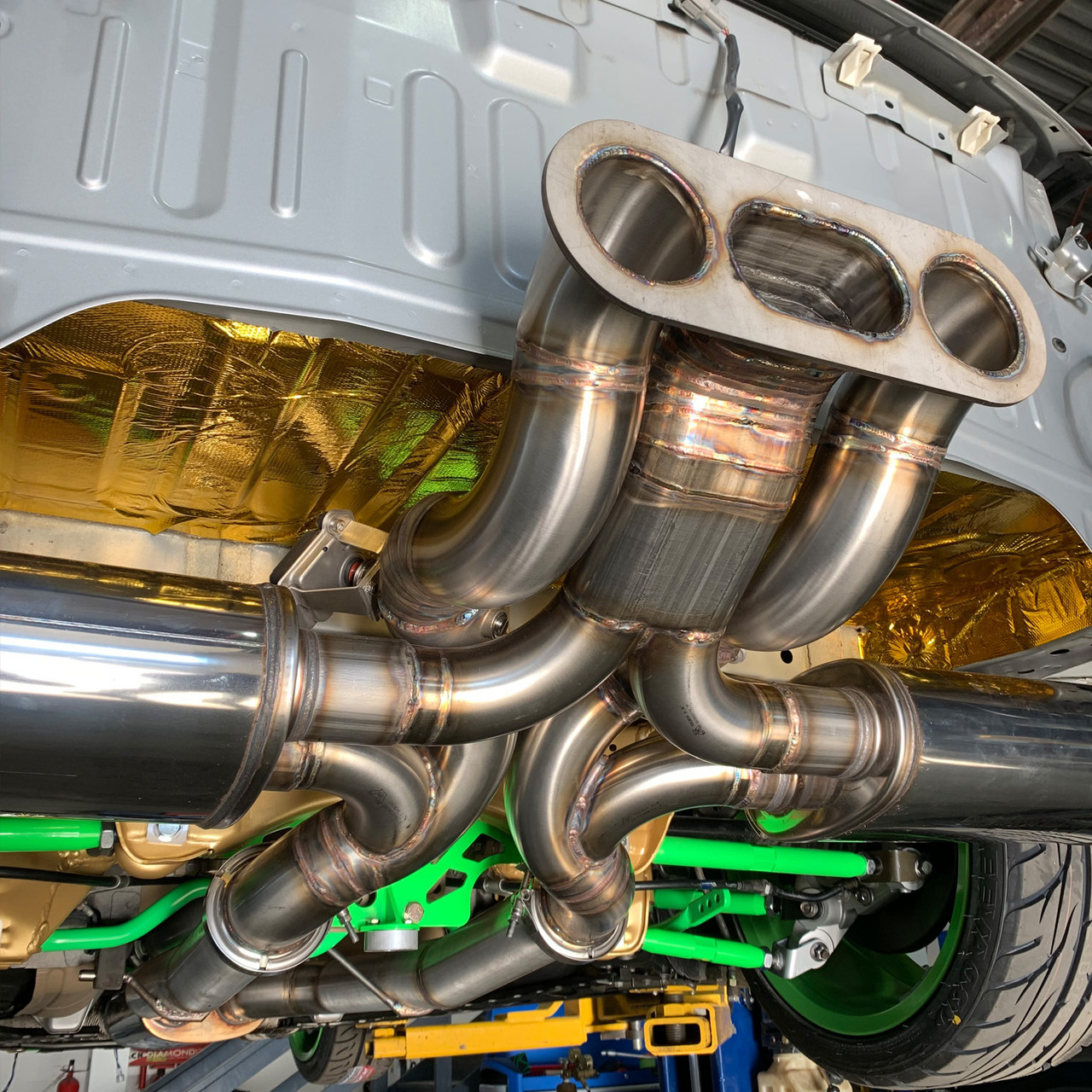

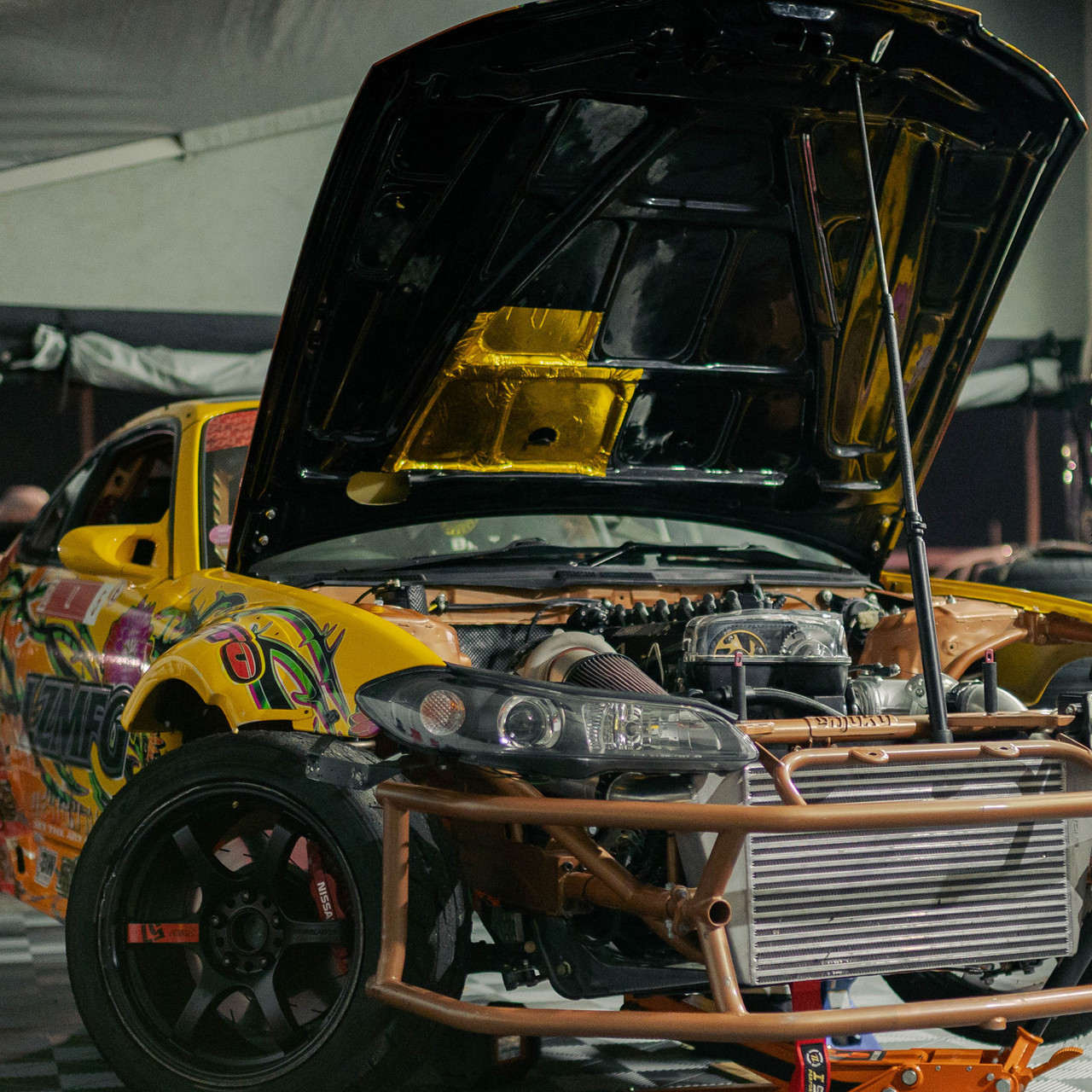

Reflect-A-GOLD(TM) solves the problem of heat soak into air boxes, seats, firewalls, transmission tunnels and intakes. Reflect-A-GOLD is an adhesive heat shield made from a metalized polyimide laminated to a light weight glass fiber cloth with a high temperature pressure sensitive adhesive for use in extreme temperature swing environments. Our lightweight, adhesive thermal shielding is easily applied and won't lift off. It's minimal clearance and ease of use makes Reflect-A-GOLD a highly effective material for firewalls, fuel cells, engine covers, under hoods, engine compartment, bulk heads, seat bottoms, and anything or area that needs protection from heat. For firewalls, bulkheads, engine covers, floors, seat bottoms & more Handles continuous temps up to 800F Resists UV degradation for long-term performance Adhesive protected by release liner rated up to 325F 0.0065 in. thick Easy to apply, won't lift off DO NOT apply directly to exhaust components.

Features & benefits

For Firewalls/Bulkheads/Engine Covers/Floors/Seat Bottoms
Handles Continuous Temps Up To 800 Degrees F
Resists UV Degradation For Long-Term Performance
Adhesive Protected By Release Liner Rated Up To 325 Degrees F
Virtually NO Clearance Needed
Light Weight And Flexible-Trim To Size
0.0065 in. Thick
Easy To Apply- Wont Lift Off

Information

Specifications

GTIN: 00607078103901
Weight: 16.77 lb
Height: 6 in
Length: 24 in
Width: 6 in
Life cycle: Available to Order
AAM brand code: DEI
Warehouse brand code: DEI
AAIA brand code: BGWZ

Attributes

Adhesive Heat Resistance: 325°F
Application Method: Stick
Backing: Adhesive
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color: Gold
Consumer Features and Benefits: Not for direct application to exhaust components
Consumer Marketing Description: Beat the heat with a Reflect-A-GOLD™ adhesive heat shield from Design Engineering, Inc. Made from high-temperature metalized polyimide film laminated to heat-treated glass fiber, Reflect-A-GOLD™ can handle sustained temperatures up to 800°F. Apply it on firewalls, fuel cells, engine covers, bulkheads, seat bottoms, or under the hood but NOT directly on exhaust components. DEI Reflect-A-GOLD™ is only 0.0065” thick; applies easily via high-temperature, pressure-sensitive adhesive; won’t lift off; and resists breaking down under UV light.
Fiber Reinforced: Yes
Includes: One 24 inch by 150 foot roll of Reflect-A-Gold.
Length: 150

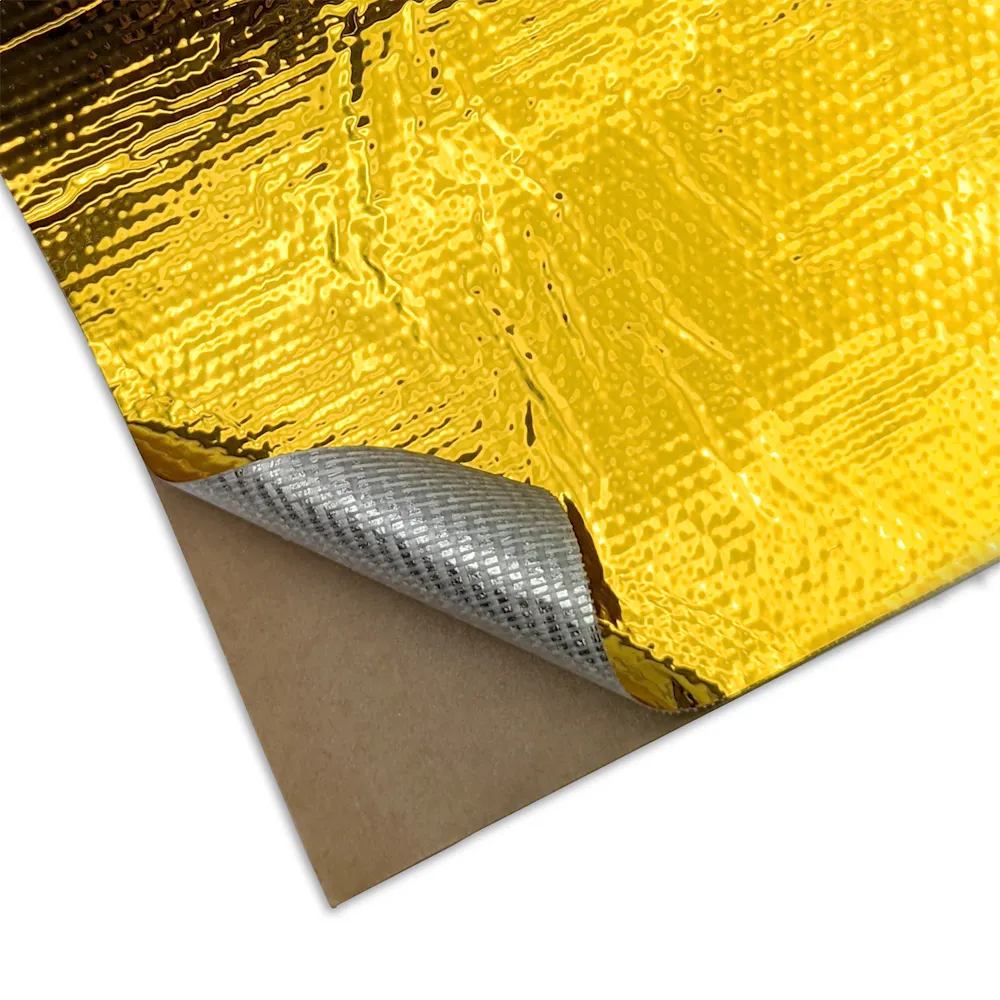

Material: Gold Polyimide over Glass Fiber Scrim
Maximum Temperature Rating: 800
Radiant Heat Resistance: 850°F
Resistant To: Heat
Thickness: .0625
Title: DEI 10390 Reflect-A-GOLD Heat Reflective Roll 24" x 150' 010390
Width: 24
