Design Engineering, Inc. / 10069
Part #: 10069
UPC: 607078100696
Loading...
Notify me when this item is in stock.

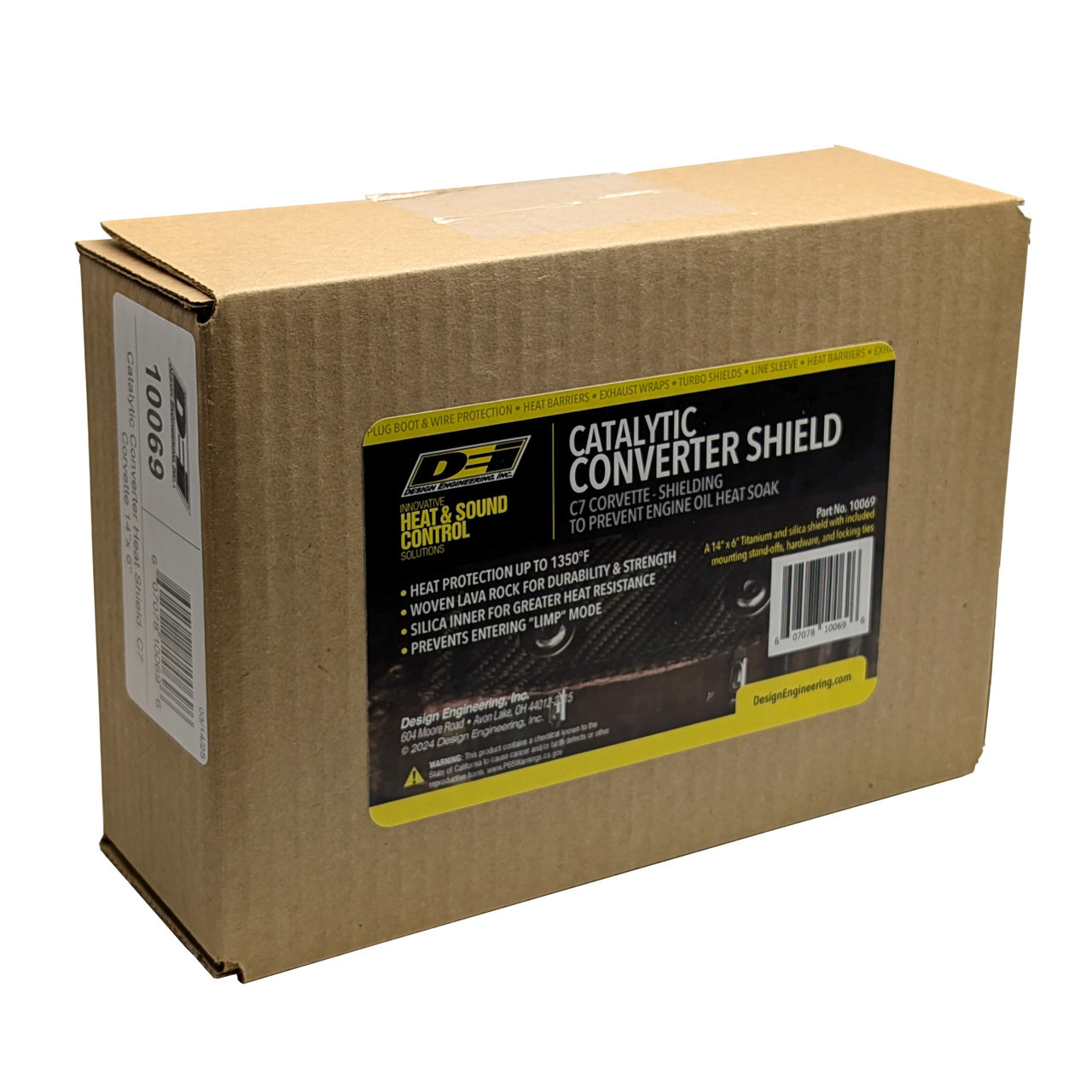

Description: Catalytic Converter Shield Chevy Corvette C7; A 14 inch x 6 inch Titanium and silica shield, with included mounting stand-offs, hardware, and locking ties.
Description:
This part number superseded 010078.
Description
Chevrolet located the engine oil cooler and oil filter on the C7 Corvette close to the driver side catalytic converter causing heat transfer into the engine oil. Possibly making the ECM send the car into limp mode. By installing our converter heat shield we block this heat transfer and prevent the oil temperature from rising. Dual layer design - Outer layer is hi-temp Titanium Inner layer is 89 percent silica to handle extreme heat Reduce heat soak into oil Easy installation with stainless steel Locking Ties Helps prevent Corvette from going into limp mode from engine oil becoming too hot Size is 14 in. x 6 in.
Features & benefits
- Easy Install/Simple Clamp On With Provided Stainless Clamps
- Prevents Over Heating Of Engine Oil
- Prevent The Heat That Triggers ECM Power Reduction
Information
Chevrolet located the engine oil cooler and oil filter on the C7 Corvette close to the driver side catalytic converter causing heat transfer into the engine oil. Possibly making the ECM send the car into limp mode. By installing our converter heat shield we block this heat transfer and prevent the oil temperature from rising. Dual layer design - Outer layer is hi-temp Titanium Inner layer is 89 percent silica to handle extreme heat Reduce heat soak into oil Easy installation with stainless steel Locking Ties Helps prevent Corvette from going into limp mode from engine oil becoming too hot Size is 14 in. x 6 in.
Specifications
- GTIN
- 00607078100696
- Weight
- 0.86 lb
- Height
- 3.19 in
- Length
- 9.25 in
- Width
- 6.63 in
- Life cycle
- Available to Order
- AAM brand code
- DEI
- Warehouse brand code
- DEI
- AAIA brand code
- BGWZ
Attributes
- Attachment Type
- Hose Clamps
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Brown
- Finish
- Textile
- Grade Type
- Performance
- Includes
- A 14 inch x 6 inch Titanium and silica shield, with included mounting stand-offs, hardware, and locking ties.
- Material
- Titanium
- Max Temperature Rating
- N/A
- Overall Length
- N/A
- Thickness
- .25
- Title
- DEI 10069 C7 Corvette Catalytic Converter Shield 010069
- Width
- 6
Fitment status
This product is universal and will fit your application.
Equivalent Parts
Design Engineering, Inc. 10069
