Dart / 31867111
Part #: 31867111
UPC: 807051019384
Loading...
Notify me when this item is in stock.

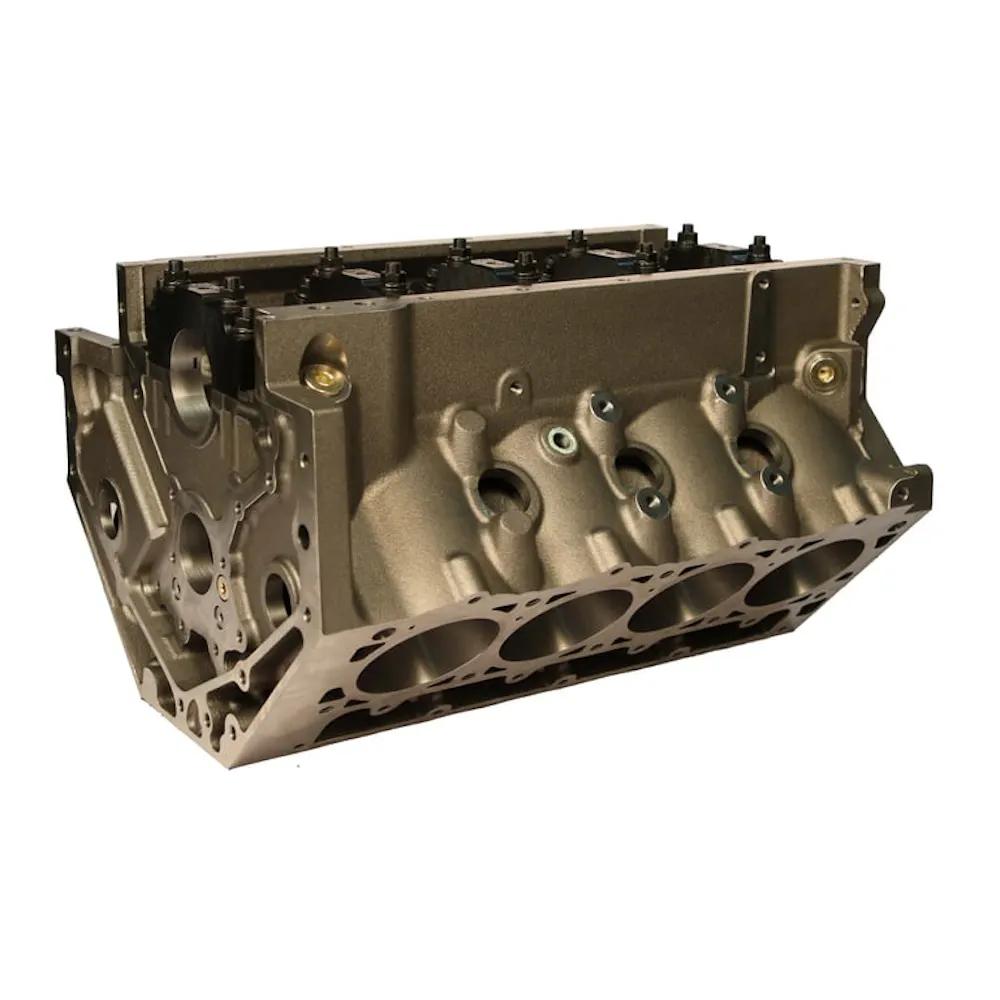

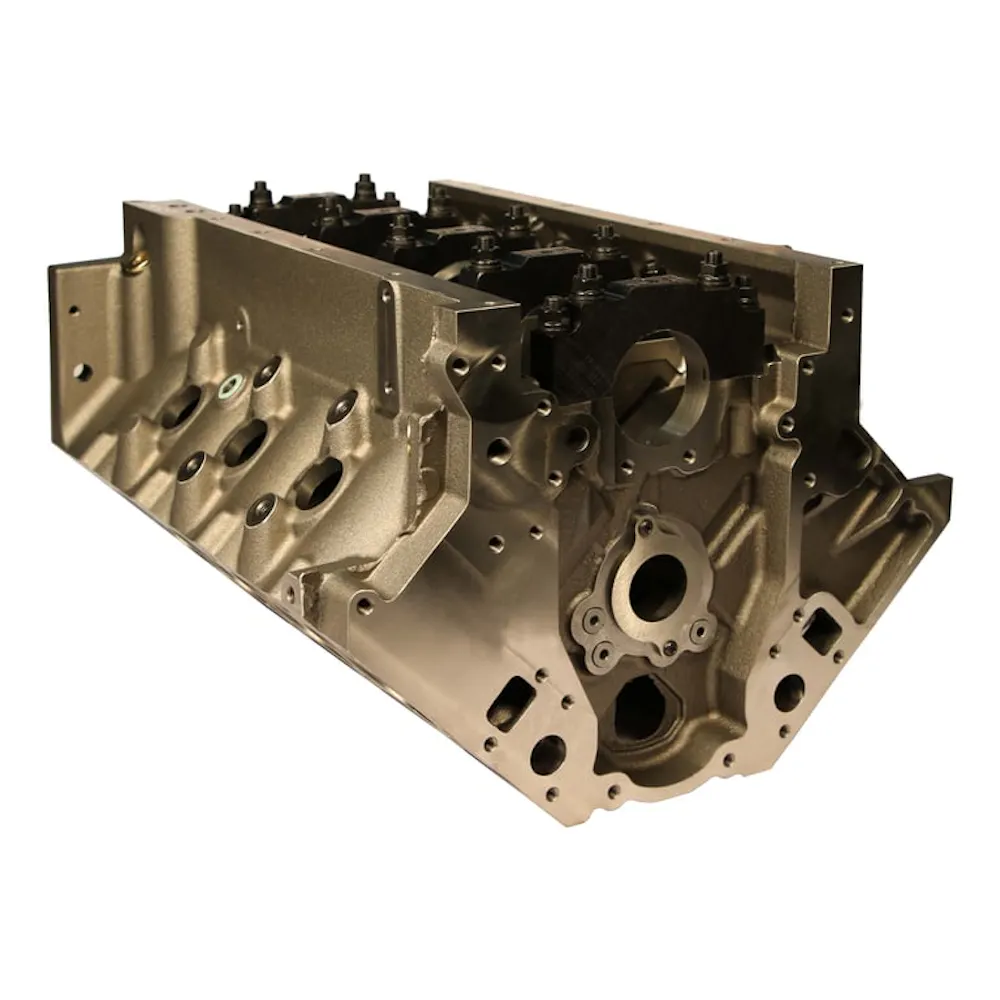

Description: Dart LS Next SHP Iron Gen III Blocks (Skirted)
Description:
Description
Designed for high performance and medium duty applications, the SHP LS Next Block is the ideal starting point for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts.
Features & benefits
- Dart priority main oiling system with provisions for stock oil filter mounting
- Siamesed cylinder bores with thick walLS2
- Cylinder barreLS2 extended .375in at the bottom of the bores
- Thick decks ensure reliable head gasket seal
- Blind head bolt holes available in 7/16in or 1/2in
- 6-bolt per cylinder capability
- Scalloped water jackets increase flow around cylinders for better cooling
- Clearanced up to 4.100in stroke w/ steel rods
- Clearanced for center counterweighted crankshafts
- Splayed outer bolts on middle main bearing caps
- Provisions for LS2X roller lifters and cam
- Uses OE front and rear covers
- All OE bolt holes for starter, water pump, etc.
- Windage trays
- Parts kit included (PN: 32000018)
- Accepts factory and aftermarket oil pans
Information
Dart LS Next SHP Iron Gen III Blocks (Skirted)
Specifications
- GTIN
- 00807051019384
- Weight
- 235 lb
- Height
- 14 in
- Length
- 24 in
- Width
- 19 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Lifter Bore
- 0.824
- Camshaft Location
- Standard
- Category
- Engine Blocks and Accessories
- Category Hierarchy
- Blocks>Gen III LS Next>SHP LS Next Blocks (Skirted)
- Cylinder Bore Diameter
- 4.000
- Deck Height
- 9.240
- EBAY Category ID
- 33613
- Engine
- LS Gen III
- Engine - Web
- LS Gen III
- Engine Block Material
- Class 30 Grey Iron
- Engine Block Series
- LS NEXT
- Engine Block Weight
- 227
- Engine Type
- ICE
- Industry
- Automotive
- Main Bearing Type
- Chevrolet LS
- Main Cap Type
- Steel
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- Class 30 Grey Iron
- Product Type
- Engine Block
- Rear Main Seal
- 1-Piece
- Rear Main Seal Type
- 1-Piece
- Series
- SBC LS NEXT Gen III Iron Engine Blocks
- Subcategory
- Engine Blocks
- Title
- LS NEXT Chevy LS Gen III Iron Block - 4.000 in. Bore, 9.240 in. Deck
- Title - Web
- LS NEXT Chevy LS Gen III Iron Block - 4.000 in. Bore, 9.240 in. Deck
Fitment status
This product is universal and will fit your application.
