Dart / 31837111
Part #: 31837111
UPC: 807051019322
Loading...
Notify me when this item is in stock.

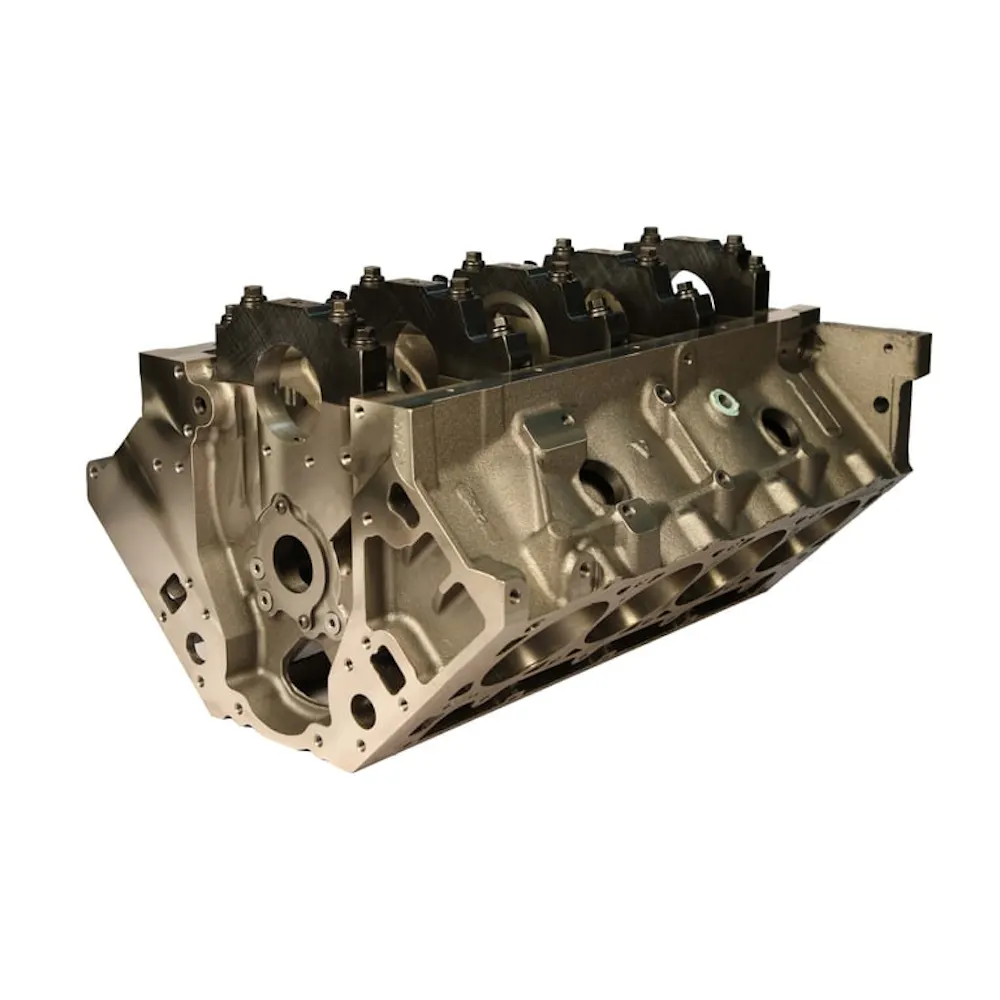

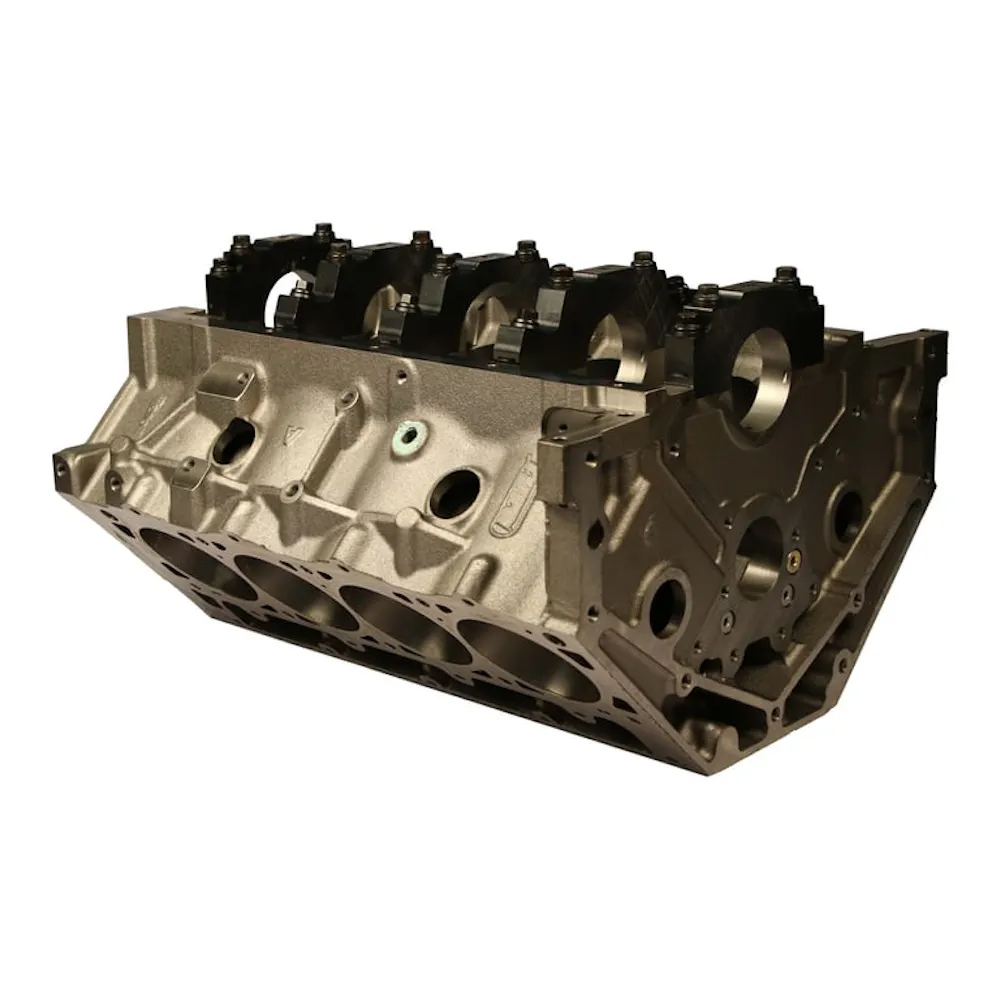

Description: Dart LS Next Iron Gen III Blocks
Description:
Description
Designed from a clean slate approach the LS Next Iron block has addressed the shortcomings of the LS platform and is the ideal candidate for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts. By utilizing conventional style main caps and oil pans with LS rotating assemblies and related components, Dart has addressed the windage and oil control problems which result from the factory LS engine's separated crankcase bays.
Features & benefits
- Priority main oiling system with two lifter crossovers and restrictor provisions
- Clearance for 4.100in stroke w/ steel rods
- MUST BE clearanced for center counterweighted crankshafts
- Splayed outer bolts on middle main bearing style motor mounts
- Provisions for OE stock roller lifters and stock timing covers and stock rear cover
- All OE bolt holes for starter, water pump, or passenger side starter mounts
- Parts kit sold separately (PN: 32000016)
- Siamesed cylinder bores with extra thick walLS2
- Cylinder barreLS2 extended .375in at the bottom
- Extra thick decks ensure reliable head gasket seal
- Blind head bolt holes available in 7/16in or 1/2in
- Scalloped water jackets increase flow around cylinders for better cooling
Information
Dart LS Next Iron Gen III Blocks
Specifications
- GTIN
- 00807051019322
- Weight
- 235 lb
- Height
- 14 in
- Length
- 24 in
- Width
- 19 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Lifter Bore
- 0.824
- Camshaft Location
- Standard
- Category
- Engine Blocks and Accessories
- Category Hierarchy
- Blocks>Gen III LS Next>LS Next Blocks
- Cylinder Bore Diameter
- 4.000
- Deck Height
- 9.240
- EBAY Category ID
- 33613
- Engine
- LS Gen III
- Engine - Web
- LS Gen III
- Engine Block Material
- 220 BHN Cast Iron
- Engine Block Series
- LS NEXT
- Engine Block Weight
- 227
- Engine Type
- ICE
- Freeze Plug Type
- Press Fit
- Industry
- Automotive
- Main Bearing Type
- Chevrolet LS
- Main Cap Type
- Steel
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- 220 BHN Cast Iron
- Product Type
- Engine Block
- Rear Main Seal
- Stock
- Rear Main Seal Type
- Stock
- Series
- SBC LS NEXT Gen III Iron Engine Blocks
- Subcategory
- Engine Blocks
- Title
- LS NEXT Chevy LS Gen III Iron Block - 4.000 in. Bore, 9.240 in. Deck
- Title - Web
- LS NEXT Chevy LS Gen III Iron Block - 4.000 in. Bore, 9.240 in. Deck
Fitment status
This product is universal and will fit your application.
Resources
Dart 31837111
