Description: Dart Big M Aluminum Big Block Chevy Blocks
Description:
Description

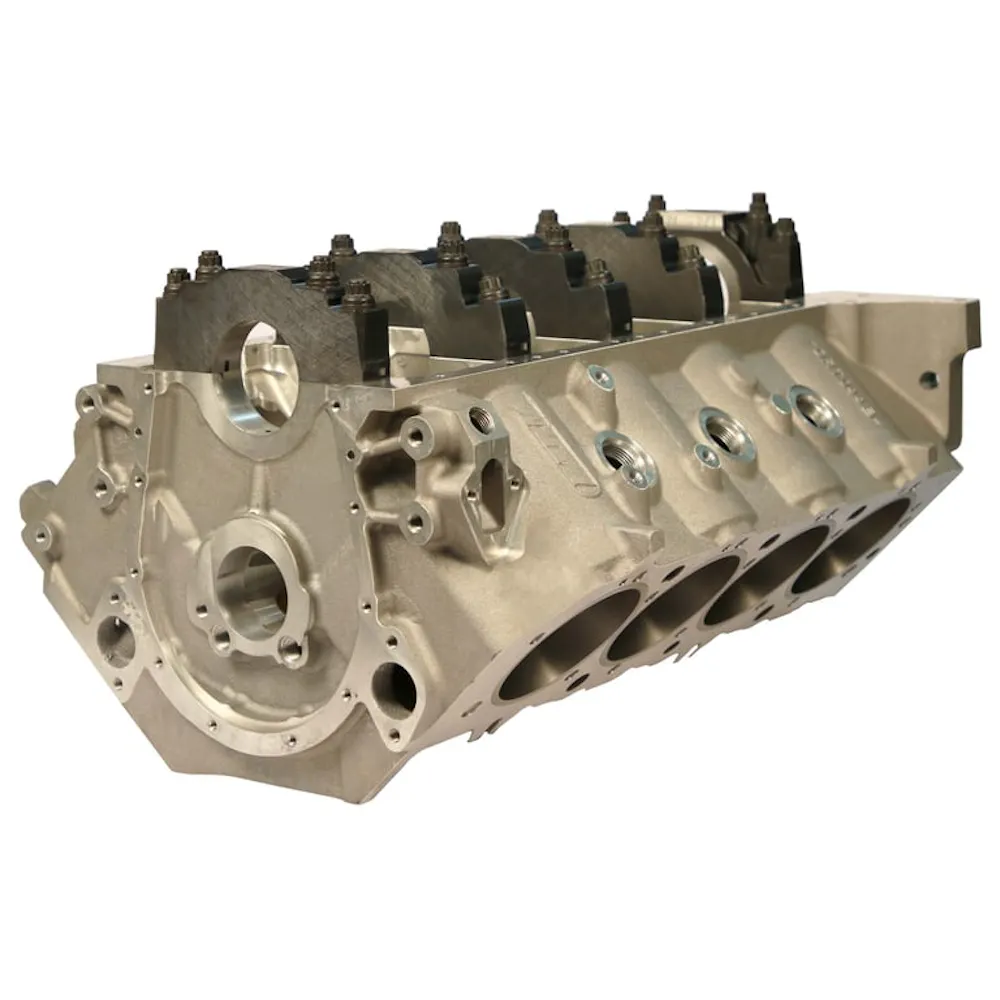

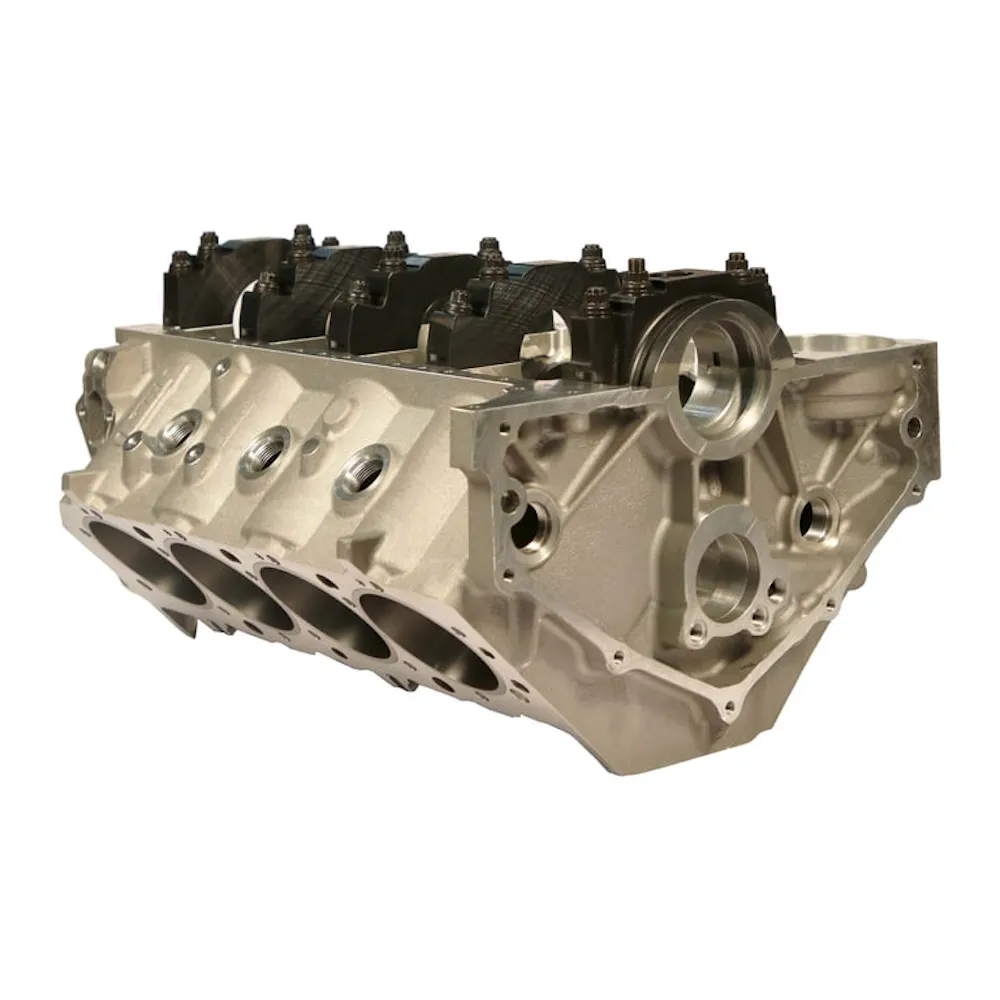

Based on the Chevrolet big block V8 design, these Aluminum blocks feature extra strengthening in critical areas, increased displacement capacity, true priority main oiling and precision CNC machining. Conventional configuration that retains all production dimensions for compatibility with standard components. Advanced engineering makes Dart Aluminum big blocks the choice for serious competition.
Features & benefits
- Standard 9.800 or 10.200 tall deck heights available for stroker engines
- HIP (Hot Isostatic Pressed) Casting
- Parts kit included (PN 32000006)
- 4.250, 4.500 or 4.600 bore sizes standard
- Ductile Iron sleeves with extra thick cylinder walLS2 promote excellent ring seal
- Reinforcing ribs strengthen the lifter valley and bell housing flange
- Inboard valley head stud bosses improve head gasket sealing
- Priority main oiling system delivers oil directly to the crankshaft bearings to enhance reliability at high engine speeds
- Steel 4-Bolt main caps or Ductile Iron and optional Aluminum caps. Splayed outer bolts for extra strength
- Dual bolt patterns for standard BBC and notched oil pans
Information
Dart Big M Aluminum Big Block Chevy Blocks
Specifications
- GTIN
- 00807051017212
- Weight
- 168 lb
- Height
- 15 in
- Length
- 22.25 in
- Width
- 20.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Lifter Bore
- 0.842
- Camshaft Location
- Standard
- Category
- Engine Blocks and Accessories
- Category Hierarchy
- Blocks>Big Block Chevy>BIG M Blocks
- Cylinder Bore Diameter
- 4.500
- Deck Height
- 10.200
- EBAY Category ID
- 33613
- Engine
- Big Block
- Engine - Web
- Big Block
- Engine Block Material
- RMR Cast Aluminum Alloy
- Engine Block Series
- Big M
- Engine Block Weight
- 144
- Engine Type
- ICE
- Freeze Plug Type
- Screw-in
- Industry
- Automotive
- Main Bearing Type
- Standard
- Main Cap Type
- Steel
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- RMR Cast Aluminum Alloy
- Product Type
- Engine Block
- Rear Main Seal
- 2-Piece
- Rear Main Seal Type
- 2-Piece
- Series
- BBC Big M Aluminum Engine Blocks
- Subcategory
- Engine Blocks
- Title
- Big M Chevy Big Block Aluminum Block - 4.500 in. Bore, 10.200 in. Deck
- Title - Web
- Big M Chevy Big Block Aluminum Block - 4.500 in. Bore, 10.200 in. Deck
Fitment status
This product is universal and will fit your application.
