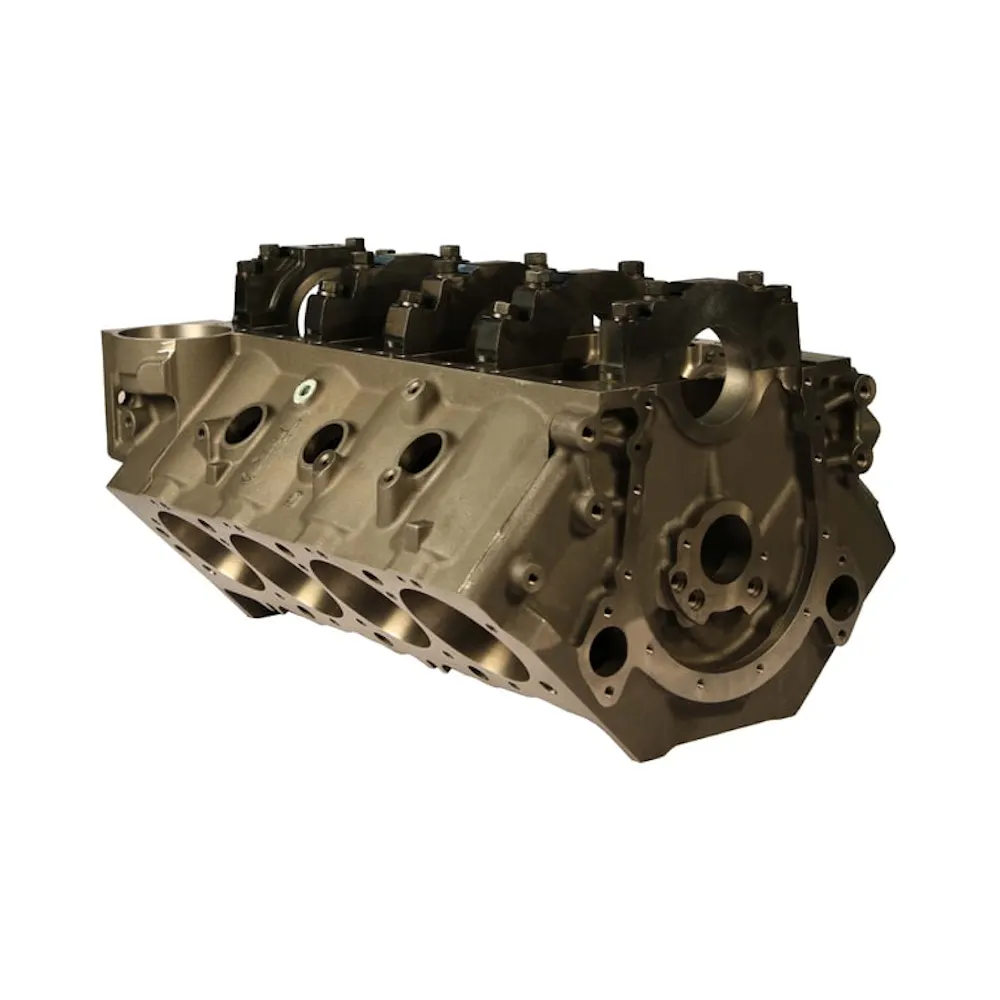

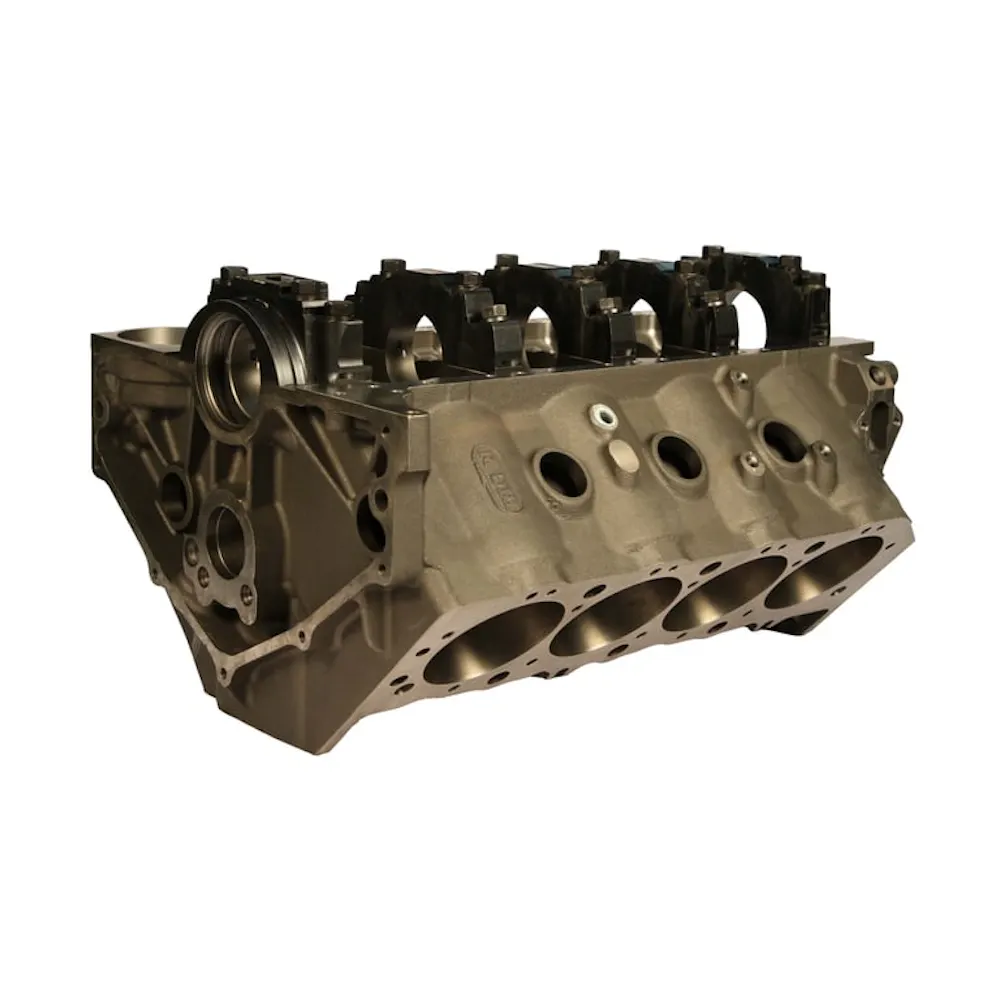

Description: Dart Big M2 Iron Big Block Chevy Blocks
Description:
Description
Dart engineered the Big M to be the strongest, most reliable, and easiest to build big block on the market. The Dart Big M2 is designed from the ground up as a true racing engine block which can be used with standard off the shelf big block components. The Big M2 is cast from premium high strength Iron and beefed up in all the critical areas. A competition oiling system ensures adequate lubrication to the main bearings at high RPM.
Features & benefits
- Standard 9.800 and tall 10.200 deck heights
- Standard 4.250, 4.500, 4.560 or 4.600 bore sizes with siamesed extra thick cylinder walLS2 to resist cracking and improve ring seal (minimum .300 thick with 4.625 bore)
- Uses +.300 tall Gen VI style lifters. Modification for Gen IV style available
- 4-bolt main bearing caps in steel or Ductile Iron have splayed outer bolts for extra strength
- Lifter valley head stud bosses prevent blown head gaskets
- Dual oil pan bolt patterns fit standard and notched oil pans
- Parts kit included
- True priority main oil system lubricates the main bearings before the lifters.
- Our stepped main oil gallery (9/16 to 1/2 to 7/16) increases the flow of oil to the crank at high RPM, and our front oil crossover eliminates internal oil leaks around the distributor shaft
Information
Dart Big M2 Iron Big Block Chevy Blocks
Specifications
- GTIN
- 00807051045864
- Weight
- 315 lb
- Height
- 15 in
- Length
- 22.25 in
- Width
- 20.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Lifter Bore
- 0.842
- Camshaft Location
- Standard
- Category
- Engine Blocks and Accessories
- Category Hierarchy
- Blocks>Big Block Chevy>BIG M2 Blocks
- Cylinder Bore Diameter
- 4.600
- Deck Height
- 10.200
- EBAY Category ID
- 33613
- Engine
- Big Block
- Engine - Web
- Big Block
- Engine Block Material
- 220 BHN Cast Iron
- Engine Block Series
- Big M
- Engine Block Weight
- 250-280
- Engine Type
- ICE
- Freeze Plug Type
- Press Fit
- Industry
- Automotive
- Main Bearing Type
- Standard
- Main Cap Type
- Steel
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- 220 BHN Cast Iron
- Product Type
- Engine Block
- Rear Main Seal
- 2-Piece
- Rear Main Seal Type
- 2-Piece
- Series
- BBC Big M2 Iron Engine Blocks
- Subcategory
- Engine Blocks
- Title
- Big M Chevy Big Block Iron Block - 4.600 in. Bore, 10.200 in. Deck
- Title - Web
- Big M Chevy Big Block Iron Block - 4.600 in. Bore, 10.200 in. Deck
Fitment status
This product is universal and will fit your application.
