Dart · 31191111
Part #: 31191111
UPC: 807051045314
Log in for inventory
Notify me when this item is in stock.
Description: Dart Little M2 Iron Small Block Chevy Blocks
Description:
Description
Dart's Little M Sportsman block is the affordable alternative for Sportsman racers and serious street performance. The Sportsman block shares most of the Little M's best features, but saves you money by using Ductile Iron main bearing caps (4-bolt on the center three and 2-bolt on the ends), and employing a rear external oil feed, crossover and restrictor provision.
Features & benefits
- Uses standard small block parts, including cam, timing chain, oil pump, oil pan, oil filter, motor mounts, mechanical fuel pump, and clutch linkage
- Rear external oil feed, crossover and restrictor provision
- Parts kit sold separately
- Priority main oiling system feeds the main bearings first
- Siamese cylinder bores with extra thick walLS2 resist cracking and improve ring seal for more power (minimum .275 thick with 4.185 bore)
- Scalloped water jacket walLS2 improve flow around cylinders for better cooling
- Open lifter valley improves oil return to pan
- Enlarged lifter bosses accommodate offset and oversize lifters
- Blind head bolt holes don't go through to water jacket
- Splayed outer bolts on middle main bearing caps
Information
Dart Little M2 Iron Small Block Chevy Blocks
Specifications
- GTIN
- 00807051045314
- Weight
- 235 lb
- Height
- 14 in
- Length
- 24 in
- Width
- 19 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Lifter Bore
- 0.842
- Camshaft Location
- Standard
- Category
- Engine Blocks and Accessories
- Category Hierarchy
- Blocks>Small Block Chevy>Little M2 Blocks
- Cylinder Bore Diameter
- 4.000
- Deck Height
- 9.025
- EBAY Category ID
- 33613
- Engine
- Small Block
- Engine - Web
- Small Block
- Engine Block Material
- 220 BHN Cast Iron
- Engine Block Series
- Little M2
- Engine Block Weight
- 197-205
- Engine Type
- ICE
- Freeze Plug Type
- Press Fit
- Industry
- Automotive
- Main Bearing Type
- Chevrolet 350
- Main Cap Type
- Ductile
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- 220 BHN Cast Iron
- Product Type
- Engine Block
- Rear Main Seal
- 2-Piece
- Rear Main Seal Type
- 2-Piece
- Series
- SBC Little M2 Iron Engine Blocks
- Subcategory
- Engine Blocks
- Title
- Little M2 Chevy Small Block Iron Block - 4.000 in. Bore, 9.025 in. Deck
- Title - Web
- Little M2 Chevy Small Block Iron Block - 4.000 in. Bore, 9.025 in. Deck
Fitment status
This product is universal and will fit your application.
Resources

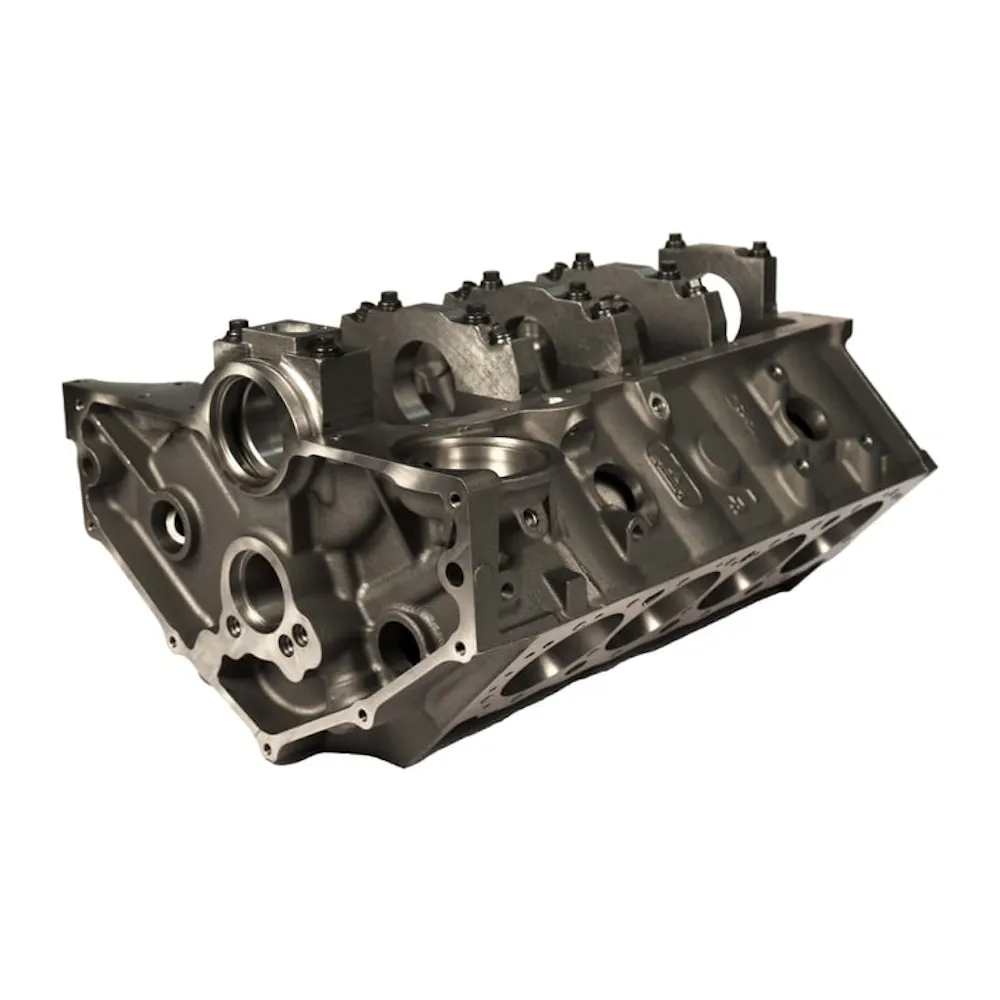

Dart 31191111
