Dart · 31161111
Part #: 31161111
UPC: 807051016420
Loading...
Notify me when this item is in stock.

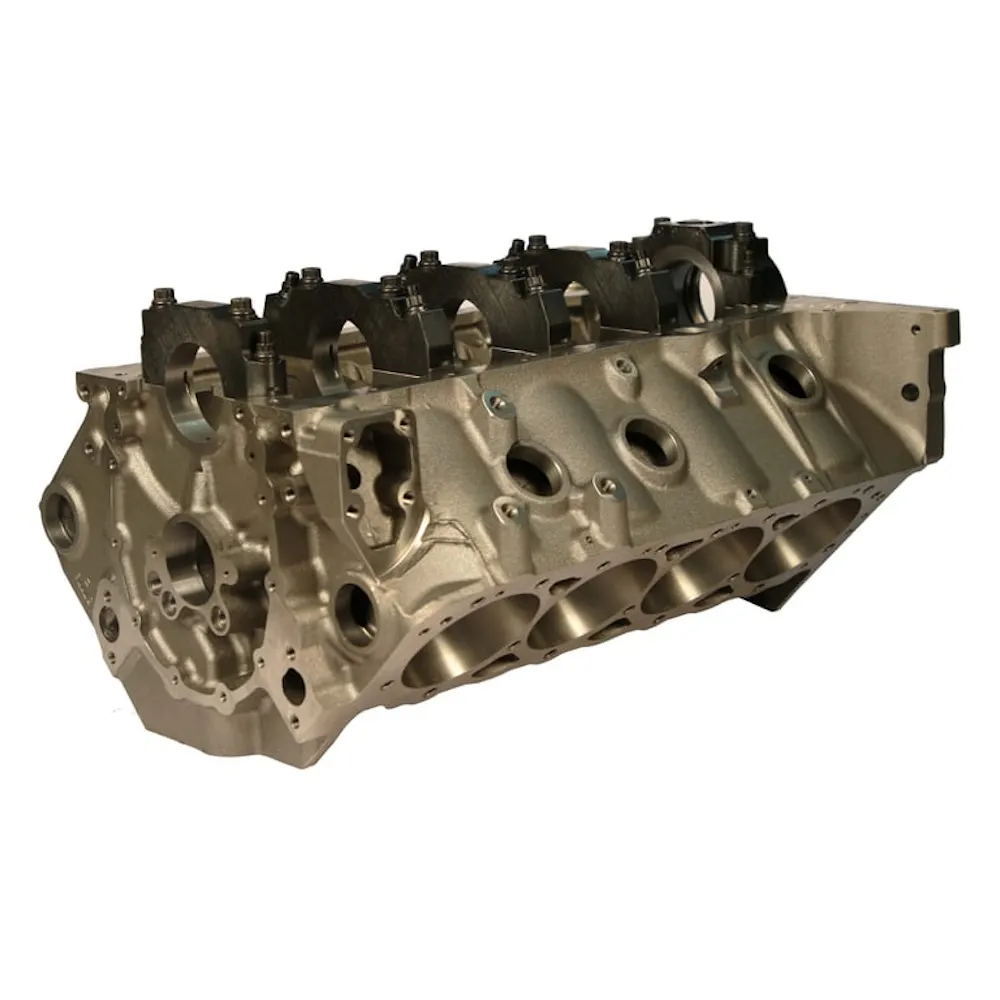

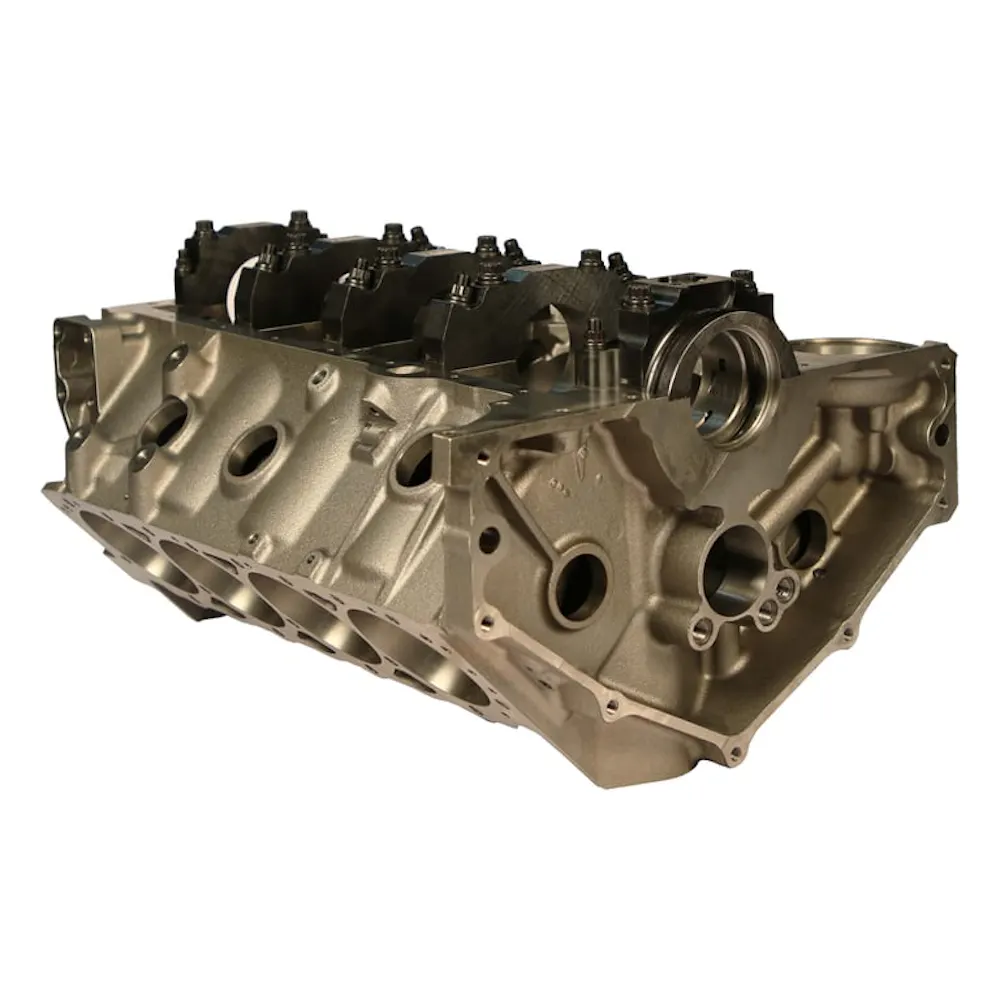

Description: Dart SHP Iron Small Block Chevy Blocks
Description:
Description
Designed for high performance and medium duty applications, the SHP (Special High Performance) block is the ideal starting point for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts.
Features & benefits
- Priority main oiling system
- Optional full water jacketed non-siamese cylinder bores
- Extra thick decks ensure reliable head gasket seal
- Blind head bolt holes don't go through to water jacket
- Scalloped water jacket walLS2 improve flow around cylinders for better cooling
- Clearance for 3.750 stroke with steel rods
- Splayed outer bolts on middle main bearing caps
- Non-siamese water blocks have 2-bolt mains on all 5 locations
- Uses + .300 tall stock 87-95 roller lifters
- Provisions for OE stock roller lifters & cams
- Uses 1981-1985 stock style oil pan & passenger side dipstick
- Uses stock stamped steel or plastic timing cover
- All OE bolt holes for starter, clutch ball, etc.
- Oil restrictors available through aftermarket resources
- Parts kit sold separately
- Siamese cylinder bores with extra thick walLS2
Information
Dart SHP Iron Small Block Chevy Blocks
Specifications
- GTIN
- 00807051016420
- Weight
- 235 lb
- Height
- 14 in
- Length
- 24 in
- Width
- 19 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Lifter Bore
- 0.842
- Camshaft Location
- Standard
- Category
- Engine Blocks and Accessories
- Category Hierarchy
- Blocks>Small Block Chevy>SHP Blocks
- Cylinder Bore Diameter
- 4.000
- Deck Height
- 9.025
- EBAY Category ID
- 33613
- Engine
- Small Block
- Engine - Web
- Small Block
- Engine Block Material
- Class 30 Grey Iron
- Engine Block Series
- SHP
- Engine Block Weight
- 170-178
- Engine Type
- ICE
- Freeze Plug Type
- Press Fit
- Industry
- Automotive
- Main Bearing Type
- Chevrolet 350
- Main Cap Type
- Ductile
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- Class 30 Grey Iron
- Product Type
- Engine Block
- Rear Main Seal
- 2-Piece
- Rear Main Seal Type
- 2-Piece
- Series
- SHP Iron Chevrolet Small Blocks
- Subcategory
- Engine Blocks
- Title
- SHP Chevy Small Block Iron Block - 4.000 in. Bore, 9.025 in. Deck
- Title - Web
- SHP Chevy Small Block Iron Block - 4.000 in. Bore, 9.025 in. Deck
Fitment status
This product is universal and will fit your application.
