Dart / 16874050
Part #: 16874050
UPC: 807051010442
Loading...
Notify me when this item is in stock.

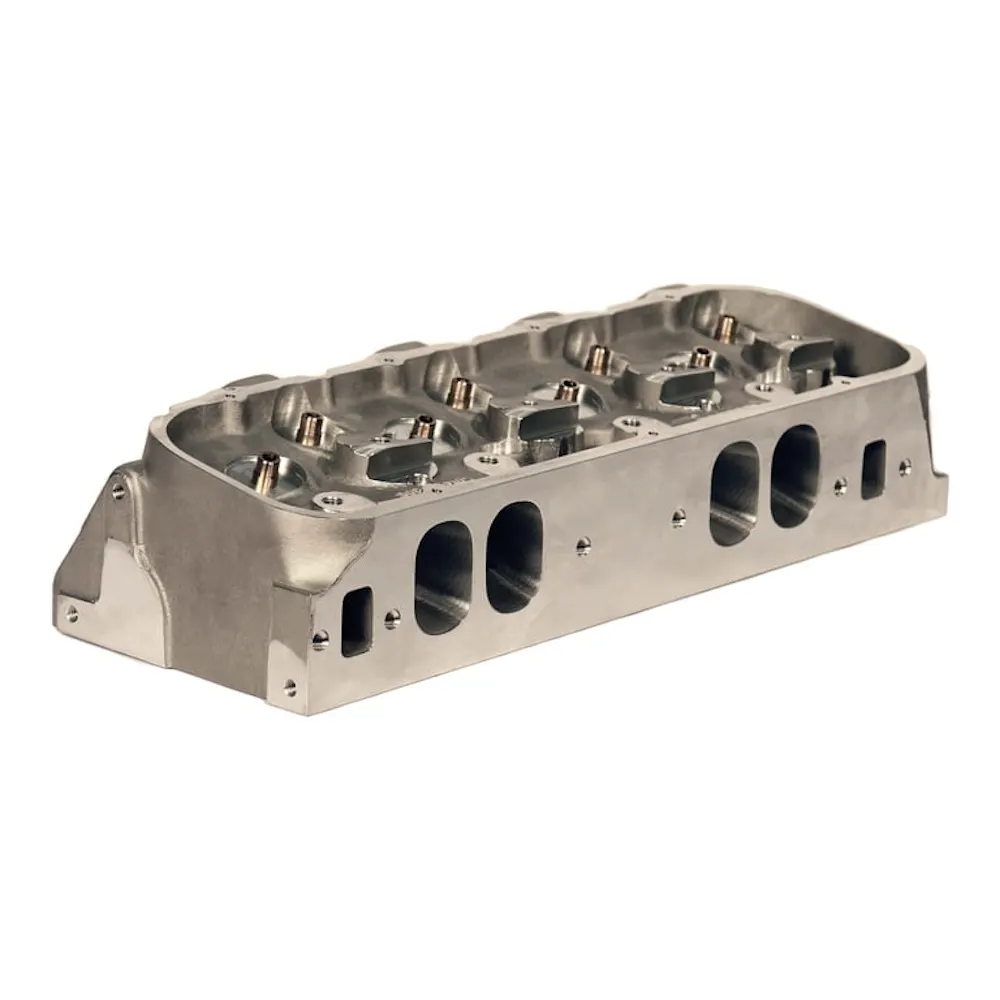

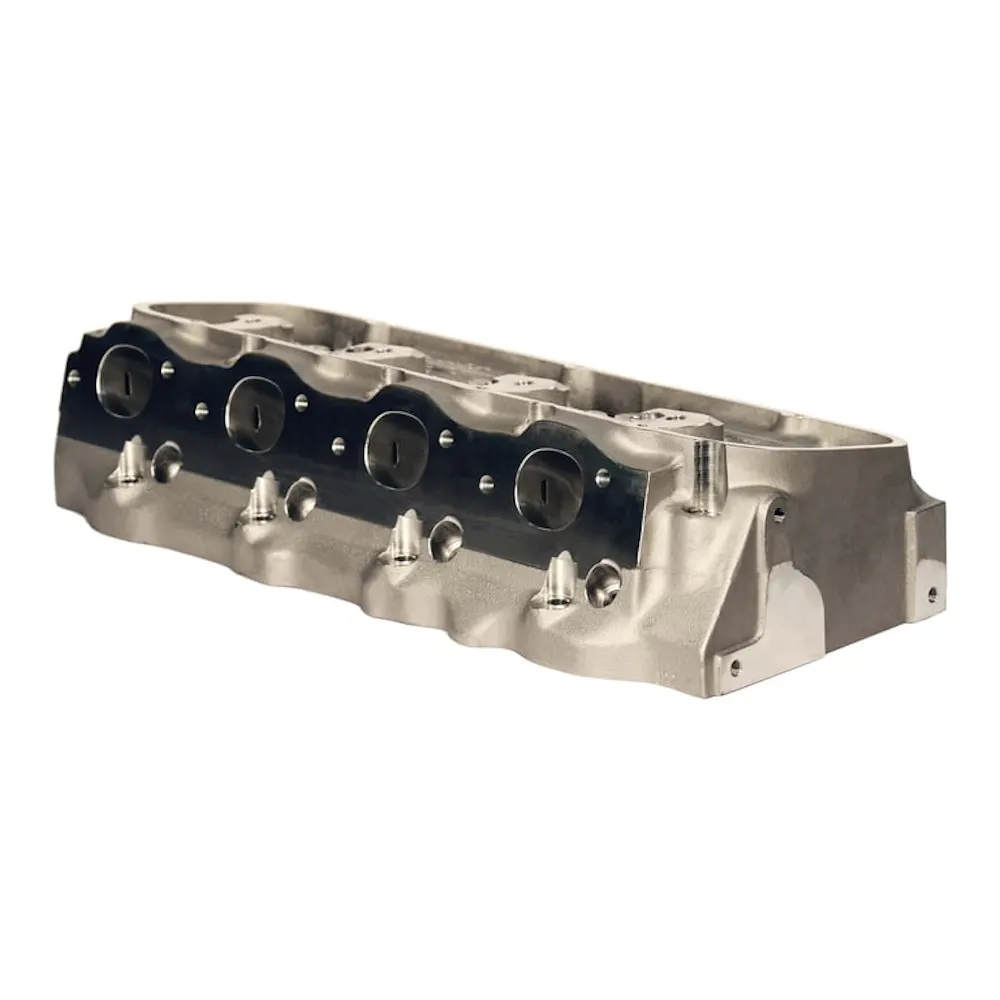

Description: Dart Race Series CNC Aluminum Big Block Chevy Cylinder Heads
Description:
Description
Maximum competition. High torque, high compression low dome. 8,000+ RPM, 500+ cubic inches. Race Series big block 18 Deg oval port heads bridge the gap between conventional heads and Dart's Big Chief heads. Utilizing Pro Stock style oval intake ports with 330cc or 383cc runners in a conventional asymmetrical port design, and featuring an 18 Deg rolled valve angle with redesigned shallow combustion chambers, this design is ideal for drag racing, marine applications and dirt modified classes permitting big blocks.
Features & benefits
- Heads are sold individually
Information
Dart Race Series CNC Aluminum Big Block Chevy Cylinder Heads
Specifications
- GTIN
- 00807051010442
- Weight
- 34 lb
- Height
- 8 in
- Length
- 24 in
- Width
- 10.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- CNC Ported
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category
- Cylinder Heads
- Category Hierarchy
- Heads>Big Block Chevy>Race Series
- Combustion Chamber Volume
- 102.00
- Cylinder Head Material
- RMR Cast Aluminum Alloy
- Cylinder Head Series
- Race Series
- EBAY Category ID
- 33617
- Engine
- Big Block
- Engine - Web
- Big Block
- Engine Type
- ICE
- Exhaust Valve Diameter
- 1.840
- Industry
- Automotive
- Intake Runner Volume
- 383.00
- Intake Valve Diameter
- 2.350
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- RMR Cast Aluminum Alloy
- Port Volume
- 383.00
- Product Type
- Engine Cylinder Head
- Series
- Race Series Aluminum Chevrolet Big Block Heads
- Subcategory
- Cylinder Heads
- Title
- Race Series Chevrolet Big Block Head - 383.00 CC Port, 102.00 CC Chamber
- Title - Web
- Race Series Chevrolet Big Block Head - 383.00 CC Port, 102.00 CC Chamber
- Valve Angle
- 18
- Valve Spring Type
- Bare
Fitment status
This product is universal and will fit your application.
