Dart · 11081050
Part #: 11081050
UPC: 807501054361
Log in for inventory
Notify me when this item is in stock.

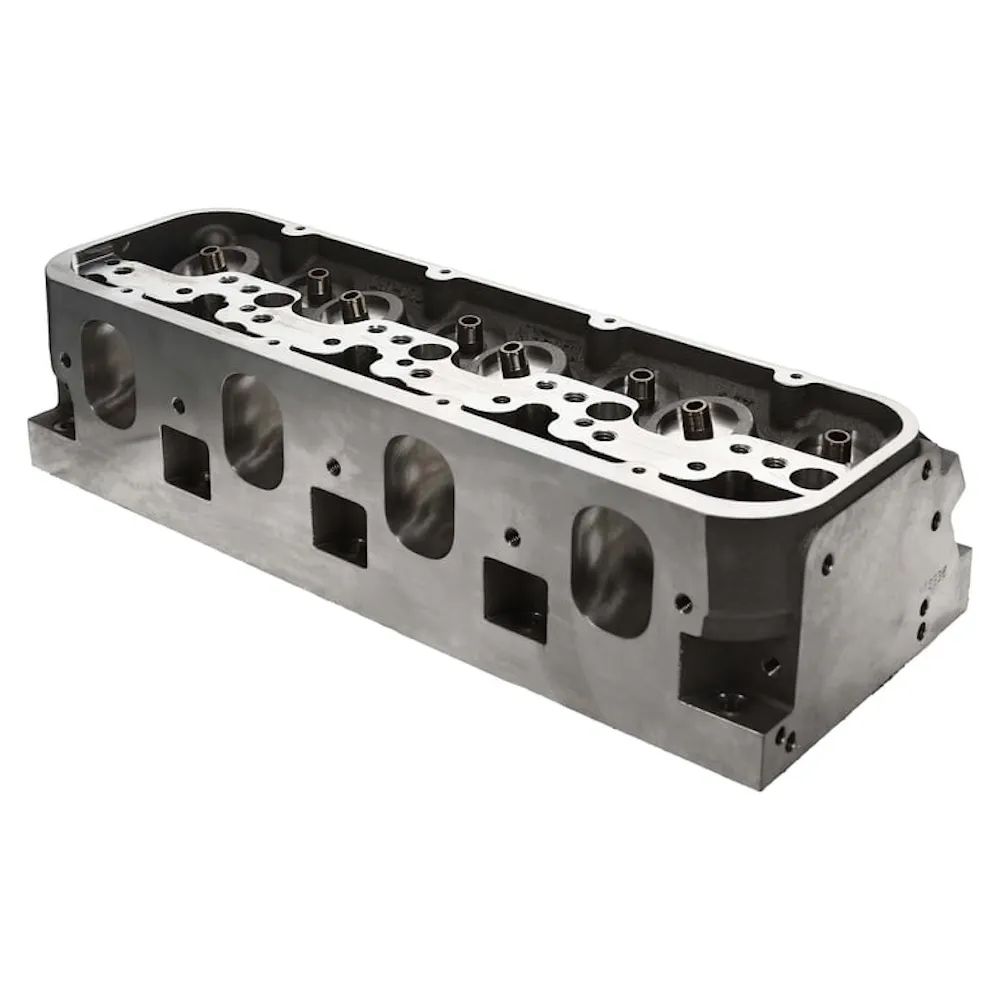

Description: Dart Race Series Ls 10 Deg CNC Gen III Chevy Heads
Description:
Description
Recommended for maximum competition LS engines with 4.155 inch bore or larger. Drag race, maximum competition, naturally aspirated, heavy nitrous or forced induction applications. Dart's New Race Series 10 Deg LS cylinder head is the ultimate choice for maximum competition. Designed with raised Pro Stock oval ports, canted valves and highly efficient wedge style combustion chambers, the Race Series 10 Deg LS is a radical departure from traditional LS heads in one other area. The intake and exhaust valve locations for each cylinder have been reversed. This feature has been the standard for maximum power wedge engines for decades. It is recommended that you contact a Dart technical representative before placing an order for this item. Detailed information about your planned engine build will help to ensure that you choose the right configuration for your motor and that any special parts are taken into consideration.
Features & benefits
- Optional Front Water Inlet Machining
- Heads are sold individually
Information
Dart Race Series Ls 10 Deg CNC Gen III Chevy Heads
Specifications
- GTIN
- 00807501054361
- Weight
- 24 lb
- Height
- 9 in
- Length
- 22.25 in
- Width
- 7 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- DAR
- Warehouse brand code
- BGWK
- AAIA brand code
- BGWK
Attributes
- CNC Ported
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category
- Cylinder Heads
- Category Hierarchy
- Heads>Gen III LS Next Heads>Race Series
- Combustion Chamber Volume
- 57.00
- Cylinder Head Material
- Cast Aluminum Alloy
- Cylinder Head Series
- Race Series
- EBAY Category ID
- 33617
- Engine
- LS Gen III
- Engine - Web
- LS Gen III
- Engine Type
- ICE
- Exhaust Valve Diameter
- 1.600
- Industry
- Automotive
- Intake Runner Volume
- 368.00
- Intake Valve Diameter
- 2.300
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Material
- Cast Aluminum Alloy
- Port Volume
- 368.00
- Product Type
- Engine Cylinder Head
- Series
- Race Series Chevrolet LS Gen III Heads
- Subcategory
- Cylinder Heads
- Title
- Race Series Chevrolet LS Gen III Head - 368.00 CC Port, 57.00 CC Chamber
- Title - Web
- Race Series Chevrolet LS Gen III Head - 368.00 CC Port, 57.00 CC Chamber
- Valve Angle
- 10
- Valve Spring Type
- Bare
Fitment status
This product is universal and will fit your application.

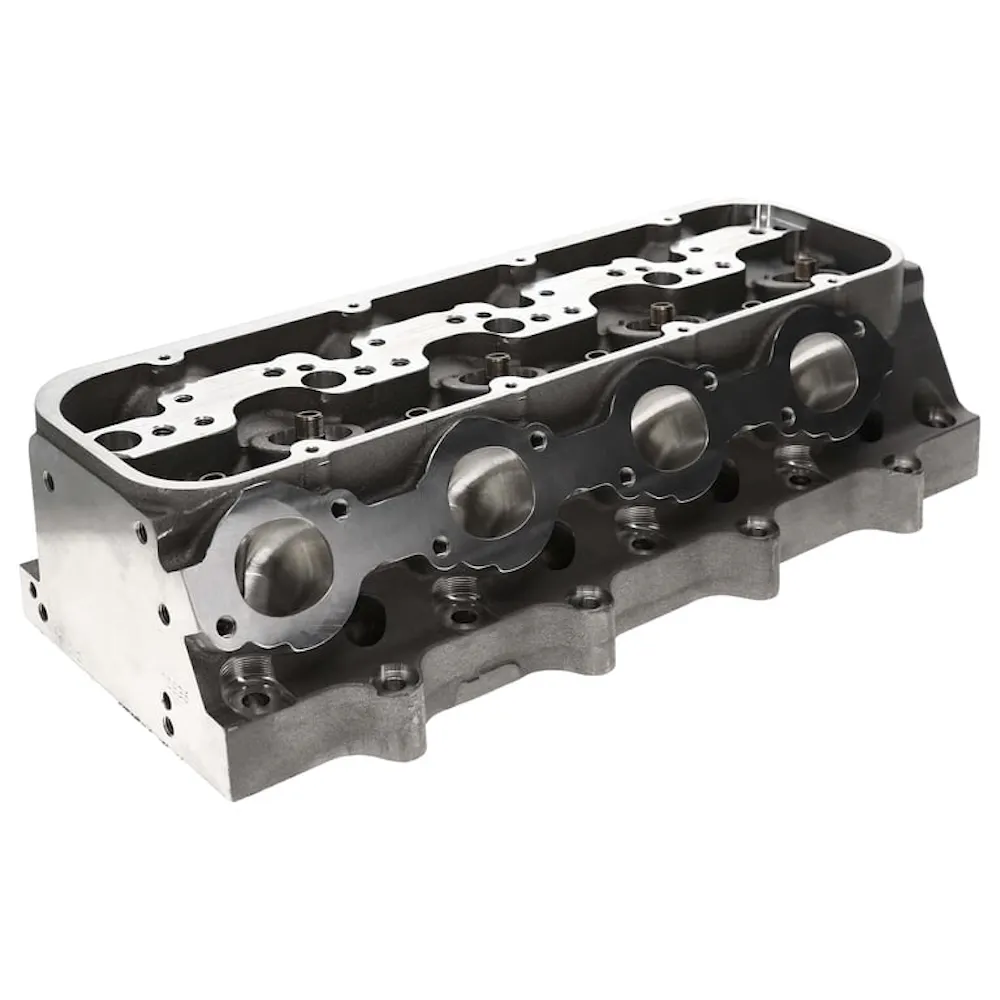

Dart 11081050
