CURT / 60614
Part #: 60614
UPC: 612314606146
Loading...
Notify me when this item is in stock.
Description: PowerHaul OEM-Style Gooseneck Hitch, Select Ram 2500; CURT 60614 PowerHaul Factory Original Equipment Style Gooseneck Hitch, 30,000 lbs. 2-5/16-Inch Ball, Fits Select Ram 2500
Description:
Description
CURT PowerHaul OEM-style gooseneck hitches are built for specific pickup trucks to tackle big jobs. OEM-style hitches are unique because they do not require additional installation brackets. They bolt directly onto the vehicle's frame and use pre-existing bolt holes to install in 45 minutes or less. They also require no welding, bed flange trimming or bed removal. This particular hitch is designed to fit specific years of the Ram 2500. Each PowerHaul OEM-style Ram hitch comes with a factory-style gooseneck ball and all the necessary hardware for a complete installation. This Ram OE gooseneck hitch offers a gross trailer weight capacity of 30,000 lbs. and a vertical load limit of 7,500 lbs. It is perfect for towing everything from farm animals in your livestock trailer to industrial materials on a flatbed (limited to lowest rated towing component). It comes with a patented 2-5/16" gooseneck trailer ball that can be installed and removed easily with a simple quarter-turn of the integrated lever. To ensure that this Ram gooseneck hitch has what it takes to keep up with you and your truck, it also comes with an A-coat finish for excellent rust resistance. It has heavy-duty 5/8" safety chain anchors for a reliable backup connection.

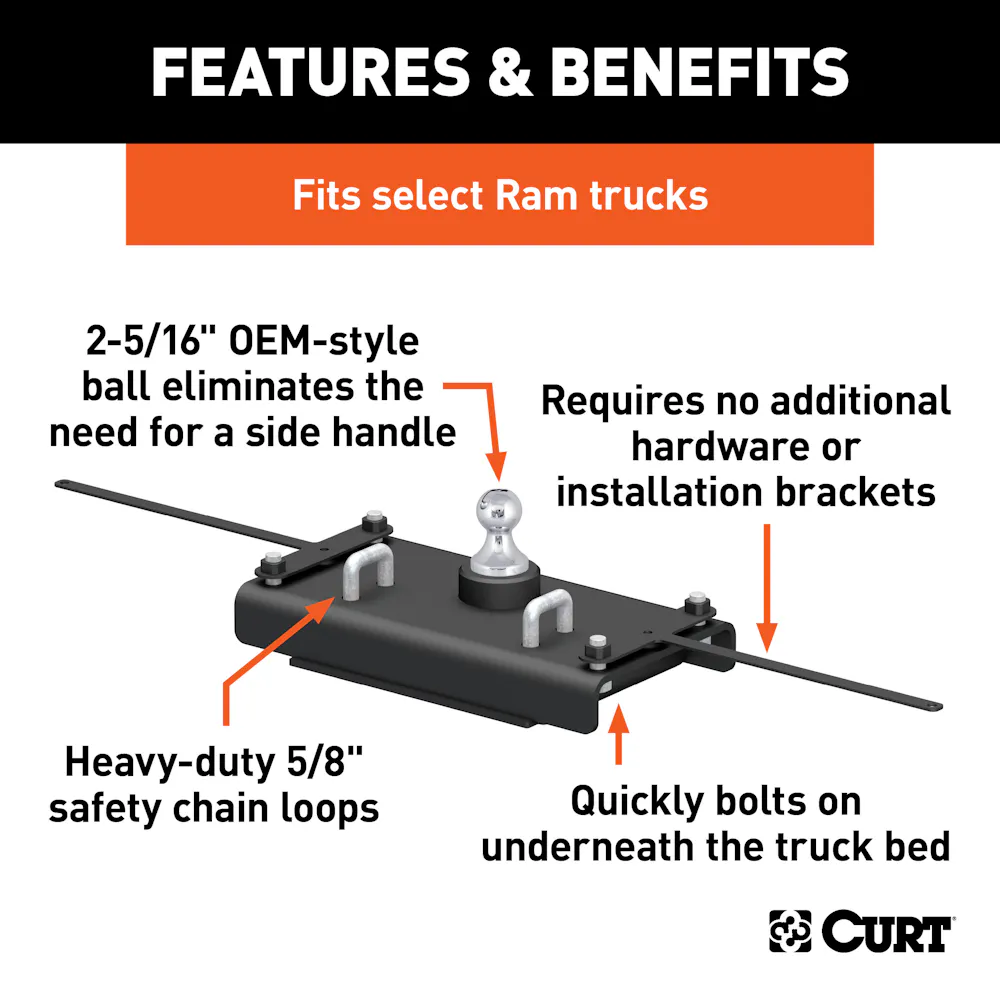

Features & benefits
- Up to 30,000 lbs. GTW and 7,500 lbs. vertical load
- Installation also requires no welding, bed flange trimming or bed removal

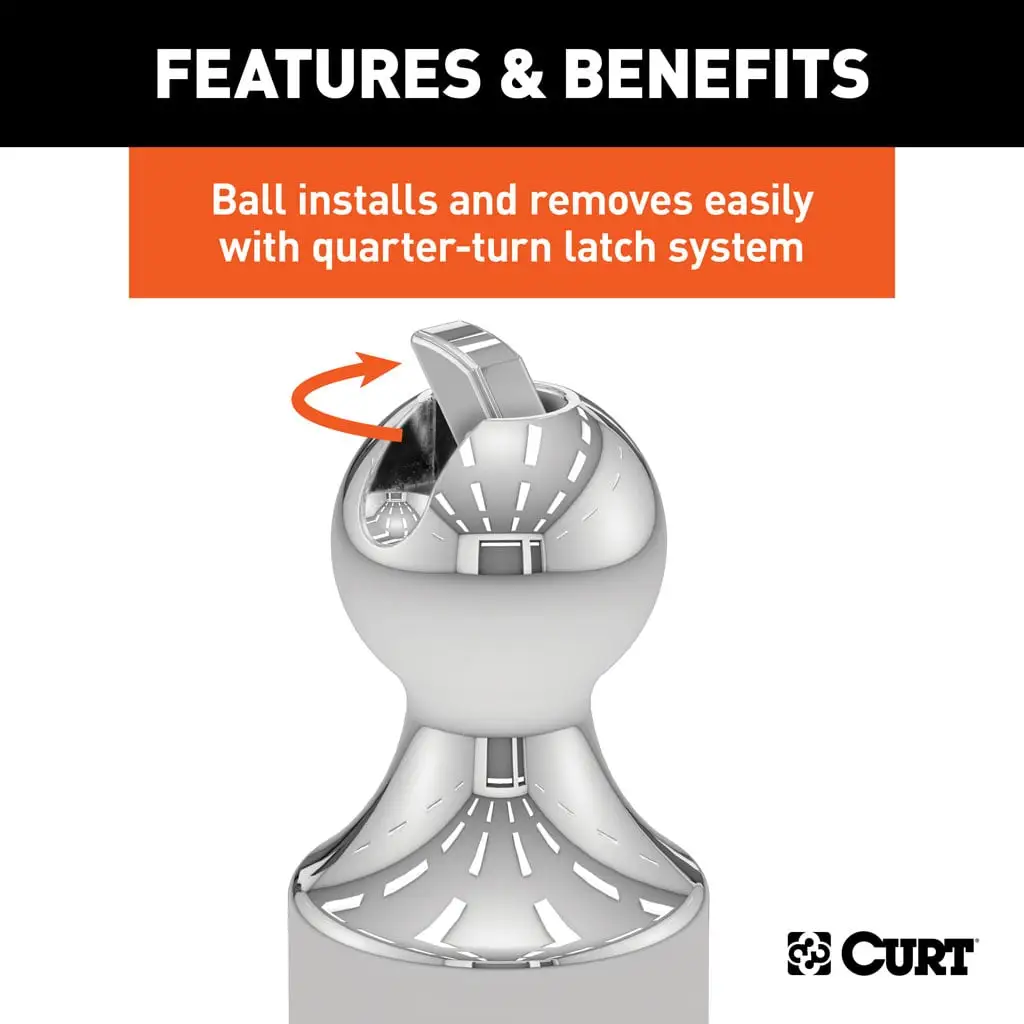

- Included patented 2-5/16" ball eliminates the need for a side handle
- Heavy-duty 5/8" safety chain loops for a reliable connection
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable, rust-resistant, liquid A-coat
- Limited lifetime warranty (one-year finish, one-year parts)
- Designed, welded, and coated in Wisconsin
- Not compatible with X5 adapter or factory 5th wheel prep package
- Weight ratings are limited to vehicle manufacturer's stated capacities
- Quickly bolts on underneath the truck bed in 45 minutes or less
- Requires no additional hardware or installation brackets
- No drilling necessary except the truck bed holes
Information
No drilling necessary except the truck bed holes
Application summary
| Year | Make / model |
|---|---|
| 2014-2018 | Ram 2500 |

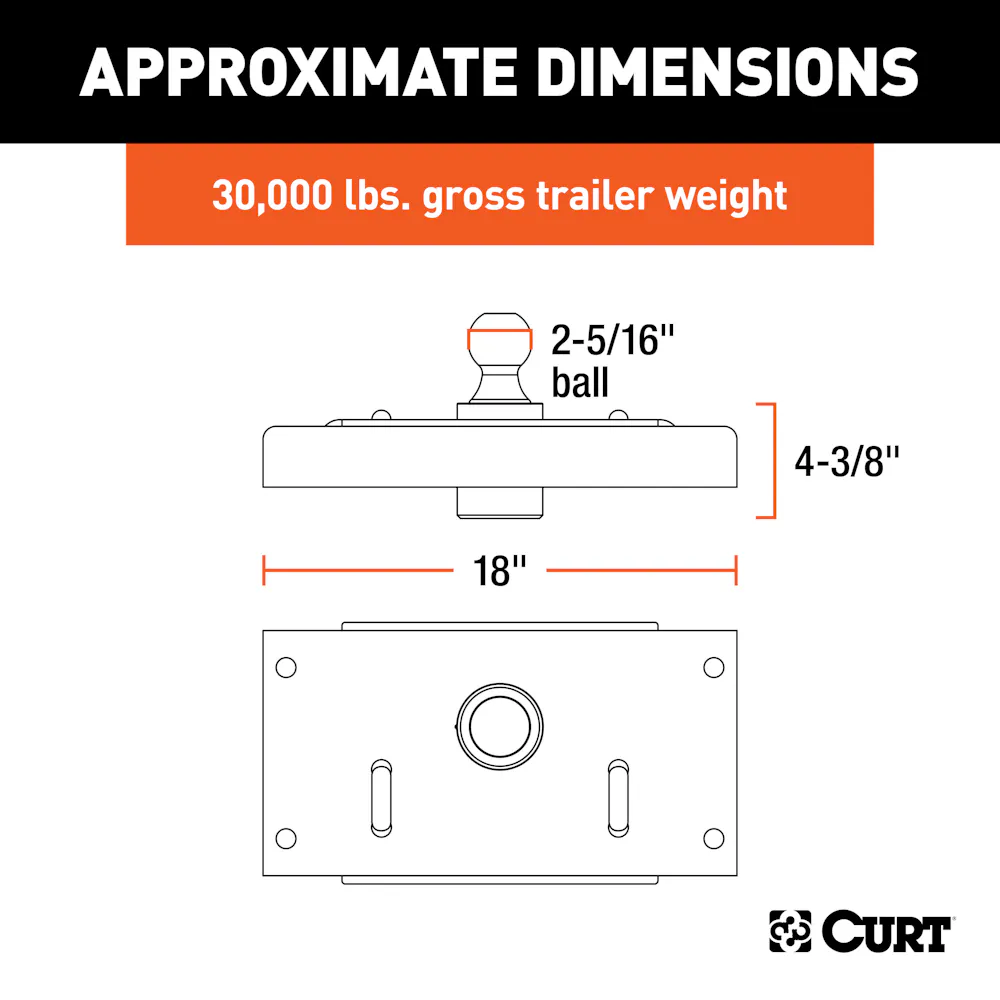

Specifications
- GTIN
- 00612314606146
- Weight
- 50.6 lb
- Height
- 7.25 in
- Length
- 21.25 in
- Width
- 11.25 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Gooseneck Hitch
- Ball Diameter
- 2.3125 in.
- Ball Diameter (in.)
- 2.3125
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Class ID
- 0
- Color
- Black
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drilling Required
- No
- Finish
- A-COAT
- Finish - XA
- A-COAT
- Gooseneck Hitch Type
- OEM Compatible
- Gross Trailer Weight
- 30000 lbs.
- Gross Trailer Weight (GTW)
- 30,000 LB
- Gross Trailer Weight (lbs.)
- 30000
- Gross Trailer Weight(GTW)
- 30,000 LB
- Install Time
- 45 Minutes
- Item Class - XA
- OMF
- Item Height - XA
- 4.380
- Item Length - XA
- 18.000
- Item Width - XA
- 9.940
- Lockable
- No
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material
- Carbon Steel
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Mounting Hardware Included
- Yes
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 40.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 49.600
- Rate Class - XA
- 77.5
- Retail Height - XA
- 7.250
- Retail Length - XA
- 21.250
- Retail Width - XA
- 11.250
- Sales Family Code - XA
- GOOSE
- Sales Family Description - XA
- GOOSENECK
- Sales Group Description - XA
- GOOSENECK HITCH
- Shipping Weight - XA
- 50.600
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- OEM-Style Gooseneck Hitch, Select Ram 2500
- Tongue Weight (TW)
- 7,500 LB
- Tongue Weight(TW)
- 7,500 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Vertical Load
- 7500
- Vertical Load Capacity
- 7,500 LB
- WC Tongue Weight
- 7500
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Welding Required
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2014-2018 Ram 2500
