CURT · 60611

Part #: 60611
UPC: 612314606115

Loading availability... Loading...

Notify me when this item is in stock.

Brand: CURT Series: Gooseneck Hitches

Description: Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required); CURT 60611 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock EZr gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock EZr mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. For easy one-person installation, the Double Lock EZr comes with the CURT-exclusive center locator. This simple installation tool inserts into the gooseneck trailer ball hole during installation and shows exactly where to drill in the truck bed, eliminating errors and the need for meticulous measuring. The Double Lock EZr also comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty.

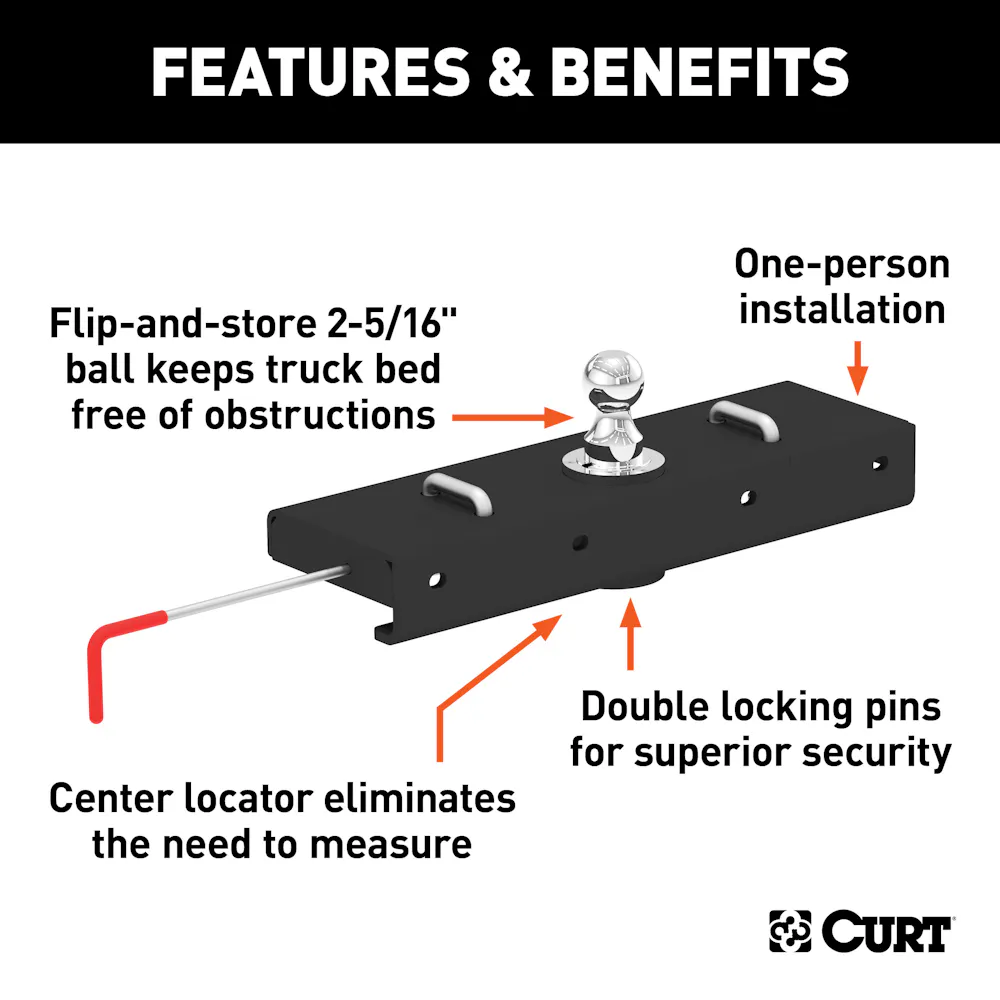

Features & benefits

Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)

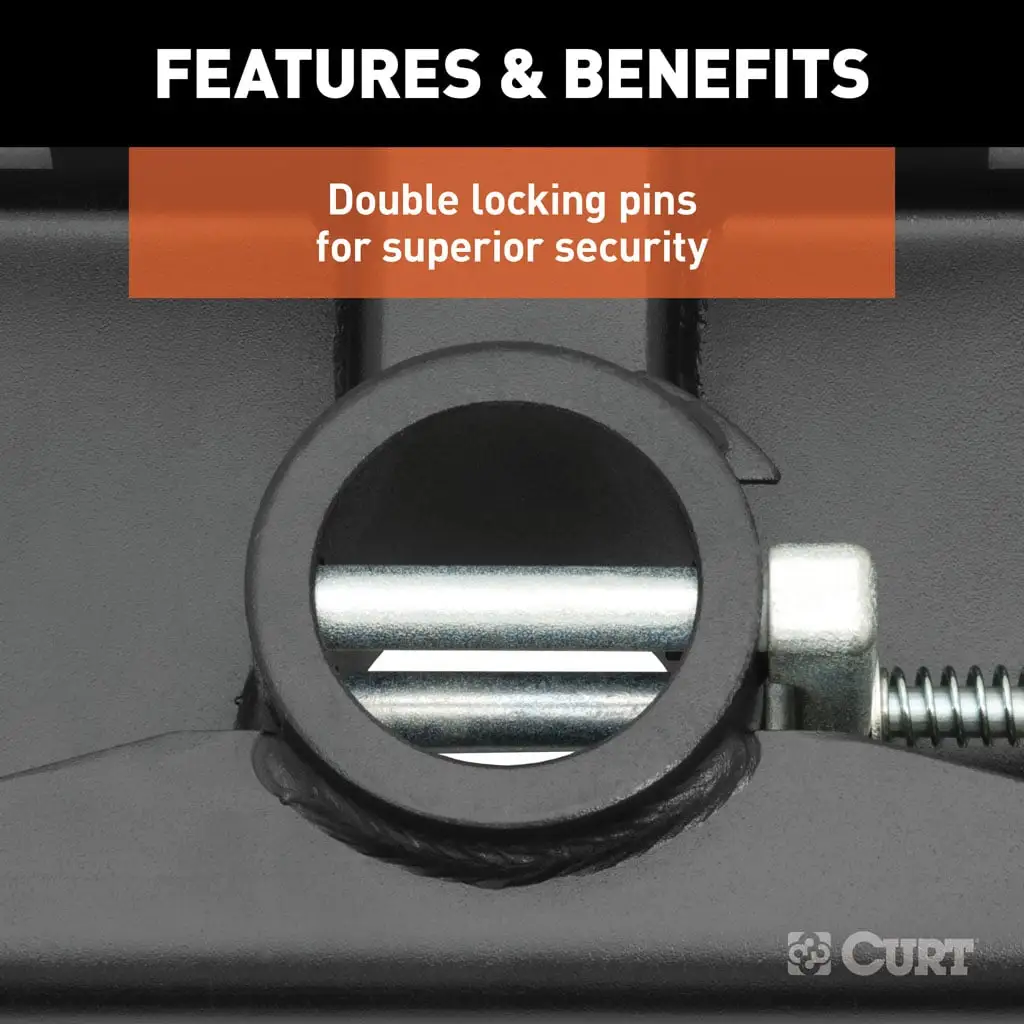

Double locking pins for superior trailer and trailer ball security

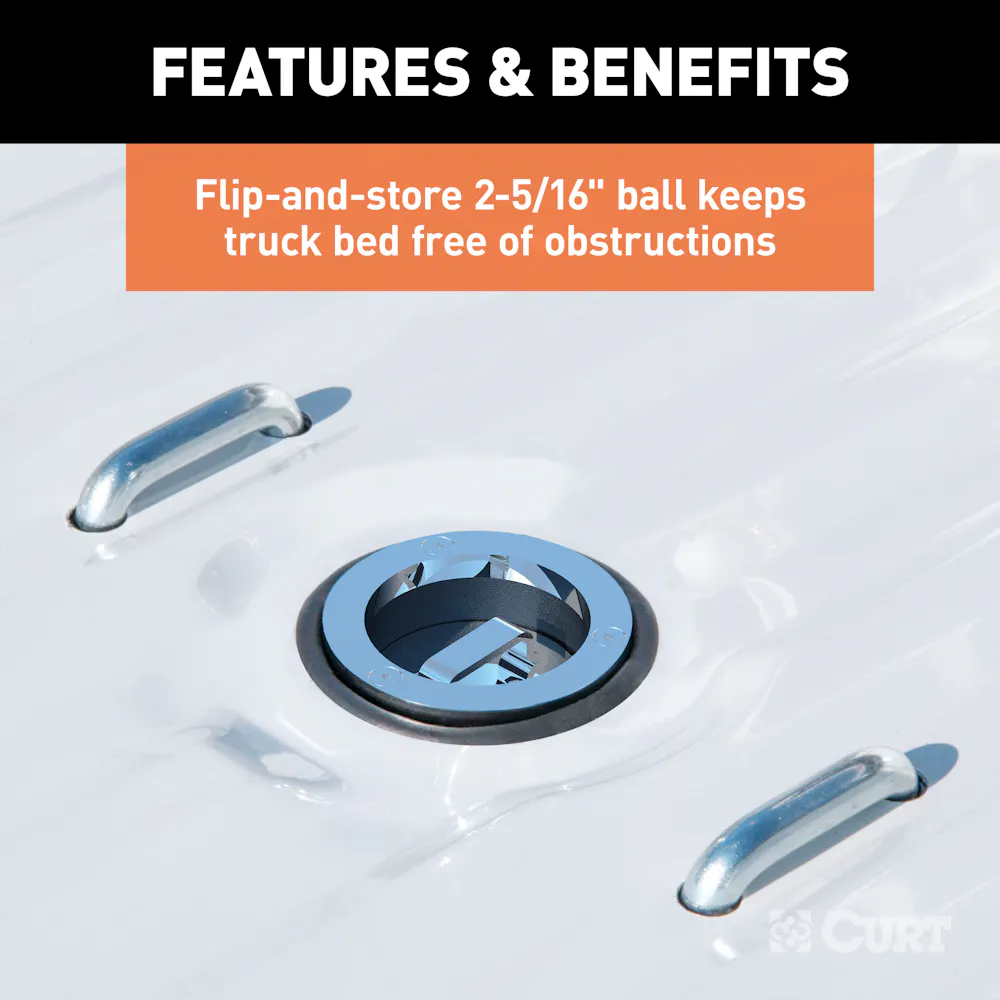

Flip-and-store ball keeps truck bed free of obstructions
Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
Chrome-plated trim ring provides a finished look
Rubber hole cover helps prevent corrosion in trailer ball hole
Heavy-duty 3/8" diameter handle for solid operation

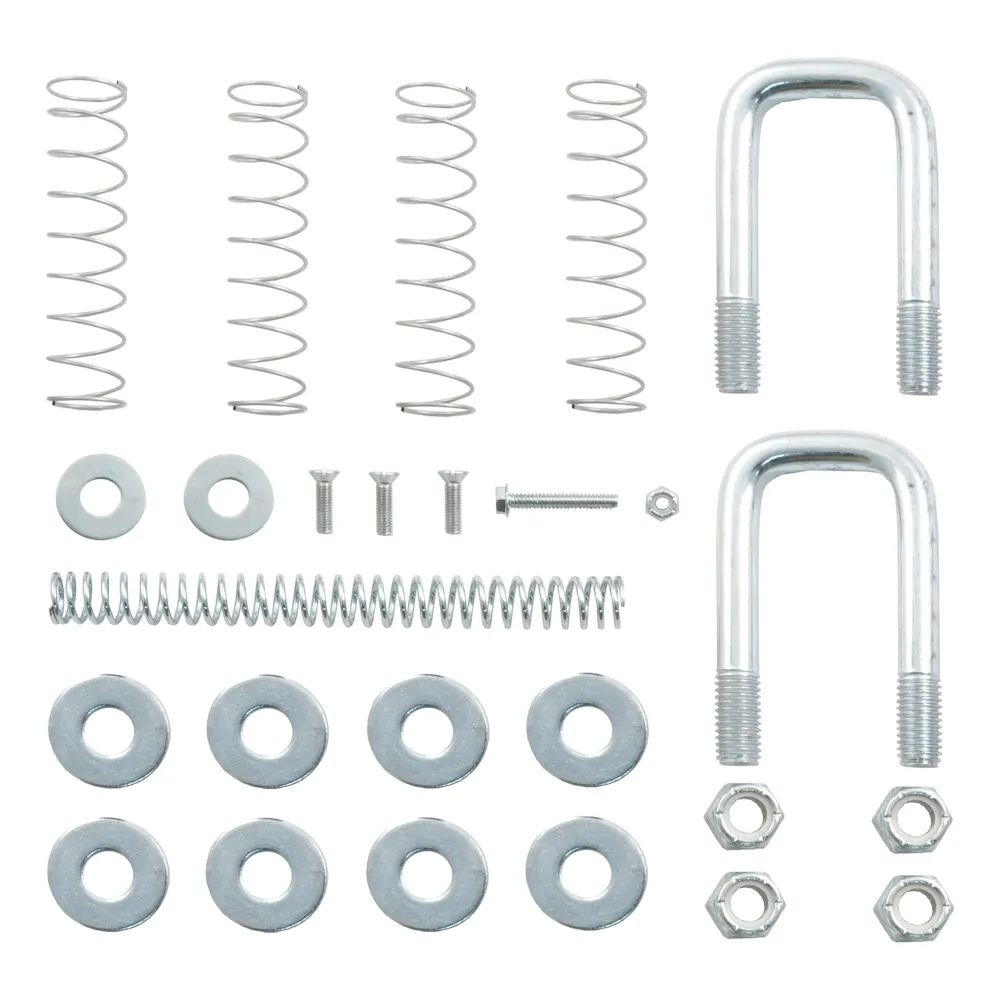

Includes strong 5/8" safety chain loops and grade-8 hardware
Protected by a durable A-coat finish
Limited lifetime warranty (one-year finish, one-year parts)
Requires under-bed gooseneck installation brackets
Center Locator patent# D685,299 S
Capacity limited to lowest-rated towing component
One-person installation requires no welding or truck bed removal
Center locator eliminates the need to measure where the ball hole should be

Information

Center locator eliminates the need to measure where the ball hole should be

Application summary

Year	Make / model
2011-2026	Chevrolet Silverado 2500 HD
2011-2026	Chevrolet Silverado 3500 HD
2011-2026	GMC Sierra 2500 HD
2011-2026	GMC Sierra 3500 HD

Specifications

GTIN: 00612314606115
Weight: 49 lb
Height: 6 in
Length: 27 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: EZR Hitch
Ball Diameter: 2.3125 in.
Ball Diameter (in.): 2.3125
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Class ID: 0
Color: Black
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Drilling Required: Yes
Finish: CARBIDE BLACK POWDER COAT
Finish - XA: CARBIDE BLACK POWDER COAT
Gooseneck Hitch Type: Double Lock EZr
Gross Trailer Weight: 30000 lbs.
Gross Trailer Weight (GTW): 30,000 LB
Gross Trailer Weight (lbs.): 30000
Gross Trailer Weight(GTW): 30,000 LB
Item Class - XA: OBS
Item Height - XA: 4.000
Item Length - XA: 24.500
Item Width - XA: 7.750
Lockable: No
Master Case Height Inches - XA: 0.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 0.000
Master Case Qty - XA: 0
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 0.000
Master Case Width Inches - XA: 0.000
Material: Carbon Steel
Material - XA: Blank
Mount Type Description - XA: Blank
Mounting Hardware Included: Yes
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 0
Pallet Cases Per Layer - XA: 0
Pallet Layer of Cases - XA: 0
Pallet Qty - XA: 36.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: Yes
Product Weight - XA: 49.000
Rate Class - XA: 70.0
Retail Height - XA: 24.000
Retail Length - XA: 4.000
Retail Width - XA: 8.000
Sales Family Code - XA: GOOSE
Sales Family Description - XA: GOOSENECK
Sales Group Description - XA: GOOSENECK HITCH HITCH
Shipping Weight - XA: 49.000
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Title: Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)
Tongue Weight (TW): 7,500 LB
Tongue Weight(TW): 7,500 LB
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Vertical Load: 7500
Visibility: Concealed
WC Tongue Weight: 7500
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Welding Required: No
