CURT · 60607
Part #: 60607
UPC: 612314606078
Loading...
Notify me when this item is in stock.
Description: Double Lock Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required); CURT 60607 Double Lock Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs
Description:
Description
A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. The Double Lock comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty. This particular Double Lock gooseneck hitch is design to fit several models of Chevrolet, GMC, Dodge, Ram, Ford and Toyota (for a complete listing of vehicle and installation bracket compatibility, see application info).
Features & benefits
- Double Lock Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)

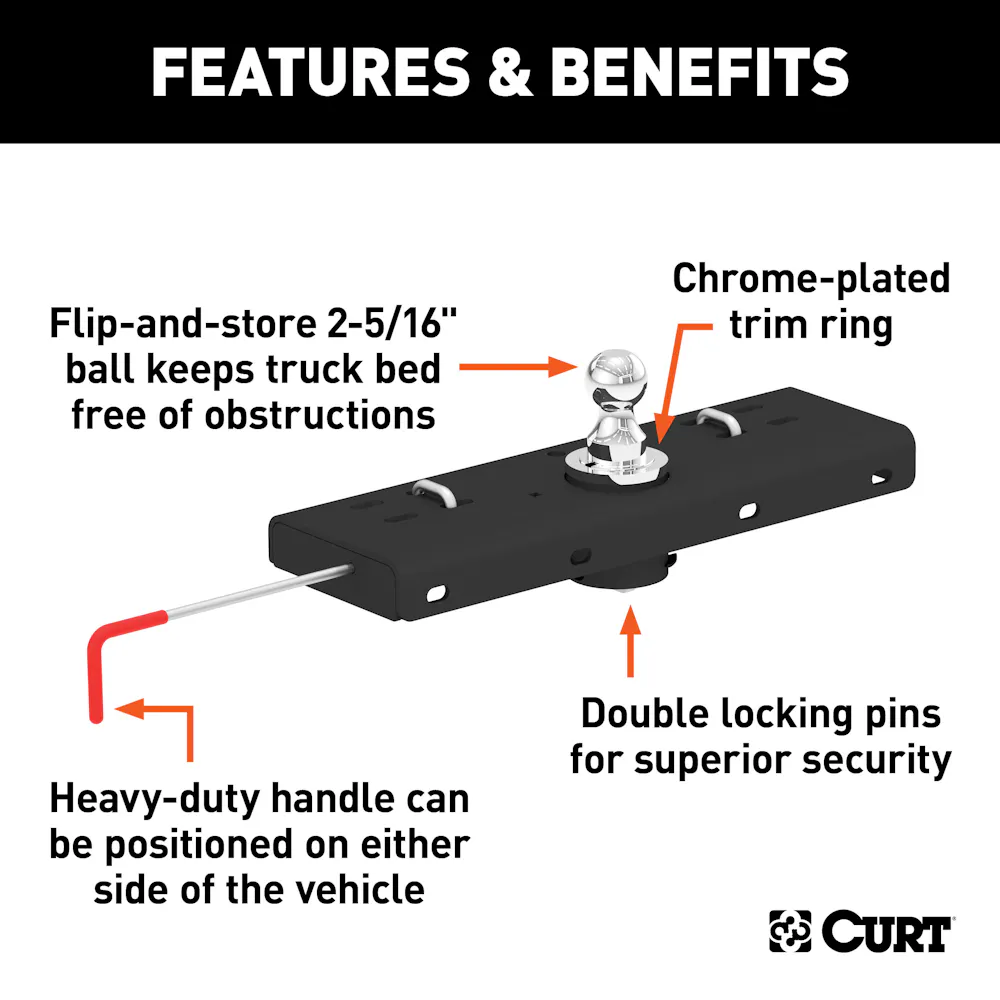

- Heavy-duty handle can be positioned on either side of the vehicle
- Chrome-plated trim ring provides a finished look
- Rubber hole cover helps prevent corrosion in trailer ball hole

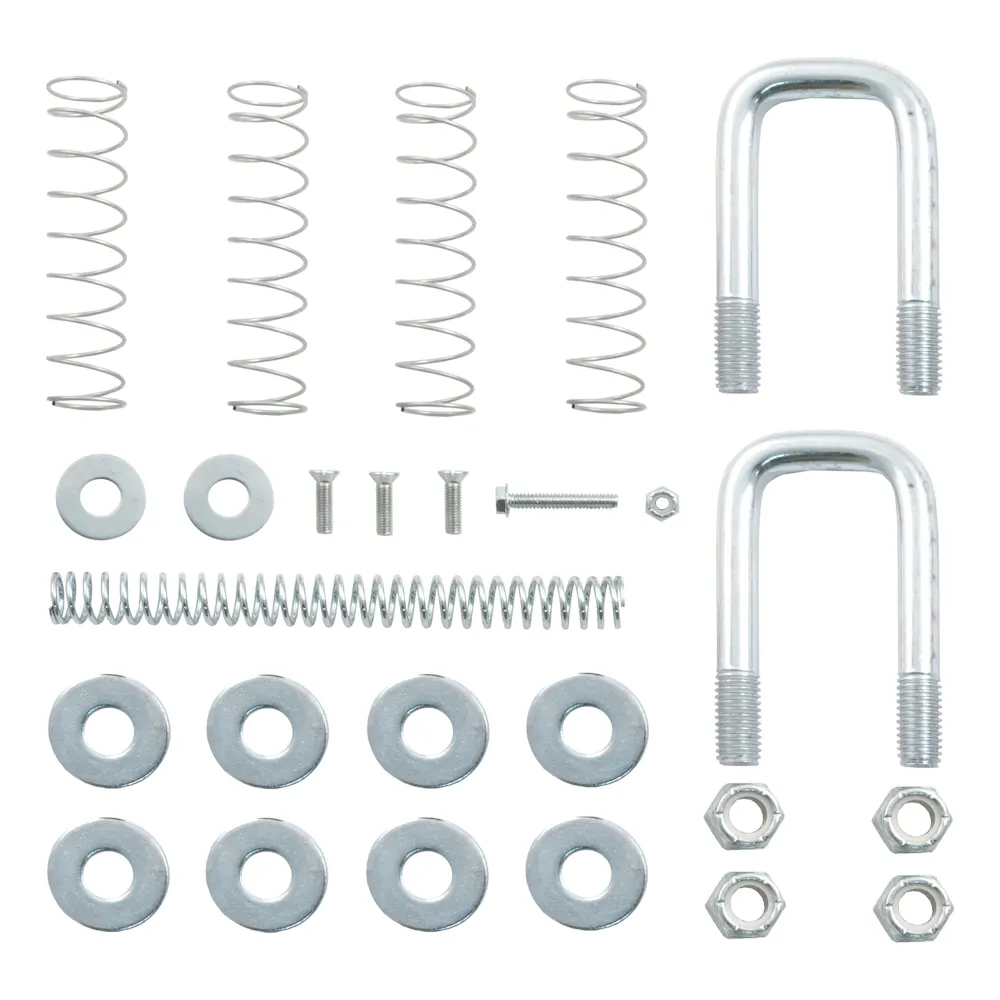

- Includes spring-loaded safety chain loops and grade-8 hardware
- Protected by a durable A-coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Requires under-bed gooseneck installation brackets
- Capacity limited to lowest-rated towing component

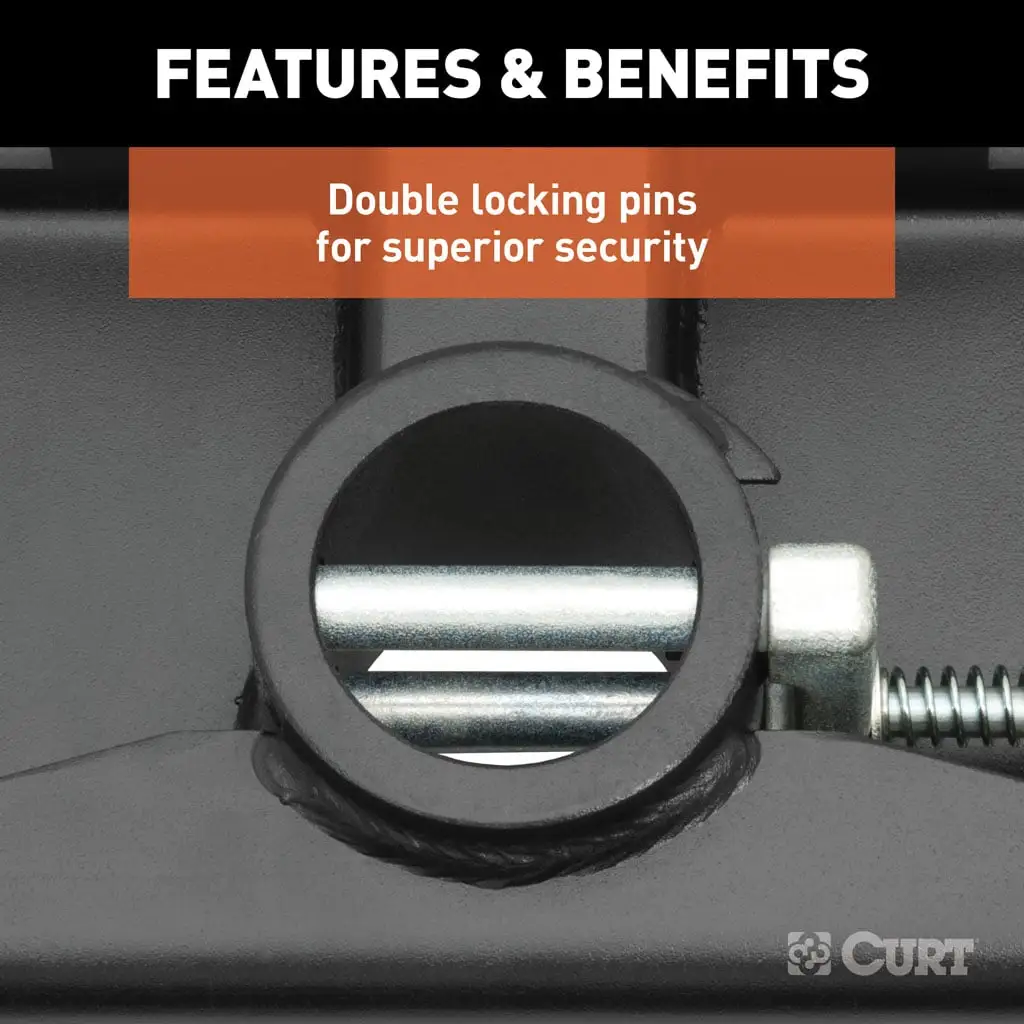

- Double locking pins for superior trailer and trailer ball security

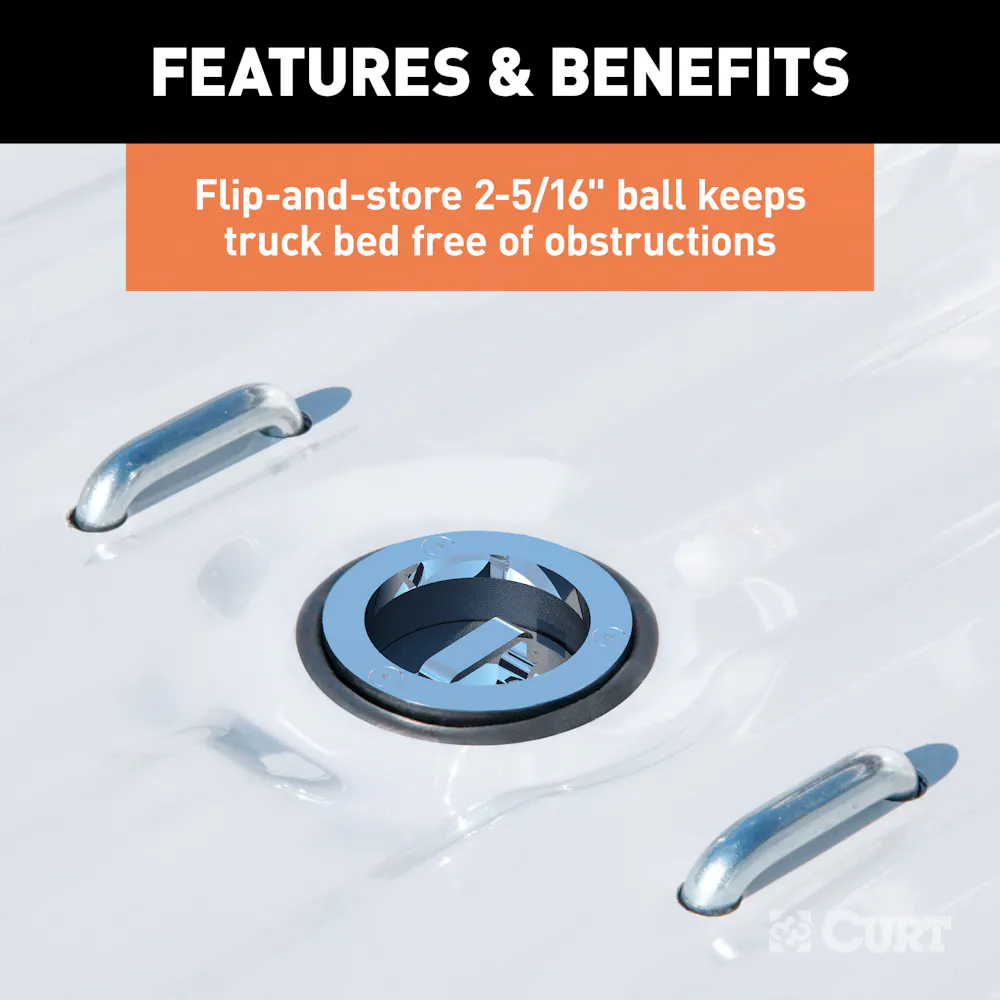

- Flip-and-store ball keeps truck bed free of obstructions
- Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
- Installation requires no welding or truck bed removal
Information
Installation requires no welding or truck bed removal
Application summary
| Year | Make / model |
|---|---|
| 1988-1999 | Chevrolet C1500 |
| 1988-2000 | Chevrolet C2500 |
| 1988-2000 | Chevrolet C3500 |
| 1988-1999 | Chevrolet K1500 |
| 1988-2000 | Chevrolet K2500 |
| 1988-2000 | Chevrolet K3500 |
| 1999-2006 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 1999-2004 | Chevrolet Silverado 2500 |
| 2001-2019 | Chevrolet Silverado 2500 HD |
| 2007 | Chevrolet Silverado 2500 HD Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2007-2019 | Chevrolet Silverado 3500 HD |
| 1994-2010 | Dodge Ram 1500 |
| 1994-2010 | Dodge Ram 2500 |
| 1994-2010 | Dodge Ram 3500 |
| 1980-2023 | Ford F-150 |
| 2004 | Ford F-150 Heritage |
| 1980-1999 | Ford F-250 |
| 1999-2016 | Ford F-250 Super Duty |
| 1980-1997 | Ford F-350 |
| 1999-2016 | Ford F-350 Super Duty |
| 2008-2012 | Ford F-450 Super Duty |
| 1988-1999 | GMC C1500 |
| 1988-2000 | GMC C2500 |
| 1988-2000 | GMC C3500 |
| 1988-1999 | GMC K1500 |
| 1988-2000 | GMC K2500 |
| 1988-2000 | GMC K3500 |
| 1999-2006 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 1999-2004 | GMC Sierra 2500 |
| 2001-2019 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
| 2007-2019 | GMC Sierra 3500 HD |
| 2011-2018 | Ram 1500 |
| 2019-2024 | Ram 1500 Classic |
| 2011-2013 | Ram 2500 |
| 2011-2012 | Ram 3500 |
| 2007-2021 | Toyota Tundra |
Specifications
- GTIN
- 00612314606078
- Weight
- 34 lb
- Height
- 5 in
- Length
- 26 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- Double-Lock Gooseneck Hitch
- Ball Diameter
- 2.3125 in.
- Ball Diameter (in.)
- 2.3125
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Finish
- A-COAT
- Finish - XA
- A-COAT
- Gooseneck Hitch Type
- Double-Lock Hitch
- Gross Trailer Weight
- 30000 lbs.
- Gross Trailer Weight (GTW)
- 30,000 LB
- Gross Trailer Weight (lbs.)
- 30000
- Gross Trailer Weight(GTW)
- 30,000 LB
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 85.0
- Retail Height - XA
- 5.000
- Retail Length - XA
- 26.000
- Retail Width - XA
- 9.000
- Sales Family Code - XA
- GOOSE
- Sales Family Description - XA
- GOOSENECK
- Sales Group Description - XA
- GOOSENECK HITCH HITCH
- Shipping Weight - XA
- 34.000
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- Yes
- Title
- Double Lock Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)
- Tongue Weight (TW)
- 7,500 LB
- Tongue Weight(TW)
- 7,500 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Vertical Load
- 7500
- WC Tongue Weight
- 7500
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1988-1999 Chevrolet C1500; 1988-2000 Chevrolet C2500; 1988-2000 Chevrolet C3500; 1988-1999 Chevrolet K1500; 1988-2000 Chevrolet K2500; 1988-2000 Chevrolet K3500; 1999-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 1999-2004 Chevrolet Silverado 2500; 2001-2019 Chevrolet Silverado 2500 HD; 2007 Chevrolet Silverado 2500 HD Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2007-2019 Chevrolet Silverado 3500 HD; 1994-2010 Dodge Ram 1500; 1994-2010 Dodge Ram 2500; 1994-2010 Dodge Ram 3500; 1980-2023 Ford F-150; 2004 Ford F-150 Heritage; 1980-1999 Ford F-250; 1999-2016 Ford F-250 Super Duty; 1980-1997 Ford F-350; 1999-2016 Ford F-350 Super Duty; 2008-2012 Ford F-450 Super Duty; 1988-1999 GMC C1500; 1988-2000 GMC C2500; 1988-2000 GMC C3500; 1988-1999 GMC K1500; 1988-2000 GMC K2500; 1988-2000 GMC K3500; 1999-2006 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 1999-2004 GMC Sierra 2500; 2001-2019 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic; 2007-2019 GMC Sierra 3500 HD; 2011-2018 Ram 1500; 2019-2024 Ram 1500 Classic; 2011-2013 Ram 2500; 2011-2012 Ram 3500; 2007-2021 Toyota Tundra
