CURT · 60601

Part #: 60601
UPC: 612314606016

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: Gooseneck Hitches

Log in to order

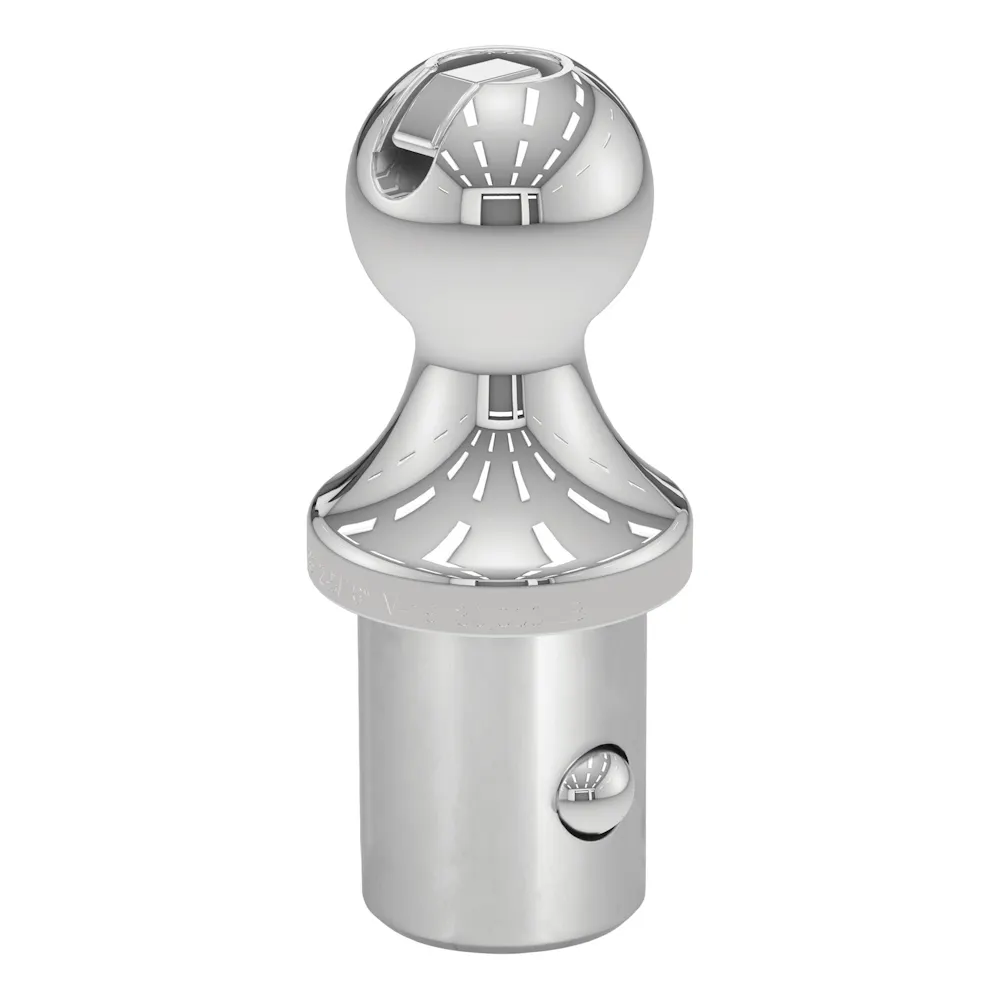

Description: OEM Puck System 2-5/16" Gooseneck Ball, Ram (30K); CURT 60601 OEM Puck System 2-5/16-Inch Gooseneck Ball, Fits Select Ram Trucks, 30,000 lbs

Proposition 65 Warning

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Outfitting your pickup to tow a heavy-duty flatbed or livestock trailer is easy with the CURT OEM puck system gooseneck ball. Like our OEM puck system safety chain anchors, this gooseneck ball utilizes the puck system built into certain pickup trucks today with the towing prep package. It features a patented installation system, operating with a simple quarter-turn latch lock for ease of use and a secure mount. Retention balls, built into the shank, keep the gooseneck ball fixed into the receiver hole and keep your trailer locked on tight. It provides a ball diameter of 2-5/16" and has a gross trailer weight capacity of 30,000 lbs. It also comes with a durable chrome finish and meets U.S. V-19 specifications for safety. This particular OEM puck system gooseneck ball is compatible with select Ram 2500 and 3500 pickups with the truck bed puck system. It can also be used in our OEM-style Ram hitches. It is not designed to fit any other gooseneck ball holes. The ball can be purchased as a standalone item or as part of a complete kit (#60618) that also includes the OEM puck system safety chain anchors, a rubber hole cover and a durable storage case.

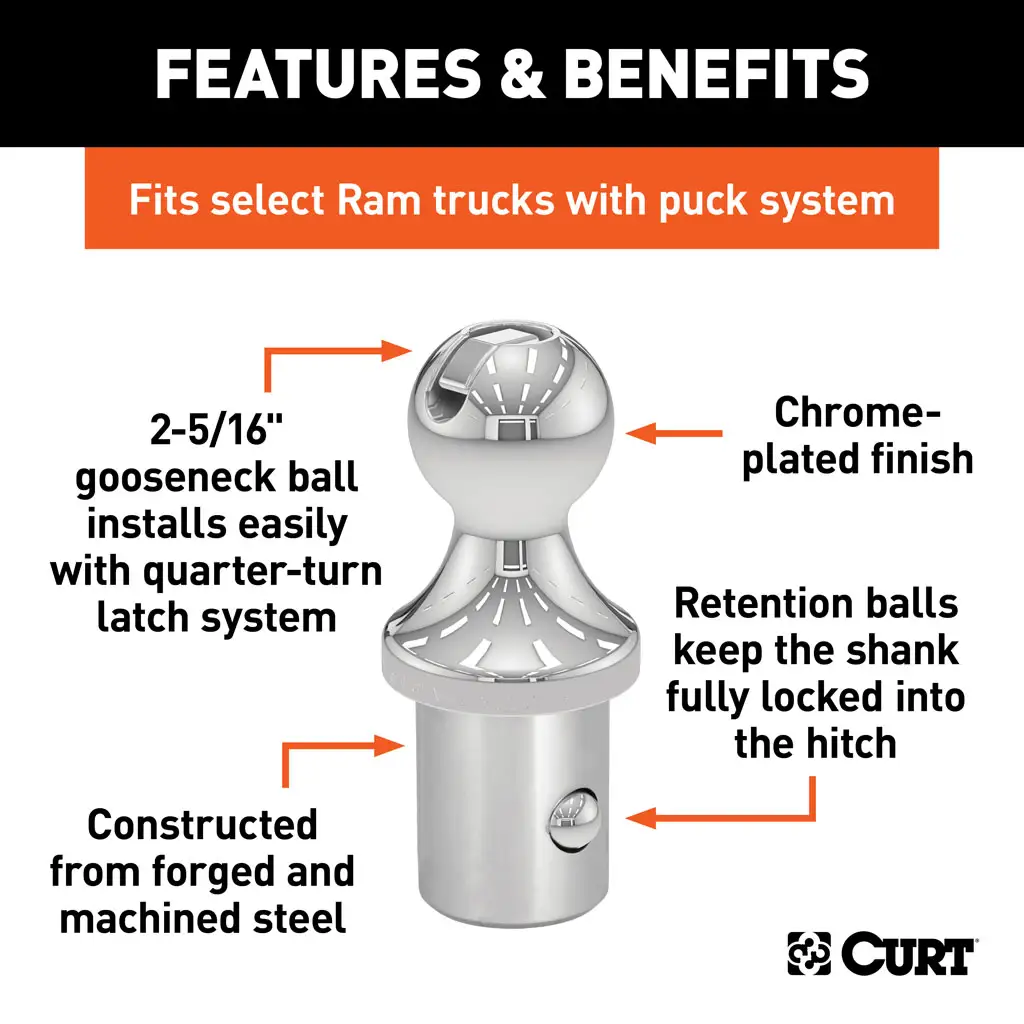

Features & benefits

Fits Ram pickups with the OEM truck bed puck system
Also compatible with CURT OEM-style Ram hitches #60626 and #60614

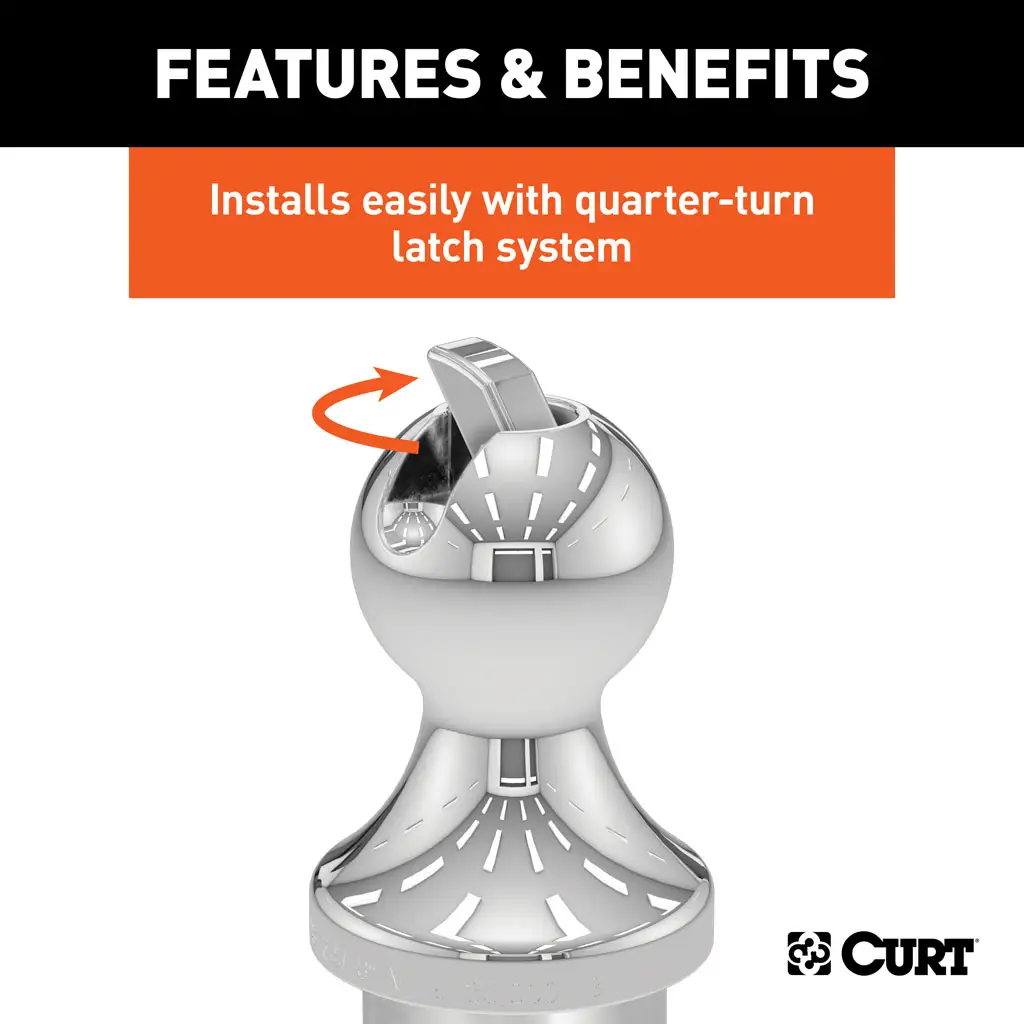

2-5/16" gooseneck ball installs easily with quarter-turn latch system
Retention balls keep the shank fully locked into the hitch
Constructed from strong, machine-forged steel alloy
Protected by a polished chrome-plated mirror finish
Tested for safety to meet U.S. VESC V-19 specifications
Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year	Make / model
0601	OEM Puck System 2-5/16-Inch Gooseneck Ball, Fits Select Ram Trucks, 30,000 lbs

Specifications

GTIN: 00612314606016
Weight: 3.74 lb
Height: 3 in
Length: 8 in
Width: 3 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: Gooseball

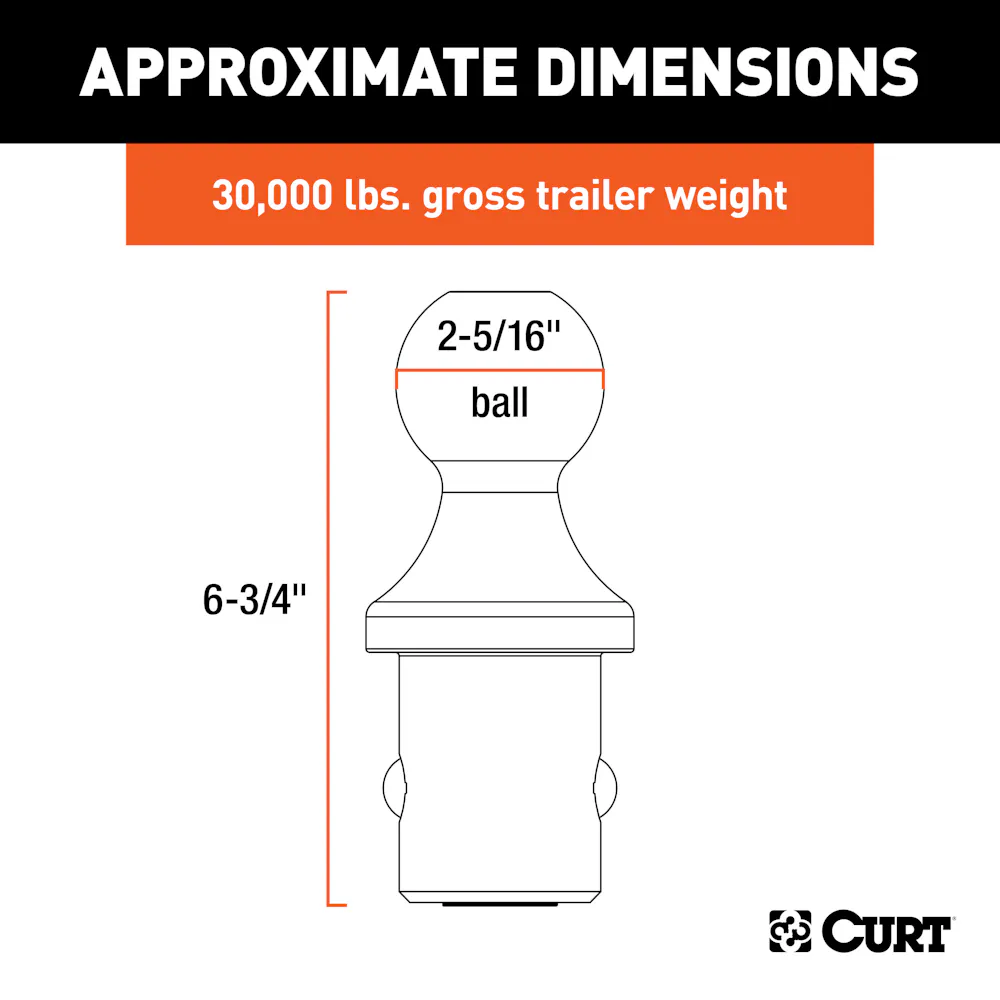

Ball Diameter: 2.3125 in.
Ball Diameter (in.): 2.3125
Ball Shank Diameter: N/A
Ball Shank Diameter (in.): N/A
Box Height in Inches - XA: 0
Box Length in Inches - XA: 0
Box Width in Inches - XA: 0
California Proposition 65: Yes
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Finish: Chrome
Finish - XA: Chrome
Gooseneck Hitch Type: Ball
Gross Load: 7500 lbs.
Gross Load (lbs.): 7500
Gross Trailer Weight: 30000 lbs.
Gross Trailer Weight (GTW): 30,000 LB
Gross Trailer Weight (lbs.): 30000
Gross Trailer Weight(GTW): 30,000 LB
Item Class - XA: OBS
Item Height - XA: 3.250
Item Length - XA: 7.750
Item Width - XA: 3.250
Master Case Height Inches - XA: 0.000
Master Case ITF14: 0
Master Case ITF14 - XA: 0
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 0.000
Master Case Qty - XA: 0
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 0.000
Master Case Width Inches - XA: 0.000
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 0
Pallet Case Per Layer - XA: 0
Pallet Cases Per - XA: 0
Pallet Cases Per Layer - XA: 0
Pallet Layer of Cases - XA: 0
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: Yes
Product Weight - XA: 2.737
Rate Class - XA: 100.0
Retail Height - XA: 8.000
Retail Length - XA: 3.000
Retail Width - XA: 3.000
Rise: 1/2 IN
Sales Family Code - XA: GOOSE
Sales Family Description - XA: GOOSENECK
Sales Group Description - XA: GOOSENECK PART
Shank Length: N/A
Shank Length (in.): N/A
Shipping Weight - XA: 3.737
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Title: OEM Puck System 2-5/16" Gooseneck Ball, Ram (30K)
Tongue Weight (TW): 7,500 LB
Tongue Weight(TW): 7,500 LB
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Vertical Load: 7500
WC Tongue Weight: 7500
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 60601 OEM Puck System 2-5/16-Inch Gooseneck Ball, Fits Select Ram Trucks, 30,000 lbs
