CURT · 58531
Part #: 58531
UPC: 612314001538
Log in for inventory
Notify me when this item is in stock.
Description: 5-Way Flat Connector Socket with 60" Wires (Vehicle Side, Packaged); CURT 58531 Vehicle-Side 5-Pin Flat Trailer Wiring Harness with 60-Inch Wires
Description:
Description

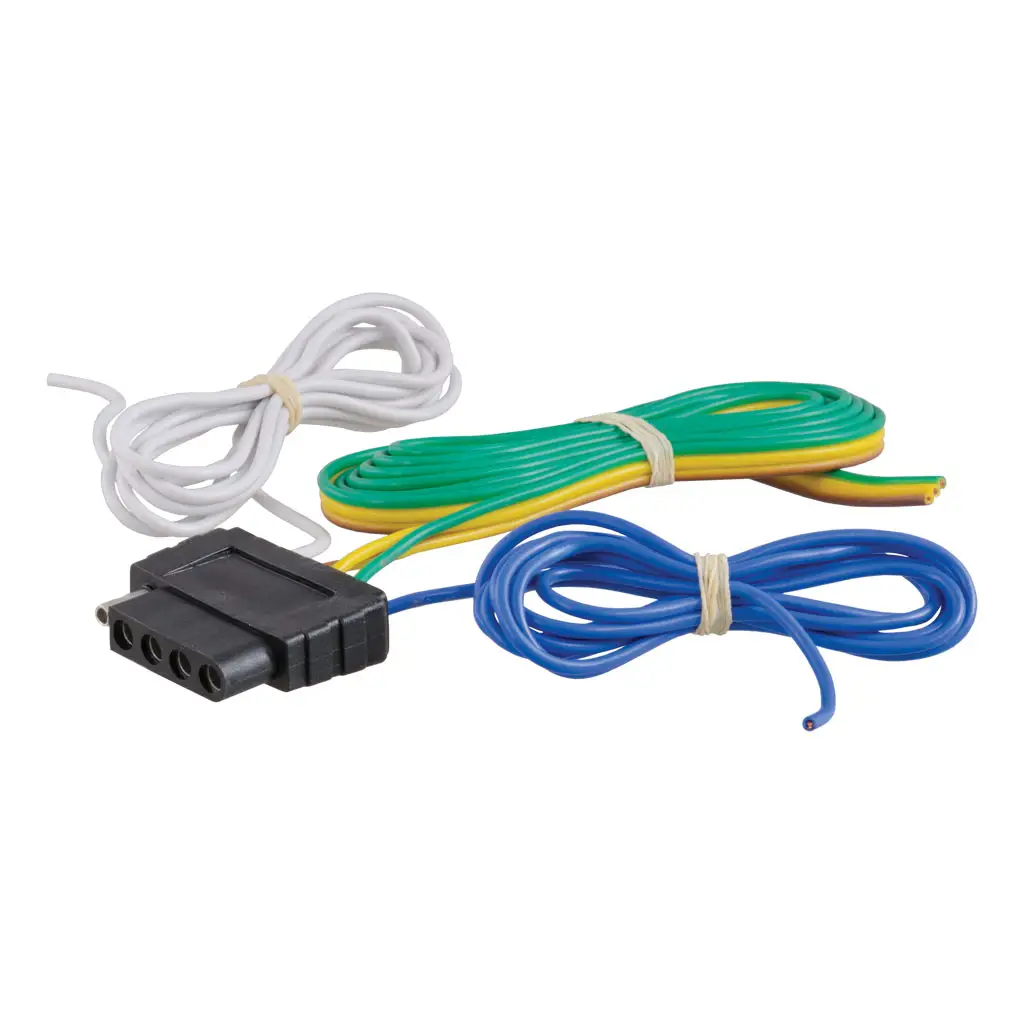

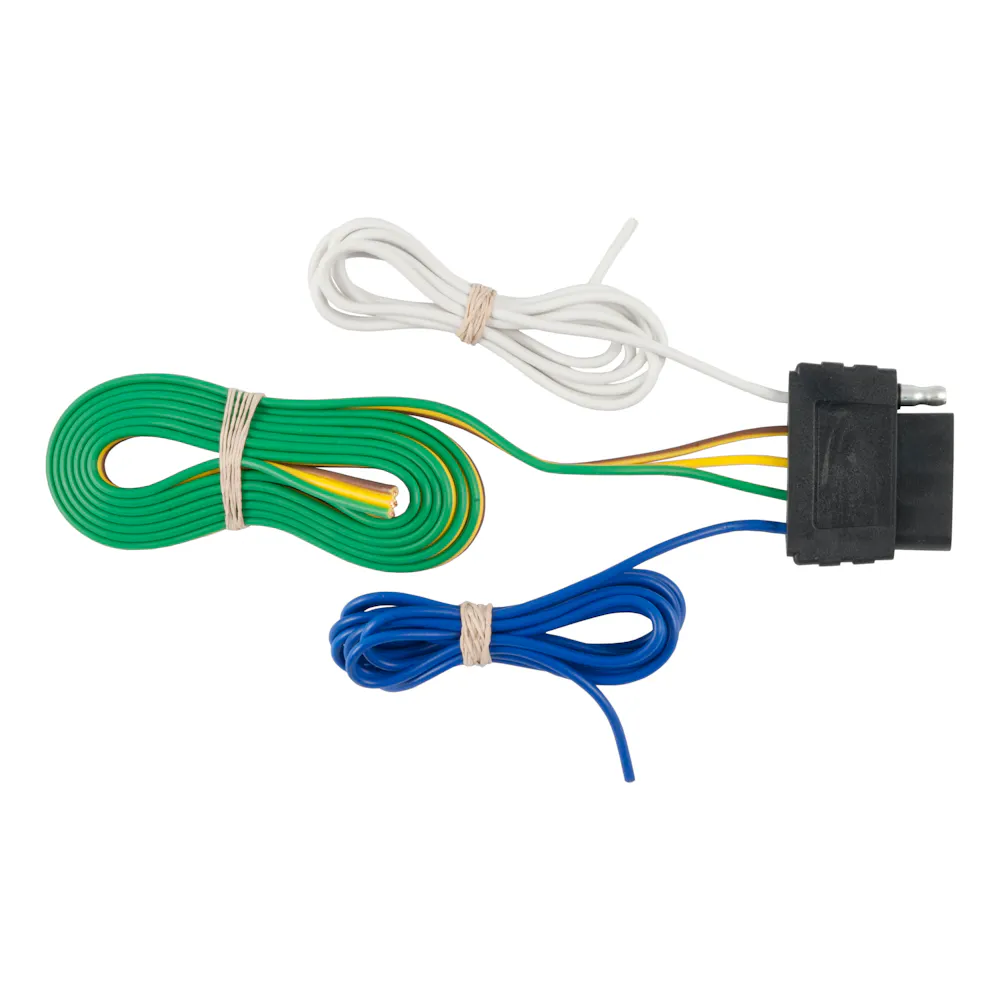

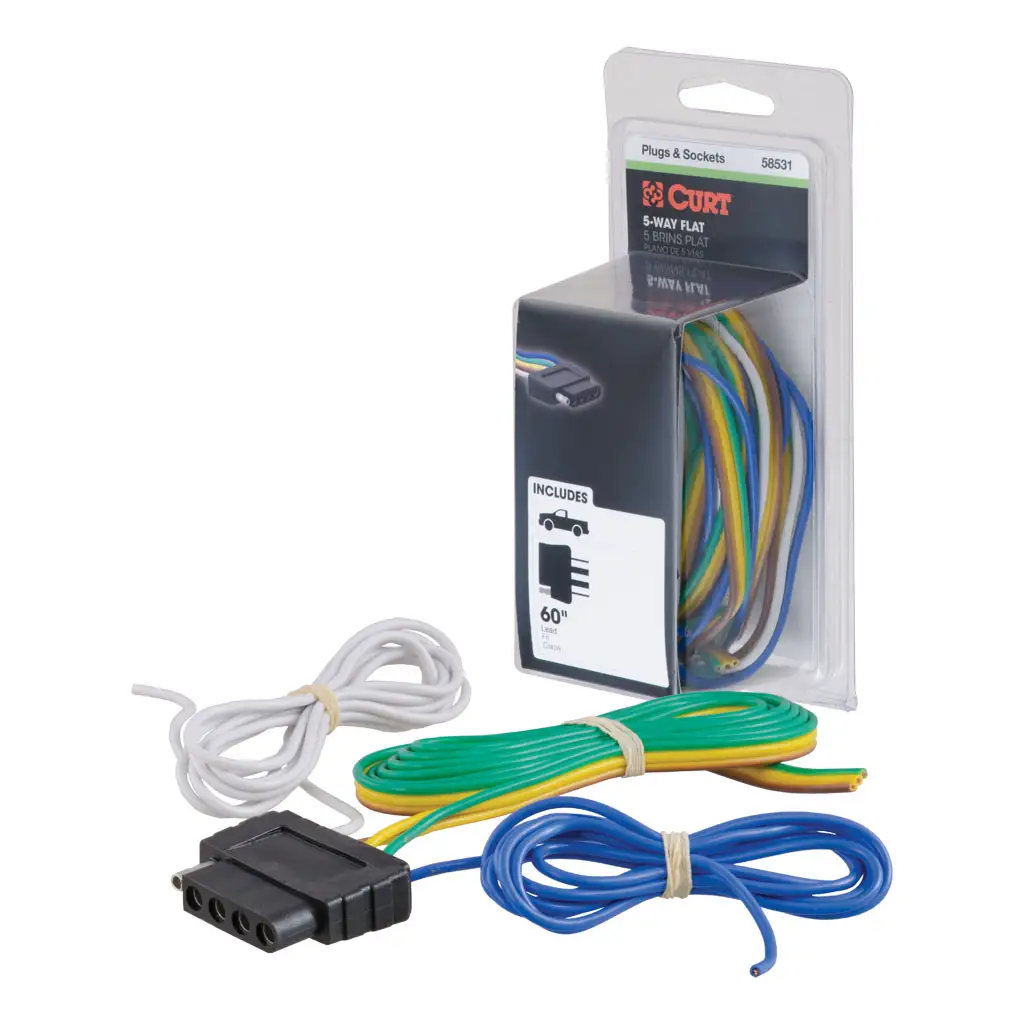

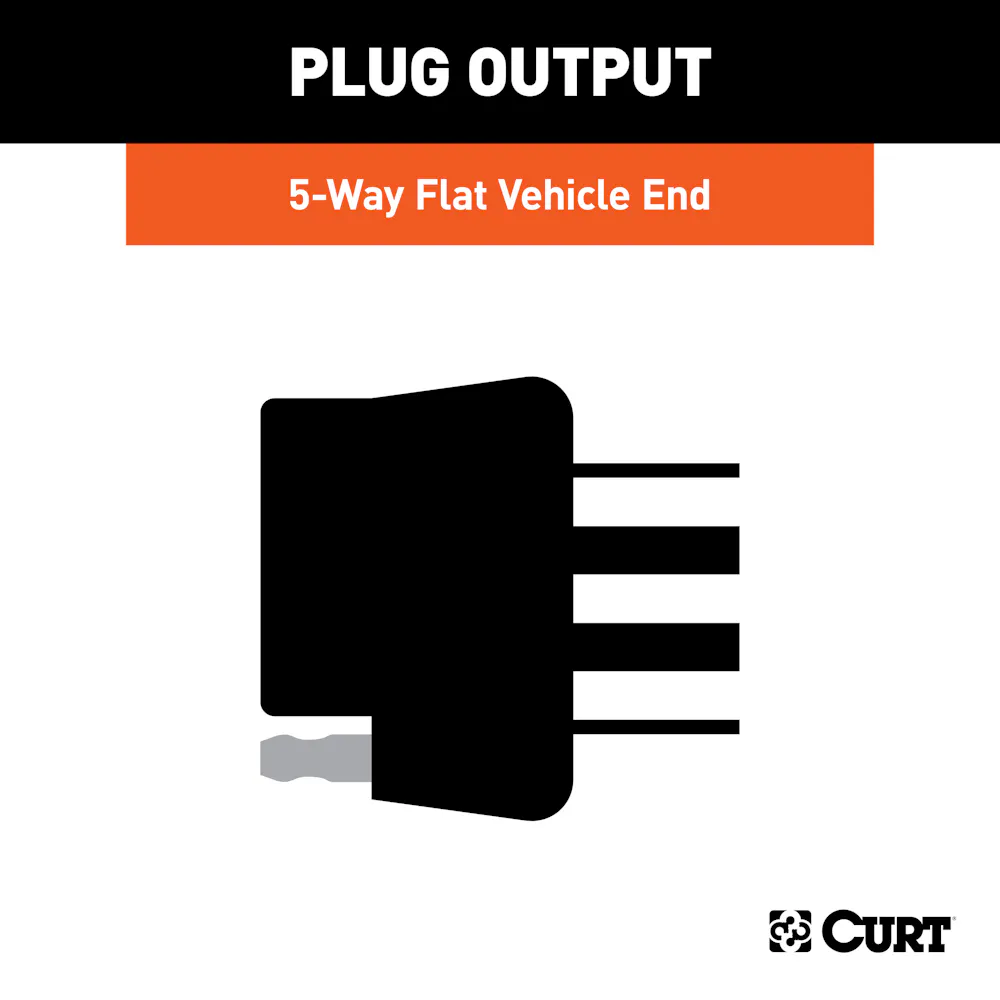

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer's electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer. This 5-way flat connector is designed to supply power for tail lights, turn signals, reverse lights and brake lights, as well as a ground connection. It features durable rubber-molded construction and is made with 60" of standard color-coded, bonded wire to easily splice into your vehicle's wiring system. This 5-way flat connector is a female-end socket, specifically designed for the car side of the connection. 5-way flat connectors are commonly used on boat trailers with surge brakes.

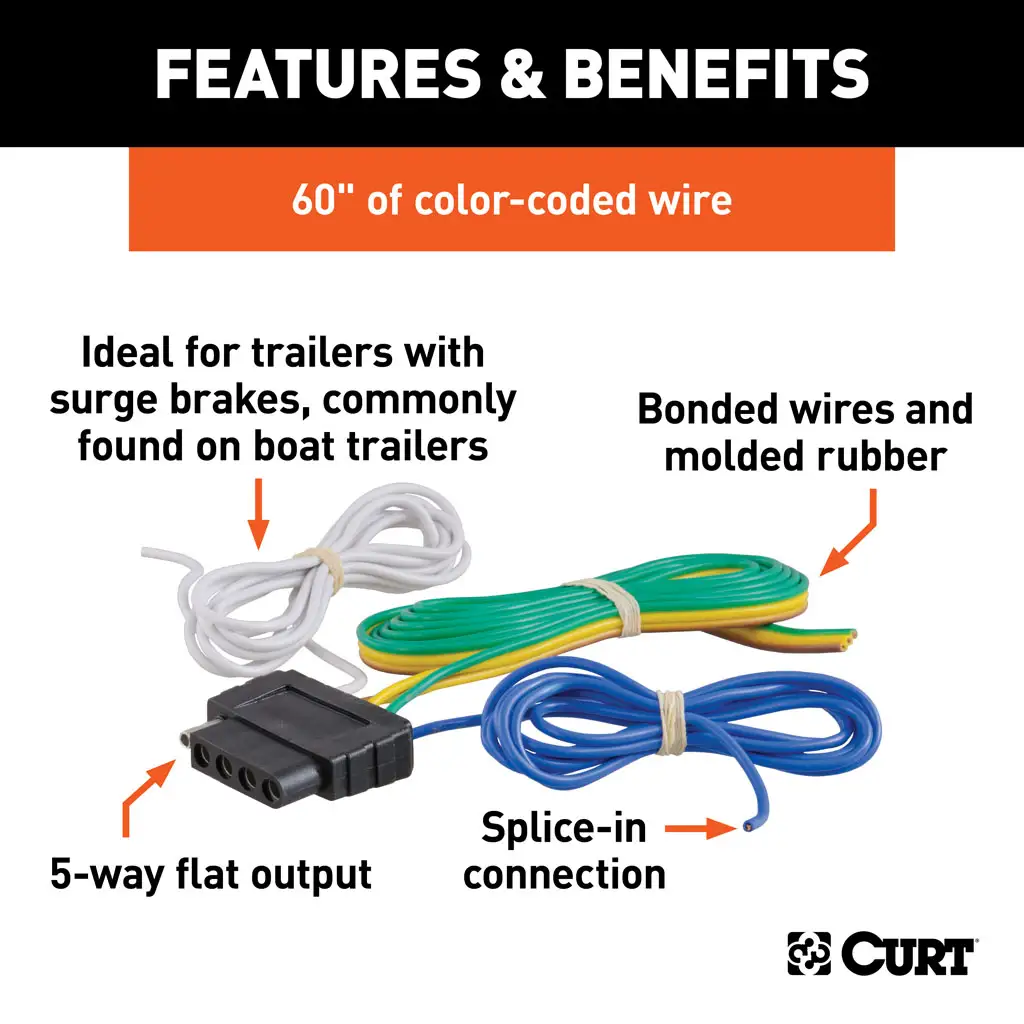

Features & benefits
- Splices into vehicle wiring to provide a connection for a trailer plug
- 5-way flat connects tail lights, brake lights, turn signals and reverse lights
- Constructed with bonded 16-gauge wires and durable molded rubber
- Features 60" of color-coded wire for easier installation
- Ideal for trailers with surge brakes, commonly found on boat trailers
Information
Ideal for trailers with surge brakes, commonly found on boat trailers
Application summary
| Year | Make / model |
|---|---|
| 8531 | Vehicle-Side 5-Pin Flat Trailer Wiring Harness with 60-Inch Wires |
Specifications
- GTIN
- 00612314001538
- Weight
- 0.35 lb
- Height
- 2 in
- Length
- 8 in
- Width
- 4 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- I-53 5-Flat Car End 60 In Packaged
- Box Height in Inches - XA
- 2
- Box Length in Inches - XA
- 7
- Box Width in Inches - XA
- 4
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Electrical Component Location
- Vehicle
- Finish
- N/A
- Finish - XA
- N/A
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 125.0
- Retail Height - XA
- 2.000
- Retail Length - XA
- 8.000
- Retail Width - XA
- 4.000
- Sales Family Code - XA
- ELECT
- Sales Family Description - XA
- ELECTRICAL COMPONENTS
- Sales Group Description - XA
- CONNECTORS
- Shipping Weight - XA
- 0.350
- Side Application Type Description - XA
- Blank
- Tariff 301 - XA
- No
- Title
- 5-Way Flat Connector Socket with 60" Wires (Vehicle Side, Packaged)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Type
- 5 Pole
- Warranty
- One-Year Limited Warranty
Fitment status
This product is universal and will fit your application.
Application summary
CURT 58531 Vehicle-Side 5-Pin Flat Trailer Wiring Harness with 60-Inch Wires
