CURT · 58091

Part #: 58091
UPC: 612314909094

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: CURT Series: Towing Hitch Wiring

Log in to order

Description: 6-Way Round Connector Socket (Vehicle Side, Packaged); CURT 58091 Vehicle-Side 6-Pin Round Trailer Wiring Harness Socket

Proposition 65 Warning

(For California Residents)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer's electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer. This 6-way round connector is designed to supply power for tail lights, turn signals, electric trailer brakes, a 12-volt battery and brake lights, as well as a ground connection. It features durable die-cast metal construction and comes with a spring-loaded steel cover to resist damage from dust and water. This 6-way round connector is a female-end socket, specifically designed for the vehicle side of the connection. 6-way round connectors are commonly used on livestock trailers, boat trailers and utility trailers.

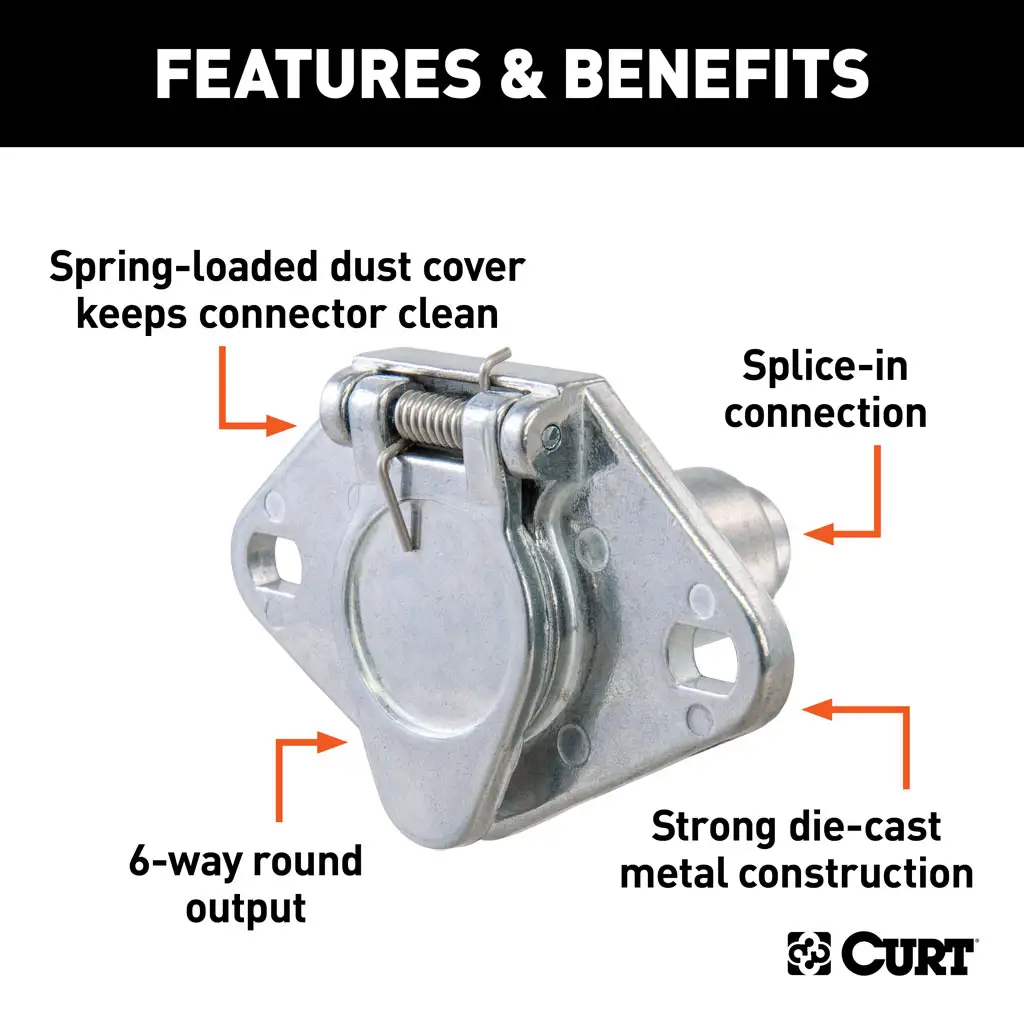

Features & benefits

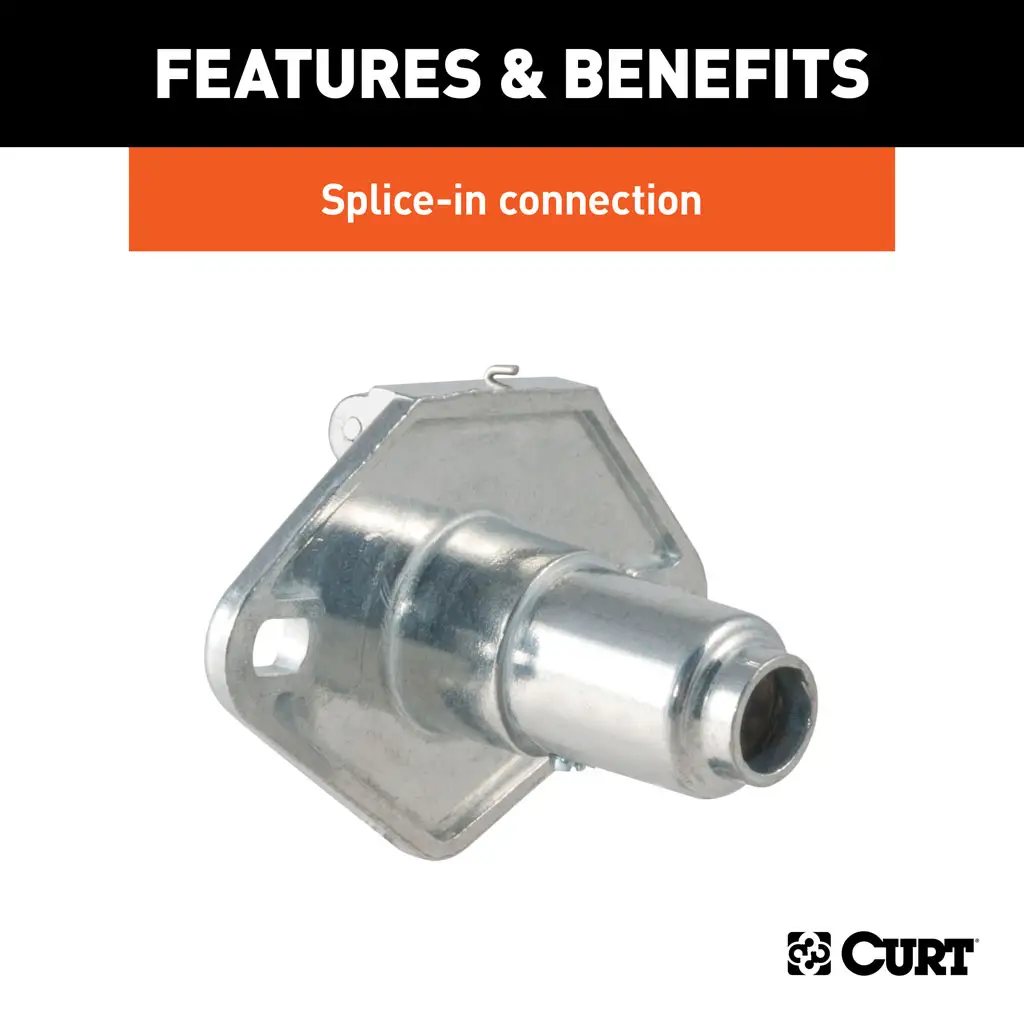

Splices into vehicle wiring to provide a connection for a trailer plug
6-way connects tail, brake, turn signals, electric brakes and auxiliary power
Constructed from strong die-cast metal
Concealed terminals help ensure a reliable connection
Spring-loaded dust cover keeps connector clean when not in use
6-way round connectors commonly used for horse, farm, boat and utility trailers

Information

6-way round connectors commonly used for horse, farm, boat and utility trailers

Application summary

Year	Make / model
8091	Vehicle-Side 6-Pin Round Trailer Wiring Harness Socket

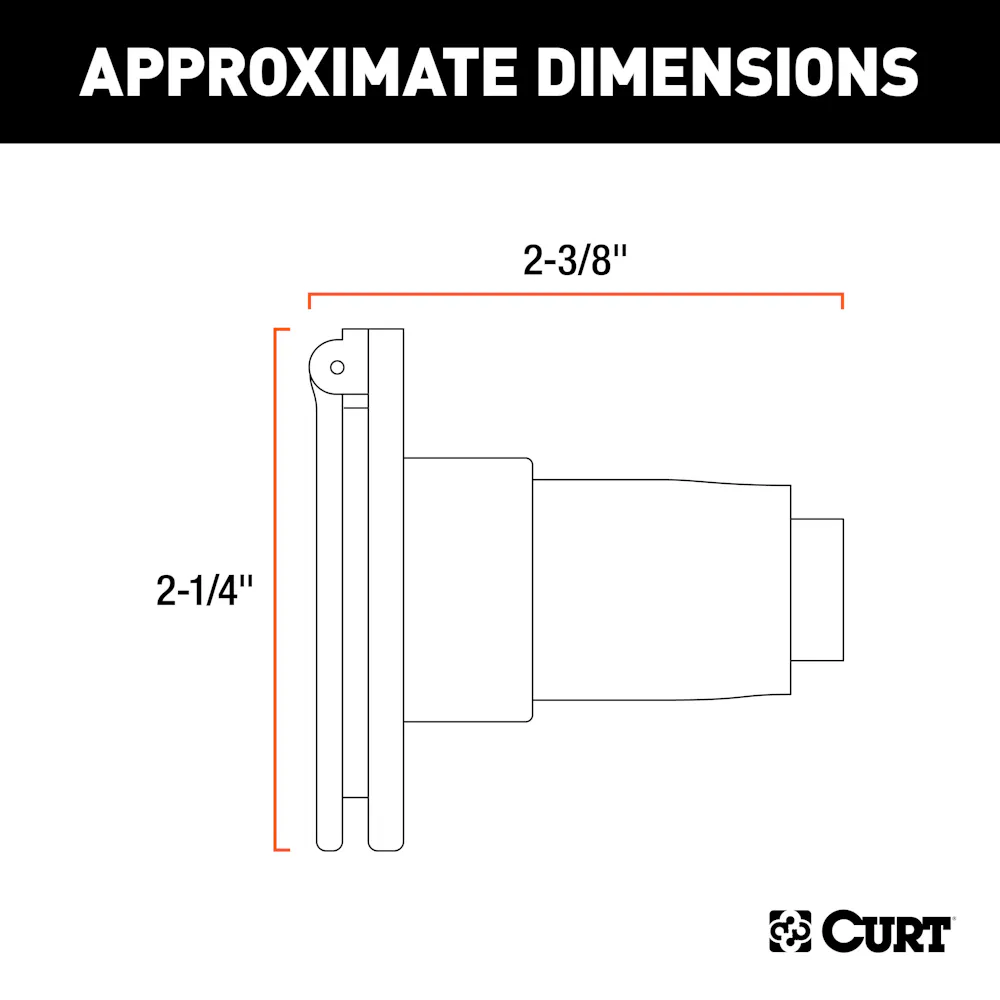

Specifications

GTIN: 00612314909094
Weight: 0.5 lb
Height: 2 in
Length: 8 in
Width: 4 in
Life cycle: Available to Order
AAM brand code: CUR
Warehouse brand code: CUR
AAIA brand code: BKDK

Attributes

AAM Long Description: 6 Pole Die Cast Connector Car End Packaged
Box Height in Inches - XA: 2
Box Length in Inches - XA: 7
Box Width in Inches - XA: 4
California Proposition 65: Yes
Class ID: 0
Container Cases Qty - XA: 0
Container Pallet Qty - XA: 0
Container Unit Qty - XA: 0
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 0
Container Weight Lbs - XA: 0
Electrical Component Location: Vehicle
Finish: N/A
Finish - XA: N/A
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 16.000
Master Case ITF14: 20612314909098
Master Case ITF14 - XA: 20612314909098
Master Case Inner Pack Qty - XA: 0
Master Case Length Inches - XA: 20.500
Master Case Qty - XA: 80
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 41.000
Master Case Width Inches - XA: 14.500
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 12
Pallet Case Per Layer - XA: 6
Pallet Cases Per - XA: 12
Pallet Cases Per Layer - XA: 6
Pallet Layer of Cases - XA: 2
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 37.000
Pallet Total Weight Per - XA: 532.000
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
Rate Class - XA: 125.0
Retail Height - XA: 2.000
Retail Length - XA: 8.000
Retail Width - XA: 4.000
Sales Family Code - XA: ELECT
Sales Family Description - XA: ELECTRICAL COMPONENTS
Sales Group Description - XA: CONNECTORS
Shipping Weight - XA: 0.500
Side Application Type Description - XA: Blank
Tariff 301 - XA: No
Title: 6-Way Round Connector Socket (Vehicle Side, Packaged)
Truckload Cases Qty - XA: 0
Truckload Pallets Qty - XA: 0
Truckload Units Qty - XA: 0
Truckload Volume Cubic Feet - XA: 0.00000
Truckload Weight - XA: 0
Type: 6 Pole
Warranty: One-Year Limited Warranty

Fitment status

This product is universal and will fit your application.

Application summary

CURT 58091 Vehicle-Side 6-Pin Round Trailer Wiring Harness Socket
