Description: SecureLatch Lunette Ring & Channel (40,000 lbs, 3" ID, 11-3/4" Channel Height); CURT 48641 SecureLatch Adjustable Lunette Ring with 11-3/4-Inch Channel 40,000 Pounds, 3-Inch ID
Description:
Description

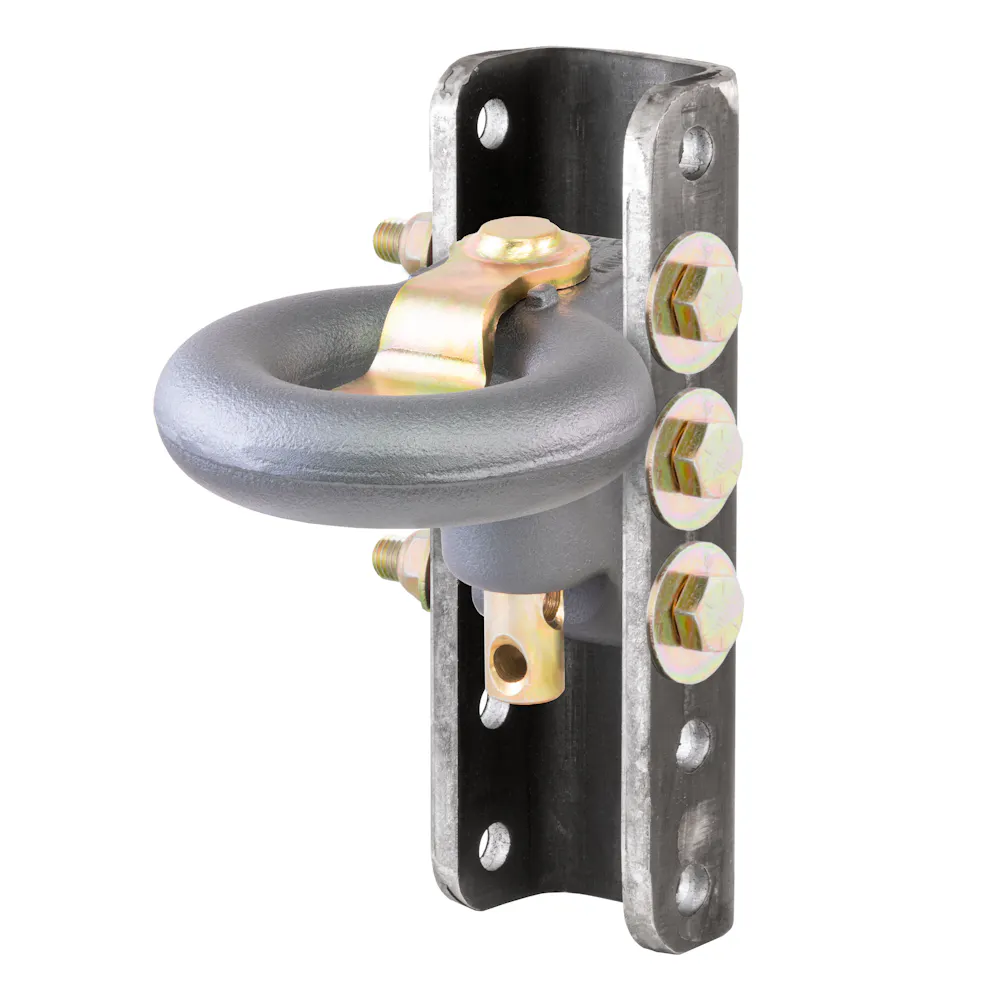

The CURT SecureLatch adjustable lunette ring and channel set offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers flexible height adjustment. It can be moved up or down for more drop or rise as needed. The CURT SecureLatch lunette ring comes with an 11-3/4-inch tall x 2-3/4-inch inside width channel. It has a 3-hole bolt pattern. The lunette ring itself has a 3-inch inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 40,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from austempered iron for superior strength and wear resistance, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.

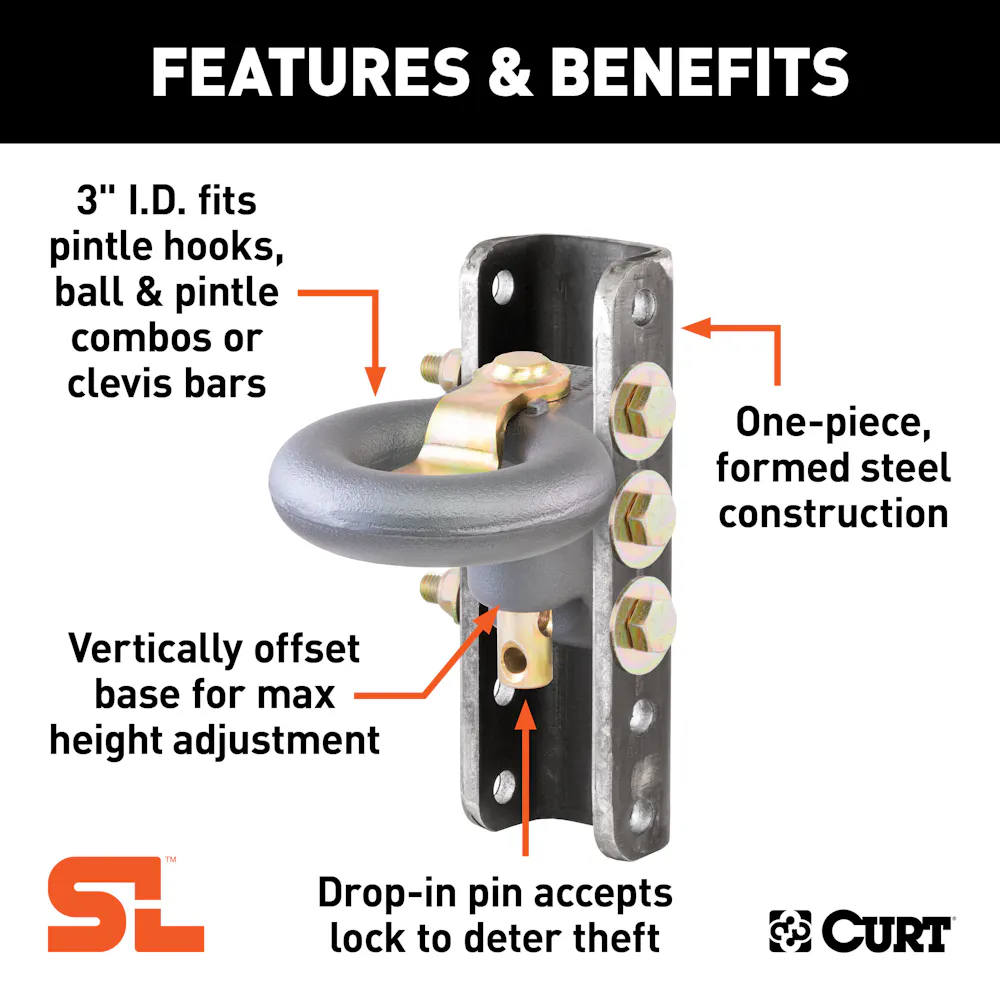

Features & benefits

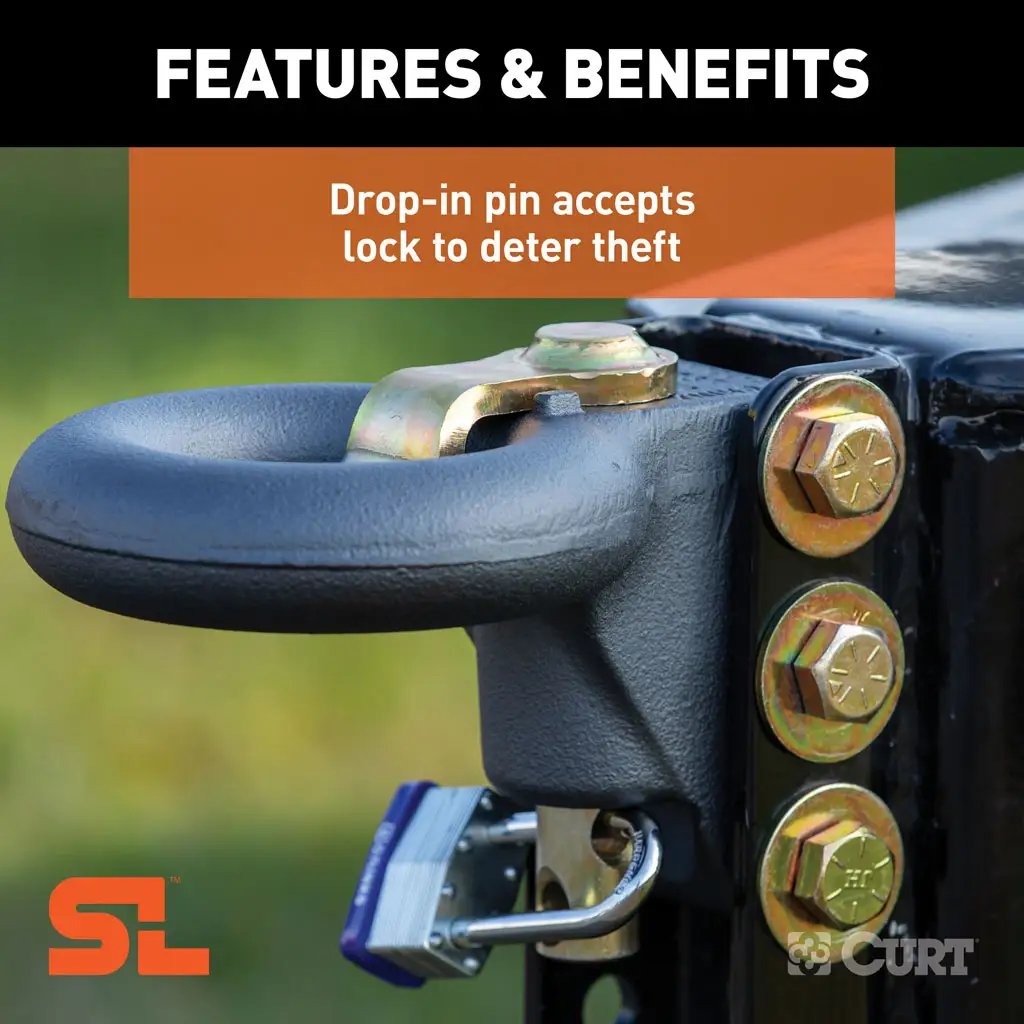

- Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
- Vertically offset base allows ring to be flipped for maximum height adjustment

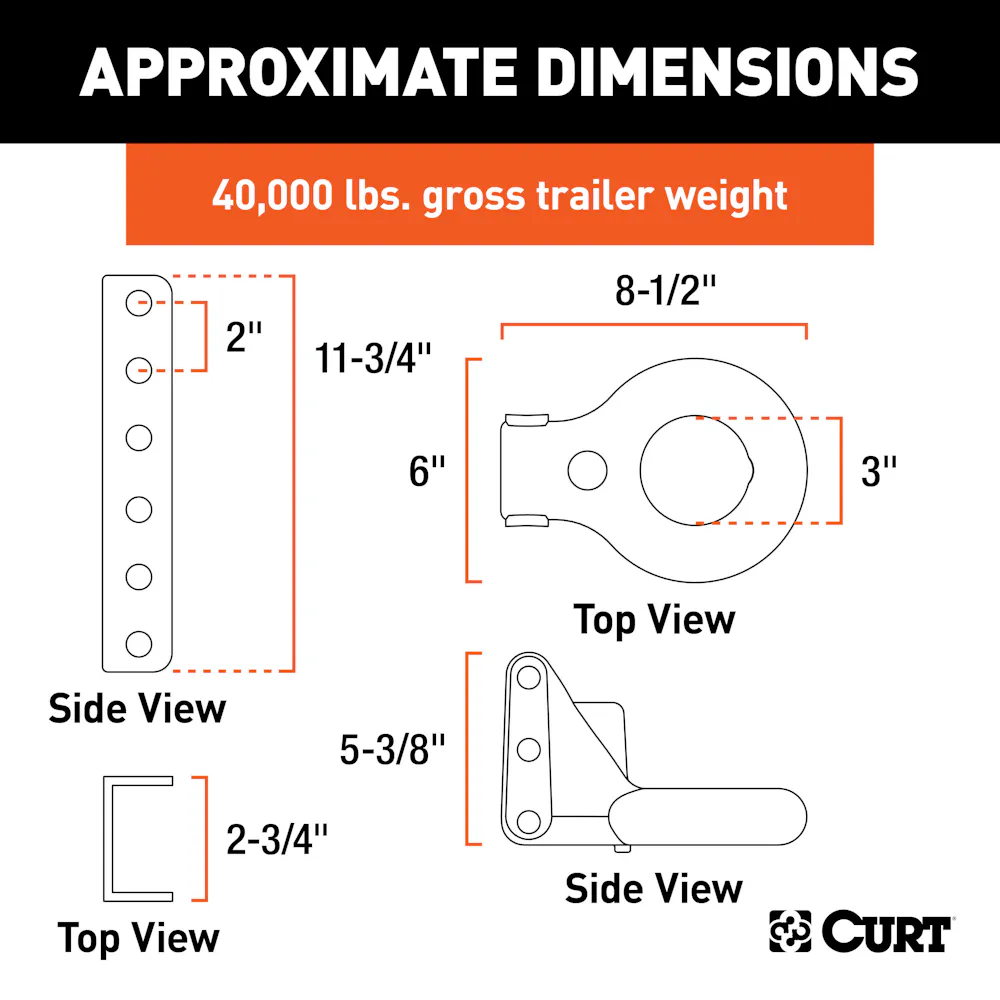

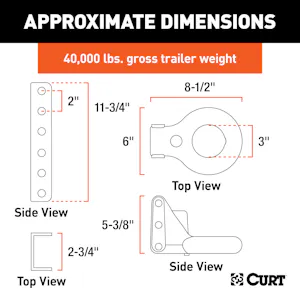

- Heavy-duty 3-hole bolt pattern with 11-3/4" x 2-3/4" channel
- Rated for 40,000 lbs. gross trailer weight

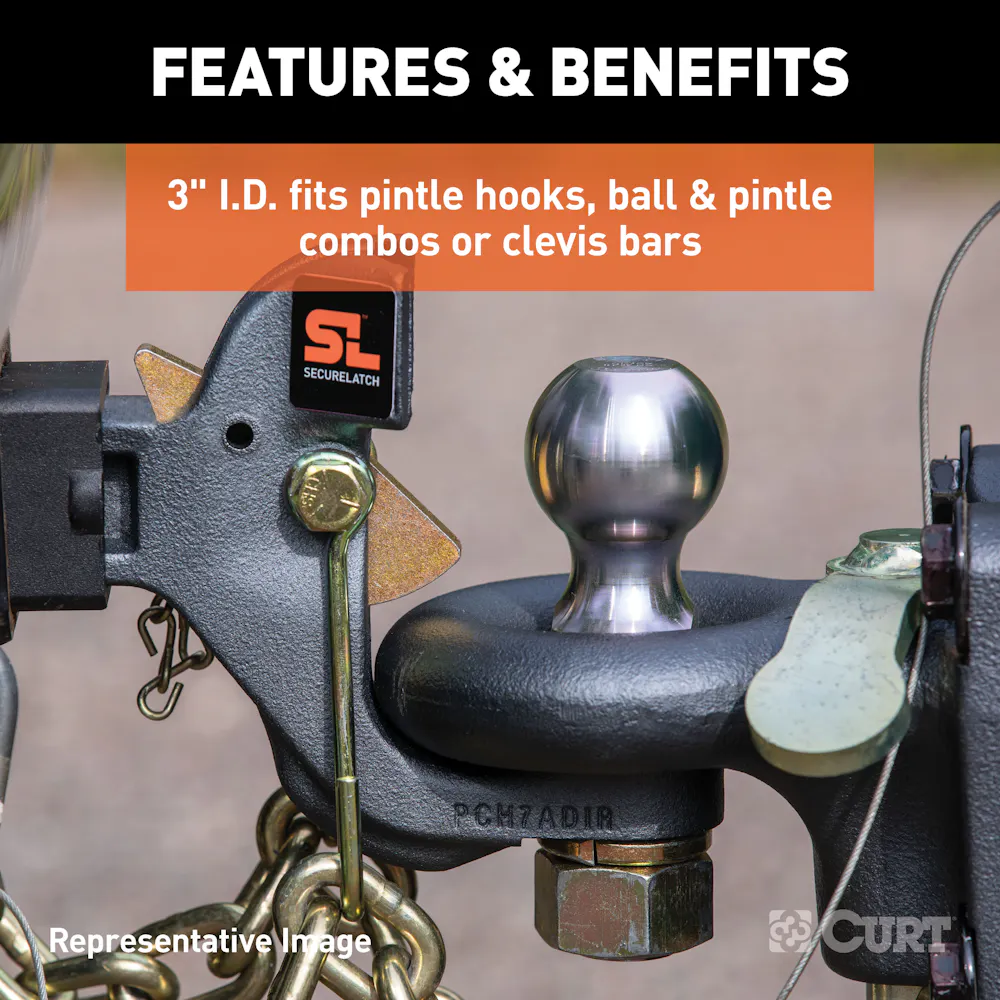

- 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
- Cast iron construction is austempered for superior strength and wear resistance
- Battleship grey finish for excellent exterior durability
- Bright gold zinc-plated pin for long-lasting corrosion resistance
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 8641 | SecureLatch Adjustable Lunette Ring with 11-3/4-Inch Channel 40,000 Pounds, 3-Inch ID |
Specifications
- GTIN
- 00612314047758
- Weight
- 27 lb
- Height
- 6 in
- Length
- 12 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 1000
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 10
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 1000
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 29330
- Finish
- DARK GREY TERIDIUM
- Finish - XA
- DARK GREY TERIDIUM
- Gross Trailer Weight (GTW)
- 40,000 LBS
- Item Class - XA
- OBS
- Item Height - XA
- 11.750
- Item Length - XA
- 9.380
- Item Width - XA
- 6.000
- Master Case Height Inches - XA
- 8.540
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 17.910
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 29.000
- Master Case Width Inches - XA
- 7.870
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 100
- Pallet Case Per Layer - XA
- 10
- Pallet Cases Per - XA
- 100
- Pallet Cases Per Layer - XA
- 10
- Pallet Layer of Cases - XA
- 10
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 85.820
- Pallet Total Weight Per - XA
- 2933.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 26.000
- Rate Class - XA
- 60.0
- Retail Height - XA
- 6.000
- Retail Length - XA
- 11.750
- Retail Width - XA
- 9.380
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- PINTLE MOUNT
- Shipping Weight - XA
- 27.000
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- SecureLatch Lunette Ring & Channel (40,000 lbs, 3" ID, 11-3/4" Channel Height)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 48641 SecureLatch Adjustable Lunette Ring with 11-3/4-Inch Channel 40,000 Pounds, 3-Inch ID
