CURT · 48411
Part #: 48411
UPC: 612314047635
Log in for inventory
Notify me when this item is in stock.
Description: SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.); CURT 48411 SecureLatch 2-Inch Ball and Pintle Hitch Hook Combination, 20,000 Pounds, Mount Required
Description:
Description
Enjoy automatic trailer coupling with the unique auto-locking mechanism of this SecureLatch pintle hitch. Just back up to the trailer tongue -- the integrated striker plate helps stop and center the lunette ring. Drop the ring onto the ball and hook, and the SecureLatch mechanism automatically engages the primary lock. Just insert the secondary safety pin and you're ready to tow. This unique pintle ball hitch also has a cupped design to hold the lunette eyelet more tightly and deter chucking noises. This ball and pintle combo is rated for 20,000 pounds gross trailer weight, 10,000 pounds ball capacity and is constructed from austempered cast iron for superior strength and wear resistance. It has a standard 2-inch ball and fits 2-1/2-inch or 3-inch lunette rings. NOTE: SecureLatch slotted pintle mount required for installation (pintle mount and bolts sold separately).

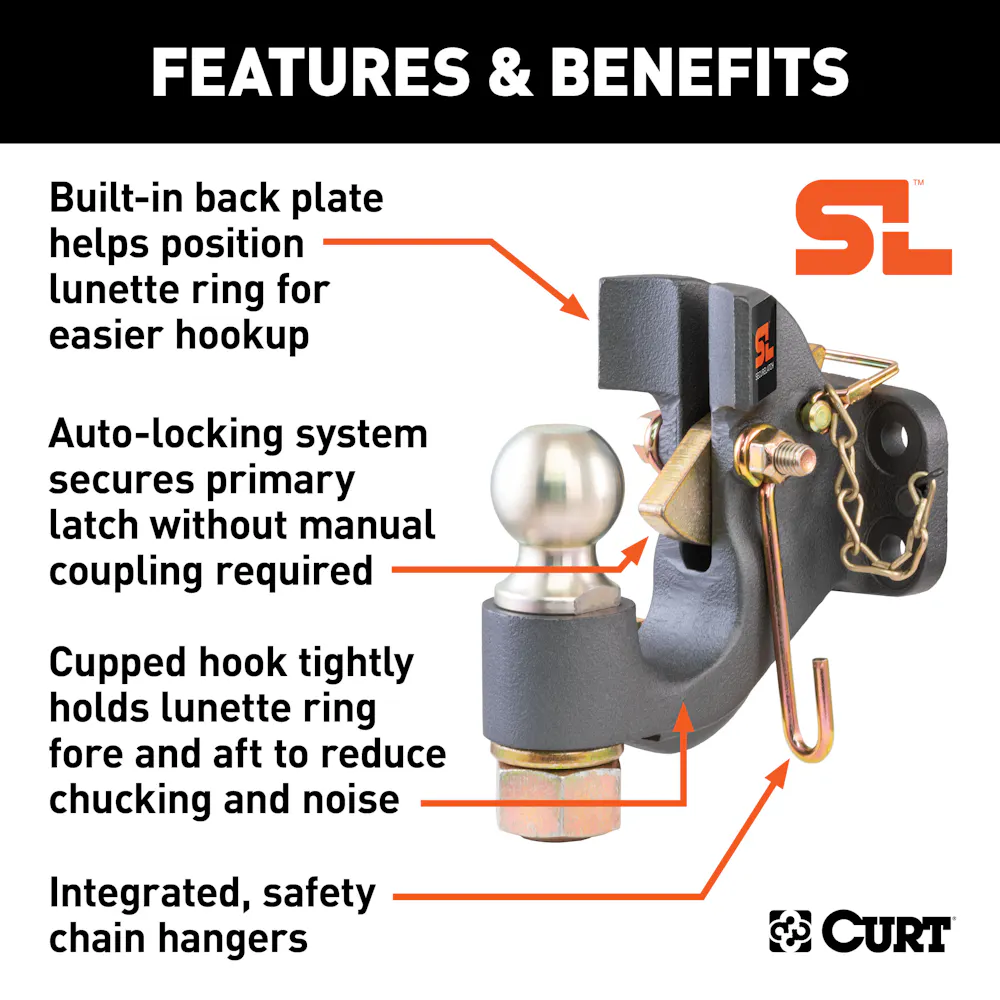

Features & benefits

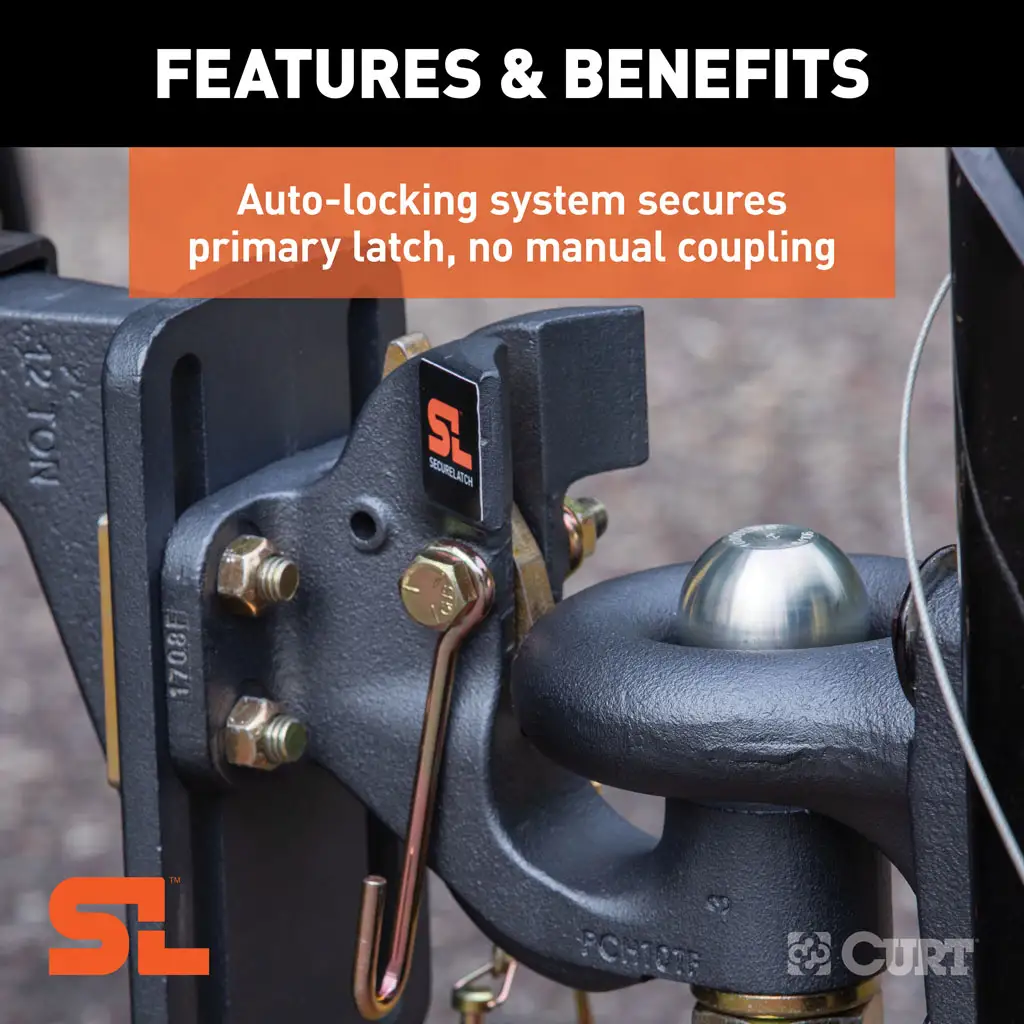

- Auto-locking system secures primary latch without manual coupling required
- Rated for 20,000 lbs. gross trailer weight and 10,000 lbs. ball capacity
- Couples to 2" couplers or lunette eyes with a 2-1/2" or 3" inside diameter
- Cast iron construction is austempered for superior strength and wear resistance
- Battleship grey finish for excellent exterior durability
- Bright zinc-plated hardware for corrosion resistance (mount bolts not included)
- Limited lifetime warranty (one-year finish, one-year parts)
- Cupped hook tightly holds lunette ring fore and aft to reduce chucking and noise

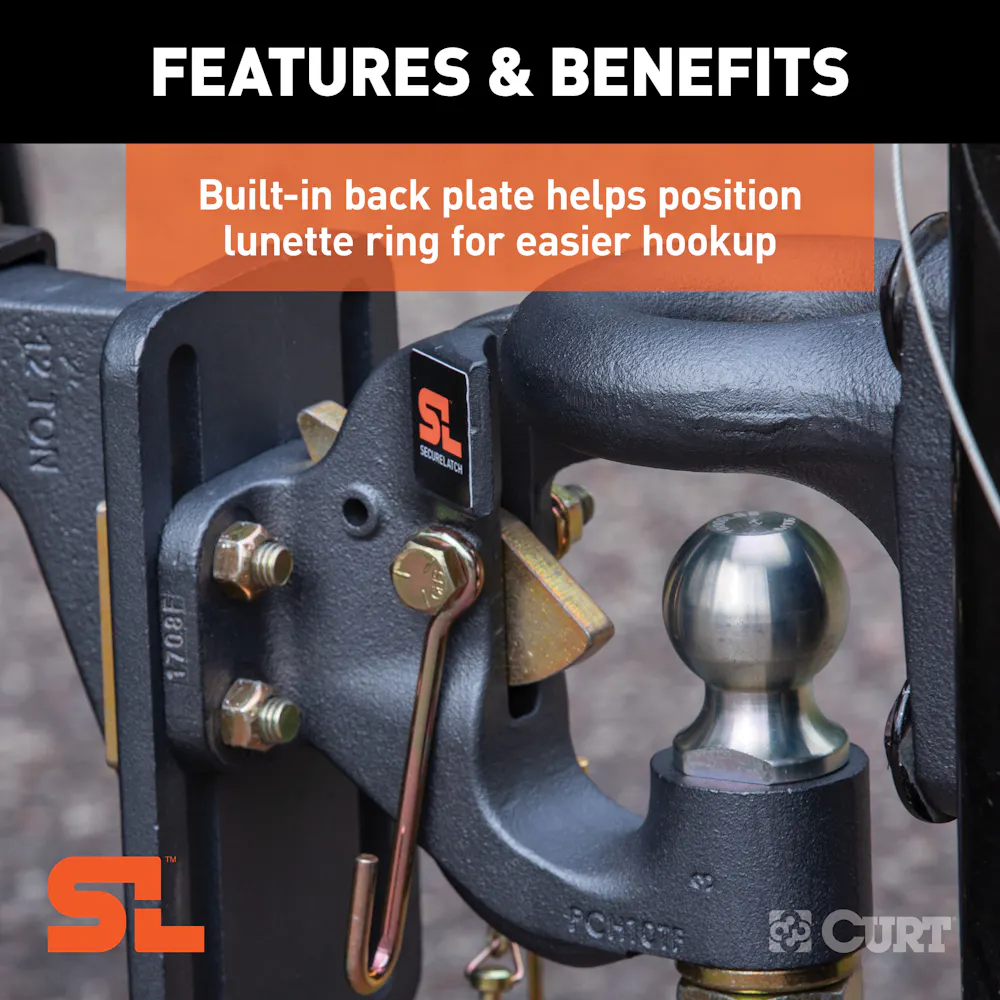

- Built-in back plate helps position coupler or lunette ring for easier hookup
- Fits SecureLatch pintle mounts with slotted plate (sold separately)
- Quick, easy, one-tool height adjustments -- no disassembly required
- Integrated, intermediate safety chain hangers keep chains off the ground
Information
Integrated, intermediate safety chain hangers keep chains off the ground
Application summary
| Year | Make / model |
|---|---|
| 8411 | SecureLatch 2-Inch Ball and Pintle Hitch Hook Combination, 20,000 Pounds, Mount Required |

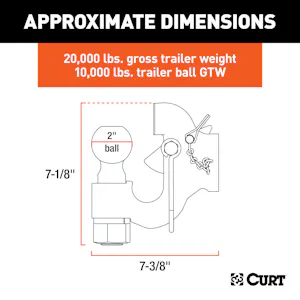

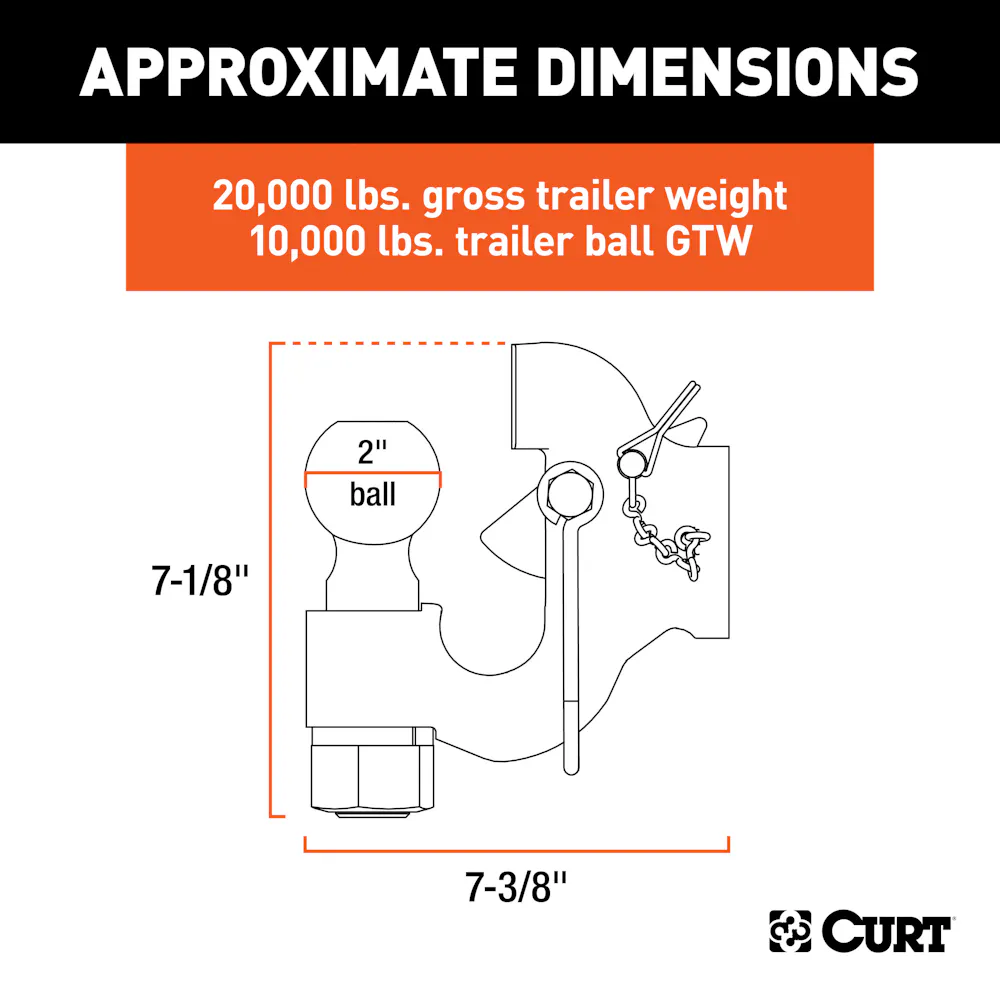

Specifications
- GTIN
- 00612314047635
- Weight
- 15.5 lb
- Height
- 3.23 in
- Length
- 8.37 in
- Width
- 7.7 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball Capacity
- 10,000 LBS
- Ball Diameter
- 2 IN
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 1680
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 10
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 1680
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 29730
- Finish
- DARK GREY TERIDIUM
- Finish - XA
- DARK GREY TERIDIUM
- Gross Trailer Weight (GTW)
- 20,000 LBS
- Item Class - XA
- OBS
- Item Height - XA
- 8.373
- Item Length - XA
- 7.700
- Item Width - XA
- 3.230
- Master Case Height Inches - XA
- 9.840
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 10.530
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 17.500
- Master Case Width Inches - XA
- 6.690
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 168
- Pallet Case Per Layer - XA
- 24
- Pallet Cases Per - XA
- 168
- Pallet Cases Per Layer - XA
- 24
- Pallet Layer of Cases - XA
- 7
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 75.980
- Pallet Total Weight Per - XA
- 2973.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 14.500
- Rate Class - XA
- 60.0
- Retail Height - XA
- 3.230
- Retail Length - XA
- 8.373
- Retail Width - XA
- 7.700
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- PINTLE MOUNT
- Shipping Weight - XA
- 15.500
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- SecureLatch Ball & Pintle Hitch (2" Ball, 20,000 lbs.)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 48411 SecureLatch 2-Inch Ball and Pintle Hitch Hook Combination, 20,000 Pounds, Mount Required
