CURT · 48016
Part #: 48016
UPC: 612314051625
Log in for inventory
1 units currently On-Order
Notify me when this item is in stock.

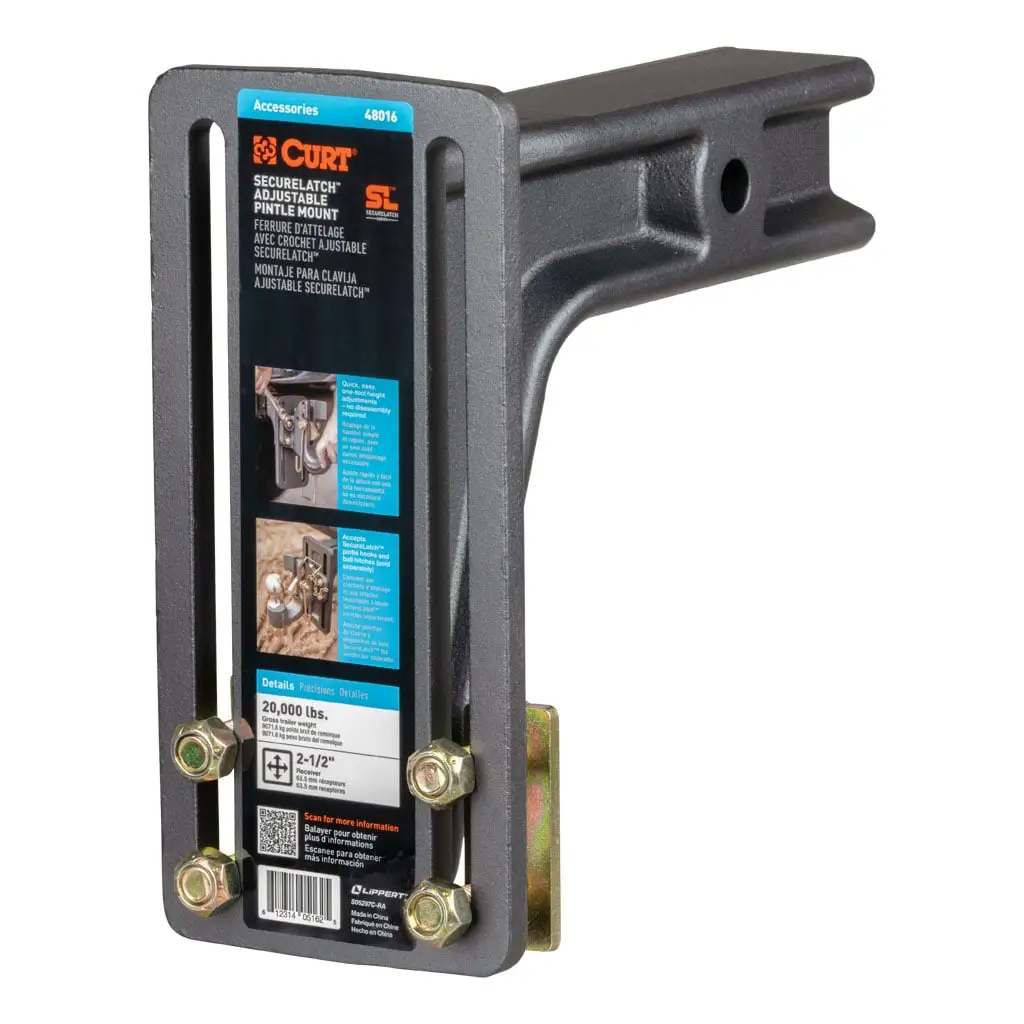

Description: SecureLatch Adjustable Pintle Mount (2-1/2" Shank, 20,000 lbs.); CURT 48016 SecureLatch Adjustable Pintle Mount Plate, 2-1/2-Inch Shank, 20,000 Pounds
Description:
Description
The CURT SecureLatch pintle mount offers easy, precise vertical adjustment of your pintle hitch. It features a unique slotted design that allows the double bolts to slide up and down as needed to level your trailer. Instead of having to disassemble and reassemble the entire hitch, simply loosen the bolts with a single wrench, enough to allow the pintle hitch to slide freely. Then, retorque the bolts -- the bolts provide 48,000 pounds of clamp pressure for highly secure towing of heavy-duty loads. This SecureLatch pintle plate mount fits any industry-standard 2-1/2-inch receiver and has a 10-5/8-inch x 5-inch plate for a wide range of adjustment (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The mount is rated for 20,000 pounds gross trailer weight, and it can accept a SecureLatch pintle hook or ball and pintle combination (sold separately). This pintle hitch mount is constructed from high-strength fabricated steel, and it comes with a teridium powder coat finish for lasting corrosion resistance.

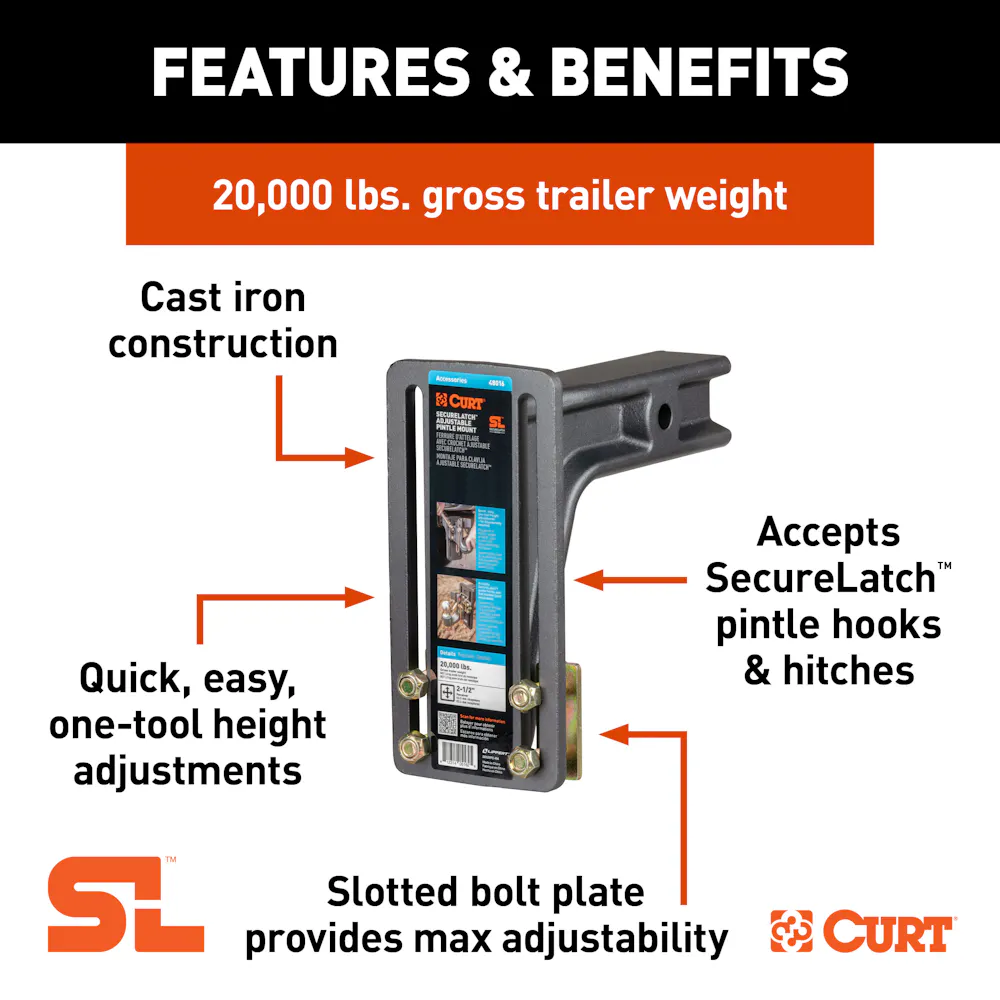

Features & benefits

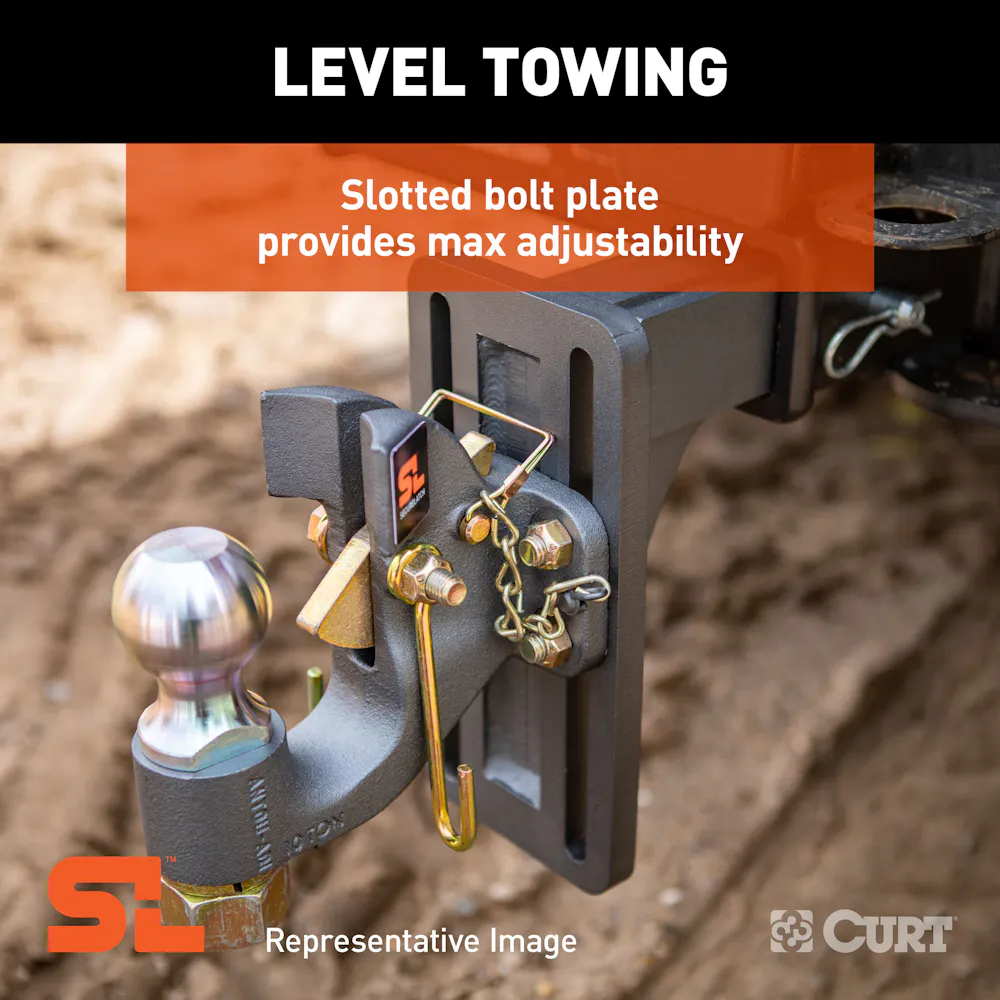

- Slotted bolt plate provides max adjustability, instead of fixed height positions
- Cast iron construction is austempered for superior strength and wear resistance
- Teridium powder coat finish for excellent exterior durability
- Bright gold zinc-plated hardware for long-lasting corrosion resistance
- Limited lifetime warranty (one-year finish, one-year parts)

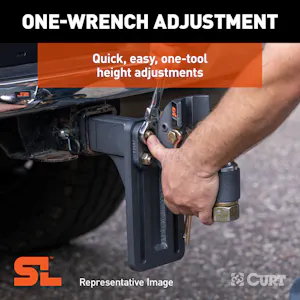

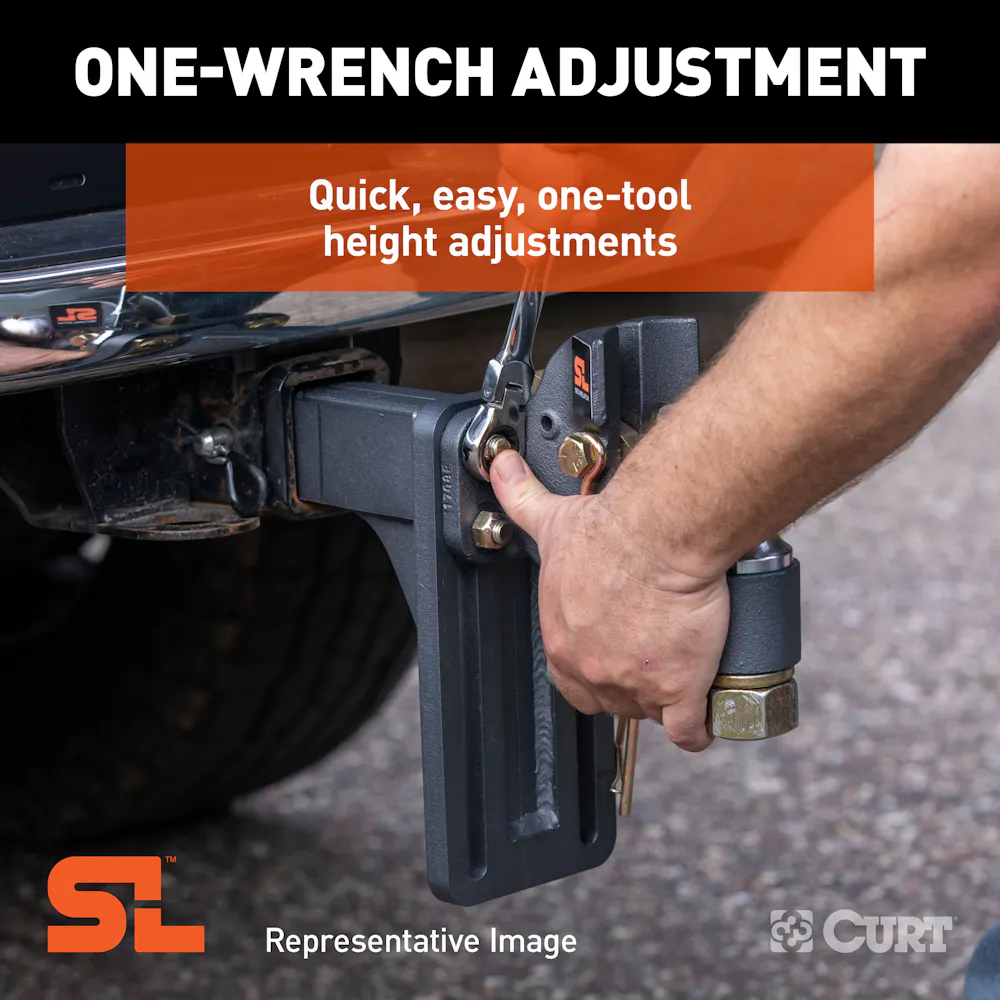

- Quick, easy, one-tool height adjustments -- no disassembly required
- Torqued bolt plates provide 48,000 lbs. total clamp load for secure connection
- Accepts SecureLatch pintle hooks and ball hitches (sold separately)

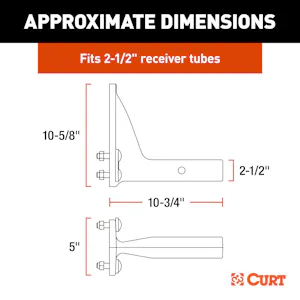

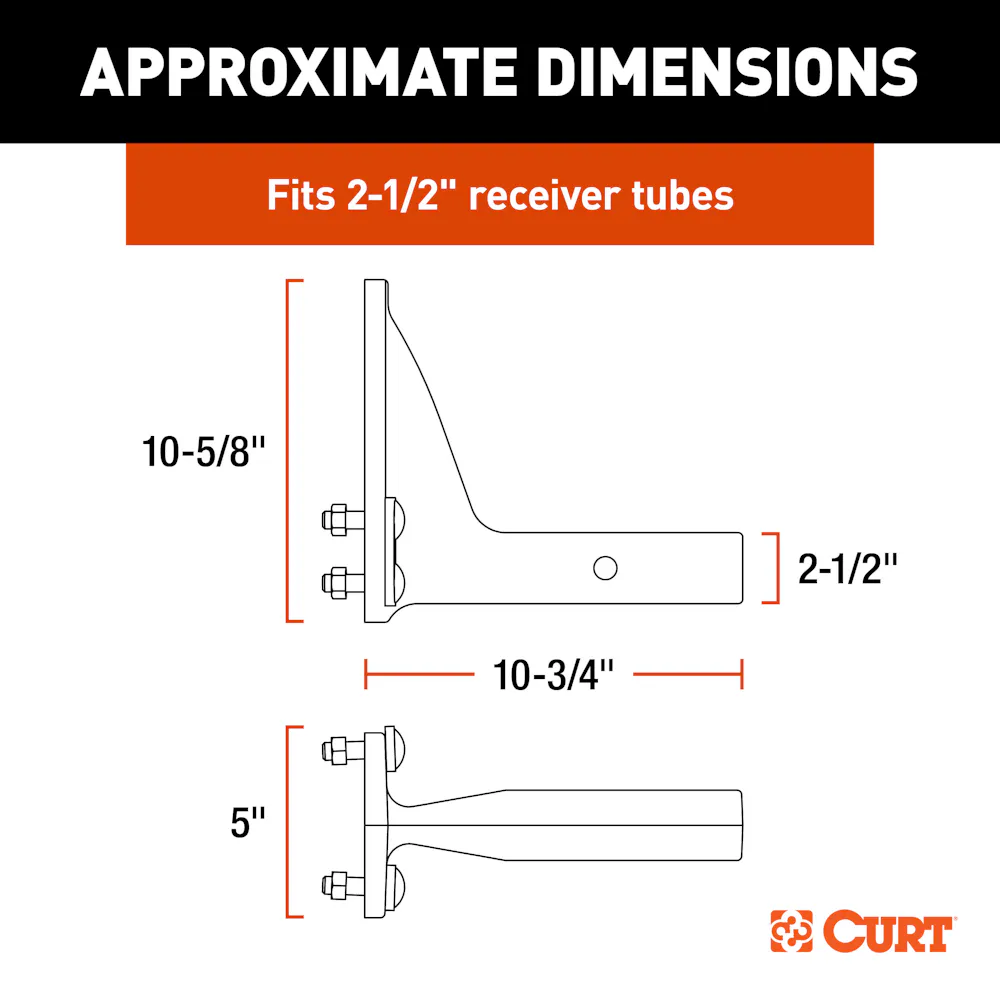

- 10-5/8" high x 5" wide plate for versatile height adjustment
- Tested and rated for 20,000 lbs. gross trailer weight
- Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
Information
Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
Application summary
| Year | Make / model |
|---|---|
| 8016 | SecureLatch Adjustable Pintle Mount Plate, 2-1/2-Inch Shank, 20,000 Pounds |
Specifications
- GTIN
- 00612314051625
- Weight
- 22.7 lb
- Height
- 6 in
- Length
- 14 in
- Width
- 14 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 1080
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 10
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 1080
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 25926
- Finish
- DARK GREY TERIDIUM
- Finish - XA
- DARK GREY TERIDIUM
- Gross Trailer Weight (GTW)
- 20,000 LBS
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 6.100
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 13.980
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 23.700
- Master Case Width Inches - XA
- 13.980
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 108
- Pallet Case Per Layer - XA
- 9
- Pallet Cases Per - XA
- 108
- Pallet Cases Per Layer - XA
- 9
- Pallet Layer of Cases - XA
- 12
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 80.300
- Pallet Total Weight Per - XA
- 2592.600
- Parcel Allowed - XA
- Yes
- Plate Height
- 10-5/8 IN
- Product Weight - XA
- 22.700
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 2-1/2 IN
- Retail Height - XA
- 6.000
- Retail Length - XA
- 14.000
- Retail Width - XA
- 14.000
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- PINTLE MOUNT
- Shipping Weight - XA
- 22.700
- Side Application Type Description - XA
- Not Applicable
- Tariff 301 - XA
- Yes
- Title
- SecureLatch Adjustable Pintle Mount (2-1/2" Shank, 20,000 lbs.)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 48016 SecureLatch Adjustable Pintle Mount Plate, 2-1/2-Inch Shank, 20,000 Pounds
