CURT / 45939
Part #: 45939
UPC: 612314055166
Loading...
Notify me when this item is in stock.

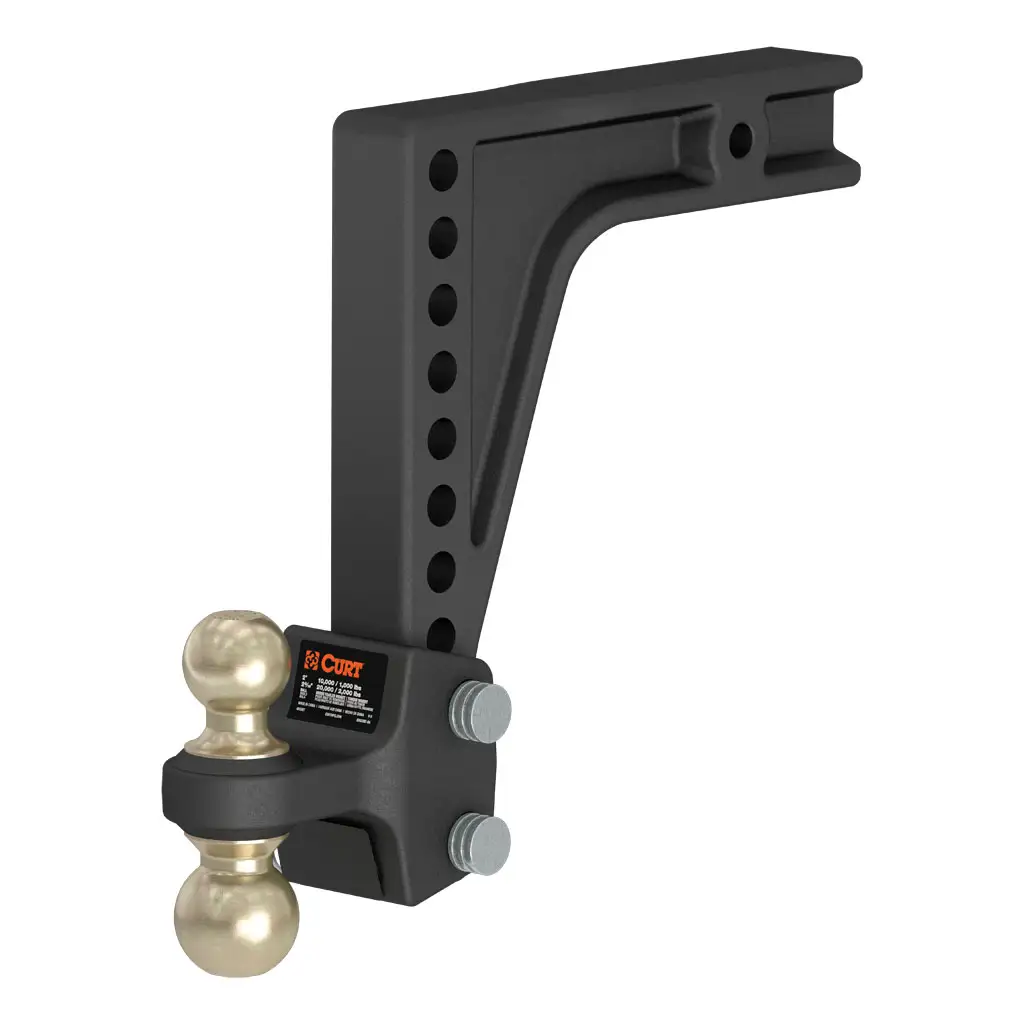

Description: HD Deep-Drop Adjustable Hitch Ball Mount with Dual Ball, 2-1/2" Shank, 20K; CURT 45939 HD Deep-Drop Adjustable Trailer Hitch Ball Mount with Dual Ball, 2-1/2" Shank, Up to 20,000 lbs
Description:
Description

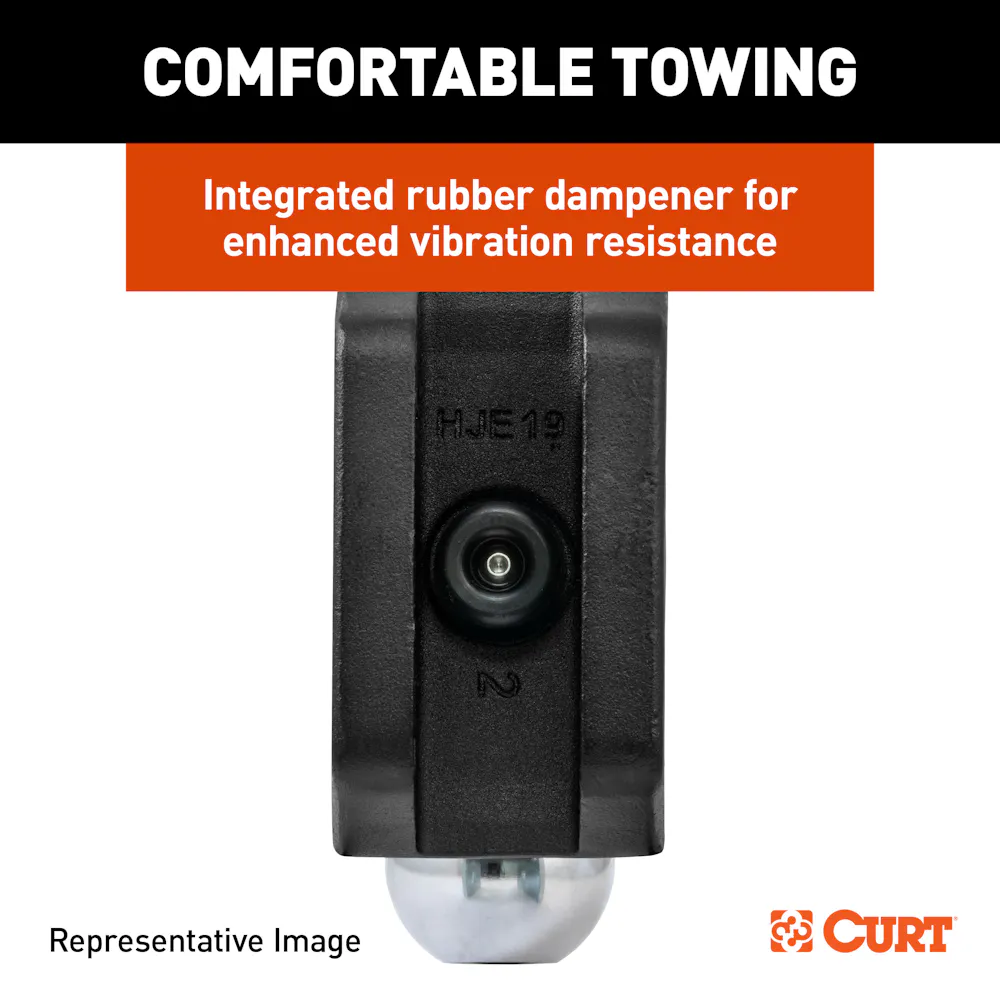

The CURT adjustable trailer hitch ball mount with dual ball from CURT is forged from steel, and is built for durability and strength for dependable and safe towing. Built for varying applications, the adjustable ball can be raised or lowered for varying heights to ensure level towing. The dual ball has two sizes in one, preventing the need to carry more than one attachment. The highly versatile design works with multiple vehicle-trailer combinations, providing for a drop of up to 11-3/4", and the dual ball attachment can be used with other CURT WD shanks. Anti-rattle technology encourages a quiet ride providing reduced noise for passengers. The unique vibration resistant clip design prevents the need for two separate clips and installs snugly over both pins with just one. Forged from steel and with its durable carbide powder coat finish and zinc-plated trailer balls, the hitch is weather and corrosion resistant and made to endure years of use. The yellow zinc 2" ball is rated for 10,000 lbs. and the 2-5/16 ball is rated for 20,000 lbs. and is included with a limited lifetime warranty – one year on parts and finish.

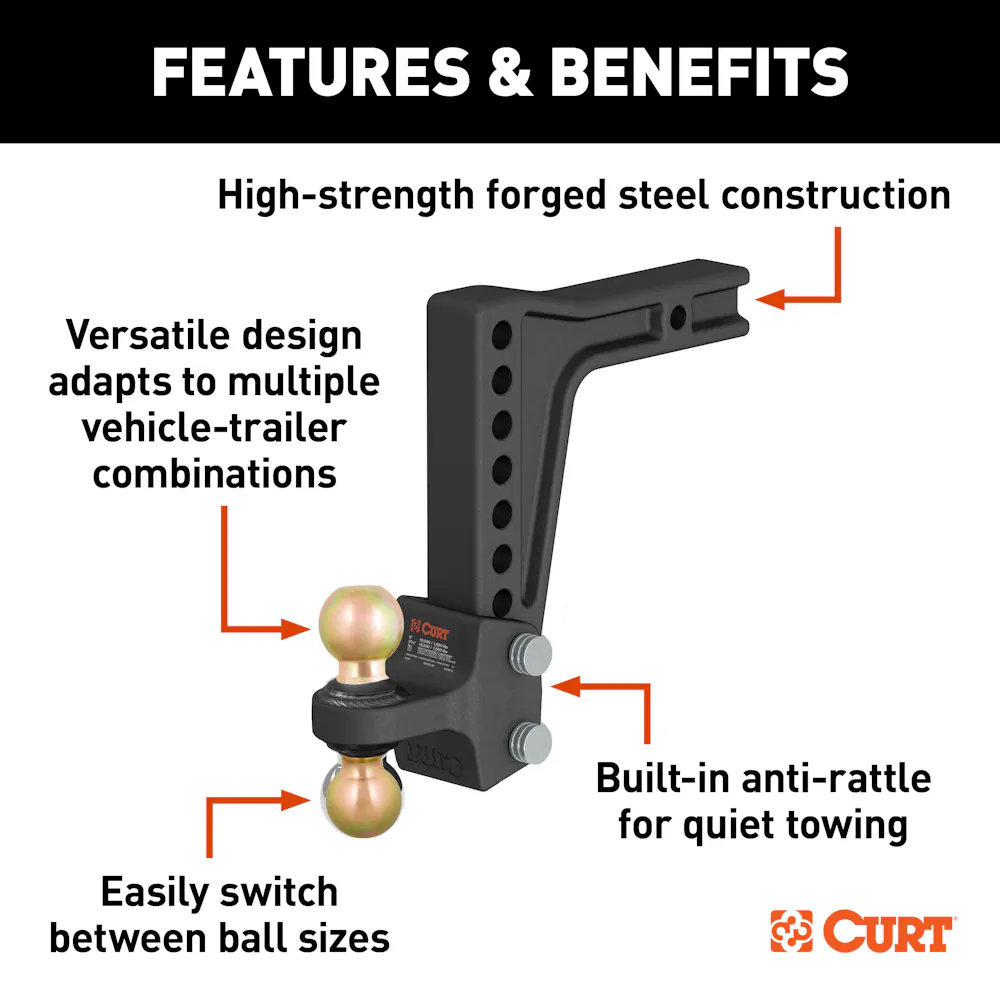

Features & benefits
- Highly versatile design adapts to multiple vehicle-trailer combinations

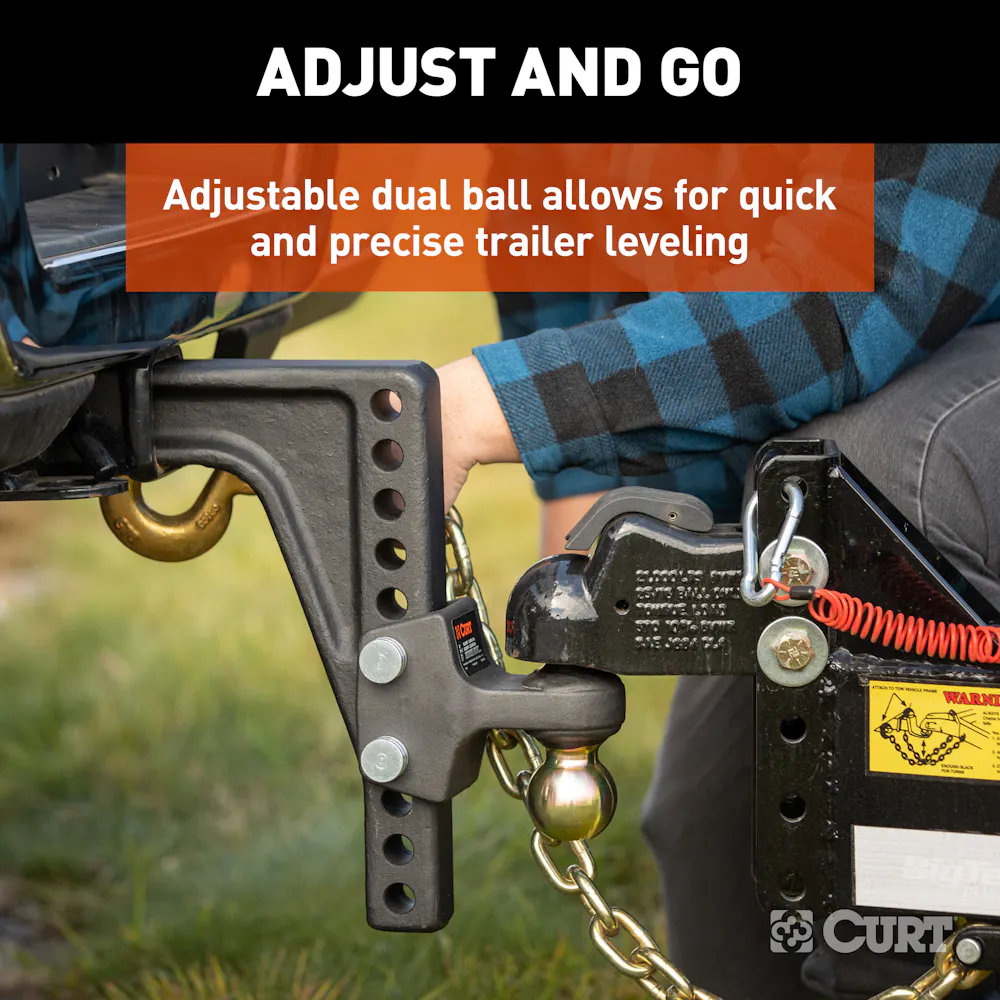

- Adjustable dual ball allows for quick and precise trailer leveling
- Dual ball can be used on other WD shanks (holes spaced 2-1/2" on-center)
- Deep-drop shank ideal for large or lifted trucks and SUVs
- Provides max drop of 11-3/4" (not intended for use in rise position)
- 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 20,000 lbs.
- Built-in anti-rattle helps promote quiet towing
Information
Built-in anti-rattle helps promote quiet towing
Application summary
| Year | Make / model |
|---|---|
| 5939 | HD Deep-Drop Adjustable Trailer Hitch Ball Mount with Dual Ball, 2-1/2 |
Specifications
- GTIN
- 00612314055166
- Weight
- 45.81 lb
- Height
- 5.39 in
- Length
- 18.7 in
- Width
- 15.4 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Ball 1 Diameter and Capacity
- 2 IN
- Ball 2 Diameter and Capacity
- 2-5/16 IN
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Container Cases Qty - XA
- 480
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 10
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 480
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 23278
- Finish
- Blank
- Finish - XA
- Blank
- GTW/TW Ball 1
- 10,000 LBS
- GTW/TW Ball 2
- 20,000 LBS
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 5.390
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 18.700
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 47.810
- Master Case Width Inches - XA
- 15.400
- Material - XA
- Carbon Steel
- Max Drop
- 11-3/4 IN
- Mount Type Description - XA
- Not Applicable
- Pallet Case Per - XA
- 48
- Pallet Case Per Layer - XA
- 4
- Pallet Cases Per - XA
- 48
- Pallet Cases Per Layer - XA
- 4
- Pallet Layer of Cases - XA
- 12
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 70.630
- Pallet Total Weight Per - XA
- 2327.880
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 60.0
- Retail Height - XA
- 5.390
- Retail Length - XA
- 15.400
- Retail Width - XA
- 18.700
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shank Diameter
- 2-1/2 IN
- Shipping Weight - XA
- 45.810
- Side Application Type Description - XA
- Not Applicable
- Style
- Adjustable
- Tariff 301 - XA
- Yes
- Title
- HD Deep-Drop Adjustable Hitch Ball Mount with Dual Ball, 2-1/2" Shank, 20K
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45939 HD Deep-Drop Adjustable Trailer Hitch Ball Mount with Dual Ball, 2-1/2
