CURT · 45903
Part #: 45903
UPC: 612314459032
Log in for inventory
Notify me when this item is in stock.
Description: Slim Adjustable Channel Mount with Dual Ball (2" Shank, 10K, 3-3/4" Drop); CURT 45903 Slim Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 3-3/4-In Drop, 2 or 2-5/16-Inch Balls, 10,000 Pounds
Description:
Description
If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. The CURT slim adjustable channel-style ball mount provides a weight capacity of up to 10,000 pounds and only weighs 15 pounds. It has a shank size of 2 inches x 2 inches and features two different trailer ball sizes to accommodate two different coupler sizes: 2-inch and 2-5/16-inch. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 3-1/2-inch rise or lowered to a maximum of 3-3/4-inch drop, allowing you to make your trailer completely level in any towing situation. The CURT slim adjustable ballmount offers a gross trailer weight capacity of up to 8,000 pounds for the 2-inch ball and 10,000 pounds for the 2-5/16-inch ball. It allows you to tow a variety of trailers, and it features two pin holes in the shank to be mounted at an 10-inch or 11-inch length. All CURT channel-style adjustable hitches are made with sturdy steel construction and come with a black carbide powder coat finish for long-lasting rust, scratch and UV resistance.

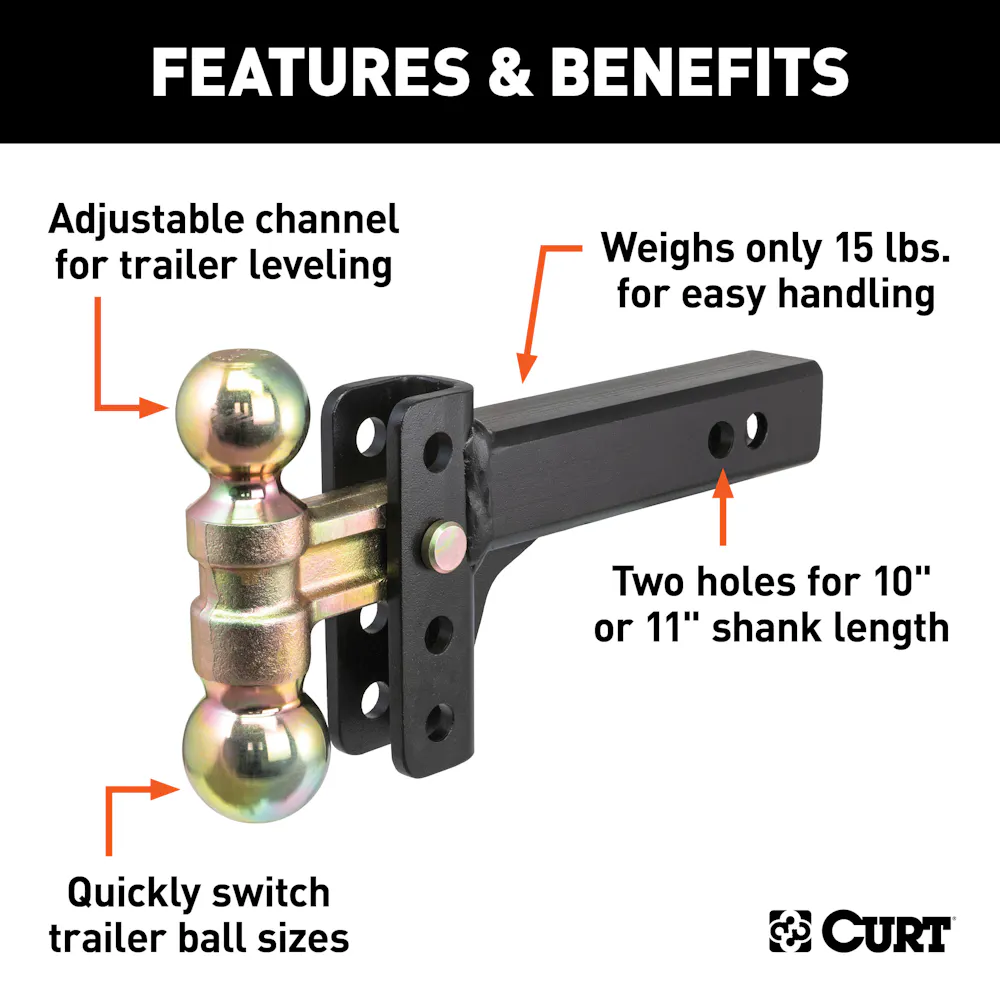

Features & benefits

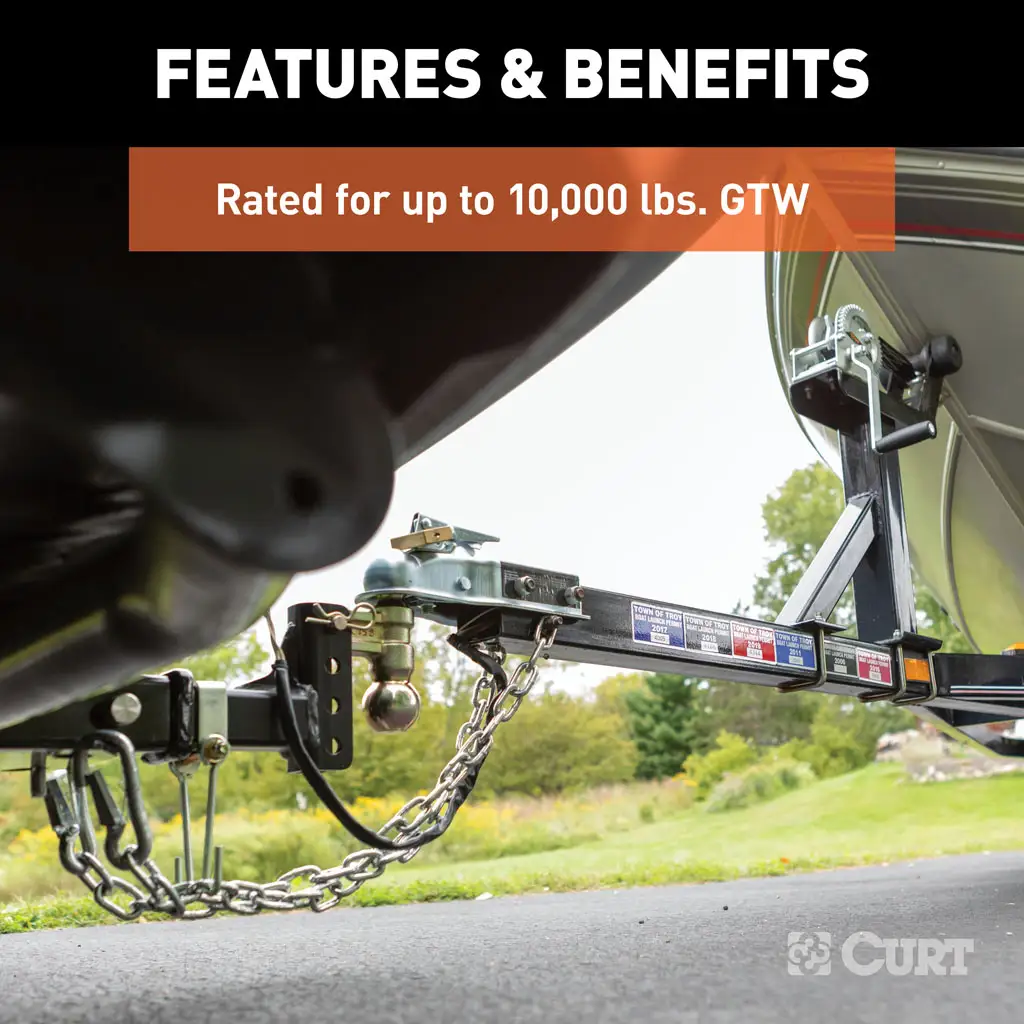

- 2" ball rated for 8,000 lbs. and 2-5/16" ball rated for 10,000 lbs.
- Weighs only 15 lbs. for easy handling, compared to other adjustable hitches

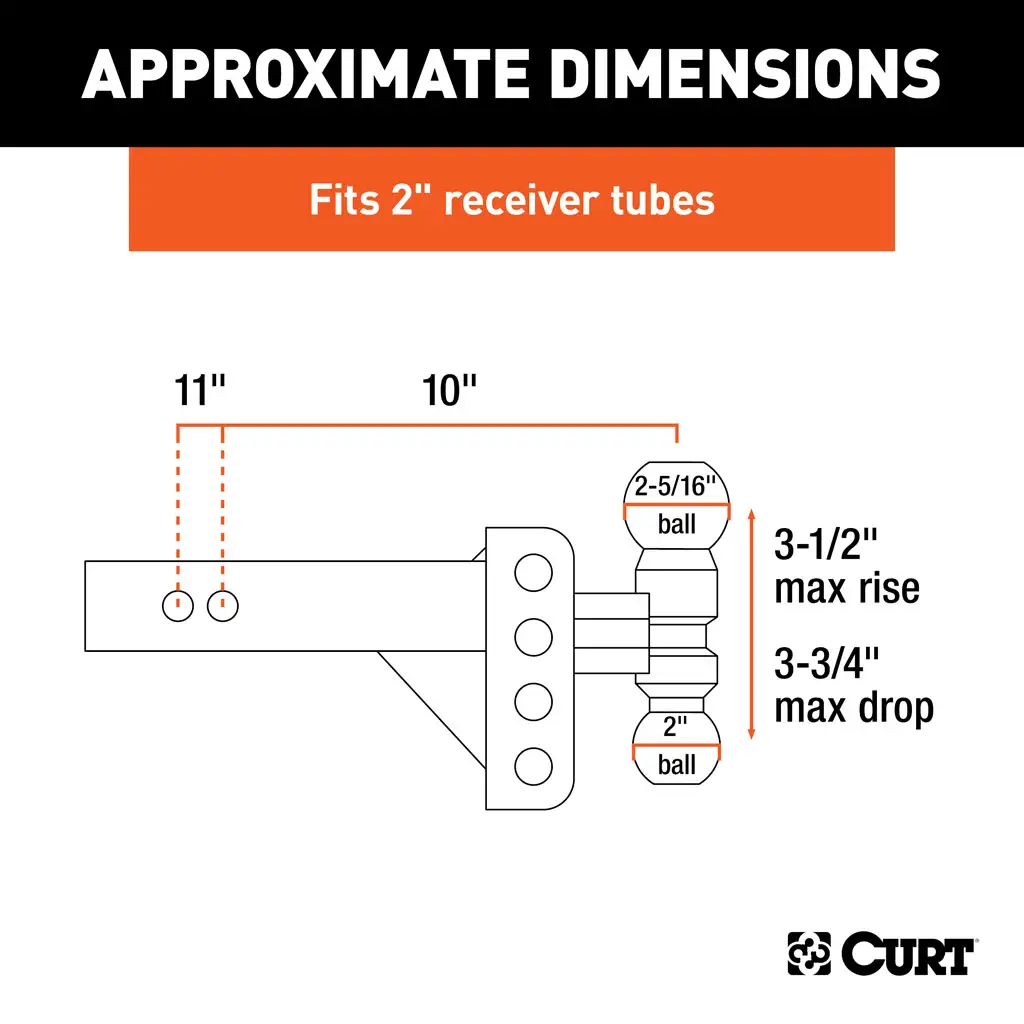

- Shank can be flipped for a max rise of 3-1/2" and drop of 3-3/4"

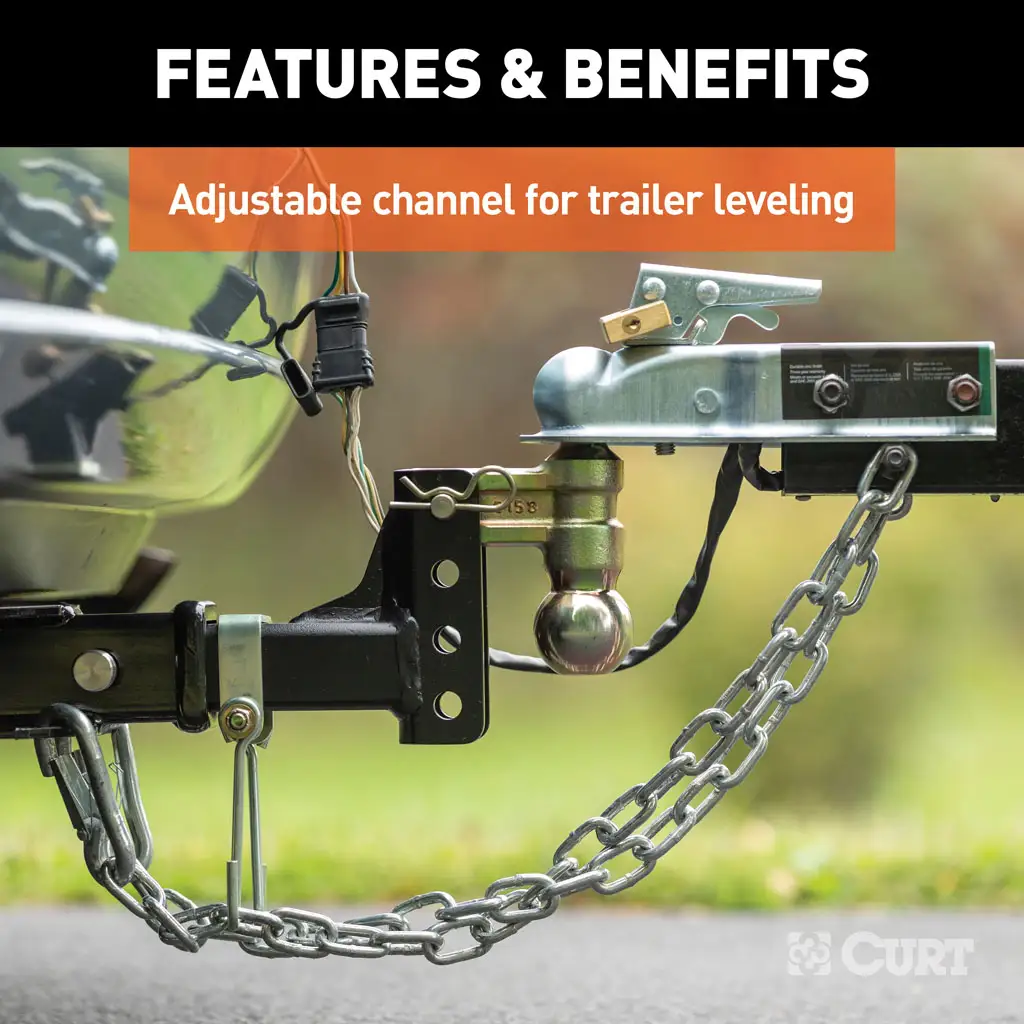

- Adjustable channel mount allows for precise trailer leveling
- One-pin dual ball attachment for quick, easy adjustment
- Mounts on trailer hitches with a 2" x 2" receiver tube opening
- Two hitch pin holes provide shank lengths of 10" or 11"
- Protected by a highly durable carbide powder coat (zinc-plated dual ball)
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5903 | Slim Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 3-3/4-In Drop, 2 or 2-5/16-Inch Balls, 10,000 Pounds |
Specifications
- GTIN
- 00612314459032
- Weight
- 15 lb
- Height
- 4 in
- Length
- 12.5 in
- Width
- 10 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drop
- 3.750 in.
- Finish
- BLACK POWDER COAT
- Finish - XA
- BLACK POWDER COAT
- GTW/TW Ball 1
- 8,000 LB
- GTW/TW Ball 2
- 10,000 LB
- Item Class - XA
- OBS
- Item Height - XA
- 3.000
- Item Length - XA
- 12.000
- Item Width - XA
- 9.000
- Master Case Height Inches - XA
- 3.500
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 12.500
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 15.000
- Master Case Width Inches - XA
- 9.500
- Material - XA
- Carbon Steel
- Max Drop
- 3-3/4 IN
- Max Rise
- 3-1/2 IN
- Mount Type Description - XA
- Not Applicable
- Overall Length
- 12.000 in.
- Pallet Case Per - XA
- 60
- Pallet Case Per Layer - XA
- 10
- Pallet Cases Per - XA
- 60
- Pallet Cases Per Layer - XA
- 10
- Pallet Layer of Cases - XA
- 6
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 26.000
- Pallet Total Weight Per - XA
- 950.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 14.000
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 2 IN
- Retail Height - XA
- 4.000
- Retail Length - XA
- 12.500
- Retail Width - XA
- 10.000
- Rise
- 3.500 in.
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 15.000
- Side Application Type Description - XA
- Not Applicable
- Style
- Adjustable
- Tariff 301 - XA
- No
- Title
- Slim Adjustable Channel Mount with Dual Ball (2" Shank, 10K, 3-3/4" Drop)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45903 Slim Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 3-3/4-In Drop, 2 or 2-5/16-Inch Balls, 10,000 Pounds
