Description: D-Ring Shackle Mount (2" Shank); CURT 45832 D-Ring Shackle Mount Trailer Hitch, Fits 2-Inch Receiver, 13,000 lbs
Description:
Description
For tough jobs and off-road vehicle recovery applications, the CURT D-ring shackle mount is a hardworking extension of your truck. It features a solid steel shank for maximum strength and has a weight capacity rating of 13,000 lbs. straight-line pull (limited to lowest-rated towing component). This makes it the perfect accessory for difficult vehicle recovery and other straight-pull towing applications. The shank also measures 2" x 2", allowing this trailer hitch mount to be compatible with larger pickup trucks and any class 4 or class 5 trailer hitch with a 2" x 2" receiver tube. It offers a perfect fit for all CURT Xtra Duty class 5 hitches (5/8" hitch pin & clip sold separately). The D-ring shackle mount features a threaded pin for easy attachment of the shackle, and it is compatible with the CURT vehicle recovery strap #83066. It also comes with a durable, corrosion-resistant carbide powder coat finish, keeping it well protected against the elements, as well as against nicks, scratches and scuffing.

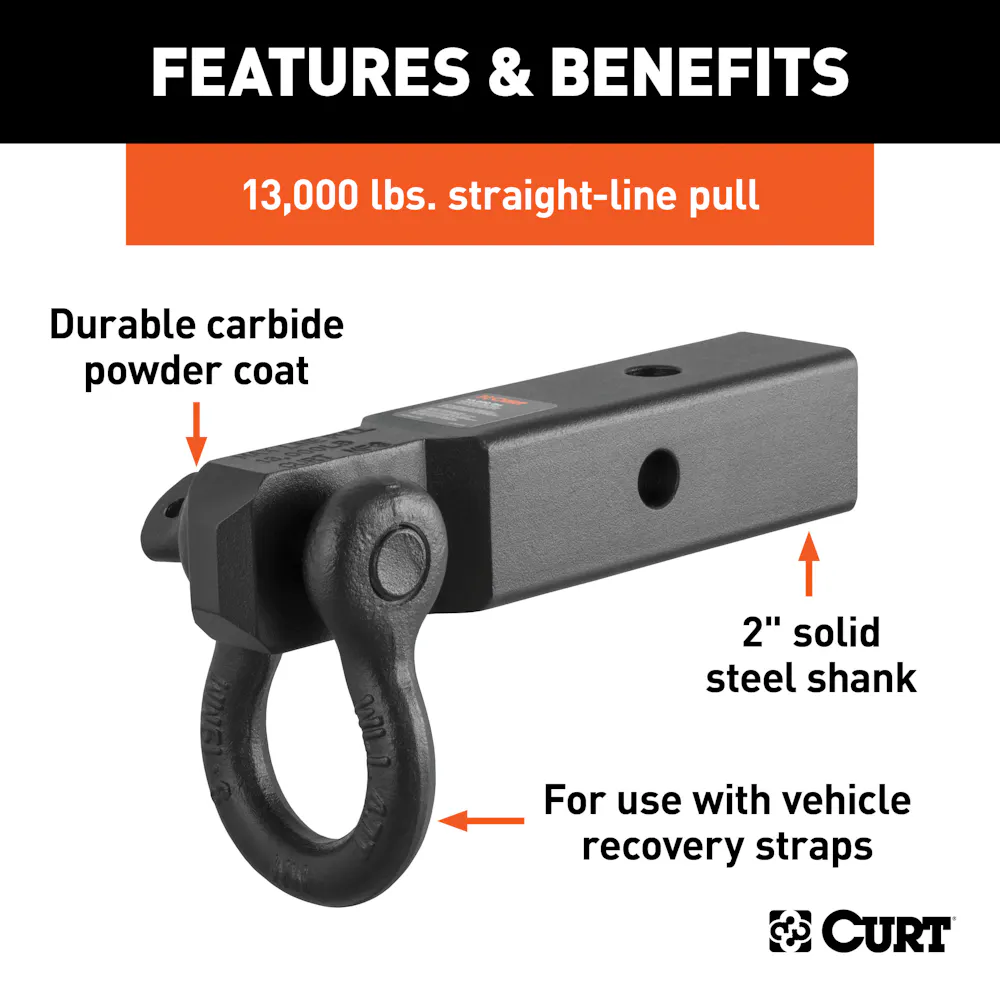

Features & benefits

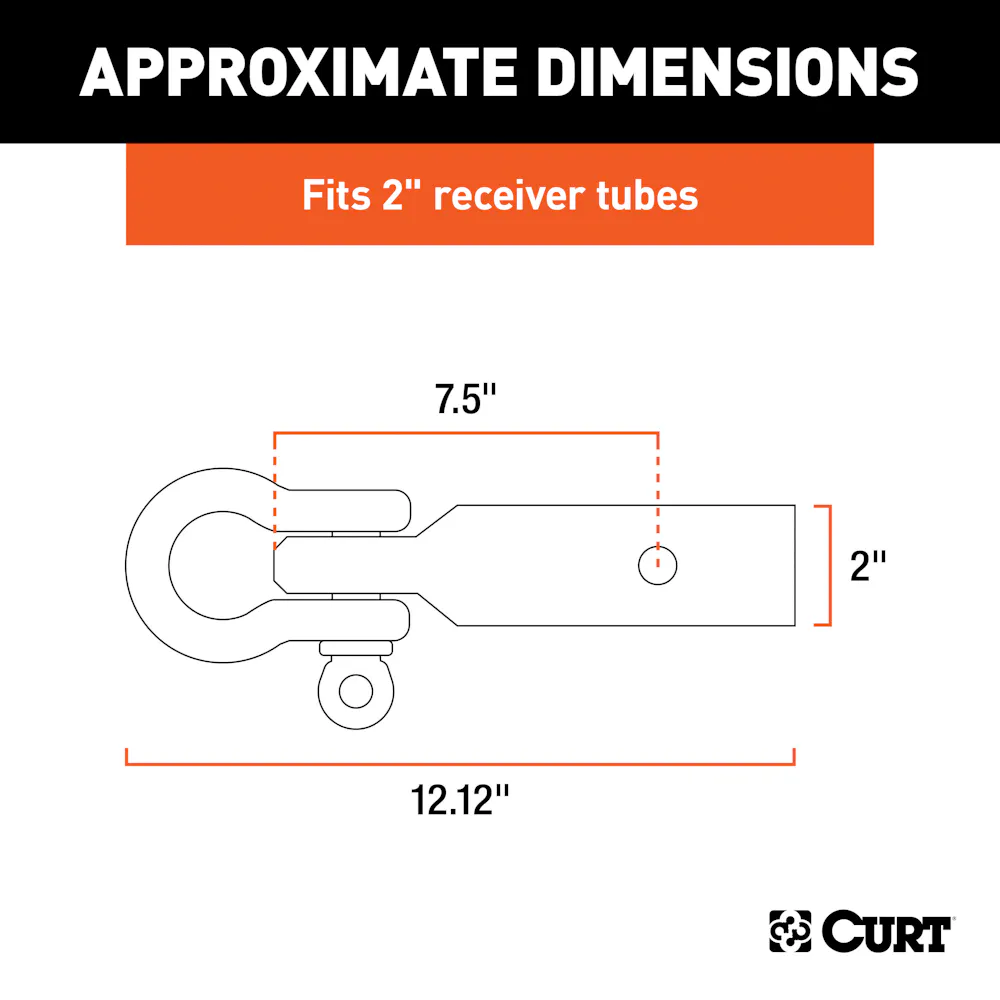

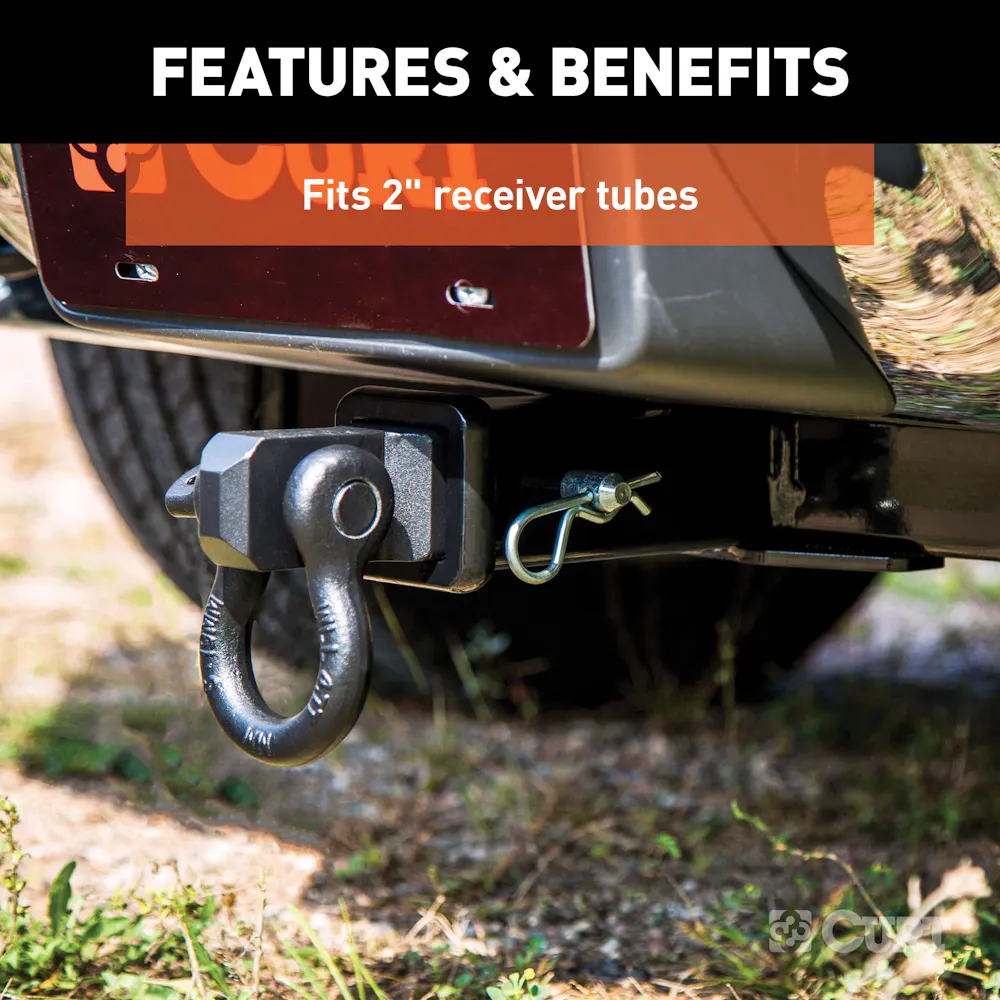

- Fits trailer hitches with a 2" x 2" receiver tube opening
- Tested and rated for 13,000 lbs. straight-line pull
- Perfect for vehicle recovery towing applications
- Can be used with CURT vehicle recovery strap #83066 or similar
- Shank constructed from solid steel for optimum strength
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5832 | D-Ring Shackle Mount Trailer Hitch, Fits 2-Inch Receiver, 13,000 lbs |
Specifications
- GTIN
- 00612314042548
- Weight
- 10.65 lb
- Height
- 2.75 in
- Length
- 12.4 in
- Width
- 5.13 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 3564
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 18
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 3564
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 38497
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 2.750
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 12.400
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 10.650
- Master Case Width Inches - XA
- 5.125
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Pallet Case Per - XA
- 198
- Pallet Case Per Layer - XA
- 22
- Pallet Cases Per - XA
- 198
- Pallet Cases Per Layer - XA
- 22
- Pallet Layer of Cases - XA
- 9
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 29.750
- Pallet Total Weight Per - XA
- 2138.700
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 70.0
- Receiver Tube Size
- 2.000 in. x 2.000 in.
- Retail Height - XA
- 2.750
- Retail Length - XA
- 12.400
- Retail Width - XA
- 5.125
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 10.650
- Side Application Type Description - XA
- Blank
- Straight Line Pull Capacity
- 13,000 LB
- Tariff 301 - XA
- Yes
- Title
- D-Ring Shackle Mount (2" Shank)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45832 D-Ring Shackle Mount Trailer Hitch, Fits 2-Inch Receiver, 13,000 lbs
