CURT · 45799

Part #: 45799
UPC: 612314009008

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Ball Mounts

Description: Adjustable Tri-Ball Mount (2" Shank, 1-7/8", 2" & 2-5/16" Balls); CURT 45799 Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5-3/4-Inch Drop, 1-7/8, 2, 2-5/16-Inch Balls, 10,000 lbs

Description:

Description

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable ball mount has a shank size of 2" x 2" and features three different trailer ball sizes to accommodate all standard coupler sizes: 1-7/8", 2" and 2-5/16". The 1-7/8" trailer ball offers a gross trailer weight capacity of 6,000 lbs. and a tongue weight capacity of 600 lbs. The 2" trailer ball has a GTW capacity of 7,500 lbs. and a TW capacity of 750 lbs., and the 2-5/16" ball offers 10,000 lbs. GTW and 1,000 lbs. TW. This allows you to easily tow a variety of trailers and to ensure that each one tows smoothly and securely. This tri-ball ball mount also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-3/4" rise or lowered to a maximum of 5-3/4" drop, allowing you to make your trailer completely level in any towing situation. It includes three 5/8" hitch pins for quick and secure installation, and the adjustable shank can also be used with our multipurpose ball mount attachment #45008 for even more versatility. All CURT adjustable ball mounts are made with sturdy steel construction and come with a durable powder coat finish for long-lasting rust, scratch and UV resistance.

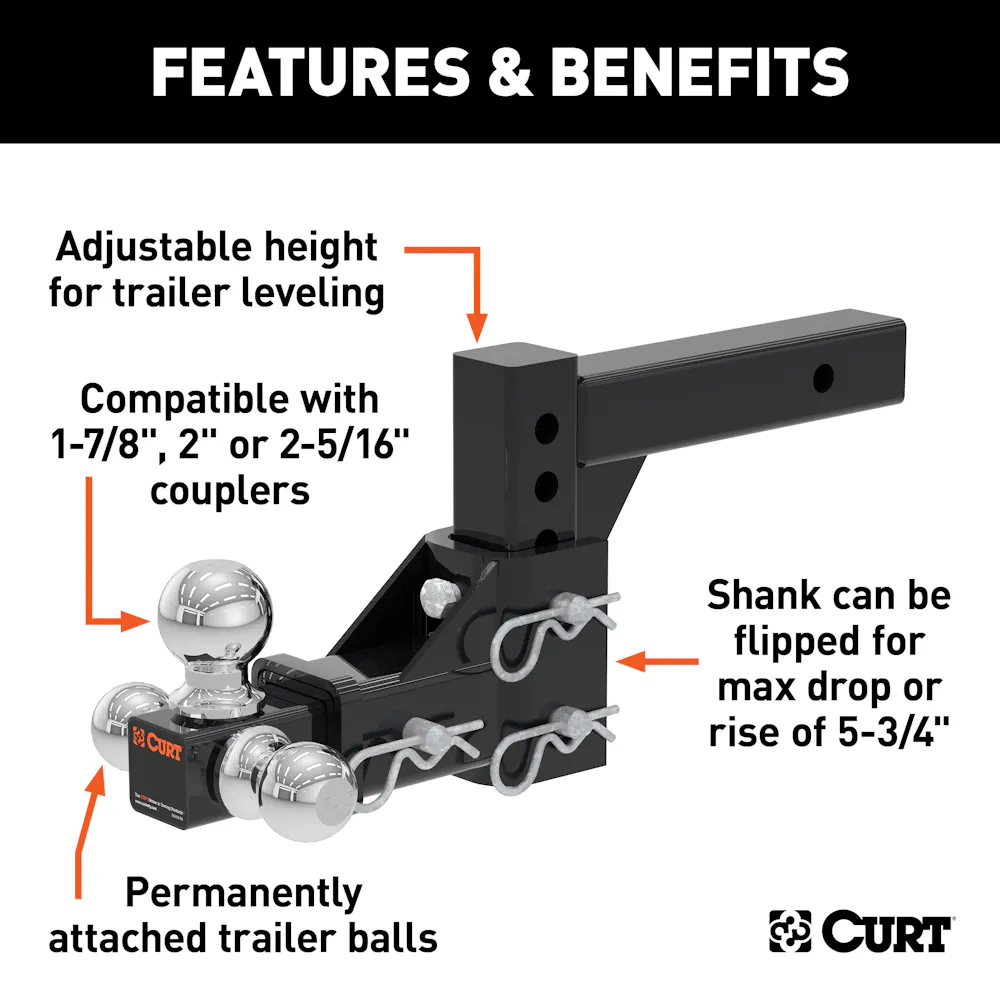

Features & benefits

  • Features three welded trailer balls on an adjustable shank
  • 5/8" diameter pins & clips provide security and easy adjustment
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Fits 1-7/8", 2" or 2-5/16" couplers
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Adjustable height allows for precise trailer leveling
  • Shank can be flipped for a max drop or rise of 5-3/4"
  • Protected by a durable powder coat finish

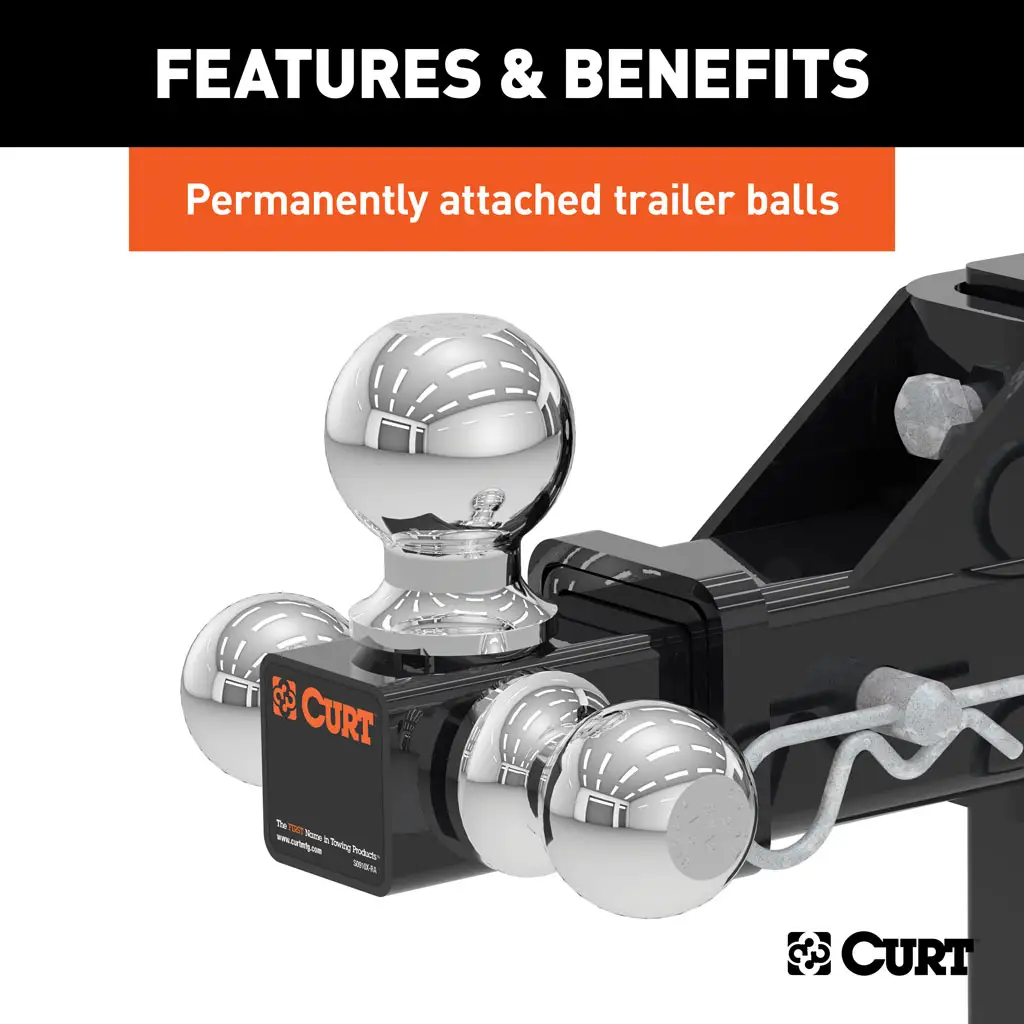

  • Permanently attached trailer balls cannot be loosened or stolen
  • Trailer balls feature a polished chrome-plated finish

Information

Trailer balls feature a polished chrome-plated finish

Application summary

Year Make / model
5799 Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5-3/4-Inch Drop, 1-7/8, 2, 2-5/16-Inch Balls, 10,000 lbs

Specifications

GTIN
00612314009008
Weight
45.41 lb
Height
6.5 in
Length
14.5 in
Width
11.5 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Adjustable Ball Mount
Ball 1 Diameter and Capacity
1-7/8 IN - 6,000 LB
Ball 2 Diameter and Capacity
2 IN - 7,500 LB
Ball 3 Diameter and Capacity
2-5/16 IN - 10,000 LB
Ball Diameter
1-7/8 IN or 2 IN or 2-5/16 IN
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Class ID
0
Container Cases Qty - XA
816
Container Pallet Qty - XA
17
Container Type - XA
40GP
Container Unit Qty - XA
816
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
17124
Container Weight Lbs - XA
37672
Drop
5.750 in.
Drop (in.)
5.750 in.
Finish
GLOSS BLACK POWDER COAT
Finish - XA
GLOSS BLACK POWDER COAT
GTW/TW Ball 1
6,000 LB / 600 LB
GTW/TW Ball 2
7,500 LB / 750 LB
GTW/TW Ball 3
10,000 LB / 1,000 LB
Gross Trailer Weight (GTW)
10,000 LB
Item Class - XA
OBS
Item Height - XA
8.000
Item Length - XA
14.500
Item Width - XA
11.500
Master Case Height Inches - XA
5.512
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
14.750
Master Case Qty - XA
1
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
45.410
Master Case Width Inches - XA
11.375
Material - XA
Blank
Max Drop
5-3/4 IN
Max Rise
5-3/4 IN
Mount Type Description - XA
Blank
Overall Length
12.000 in.
Overall Length (in.)
12.000 in.
Pallet Case Per - XA
48
Pallet Case Per Layer - XA
8
Pallet Cases Per - XA
48
Pallet Cases Per Layer - XA
8
Pallet Layer of Cases - XA
6
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
38.071
Pallet Total Weight Per - XA
2216.000
Parcel Allowed - XA
Yes
Product Weight - XA
45.410
Rate Class - XA
60.0
Receiver Tube Size
2.000 in.
Retail Height - XA
8.000
Retail Length - XA
14.500
Retail Width - XA
11.500
Rise
5.750 in.
Rise (in.)
5.750 in.
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
BALL MOUNT
Shank Length
16 IN
Shipping Weight - XA
45.410
Side Application Type Description - XA
Blank
Style
Adjustable
Tariff 301 - XA
No
Title
Adjustable Tri-Ball Mount (2" Shank, 1-7/8", 2" & 2-5/16" Balls)
Tongue Weight (TW)
1,000 LB
Truckload Cases Qty - XA
864
Truckload Dom Pickup Location - XA
Eau Claire, Wi
Truckload Pallets Qty - XA
18
Truckload Units Qty - XA
864
Truckload Volume Cubic Feet - XA
81.00000
Truckload Weight - XA
39953
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 45799 Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5-3/4-Inch Drop, 1-7/8, 2, 2-5/16-Inch Balls, 10,000 lbs
