CURT · 45655

Part #: 45655
UPC: 612314001552

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Ball Mounts

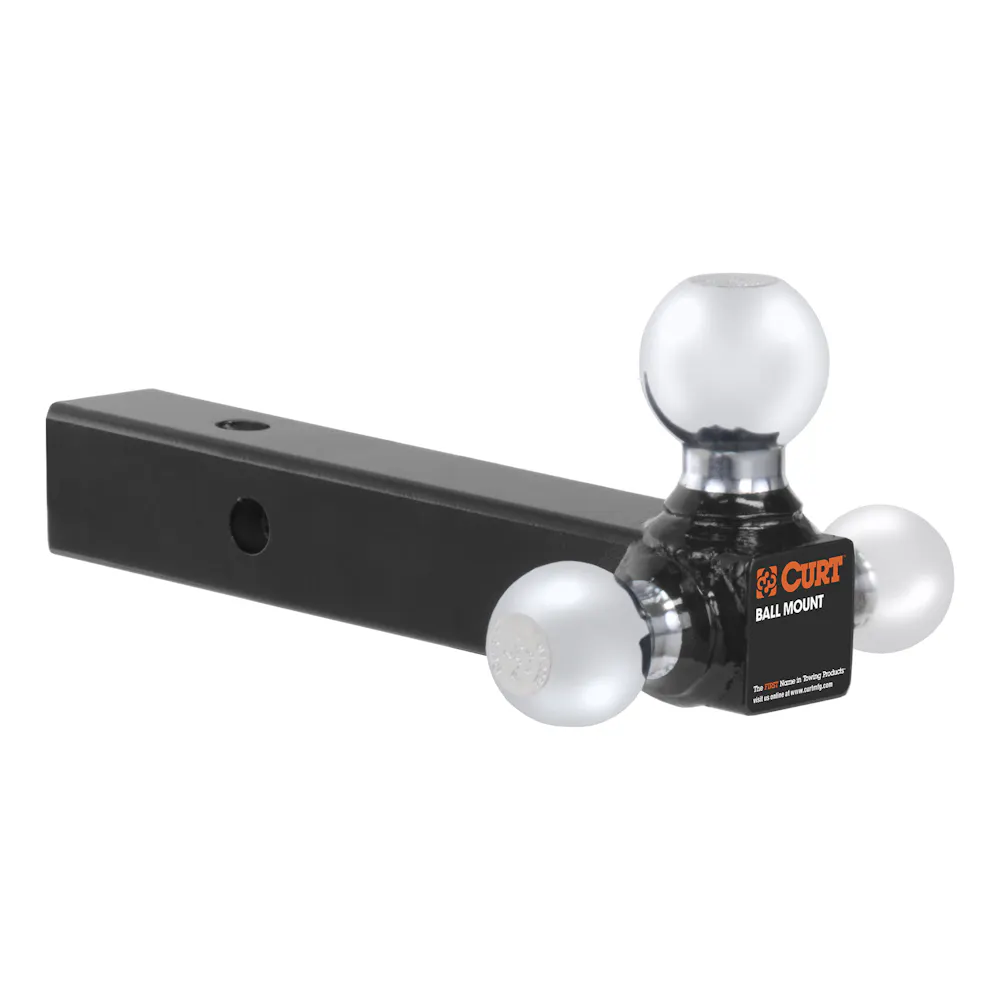

Description: Multi-Ball Mount (2" Solid Shank, 1-7/8", 2" & 2-5/16" Chrome Balls); CURT 45655 Multi-Ball Trailer Hitch Ball Mount, 1-7/8, 2, 2-5/16-Inch Balls, Fits 2-Inch Receiver, 10,000 lbs

Description:

Description

If you own more than one trailer, you know what a hassle it can be switching back and forth between ball mounts and keeping track of which ball mount fits which coupler. CURT has made things simpler with the multi-tow ball mount. These ball mounts feature two or three trailer balls mounted onto a straight shank to accommodate various coupler sizes and loads. This multi-ball ball mount features a 1-7/8", a 2" and a 2-5/16" ball. The 1-7/8" trailer ball can tow up 5,000 lbs. of gross trailer weight and 500 lbs. of tongue weight. The 2" ball can handle 7,500 lbs. of GTW and 750 lbs. of TW, and the 2-5/16" ball accepts loads up to 10,000 lbs. with 1,000 lbs. of TW. This multipurpose ball mount also features a dual-length option and has a solid shank for increased strength. All of our multi-use ball mounts come with a gloss black powder coat finish and a 2" x 2" shank. CURT multi-tow ball mounts are an obvious choice for anyone who tows more than one trailer on a regular basis. The multiple-ball design allows for quick changes between ball sizes without needing to install or own an entirely different ball mount. Because the balls are permanently welded to the shank, these ball mounts are also very secure, eliminating the possibility of a ball coming loose and deterring any potential theft.

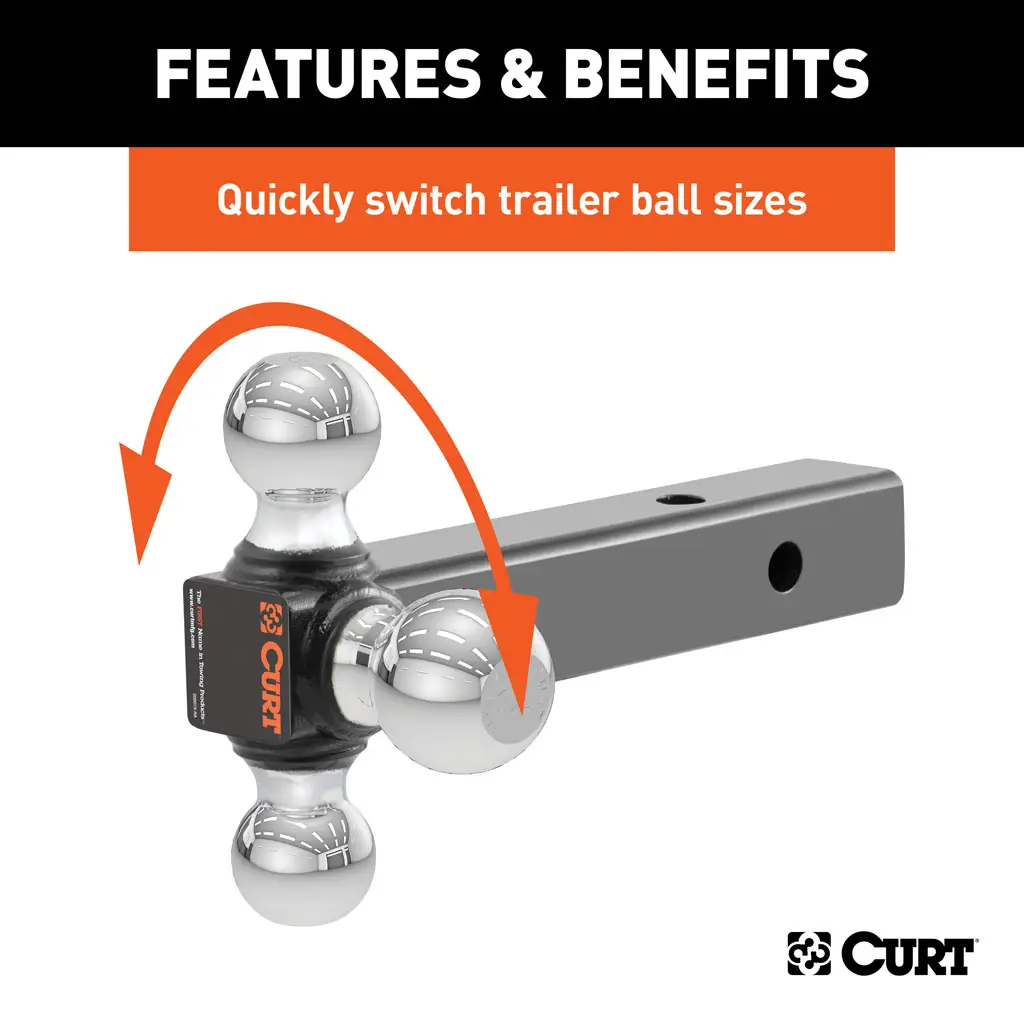

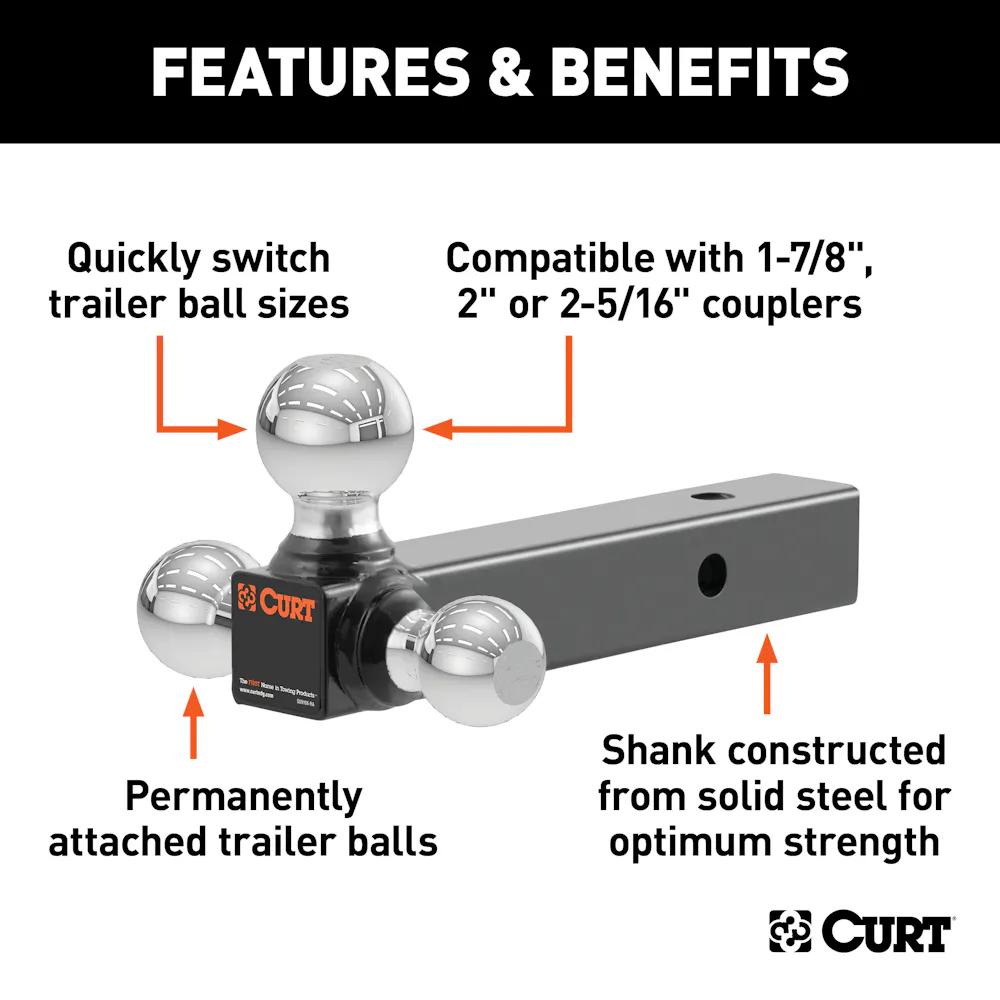

Features & benefits

  • Features three welded trailer balls on a solid shank
  • Allows for quick switching between trailer ball sizes
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Fits 1-7/8", 2" or 2-5/16" couplers
  • Permanently attached trailer balls cannot be loosened or stolen
  • Shank constructed from solid steel for optimum strength
  • Shank protected by a durable powder coat finish
  • Trailer balls feature a polished chrome-plated finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
5655 Multi-Ball Trailer Hitch Ball Mount, 1-7/8, 2, 2-5/16-Inch Balls, Fits 2-Inch Receiver, 10,000 lbs

Specifications

GTIN
00612314001552
Weight
19 lb
Height
5 in
Length
12 in
Width
8 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
Triple Tow Bar 1 7/8 X 2 X 2 5/16 Black/Chrome
Box Height in Inches - XA
2
Box Length in Inches - XA
7
Box Width in Inches - XA
4
California Proposition 65
Yes
Class ID
0
Container Cases Qty - XA
1728
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
18
Container Type - XA
20GP
Container Unit Qty - XA
1728
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
36922
Drop
No Drop
Drop (in.)
No Drop
Finish
GLOSS BLACK POWDER COAT
Finish - XA
GLOSS BLACK POWDER COAT
GTW/TW Ball 1
5,000 LB / 500 LB
GTW/TW Ball 2
7,500 LB / 750 LB
GTW/TW Ball 3
10,000 LB / 1,000 LB
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
6.500
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
13.000
Master Case Qty - XA
1
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
19.000
Master Case Width Inches - XA
8.150
Material - XA
Blank
Mount Type Description - XA
Blank
Overall Length
8.500 in.
Overall Length (in.)
8.500 in.
Pallet Case Per - XA
96
Pallet Case Per Layer - XA
16
Pallet Cases Per - XA
96
Pallet Cases Per Layer - XA
16
Pallet Layer of Cases - XA
6
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
45.000
Pallet Total Weight Per - XA
2051.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
60.0
Receiver Tube Size
2.000 in.
Retail Height - XA
5.000
Retail Length - XA
12.000
Retail Width - XA
8.000
Rise
No Rise
Rise (in.)
No Rise
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
BALL MOUNT
Shank Type
Solid
Shipping Weight - XA
19.000
Side Application Type Description - XA
Blank
Style
Adjustable
Tariff 301 - XA
Yes
Title
Multi-Ball Mount (2" Solid Shank, 1-7/8", 2" & 2-5/16" Chrome Balls)
Truckload Cases Qty - XA
0
Truckload Dom Pickup Location - XA
Eau Claire, Wi
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 45655 Multi-Ball Trailer Hitch Ball Mount, 1-7/8, 2, 2-5/16-Inch Balls, Fits 2-Inch Receiver, 10,000 lbs
