CURT · 45459
Part #: 45459
UPC: 612314454594
Log in for inventory
Notify me when this item is in stock.
Description: Commercial Duty Forged Ball Mount (2-1/2" Shank, 20,000 lbs., 6" Drop); CURT 45459 Commercial Duty Forged Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 20,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-1/2-Inch Rise
Description:
Description
When it comes to towing on the job, there is no room for messing around. Either your equipment can get it done or it falls to the wayside. Give yourself the advantage with a CURT commercial-duty forged ball mount. Defying all preconceived ideas about heavy-duty towing, these solid steel monsters are packed with the strength necessary to tow virtually anything your commercial receiver trailer hitch can handle. The secret to their strength is their one-piece, zero-weld construction. Each CURT forged ball mount is designed to surpass other 2-1/2" options to accommodate the added stress of heavy-duty towing. Forged steel construction makes these ball mounts incredibly strong and able to tow up to 20,000 lbs. of gross trailer weight. CURT forged ball mounts can also handle trailer tongue weight up to 2,700 lbs., giving them the added advantage they need for towing the largest of trailers. They come with a black carbide powder coat finish to provide the necessary protection against rust, scratches and UV damage so that they are able to face the challenges of hard, honest work. From the construction site, to the industrial park, to the farm, a forged ball mount is the obvious choice, giving you the power you need for towing dump trailers, car haulers, toy haulers, livestock trailers, chopper boxes, gravity boxes, dual-axle utility trailers, RVs, small yachts and much more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). All CURT forged ball mounts feature a 2-1/2" x 2-1/2" shank, allowing them to fit into any trailer hitch with the same size receiver tube. The CURT class 5 Commercial-Duty hitch is an ideal counterpart for one of our forged ball mounts. With their especially high towing capacity, forged ball mounts are frequently used on full-size pickups, SUVs, flatbeds and other commercial trucks.

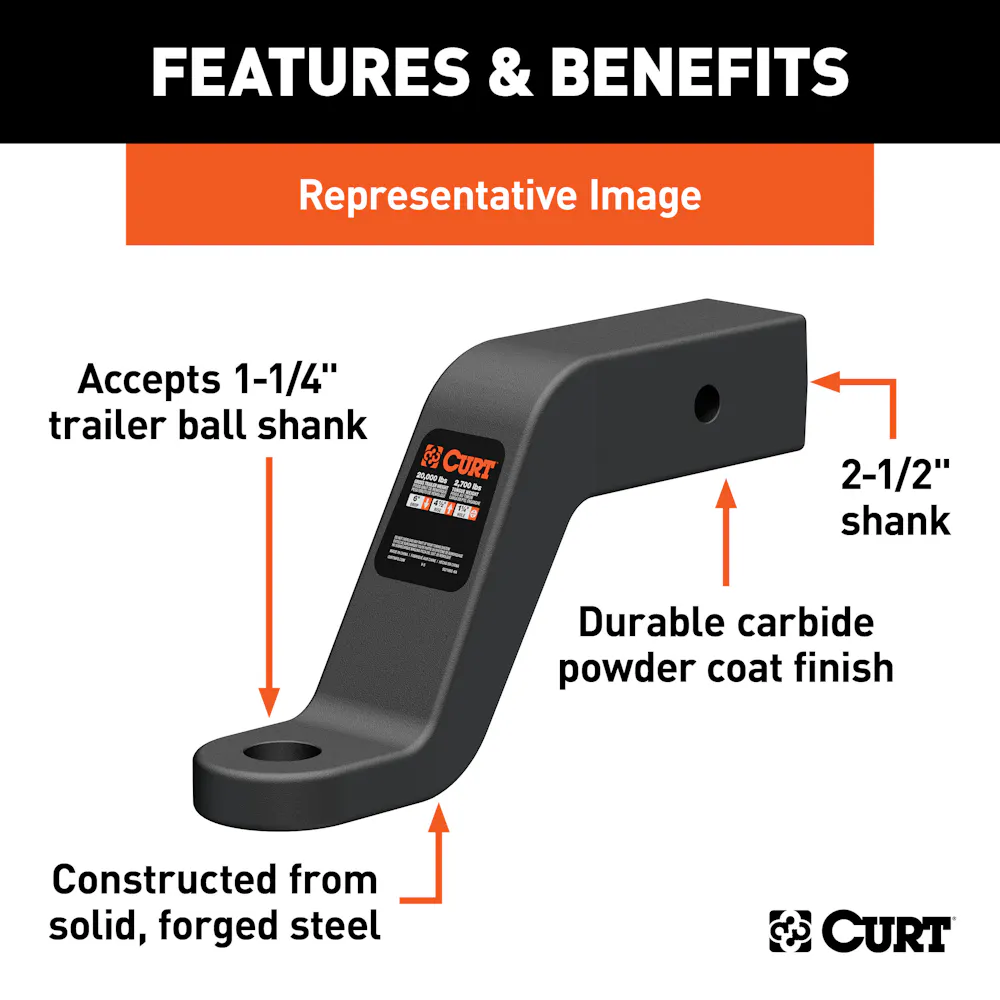

Features & benefits
- Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening

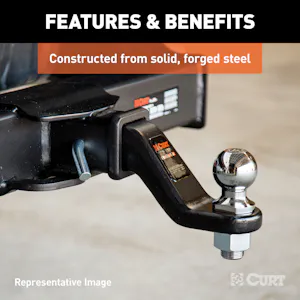

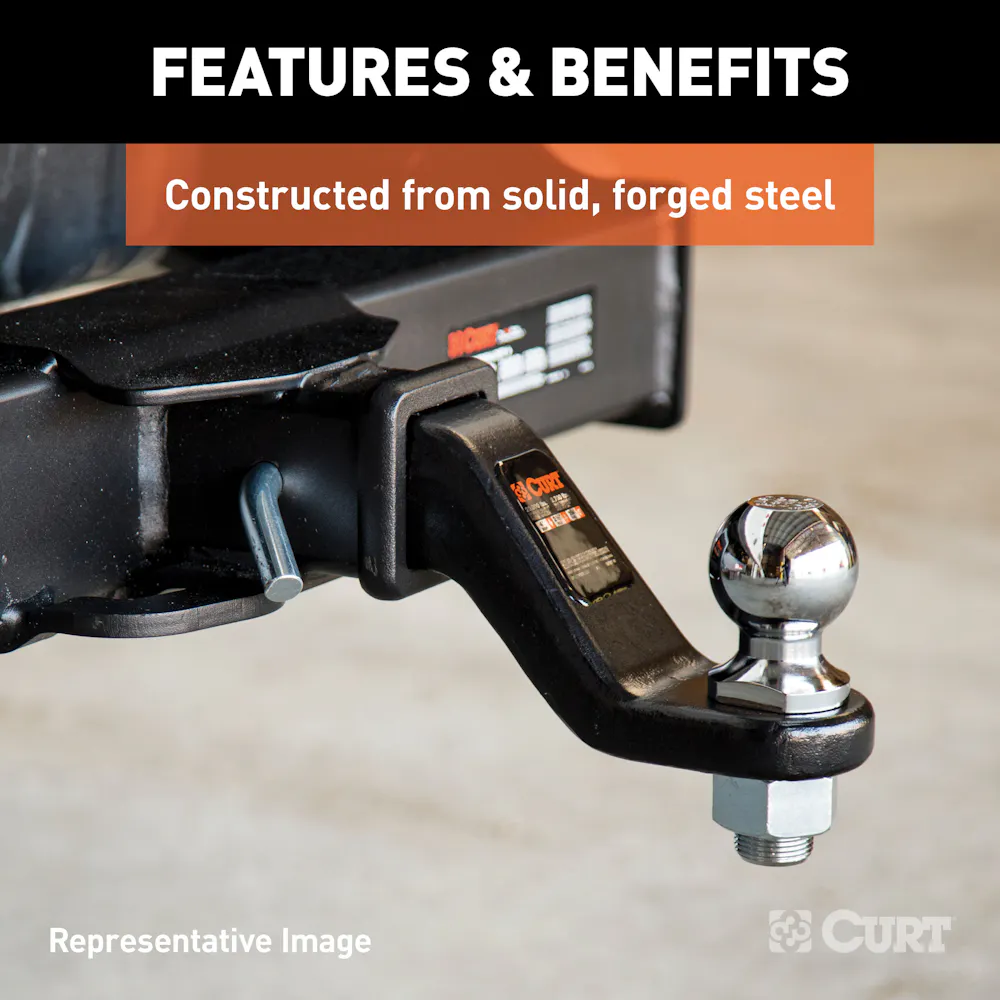

- Constructed from solid, forged steel for superior strength
- Equipped with a 1-1/4" hole to accept a trailer ball shank

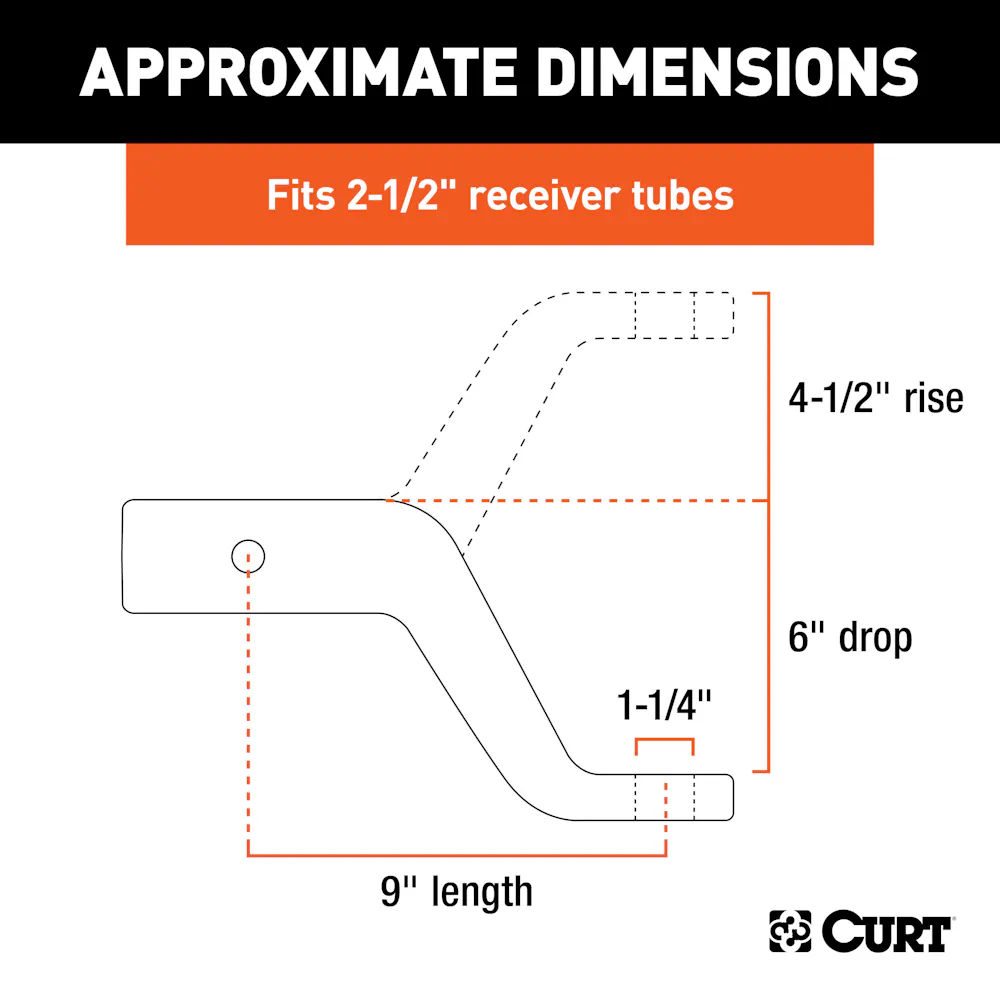

- 4-1/2" rise or 6" drop for precise trailer leveling
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5459 | Commercial Duty Forged Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 20,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-1/2-Inch Rise |
Specifications
- GTIN
- 00612314454594
- Weight
- 21.8 lb
- Height
- 4 in
- Length
- 15.5 in
- Width
- 6 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drop
- 6.000 in.
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight (GTW)
- 20,000 LB
- Hole Size
- 1.25
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 3.500
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 15.500
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 22.800
- Master Case Width Inches - XA
- 5.500
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Overall Length
- 9.000 in.
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 120
- Pallet Cases Per Layer - XA
- 24
- Pallet Layer of Cases - XA
- 5
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 22.500
- Pallet Total Weight Per - XA
- 2766.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 2-1/2 IN
- Retail Height - XA
- 4.000
- Retail Length - XA
- 15.500
- Retail Width - XA
- 6.000
- Rise
- 4.500 in.
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 21.800
- Side Application Type Description - XA
- Blank
- Style
- Fixed
- Tariff 301 - XA
- Yes
- Title
- Commercial Duty Forged Ball Mount (2-1/2" Shank, 20,000 lbs., 6" Drop)
- Tongue Weight (TW)
- 2,700 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45459 Commercial Duty Forged Trailer Hitch Ball Mount, 2-1/2-Inch Receiver, 20,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-1/2-Inch Rise
