Description: Industrial Duty Forged Ball Mount (3" Shank, 21,000 lbs., 6" Drop, 10" Long); CURT 45431 Industrial Duty Forged Trailer Hitch Ball Mount, Fits 3-Inch Receiver, 21,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-Inch Rise
Description:
Description

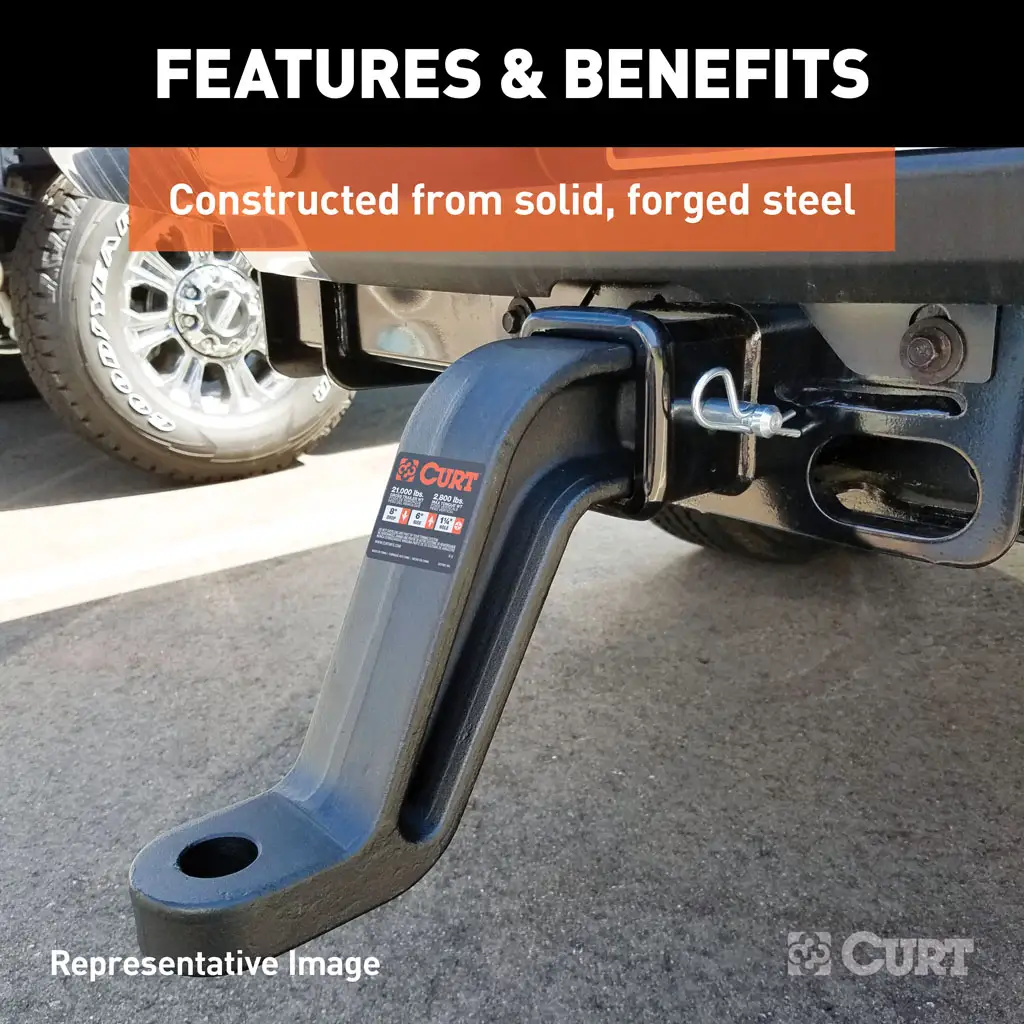

The CURT Industrial Duty ball mount features a 3" x 3" shank to fit heavy-duty 3" trailer hitches. The solid, forged steel construction and I-beam shape supply the necessary strength to complement these larger trailer hitches, and the ball mount has a highly durable carbide powder coat finish for long-lasting rust resistance. To ensure maximum towing power, this ball mount is rated for 21,000 lbs. GTW and 2,800 lbs. TW. The 21K GTW rating is fully tested to at our Detroit engineering facility. This ball mount also offers a rise of 4" and drop of 6" to accommodate larger, lifted pickup trucks, allowing for level towing of the trailer. It also has a 1-1/4" trailer ball hole to accept a heavy-duty trailer ball.

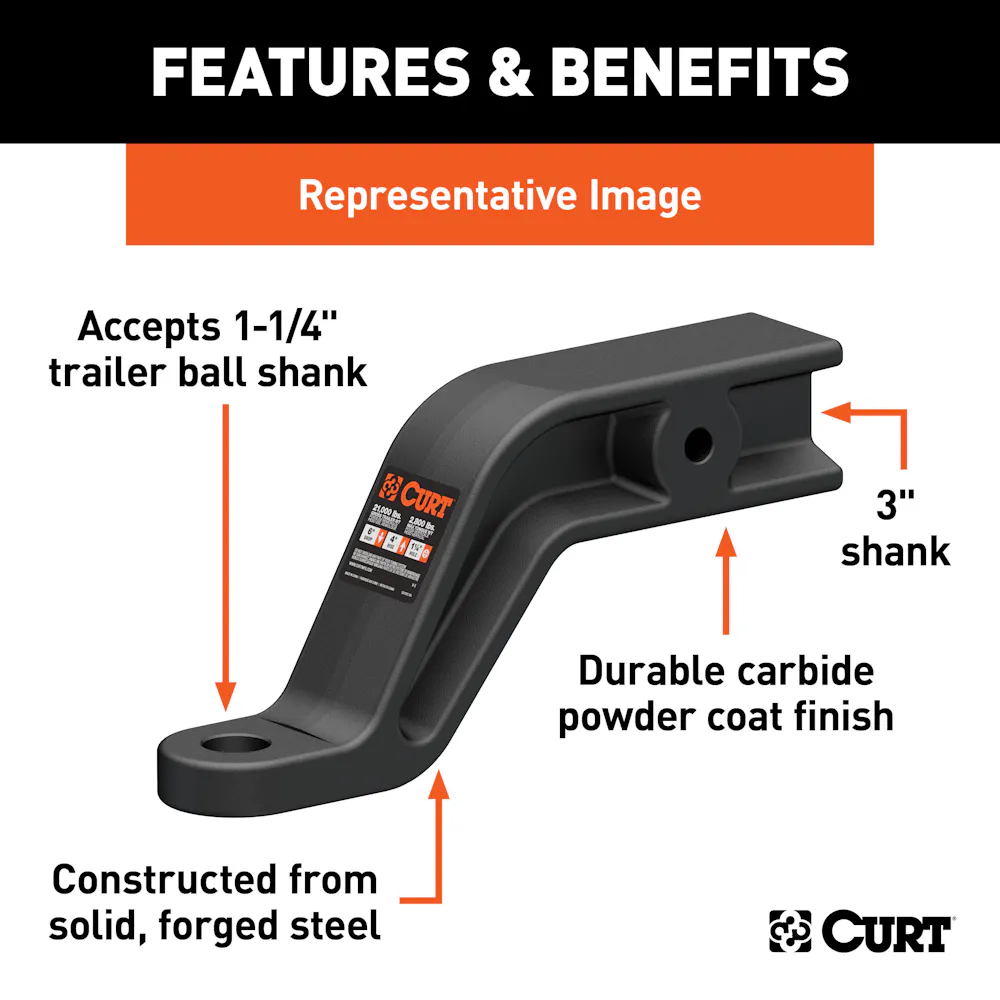

Features & benefits
- Fits trailer hitches with a 3" x 3" receiver tube opening
- Tested and rated to 21,000 lbs. GTW and 2,800 lbs. TW
- Constructed from solid, forged steel for superior strength
- Equipped with a 1-1/4" hole to accept a trailer ball shank

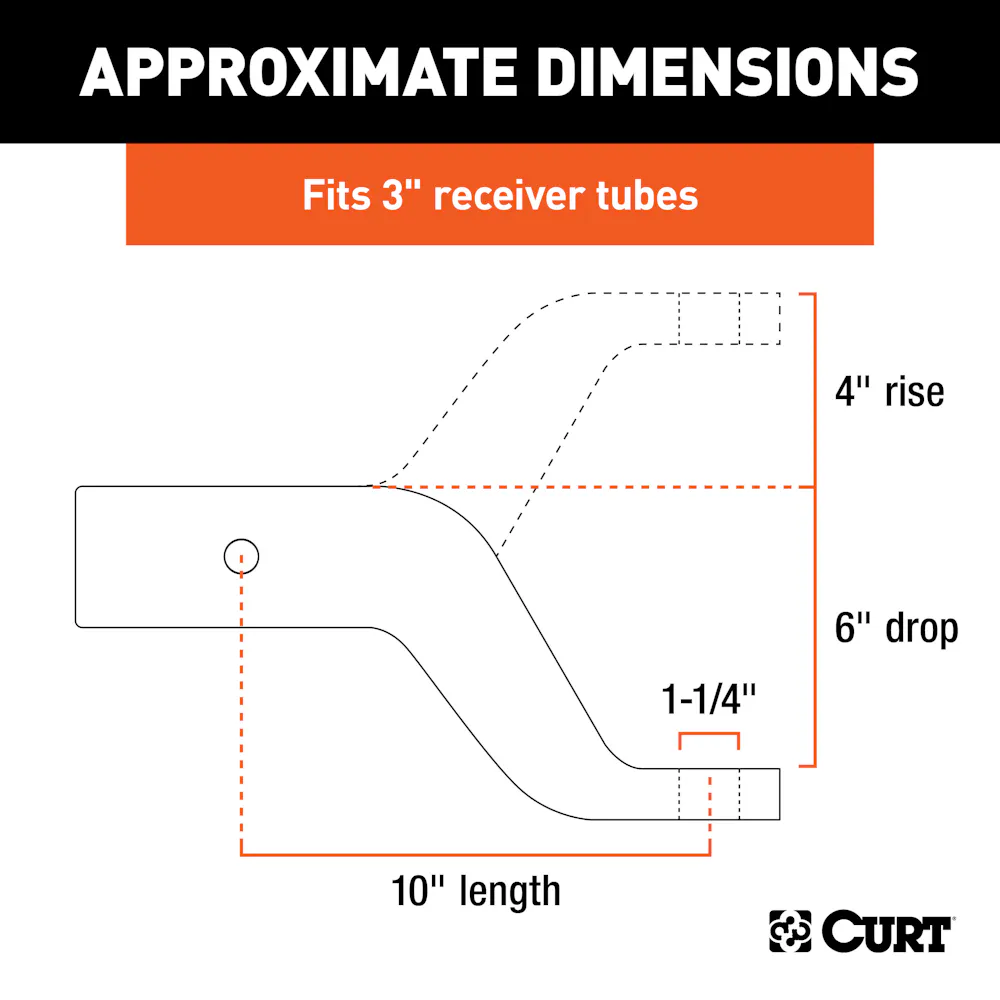

- 4" rise and 6" drop for use with larger, lifted trucks
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5431 | Industrial Duty Forged Trailer Hitch Ball Mount, Fits 3-Inch Receiver, 21,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-Inch Rise |
Specifications
- GTIN
- 00612314454310
- Weight
- 25.02 lb
- Height
- 2 in
- Length
- 16.5 in
- Width
- 5.75 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- Box Height in Inches - XA
- 2
- Box Length in Inches - XA
- 7
- Box Width in Inches - XA
- 4
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 1512
- Container Load Type - XA
- PALLETS
- Container Pallet Qty - XA
- 14
- Container Type - XA
- 20GP
- Container Unit Qty - XA
- 1512
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 38460
- Drop
- 6.000 in.
- Drop (in.)
- 6.000 in.
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 21000 lbs.
- Gross Trailer Weight (GTW)
- 21,000 LB
- Gross Trailer Weight (lbs.)
- 21000
- Gross Trailer Weight(GTW)
- 21,000 LB
- Hole Size
- 1.25
- Item Class - XA
- OBS
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 3.500
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 16.375
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 25.020
- Master Case Width Inches - XA
- 5.750
- Material - XA
- Blank
- Mount Type Description - XA
- Blank
- Overall Length
- 10.500 in.
- Overall Length (in.)
- 10.500 in.
- Pallet Case Per - XA
- 108
- Pallet Case Per Layer - XA
- 18
- Pallet Cases Per - XA
- 108
- Pallet Cases Per Layer - XA
- 18
- Pallet Layer of Cases - XA
- 6
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 26.000
- Pallet Total Weight Per - XA
- 2747.200
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 3.000 in.
- Retail Height - XA
- 3.000
- Retail Length - XA
- 16.000
- Retail Width - XA
- 5.000
- Rise
- 4.000 in.
- Rise (in.)
- 4.000 in.
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 25.020
- Side Application Type Description - XA
- Blank
- Style
- One Piece
- Tariff 301 - XA
- Yes
- Title
- Industrial Duty Forged Ball Mount (3" Shank, 21,000 lbs., 6" Drop, 10" Long)
- Tongue Weight (TW)
- 2,800 LB
- Tongue Weight(TW)
- 2,800 LB
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- WC Tongue Weight
- 2800
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45431 Industrial Duty Forged Trailer Hitch Ball Mount, Fits 3-Inch Receiver, 21,000 lbs, 1-1/4-Inch Hole, 6-Inch Drop, 4-Inch Rise
