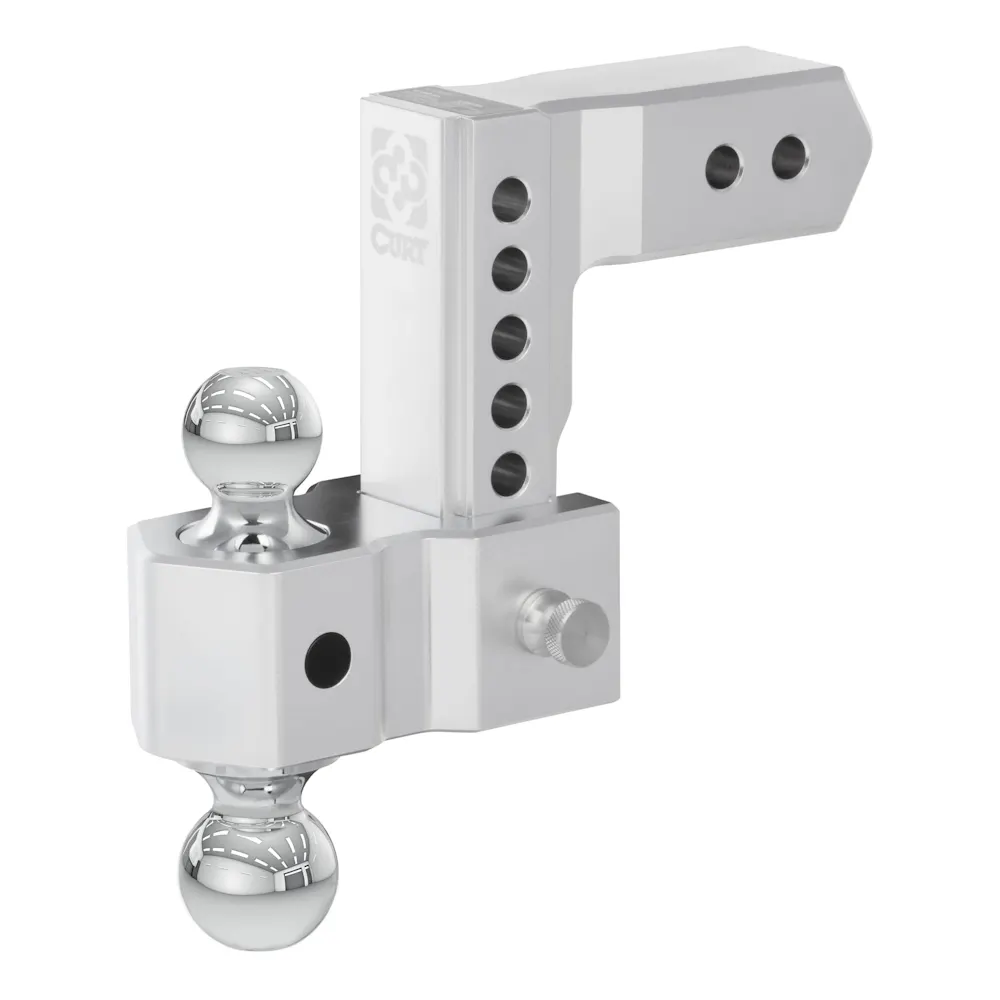

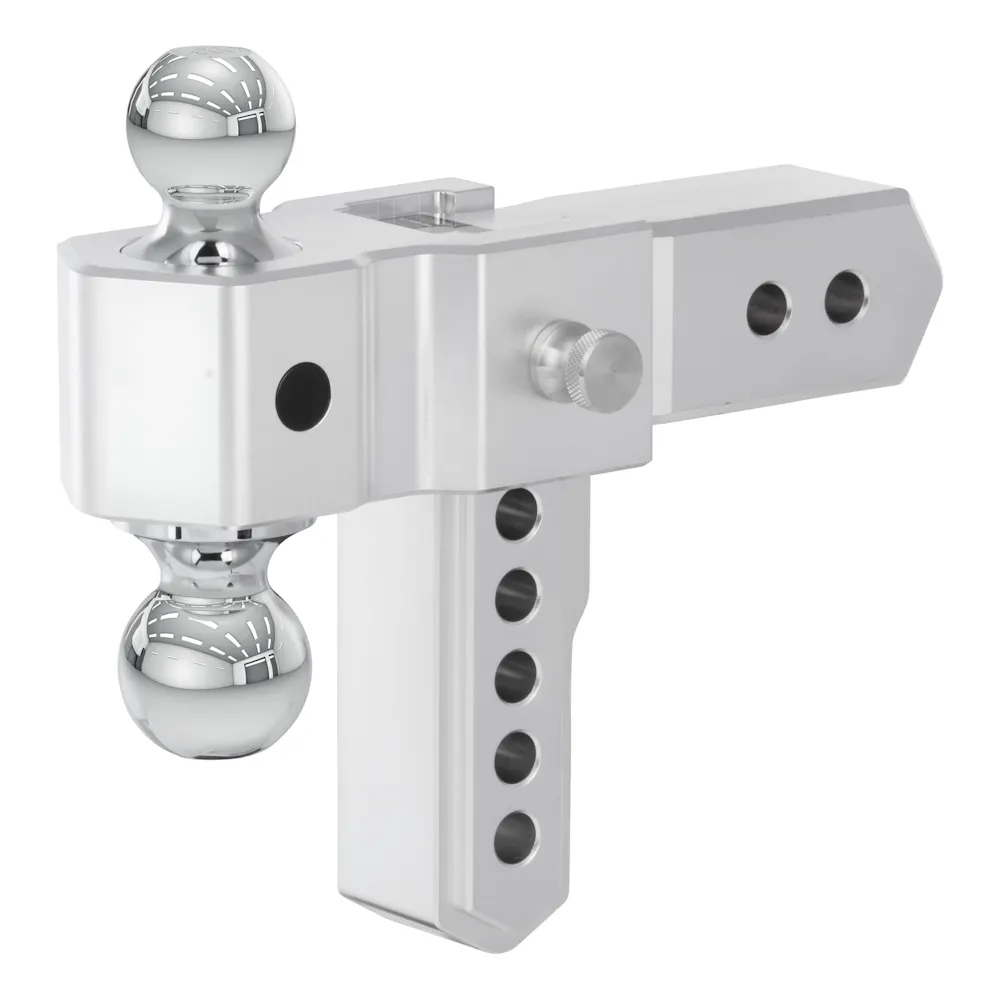

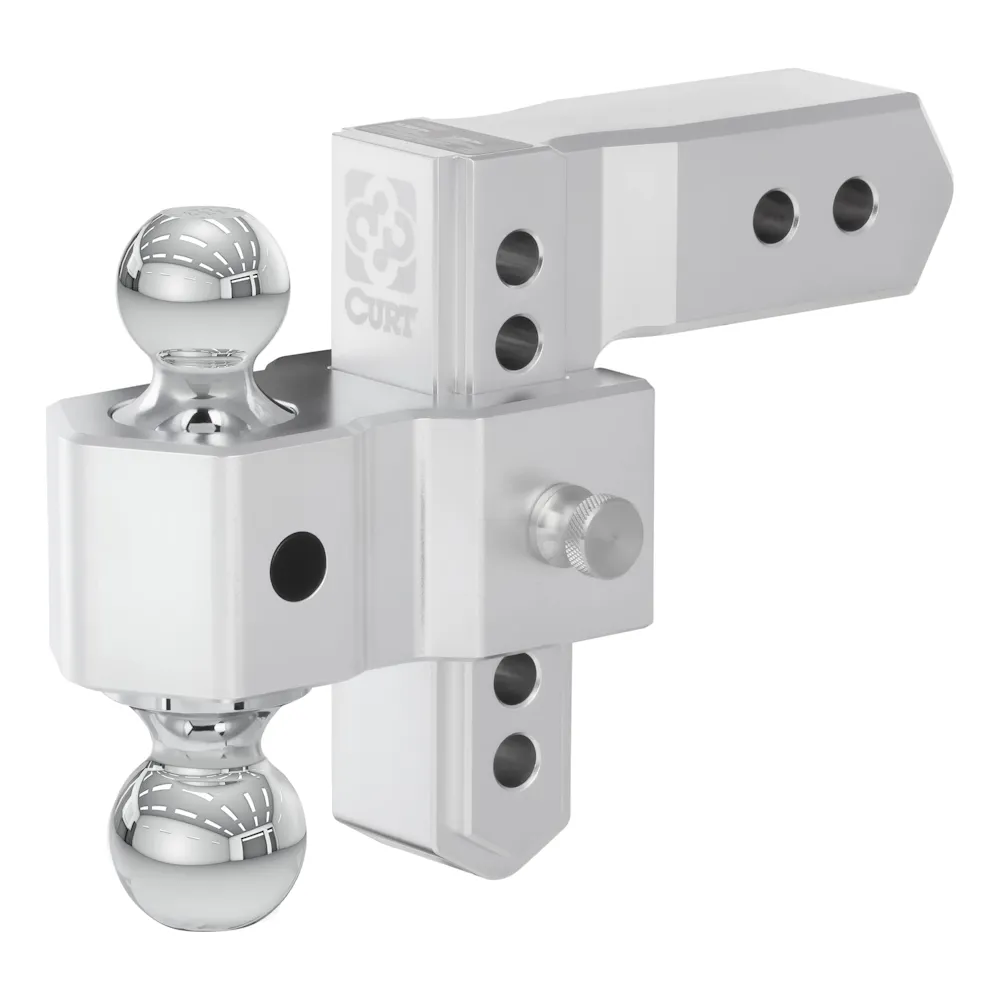

Description: AlumaLite Adjustable Aluminum Hitch with Dual Ball, 6" Drop, 2-1/2" Shank; CURT 45385 AlumaLite Adjustable Aluminum Drop Hitch, 6", 12,500 lb

Description:

Description

The AlumaLite™ aluminum drop hitch combines strength with weight efficiency, simplifying the leveling process when towing unlevel trailers. Crafted from lightweight billet aluminum, the shank is designed for easy handling and installation and offers a 6" of drop, adjustable in precise 1" intervals, making height adjustments easy with the 2" or 2-5/16" ball. The AlumaLite aluminum drop hitch also seamlessly fits any 2-1/2" x 2-1/2" hitch receiver with 5/8" hitch pin holes. A drop hitch is an essential accessory for towing trailers with differing heights compared to the tow vehicle. An uneven trailer connection can lead to improper weight distribution and drooping or elevated connection. This misalignment can encourage trailer sway and result in unexpected accidents. Drop hitches resolve this issue by leveling the vehicle-trailer connection, providing a safe and secure tow. Every CURT product is built with quality to provide dependable, safe towing. The AlumaLite aluminum drop hitch, forged from billet aluminum, provides a sleek polished aluminum finish that's stylish, lightweight and user-friendly. Stringently tested for safety and universally compatible to fit all 2-1/2" x 2-1/2" hitches, it's rated for towing 8,000 lbs. using the 2" ball, and it can handle up to 12,500 lbs. when utilizing the 2-5/16" ball.

Features & benefits

  • Lightweight, corrosion-resistant billet aluminum construction for easy handling
  • Compatible with hitch locks #23556 and #23025
  • Rated for towing 8,000 lbs. with 2" ball and 12,500 lbs. with 2-5/16" ball
  • Dual ball constructed from high-strength steel with a polished finish
  • Tested for safety in accordance with SAE J684
  • Passes CURT proprietary fatigue testing, exceeding industry standards
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Adjustable dual ball allows for quick and precise trailer leveling on the go
  • Can be flipped to a stowed position when not in use
  • Provides max drop of 6" and is easily adjustable in increments of 1"
  • Universal design works with 2-1/2" hitches for multiple vehicle-trailer combinations
  • Fits 2-1/2" x 2-1/2' hitch receiver tube opening with 5/8" hitch pin hole

Information

Fits 2-1/2" x 2-1/2' hitch receiver tube opening with 5/8" hitch pin hole

Specifications

GTIN
00612314058297
Weight
19.16 lb
Height
5.7 in
Length
16.14 in
Width
11 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

Adjustable
Yes
Ball 2 Diameter
2-5/16
Ball Diameter
2 IN or 2-5/16 IN
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Cotter Pin Included
Yes
Finish
RAW ALUMINUM
Finish - XA
Blank
Hitch Pin Diameter
5/8
Hitch Pin Hole Diameter
5/8
Hitch Receiver Size
2-1/2
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Lockable
Yes
Master Case Height Inches - XA
0.000
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Blank
Mount Type Description - XA
Not Applicable
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
0.0
Retail Height - XA
0.000
Retail Length - XA
0.000
Retail Width - XA
0.000
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
BALL MOUNT
Shipping Weight - XA
0.000
Side Application Type Description - XA
Not Applicable
Tariff 301 - XA
No
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0

Fitment status

This product is universal and will fit your application.
