CURT · 45363

Part #: 45363
UPC: 612314056736

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Ball Mounts

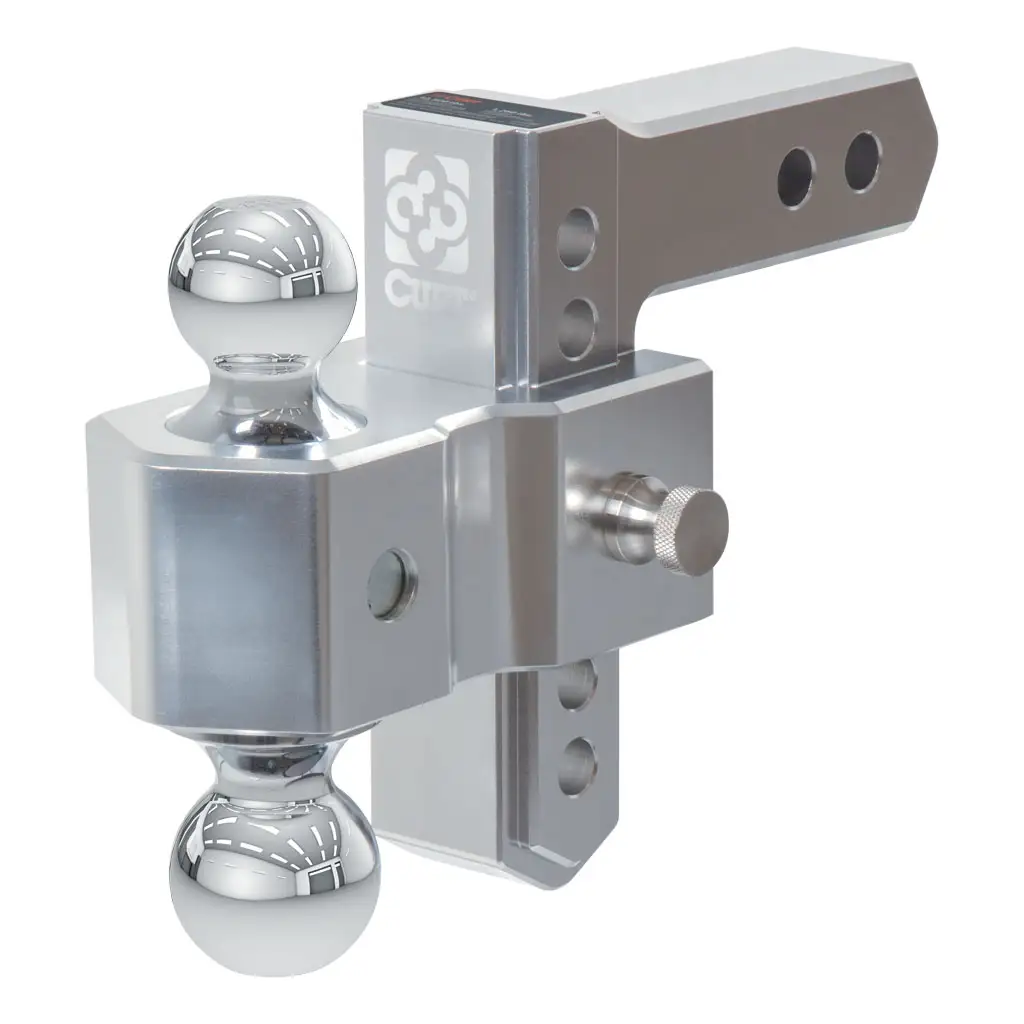

Description: AlumaLite Adjustable Aluminum Hitch with Dual Ball, 5-1/2" Drop; CURT 45363 AlumaLite Adjustable Aluminum Trailer Hitch with Dual Ball, 5-1/2" Drop, 12,500 lbs. GTW, 2" & 2-5/16" Balls

Description:

Description

The AlumaLite™ aluminum drop hitch combines strength with weight efficiency, simplifying the leveling process when towing unlevel trailers. Crafted from lightweight billet aluminum, the shank is designed for easy handling and installation and offers a 5-1/2" of drop, adjustable in precise 1" intervals, making height adjustments easy with the 2" or 2-5/16" ball. The AlumaLite aluminum drop hitch also seamlessly fits any 2" x 2" hitch receiver with 5/8" hitch pin holes. A drop hitch is an essential accessory for towing trailers with differing heights compared to the tow vehicle. An uneven trailer connection can lead to improper weight distribution and drooping or elevated connection. This misalignment can encourage trailer sway and result in unexpected accidents. Drop hitches resolve this issue by leveling the vehicle-trailer connection, providing a safe and secure tow. Every CURT product is built with quality to provide dependable, safe towing. The AlumaLite aluminum drop hitch, forged from billet aluminum, provides a sleek polished aluminum finish that's stylish, lightweight and user-friendly. Stringently tested for safety and universally compatible to fit all 2" x 2" hitches, it's rated for towing 8,000 lbs. using the 2" ball, and it can handle up to 12,500 lbs. when utilizing the 2-5/16" ball.

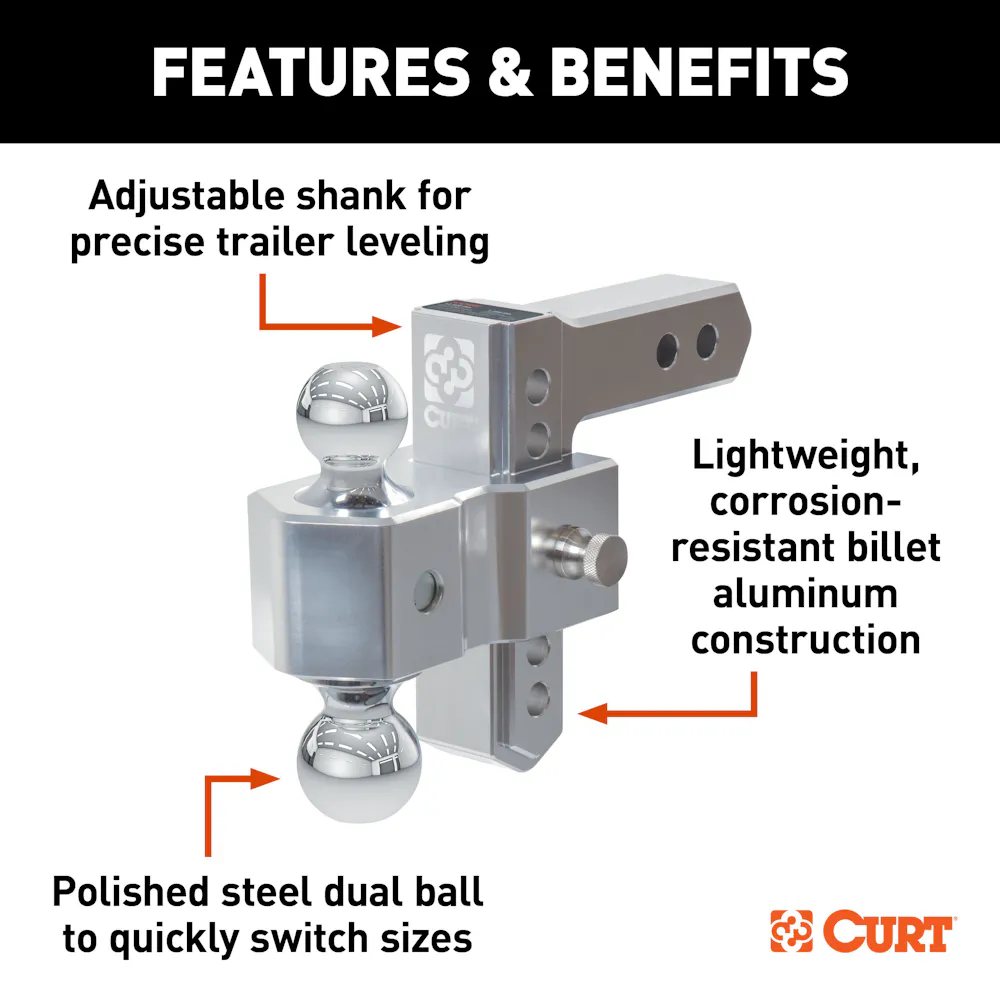

Features & benefits

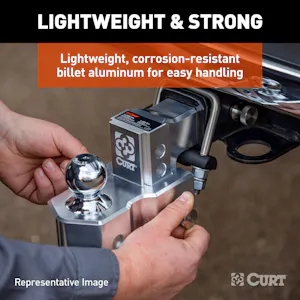

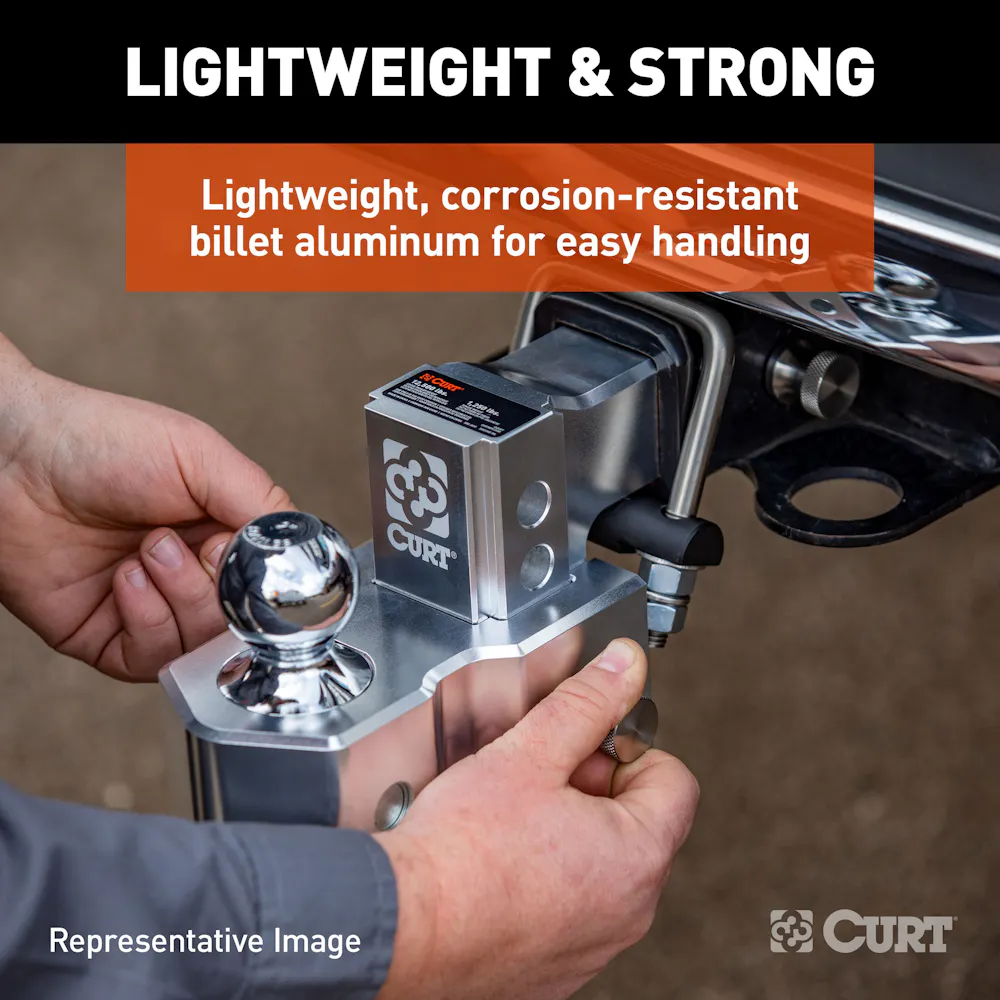

  • Lightweight, corrosion-resistant billet aluminum construction for easy handling
  • Compatible with hitch locks #23556 and #23025
  • Rated for towing 8,000 lbs. with 2" ball and 12,500 lbs. with 2-5/16" ball
  • Dual ball constructed from high-strength steel with a polished finish
  • Tested for safety in accordance with SAE J684
  • Passes CURT proprietary fatigue testing, exceeding industry standards
  • Limited lifetime warranty (one-year finish, one-year parts)

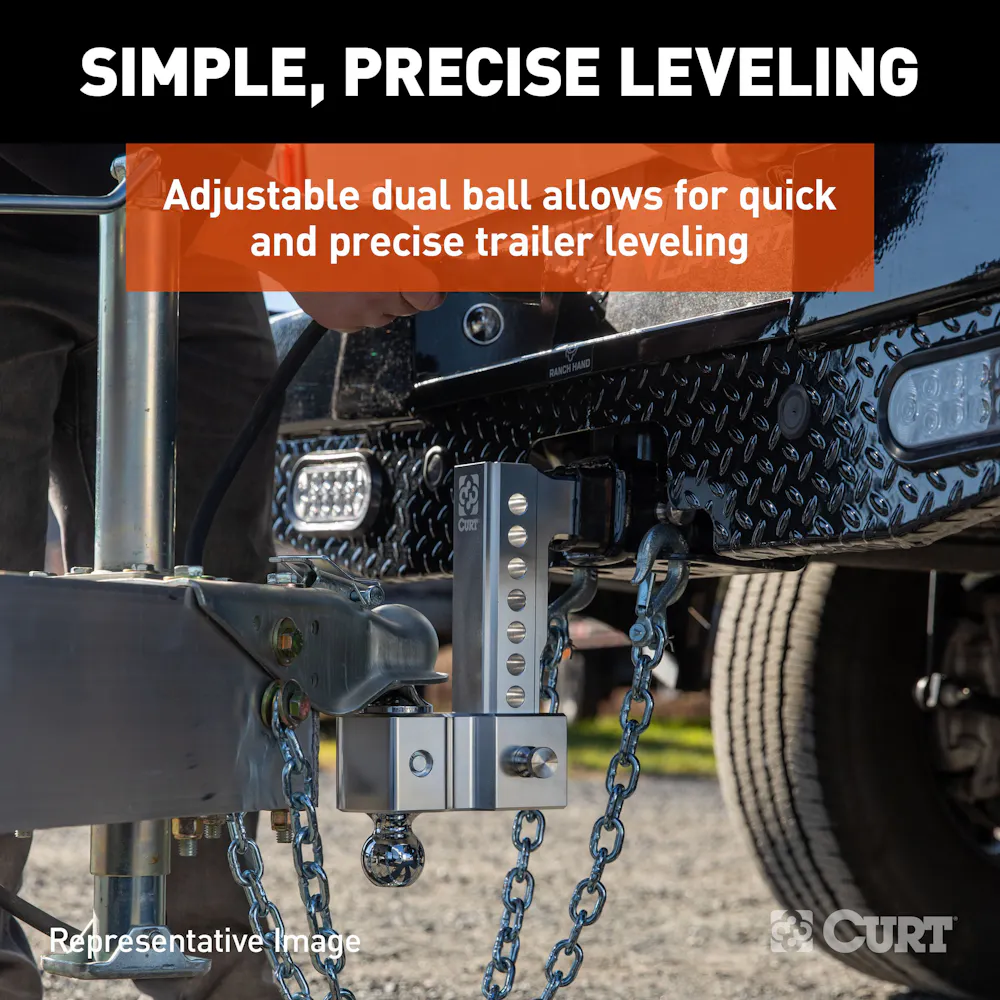

  • Adjustable dual ball allows for quick and precise trailer leveling on the go
  • Can be flipped to a stowed position when not in use

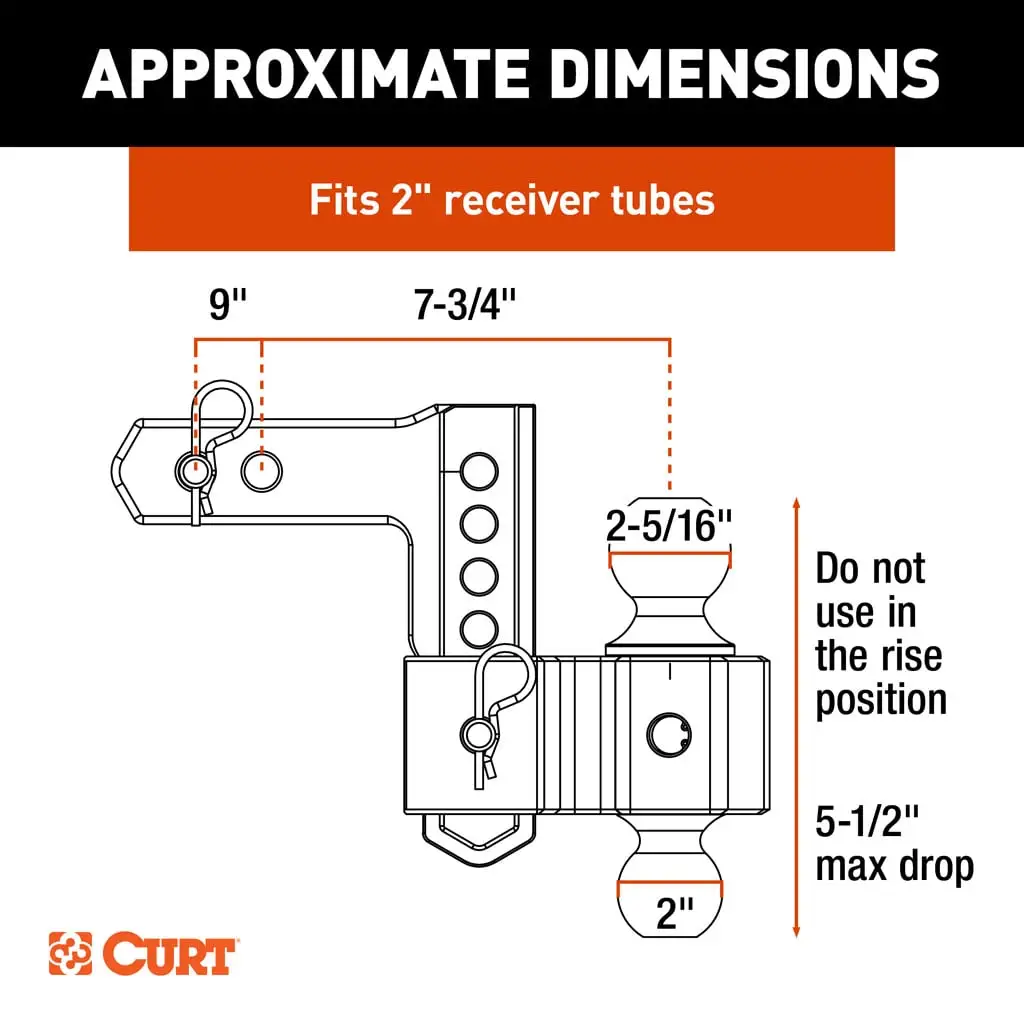

  • Provides max drop of 5-1/2" and is easily adjustable in increments of 1"
  • Universal design works with 2" hitches for multiple vehicle-trailer combinations
  • Fits 2" x 2" hitch receiver tube opening with 5/8" hitch pin hole

Information

Fits 2" x 2" hitch receiver tube opening with 5/8" hitch pin hole

Specifications

GTIN
00612314056736
Weight
20.8 lb
Height
8 in
Length
17 in
Width
13 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

Ball Capacity
12,500 LBS
Ball Diameter
2.3125 in.
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Container Cases Qty - XA
880
Container Load Type - XA
PALLETS
Container Pallet Qty - XA
10
Container Type - XA
20GP
Container Unit Qty - XA
880
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
19624
Drop
5 1/2 IN
Finish
Blank
Finish - XA
Blank
GTW/TW Ball 1
8,000 LB
GTW/TW Ball 2
12,500 LBS
Item Class - XA
OBS
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
6.500
Master Case ITF14
0
Master Case ITF14 - XA
612314056736
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
16.930
Master Case Qty - XA
1
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
21.800
Master Case Width Inches - XA
11.800
Material - XA
Aluminum
Mount Type Description - XA
Not Applicable
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
88
Pallet Cases Per Layer - XA
8
Pallet Layer of Cases - XA
11
Pallet Qty - XA
88.000
Pallet Total Height Inches - XA
77.360
Pallet Total Weight Per - XA
1962.400
Parcel Allowed - XA
Yes
Product Weight - XA
20.800
Rate Class - XA
70.0
Retail Height - XA
17.000
Retail Length - XA
8.000
Retail Width - XA
13.000
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
BALL MOUNT
Shank Diameter
2 IN
Shipping Weight - XA
20.800
Side Application Type Description - XA
Not Applicable
Tariff 301 - XA
Yes
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.
