CURT · 45332
Part #: 45332
UPC: 612314453320
Log in for inventory
Notify me when this item is in stock.

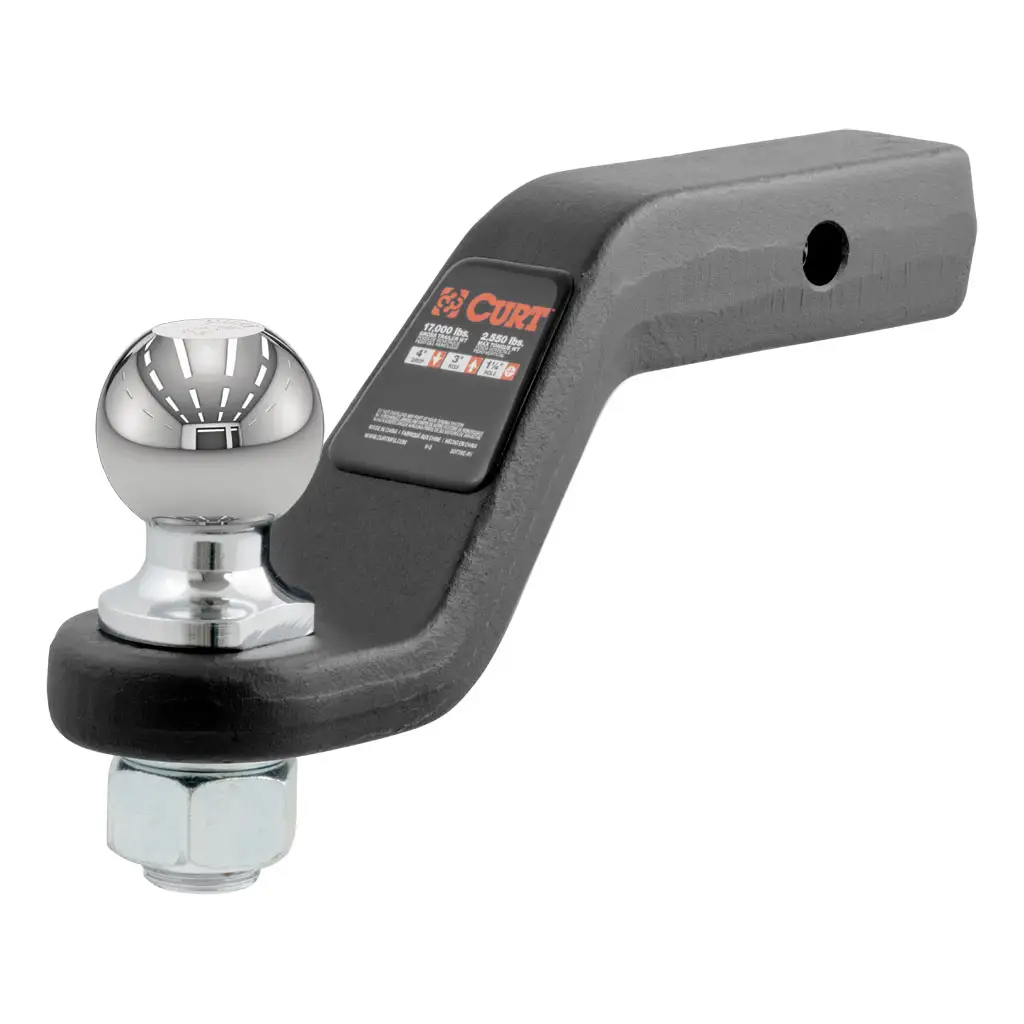

Description: Loaded Forged Ball Mount with 2-5/16" Ball (2" Shank, 15,000 lbs., 4" Drop); CURT 45332 Forged Ball Mount with 2-5/16" Ball, 15,000 lb, 4" Drop
Description:
Description

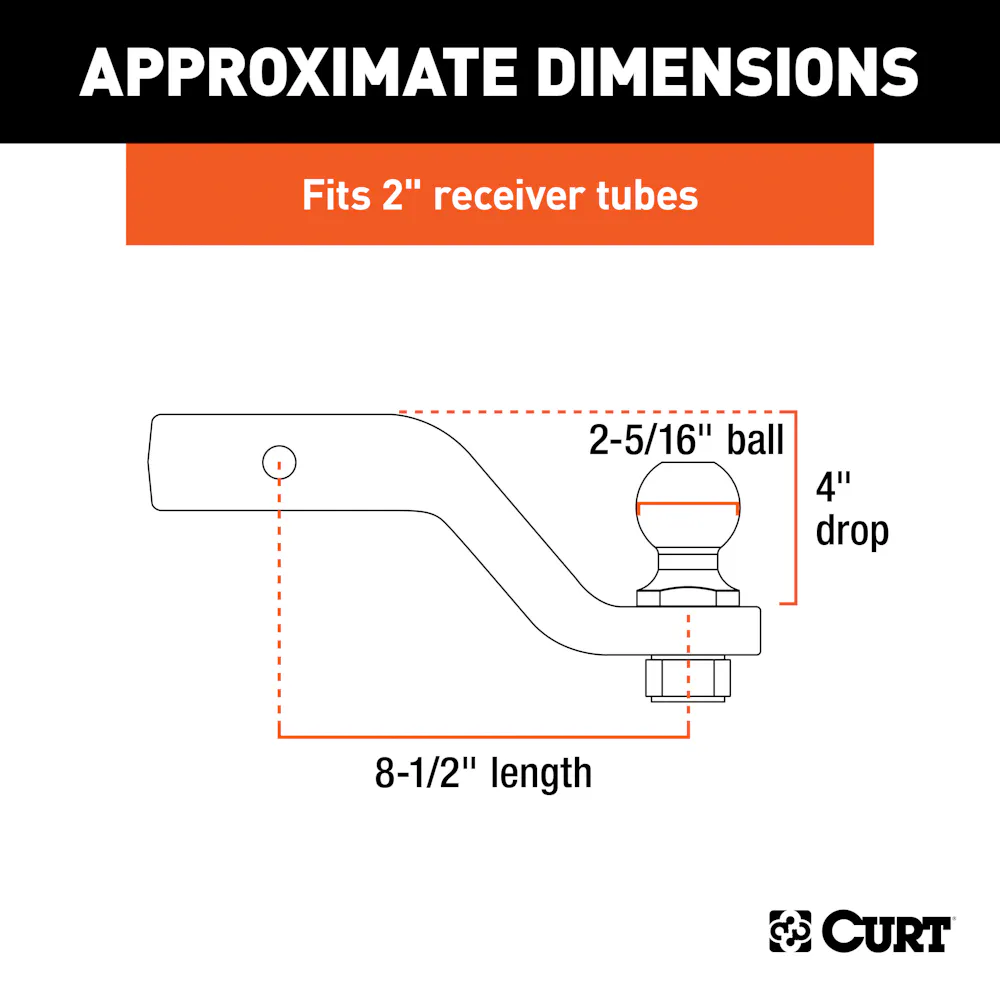

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT forged loaded ball mount features a gross trailer weight capacity of 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most heavy-duty trailers, including large boat trailers, double-axle utility trailers, deluxe campers, livestock trailers and recreational vehicle trailers used for hauling motorcycles, personal watercraft and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/2", a drop of 4" and comes with a durable carbide black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.

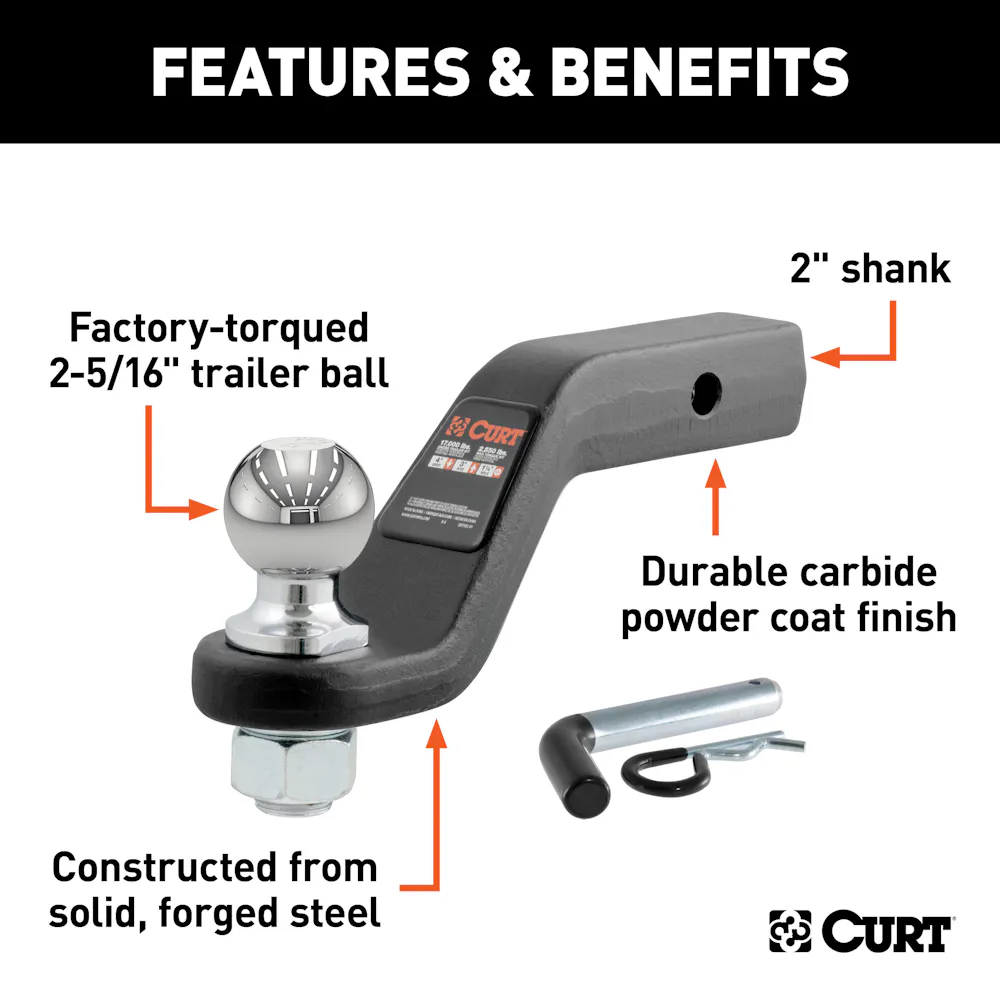

Features & benefits
- Rated to 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
- Fits trailer hitches with a 2" x 2" receiver tube opening

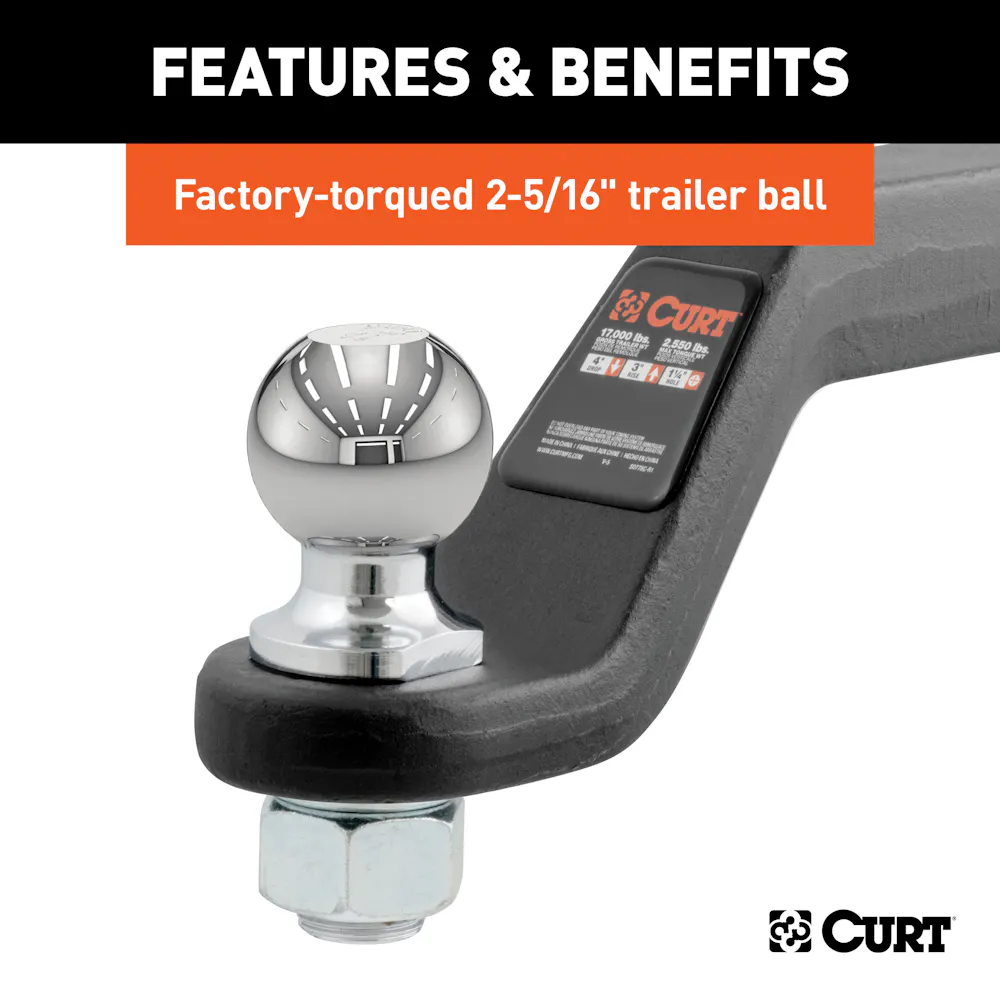

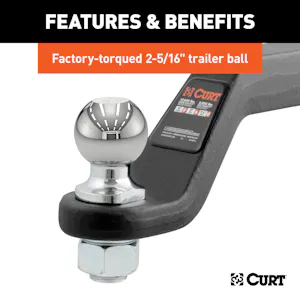

- Factory-torqued CURT trailer ball accepts a 2-5/16" coupler

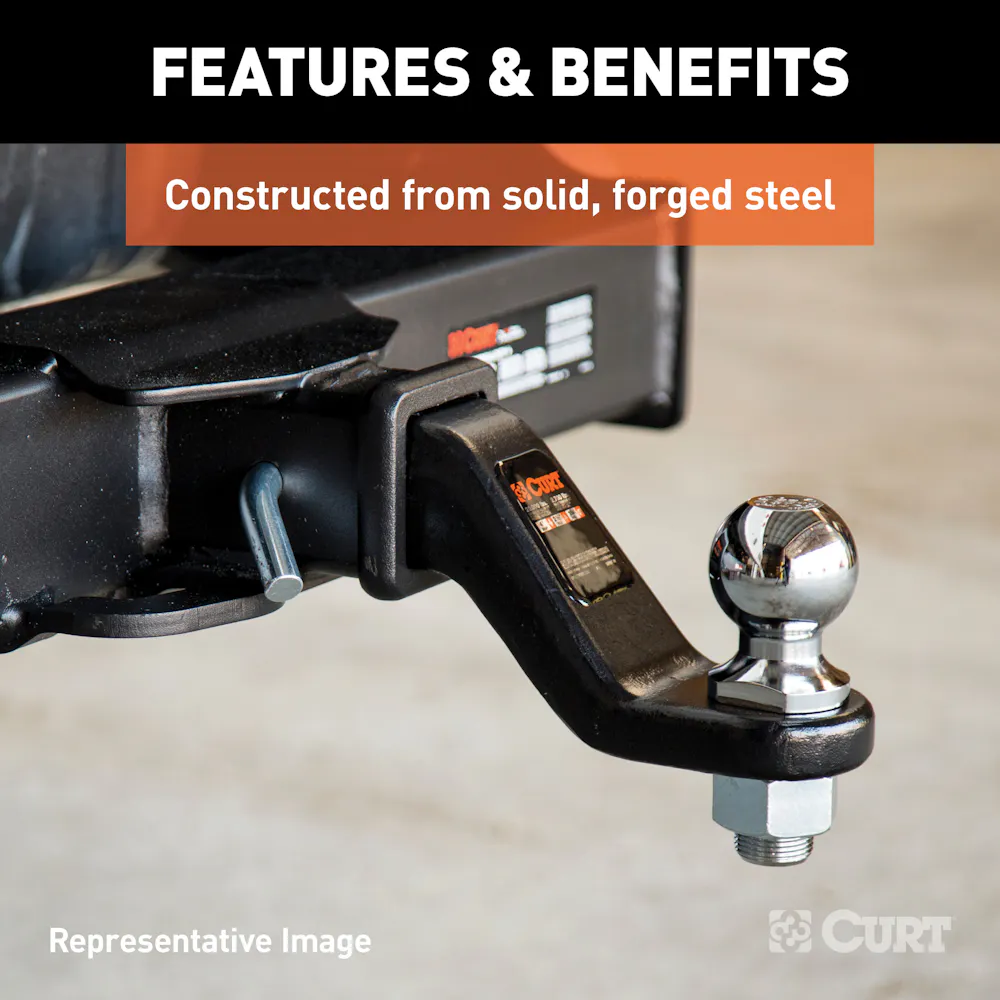

- Constructed from solid, forged steel for superior strength
- 4" drop for precise trailer leveling
- Protected by a highly durable carbide powder coat finish
- Trailer ball features a polished chrome-plated finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5332 | Trailer Hitch Mount with 2-5/16-Inch Ball & Pin, Fits 2-Inch Receiver, 15,000 lbs, 4-Inch Drop |
Specifications
- GTIN
- 00612314453320
- Weight
- 17.5 lb
- Height
- 3 in
- Length
- 13 in
- Width
- 6 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- 2 5/16" Ball; 4" Drop Ball Mount
- Ball Diameter
- 2.3125 in.
- Ball Diameter (in.)
- 2.3125
- Box Height in Inches - XA
- 6
- Box Length in Inches - XA
- 14
- Box Width in Inches - XA
- 7
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Load Type - XA
- Pallets
- Container Pallet Qty - XA
- 0
- Container Type - XA
- 40GP
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drop
- 4.000 in.
- Drop (in.)
- 4.000 in.
- Finish
- CARBIDE BLACK POWDER COAT
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Gross Trailer Weight
- 15000 lbs.
- Gross Trailer Weight (GTW)
- 15,000 LB
- Gross Trailer Weight (lbs.)
- 15000
- Gross Trailer Weight(GTW)
- 15,000 LB
- Item Class - XA
- OBS
- Item Height - XA
- 5.710
- Item Length - XA
- 12.750
- Item Width - XA
- 3.130
- Master Case Height Inches - XA
- 7.480
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 9.840
- Master Case Qty - XA
- 1
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 18.000
- Master Case Width Inches - XA
- 10.630
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Overall Length
- 8.500 in.
- Overall Length (in.)
- 8.500 in.
- Pallet Case Per - XA
- 144
- Pallet Case Per Layer - XA
- 16
- Pallet Cases Per - XA
- 144
- Pallet Cases Per Layer - XA
- 16
- Pallet Layer of Cases - XA
- 9
- Pallet Qty - XA
- 0.000
- Pallet Total Height Inches - XA
- 72.320
- Pallet Total Weight Per - XA
- 2636.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 2.000 in.
- Retail Height - XA
- 13.000
- Retail Length - XA
- 6.000
- Retail Width - XA
- 3.000
- Rise
- N/A
- Rise (in.)
- N/A
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 17.500
- Side Application Type Description - XA
- Blank
- Style
- Fixed
- Tariff 301 - XA
- Yes
- Title
- Loaded Forged Ball Mount with 2-5/16" Ball (2" Shank, 15,000 lbs., 4" Drop)
- Tongue Weight (TW)
- 1,500 LB
- Tongue Weight(TW)
- 1,500 LB
- Truckload Cases Qty - XA
- 2448
- Truckload Dom Pickup Location - XA
- Eau Claire, Wi
- Truckload Pallets Qty - XA
- 17
- Truckload Units Qty - XA
- 2448
- Truckload Volume Cubic Feet - XA
- 94.00000
- Truckload Weight - XA
- 44814
- WC Tongue Weight
- 1500
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45332 Trailer Hitch Mount with 2-5/16-Inch Ball & Pin, Fits 2-Inch Receiver, 15,000 lbs, 4-Inch Drop
