CURT · 45240

Part #: 45240
UPC: 612314424009

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: CURT Series: Ball Mounts

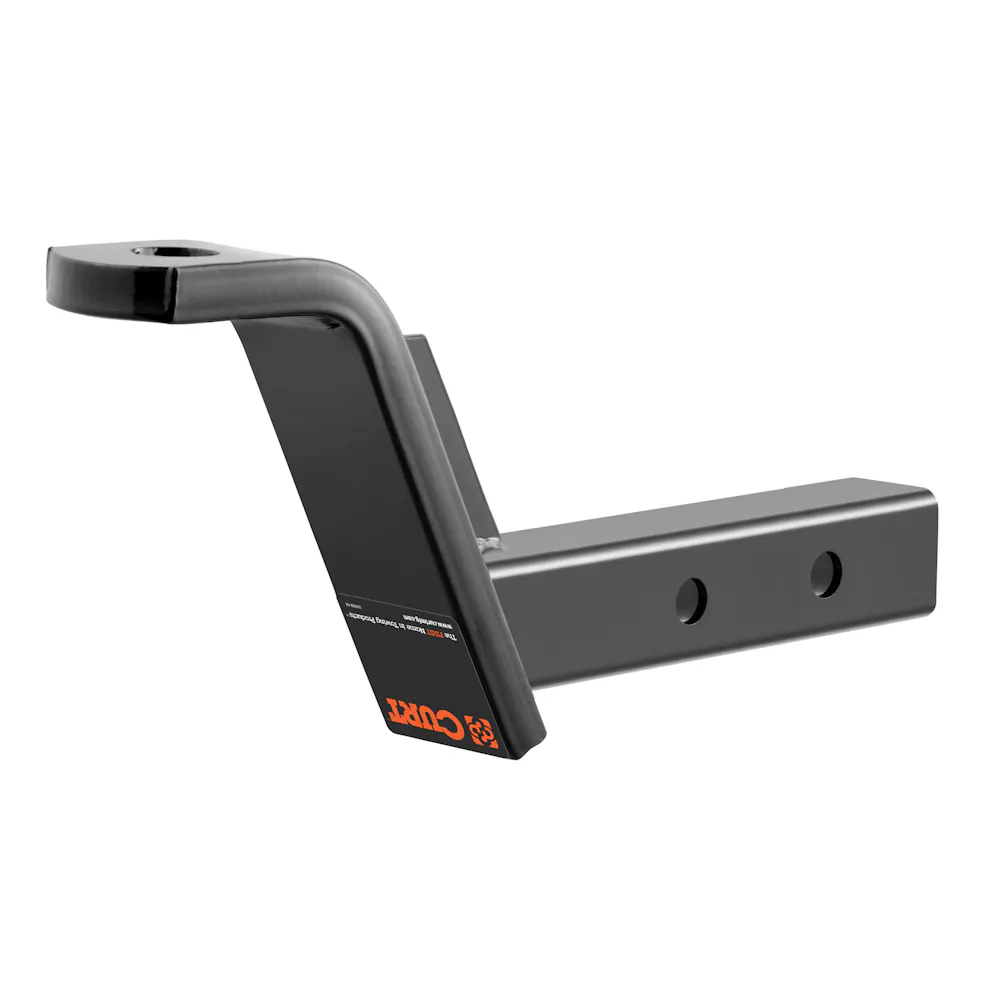

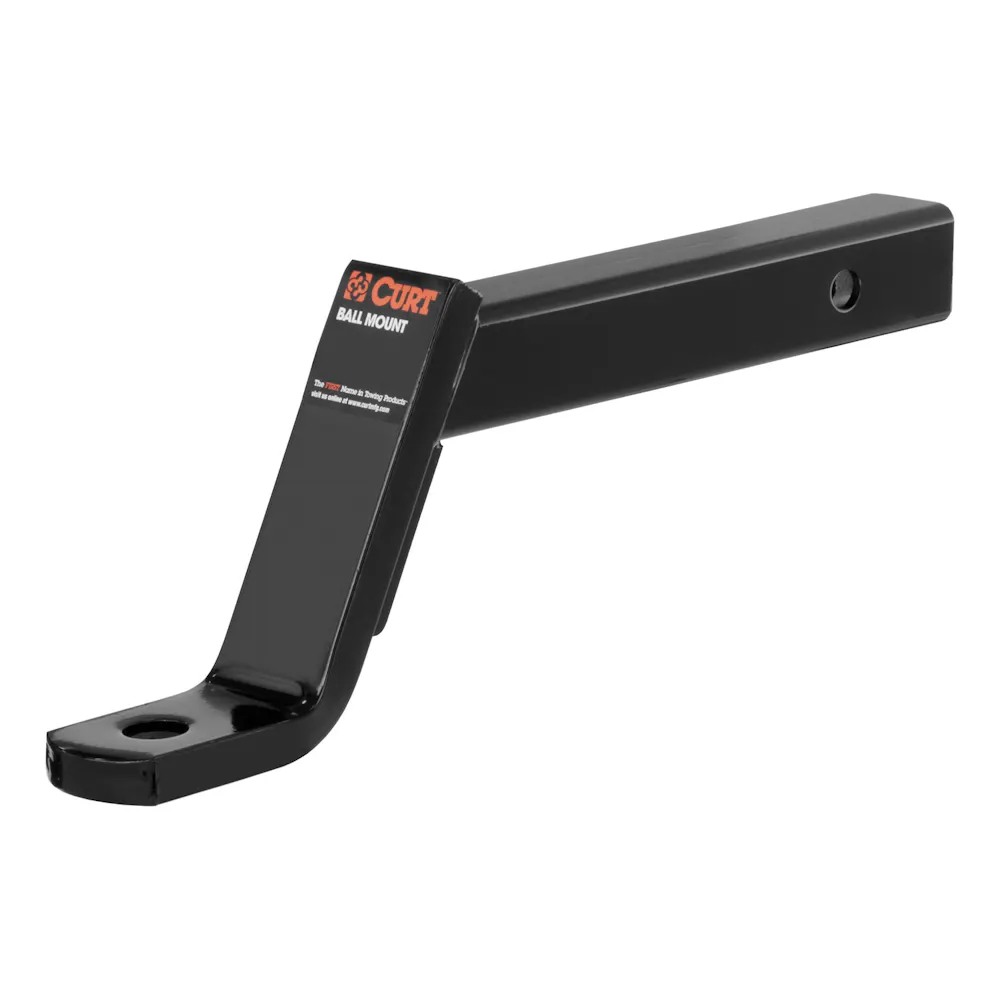

Description: Dual-Length Ball Mount (2" Shank, 7,500 lbs., 6" Drop, 9-1/4" or 12-1/4" Long); CURT 45240 Dual Length Trailer Hitch Ball Mount, 9-1/4-Inch or 12-1/4-Inch Length, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 6-Inch Drop

Description:

Description

For multiple types of towing, we here at CURT want to supply you with products that make things easier and more efficient. After all, towing that boat, camper or recreational vehicle trailer is all about doing more of what you love. CURT dual length ball mounts offer a fast way to adjust your towing equipment to fit your trailer or hitch-mounted accessory. Rather than buying a second ball mount to accommodate two types of trailers or installing a receiver extender, the dual length ball mount offers a better way. With two holes in its shank, the CURT dual length ball mount can be lengthened or shortened in a moment's notice. If you have a trailer or bike rack that requires a little extra clearance from the vehicle's bumper or spare tire, the dual length ball mount can be extended by simply removing the pin and clip and pulling it out to the second hole. When you need the trailer snug up to your vehicle, the ball mount can then be moved back to its original position. CURT dual length ball mounts are made with quality steel and are robotically welded for precision. This particular ball mount can be used at a length of 9-1/4" or 12-1/4". It offers a drop of 6" with a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It can also be flipped to offer 4" of rise, 6,000 lbs. GTW and 600 lbs. TW. This dual-length ball mount features a durable gloss black powder coat to protect it from rust, scratches and harmful UV rays.

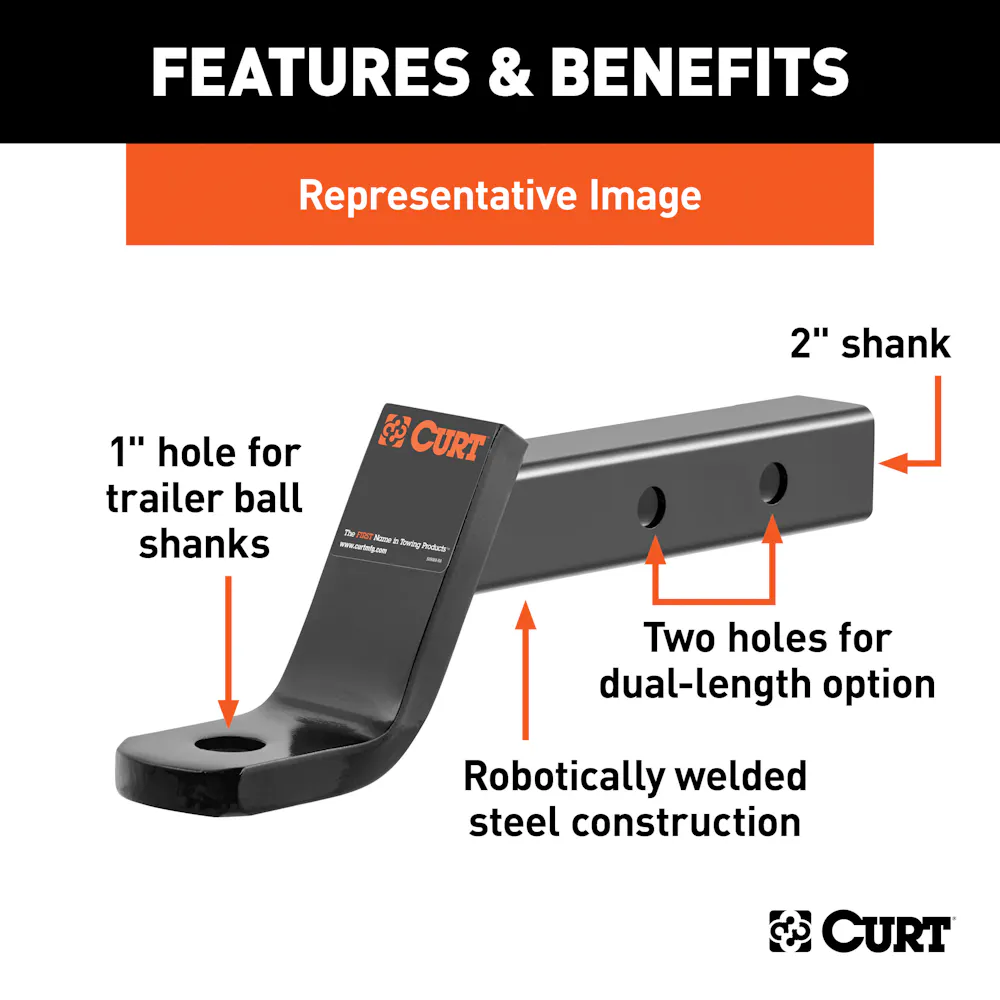

Features & benefits

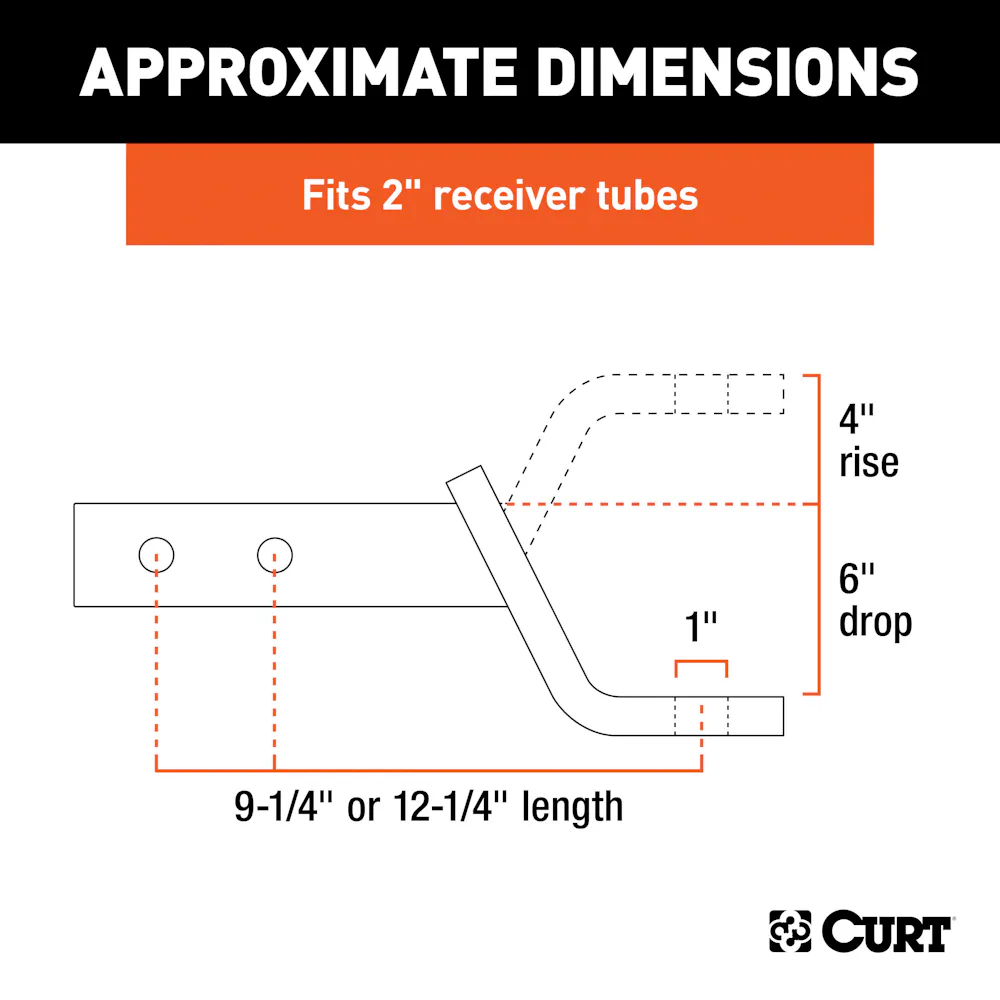

  • Features two hitch pin holes for 9-1/4" or 12-1/4" length
  • Equipped with a 1" hole to accept a trailer ball shank
  • 4" rise or 6" drop for precise trailer leveling
  • Hollow shank weighs less and can be used with an anti-rattle kit
  • CNC-formed, robotically welded and mechanically descaled for a perfect fit
  • Protected by a durable powder coat finish
  • Designed, welded, and coated in Wisconsin
  • Limited lifetime warranty (one-year finish, one-year parts)

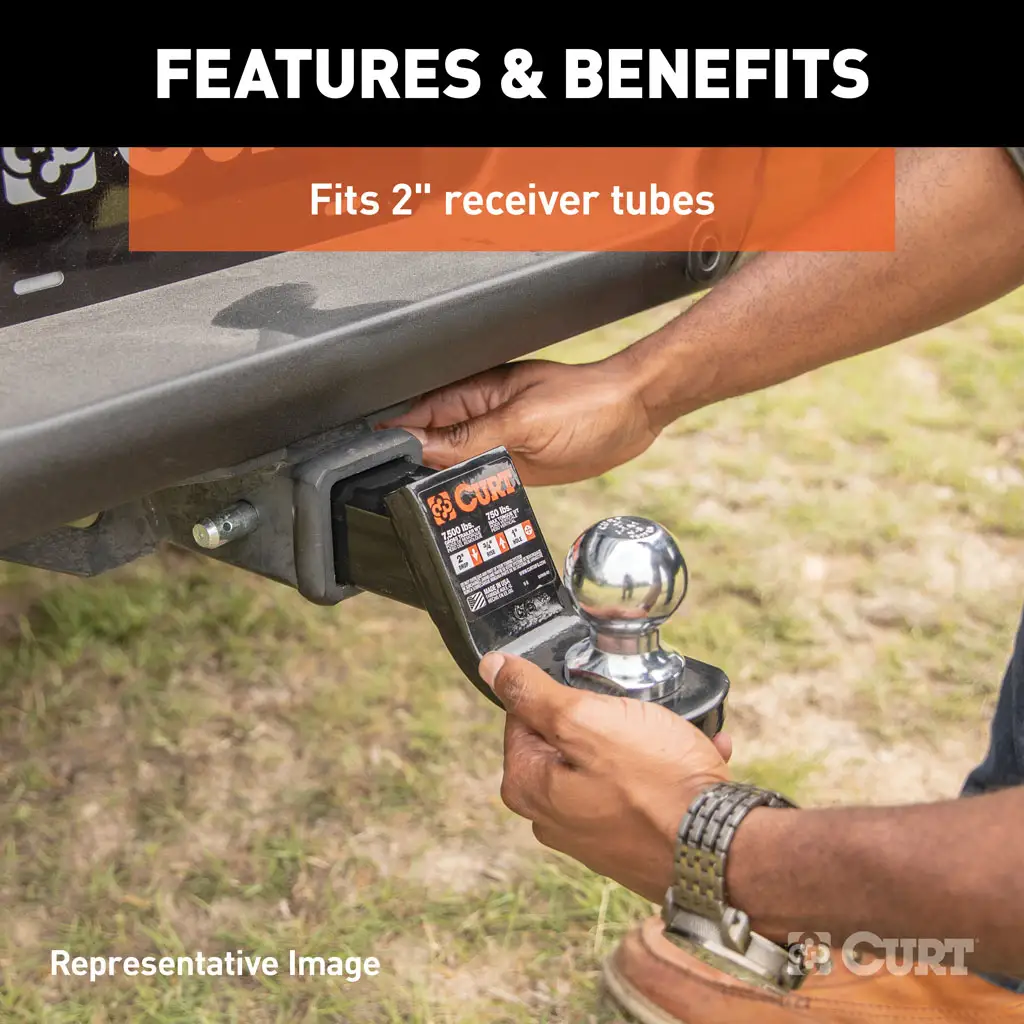

  • Fits trailer hitches with a 2" x 2" receiver tube opening

Information

Limited lifetime warranty (one-year finish, one-year parts)

Application summary

Year Make / model
5240 Dual Length Trailer Hitch Ball Mount, 9-1/4-Inch or 12-1/4-Inch Length, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 6-Inch Drop

Specifications

GTIN
00612314424009
Weight
11 lb
Height
3 in
Length
17 in
Width
8 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
6 In Drop W/8 1/4 In & 10 1/4 In Bar
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Class ID
0
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drop
6.000 in.
Drop (in.)
6.000 in.
Finish
GLOSS BLACK POWDER COAT
Finish - XA
GLOSS BLACK POWDER COAT
GTW/TW Ball Drop
7,500 LB / 750 LB
GTW/TW Ball Rise
6,000 LB / 600 LB
Item Class - XA
OMF
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
0.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
0.000
Master Case Qty - XA
0
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
0.000
Master Case Width Inches - XA
0.000
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Overall Length
12.250 in.
Overall Length (in.)
12.250 in.
Pallet Case Per - XA
0
Pallet Case Per Layer - XA
0
Pallet Cases Per - XA
0
Pallet Cases Per Layer - XA
0
Pallet Layer of Cases - XA
0
Pallet Qty - XA
200.000
Pallet Total Height Inches - XA
0.000
Pallet Total Weight Per - XA
0.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
60.0
Receiver Tube Size
2.000 in.
Retail Height - XA
3.000
Retail Length - XA
17.000
Retail Width - XA
8.000
Rise
4.000 in.
Rise (in.)
4.000 in.
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
BALL MOUNT
Shipping Weight - XA
11.000
Side Application Type Description - XA
Blank
Style
Fixed
Tariff 301 - XA
No
Title
Dual-Length Ball Mount (2" Shank, 7,500 lbs., 6" Drop, 9-1/4" or 12-1/4" Long)
Truckload Cases Qty - XA
0
Truckload Pallets Qty - XA
0
Truckload Units Qty - XA
0
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
0
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 45240 Dual Length Trailer Hitch Ball Mount, 9-1/4-Inch or 12-1/4-Inch Length, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 6-Inch Drop
