CURT / 45110
Part #: 45110
UPC: 612314411009
Loading...
Notify me when this item is in stock.

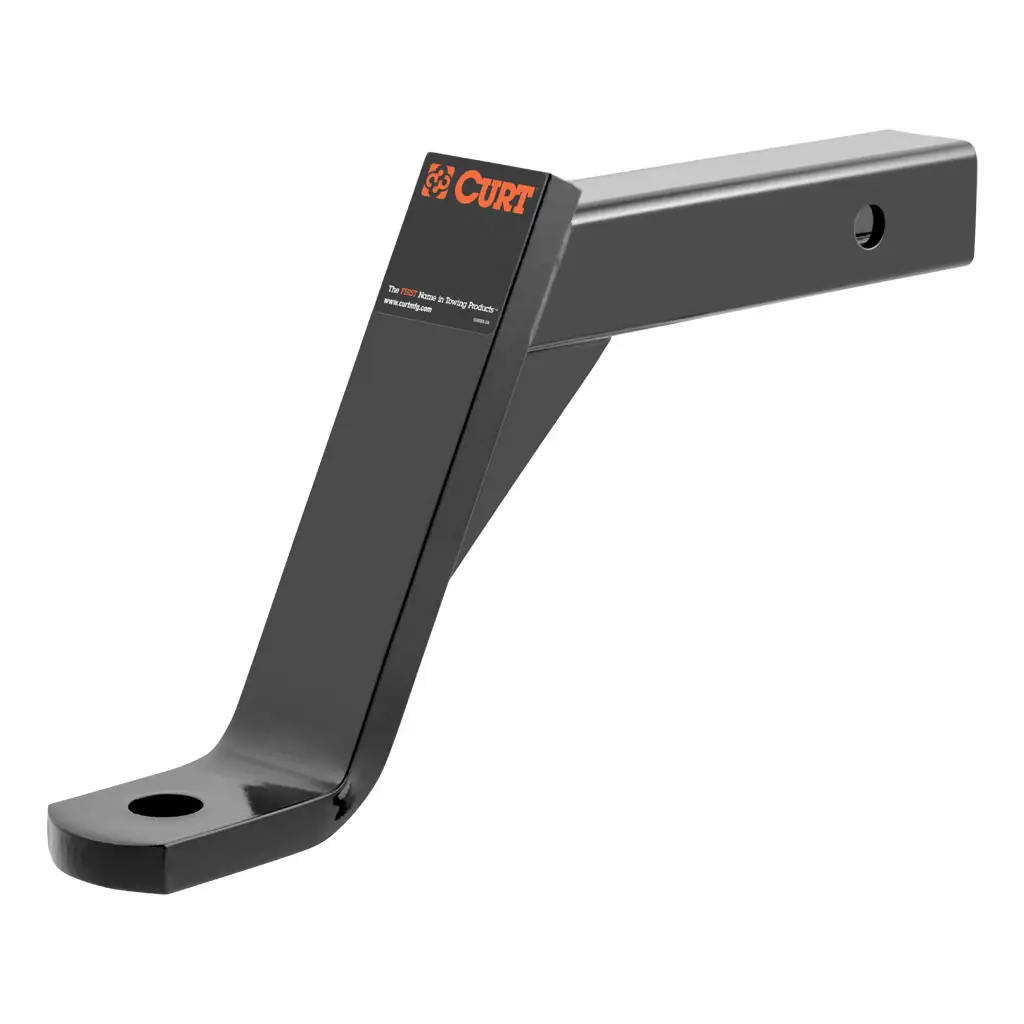

Description: Class 3 Ball Mount (2" Shank, 5,000 lbs., 10" Drop, 13" Long); CURT 45110 Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 10-Inch Drop
Description:
Description

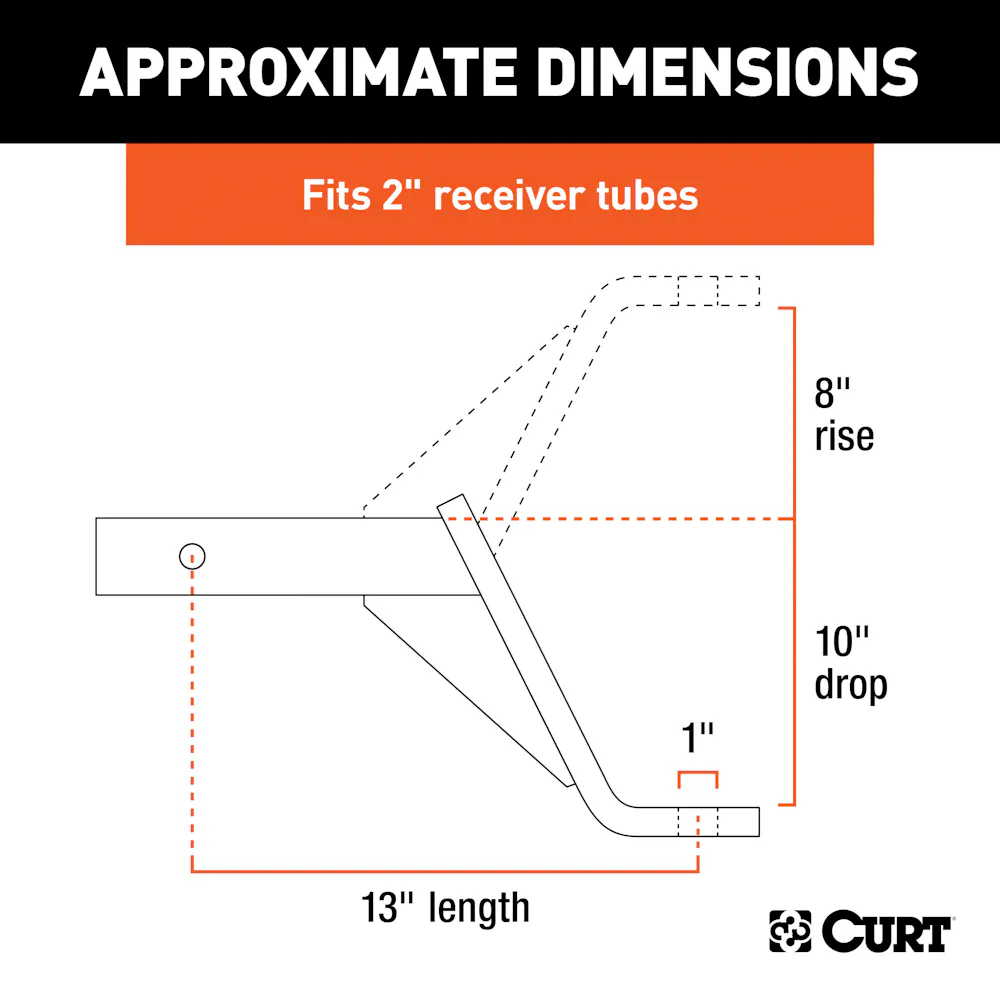

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 10", a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 8", a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 13". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

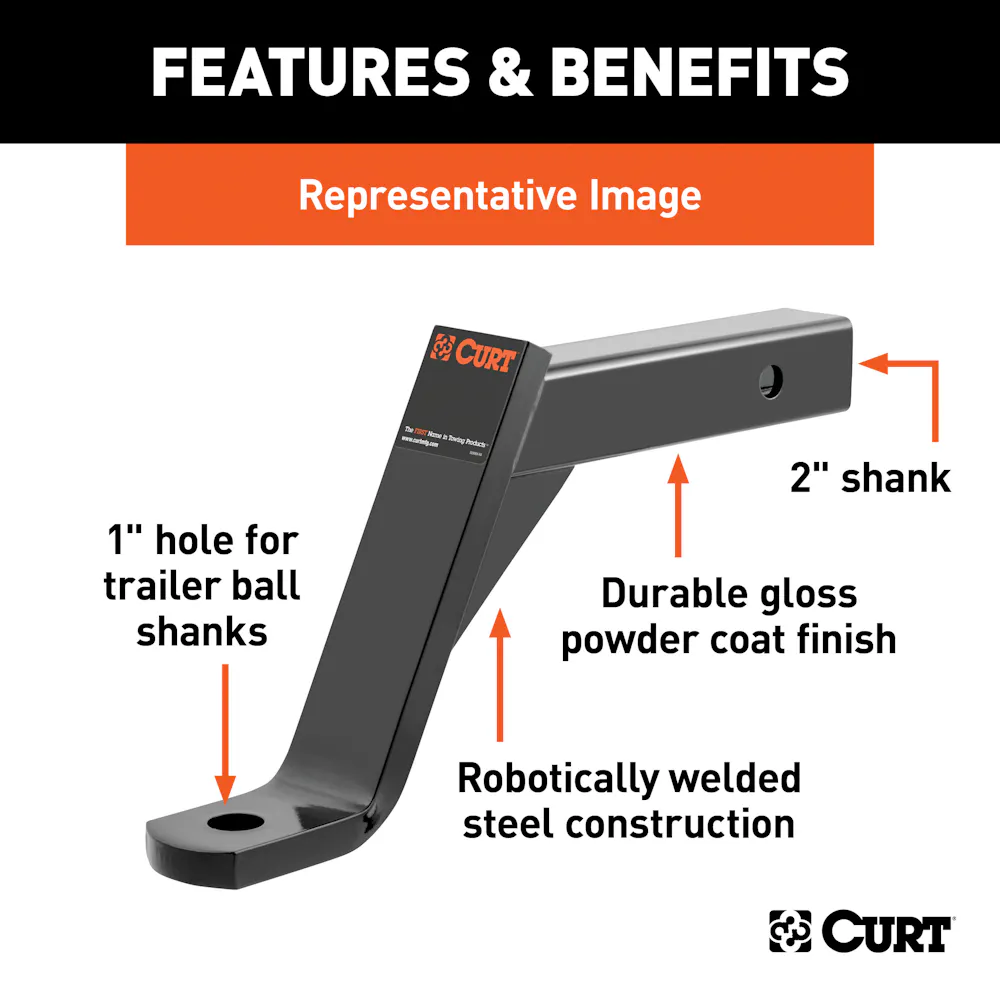

Features & benefits

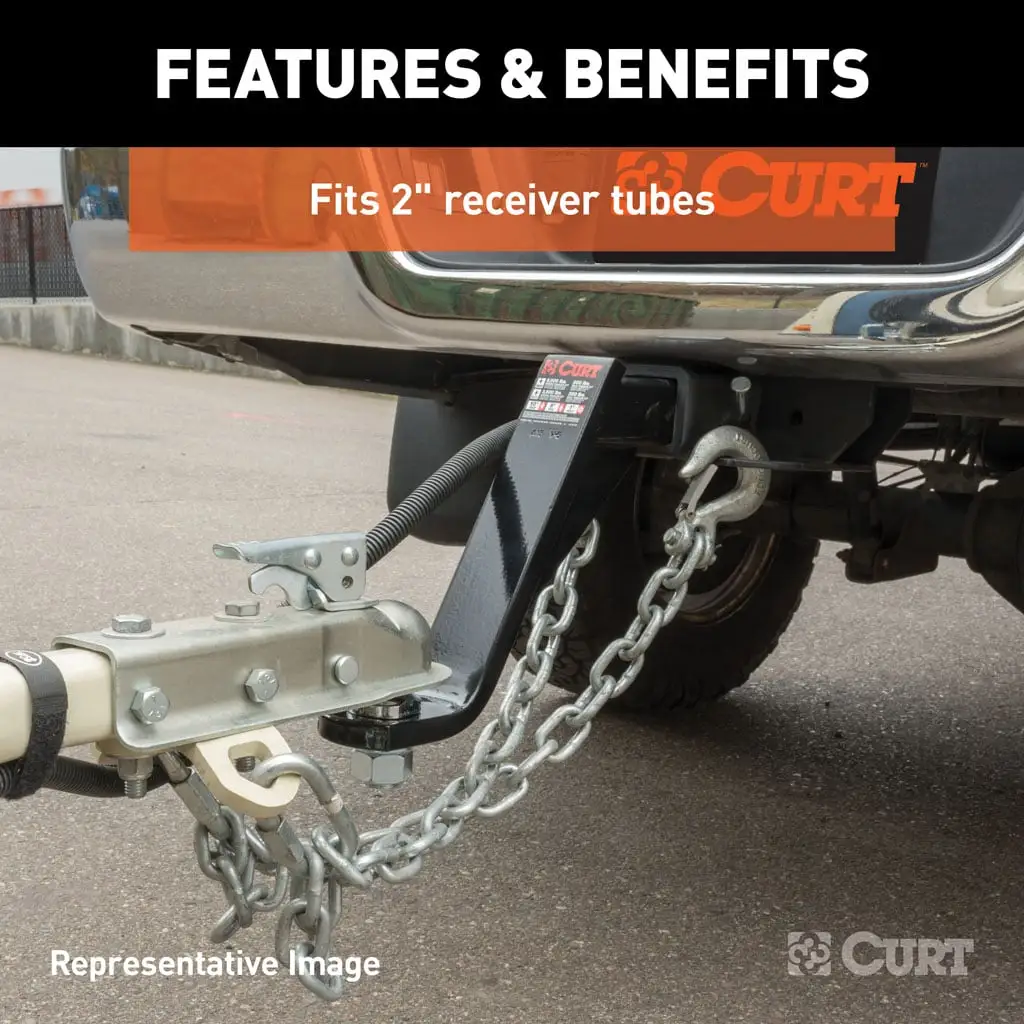

- Fits trailer hitches with a 2" x 2" receiver tube opening
- Equipped with a 1" hole to accept a trailer ball shank

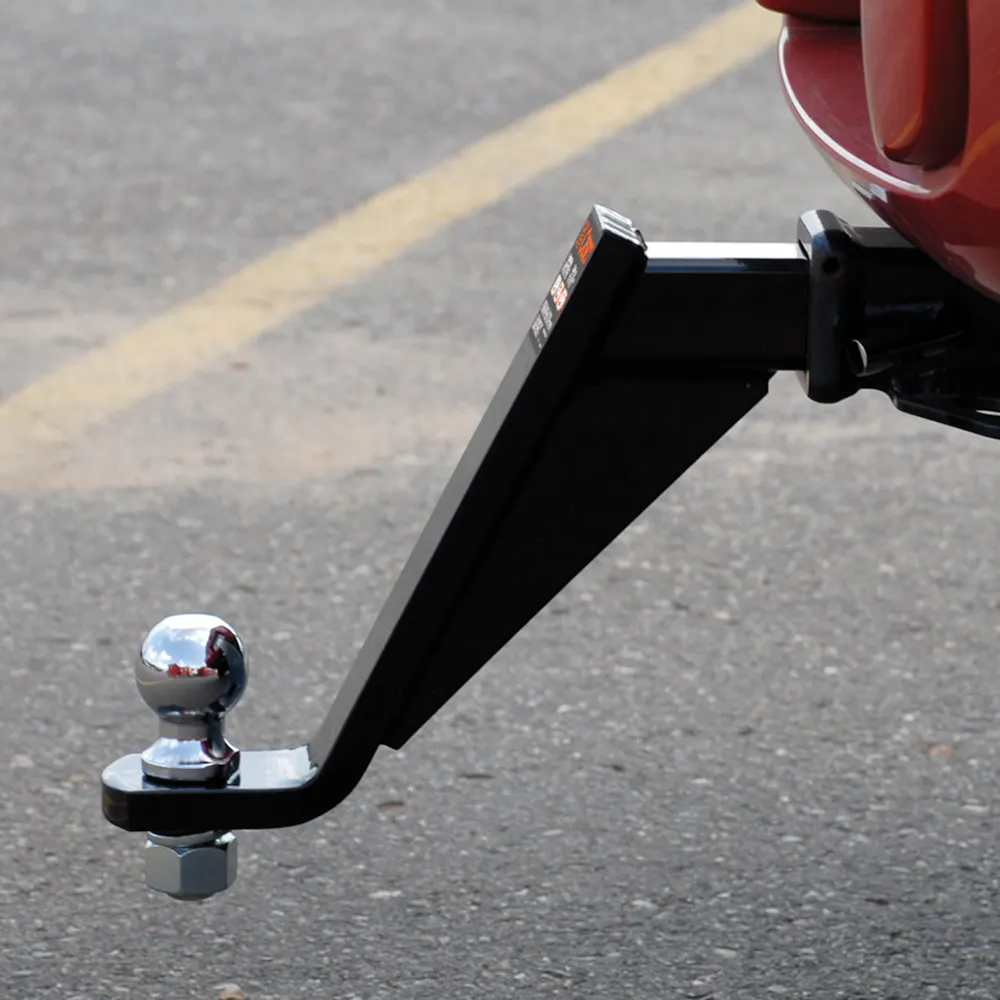

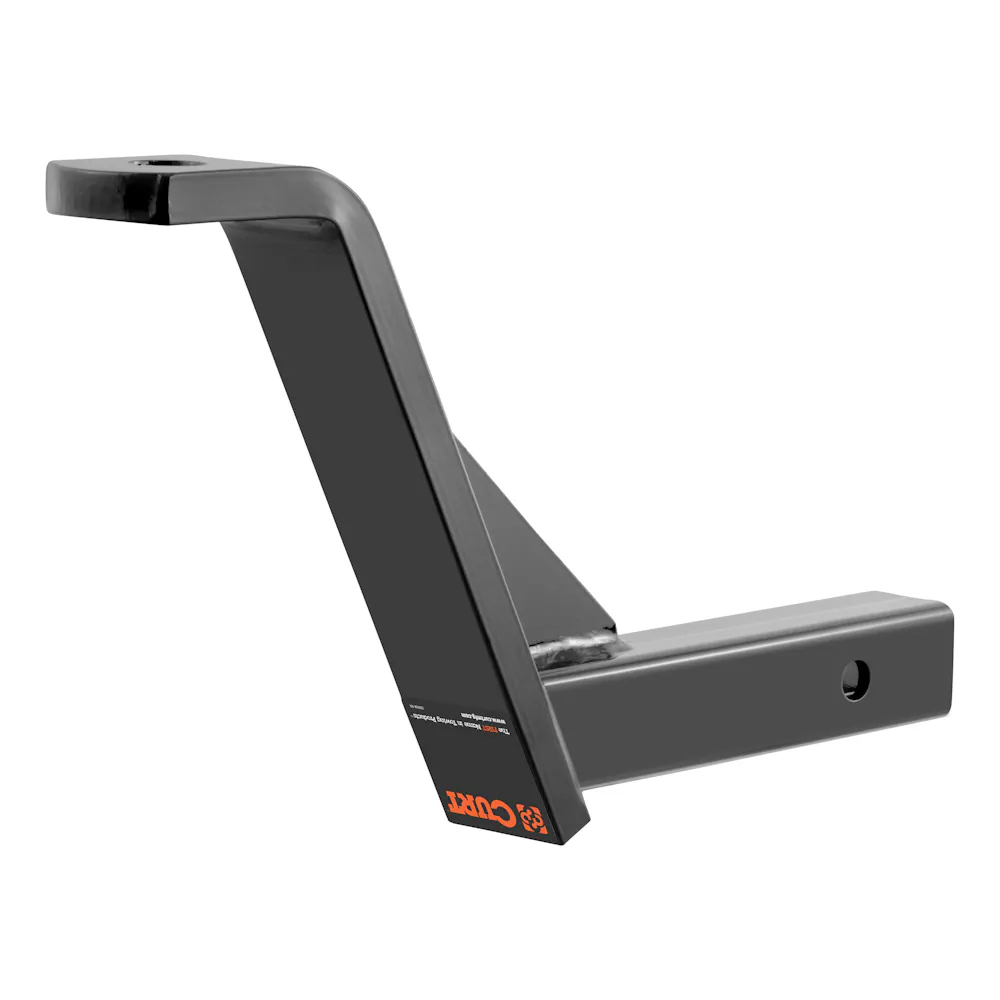

- 8" rise or 10" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Designed, welded, and coated in Wisconsin
- Limited lifetime warranty (one-year finish, one-year parts)
Information
Limited lifetime warranty (one-year finish, one-year parts)
Application summary
| Year | Make / model |
|---|---|
| 5110 | Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 10-Inch Drop |
Specifications
- GTIN
- 00612314411009
- Weight
- 13 lb
- Height
- 3 in
- Length
- 17 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- CUR
- Warehouse brand code
- CUR
- AAIA brand code
- BKDK
Attributes
- AAM Long Description
- 10 In x 8 In x 8 1/4 In Ball Mount
- Box Height in Inches - XA
- 0
- Box Length in Inches - XA
- 0
- Box Width in Inches - XA
- 0
- California Proposition 65
- Yes
- Class ID
- 0
- Container Cases Qty - XA
- 0
- Container Pallet Qty - XA
- 0
- Container Unit Qty - XA
- 0
- Container Volume Cubic Feet - XA
- 0.00000
- Container Volume Cubic Meter - XA
- 0.00000
- Container Weight KG - XA
- 0
- Container Weight Lbs - XA
- 0
- Drop
- 10.000 in.
- Drop (in.)
- 10.000 in.
- Finish
- GLOSS BLACK POWDER COAT
- Finish - XA
- GLOSS BLACK POWDER COAT
- GTW/TW Ball Drop
- 5,000 LB / 500 LB
- GTW/TW Ball Rise
- 3,500 LB / 350 LB
- Item Class - XA
- OMF
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Master Case Height Inches - XA
- 0.000
- Master Case ITF14
- 0
- Master Case ITF14 - XA
- 0
- Master Case Inner Pack Qty - XA
- 0
- Master Case Length Inches - XA
- 0.000
- Master Case Qty - XA
- 0
- Master Case Volume Cubic Feet - XA
- 0.00000
- Master Case Weight Lbs - XA
- 0.000
- Master Case Width Inches - XA
- 0.000
- Material - XA
- Carbon Steel
- Mount Type Description - XA
- Blank
- Overall Length
- 10.000 in.
- Overall Length (in.)
- 10.000 in.
- Pallet Case Per - XA
- 0
- Pallet Case Per Layer - XA
- 0
- Pallet Cases Per - XA
- 0
- Pallet Cases Per Layer - XA
- 0
- Pallet Layer of Cases - XA
- 0
- Pallet Qty - XA
- 162.000
- Pallet Total Height Inches - XA
- 0.000
- Pallet Total Weight Per - XA
- 0.000
- Parcel Allowed - XA
- Yes
- Product Weight - XA
- 0.000
- Rate Class - XA
- 60.0
- Receiver Tube Size
- 2.000 in.
- Retail Height - XA
- 3.000
- Retail Length - XA
- 17.000
- Retail Width - XA
- 11.000
- Rise
- 8.000 in.
- Rise (in.)
- 8.000 in.
- Sales Family Code - XA
- ACCES
- Sales Family Description - XA
- ACCESSORIES
- Sales Group Description - XA
- BALL MOUNT
- Shipping Weight - XA
- 13.000
- Side Application Type Description - XA
- Blank
- Style
- Fixed
- Tariff 301 - XA
- No
- Title
- Class 3 Ball Mount (2" Shank, 5,000 lbs., 10" Drop, 13" Long)
- Truckload Cases Qty - XA
- 0
- Truckload Pallets Qty - XA
- 0
- Truckload Units Qty - XA
- 0
- Truckload Volume Cubic Feet - XA
- 0.00000
- Truckload Weight - XA
- 0
- Warranty
- Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Fitment status
This product is universal and will fit your application.
Application summary
CURT 45110 Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 10-Inch Drop
Resources
- Brand logo
- Features and Benefits
- Photo - Out of Package

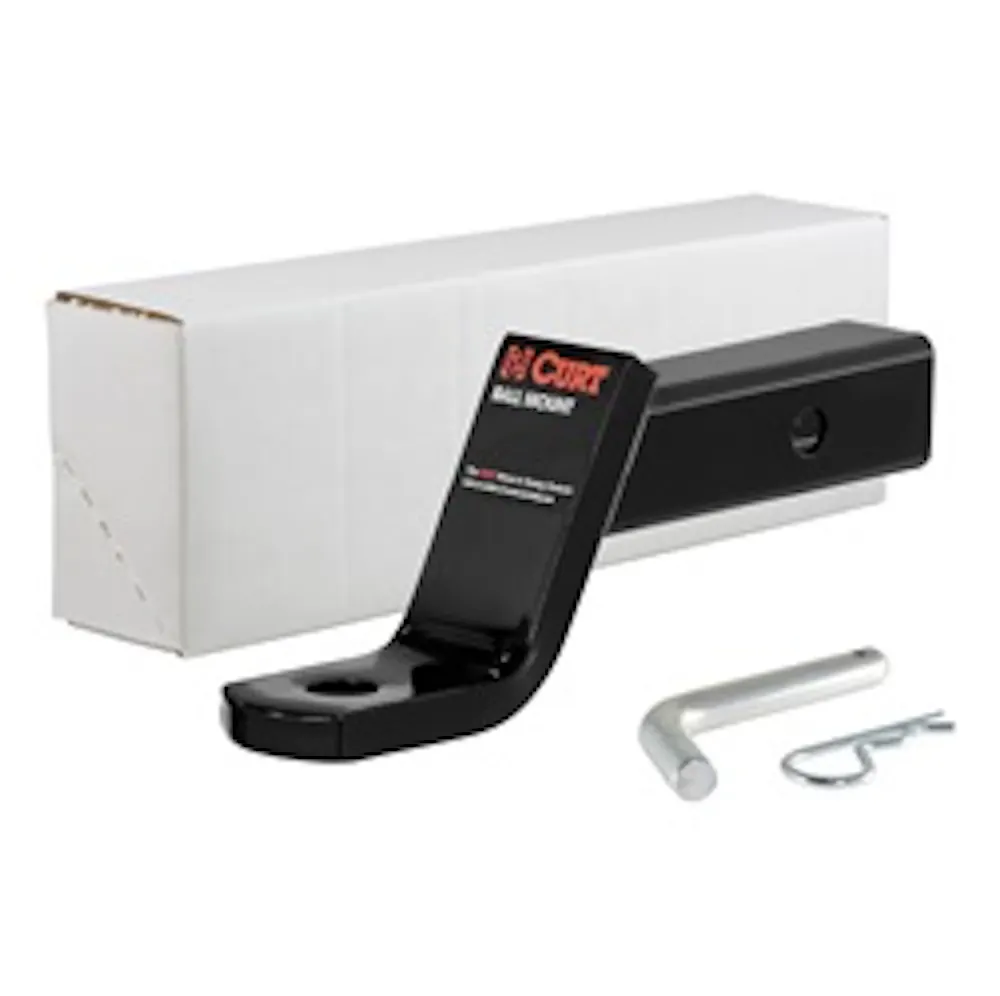

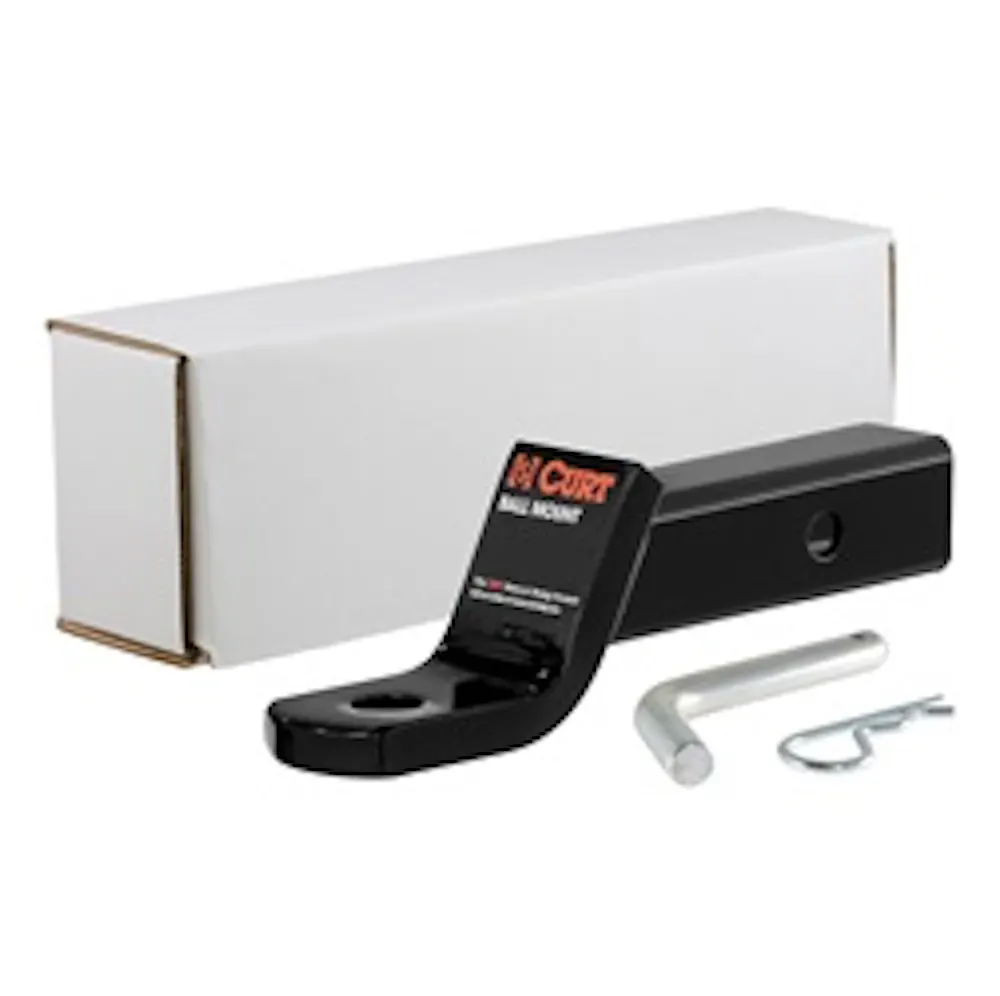

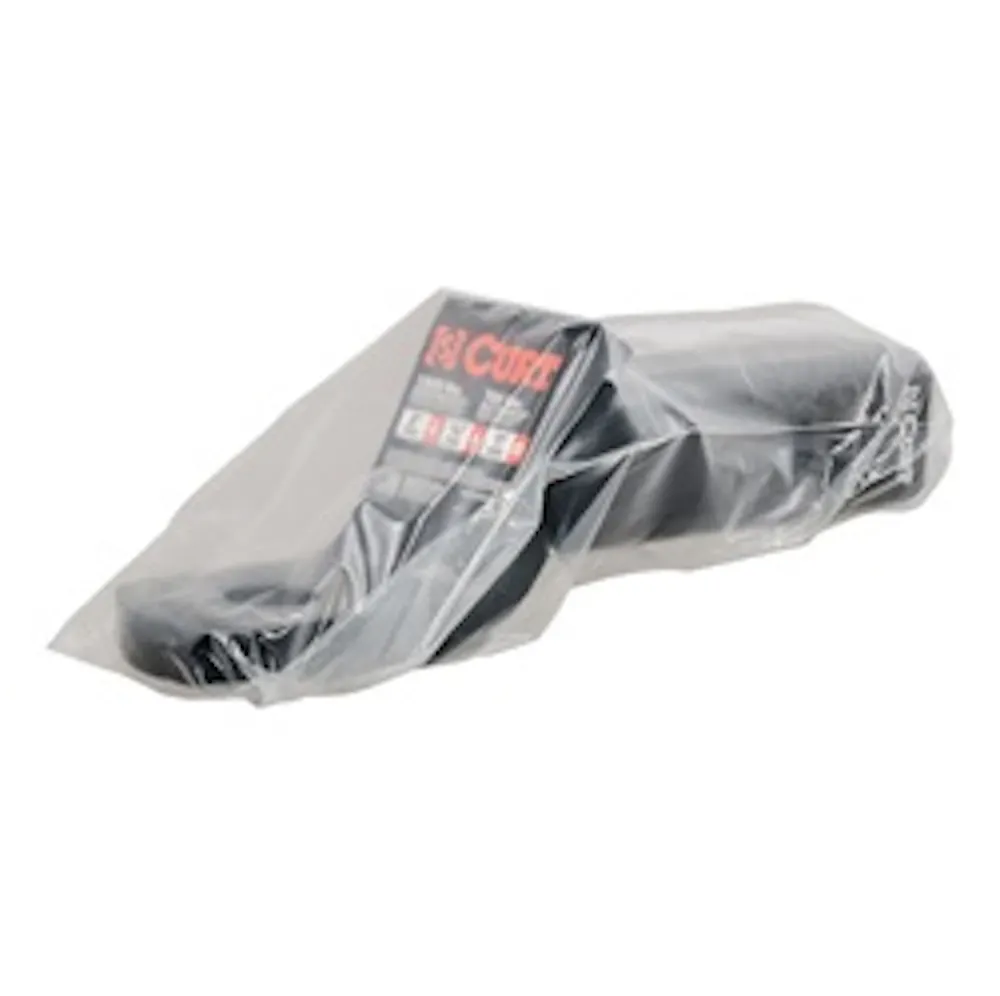

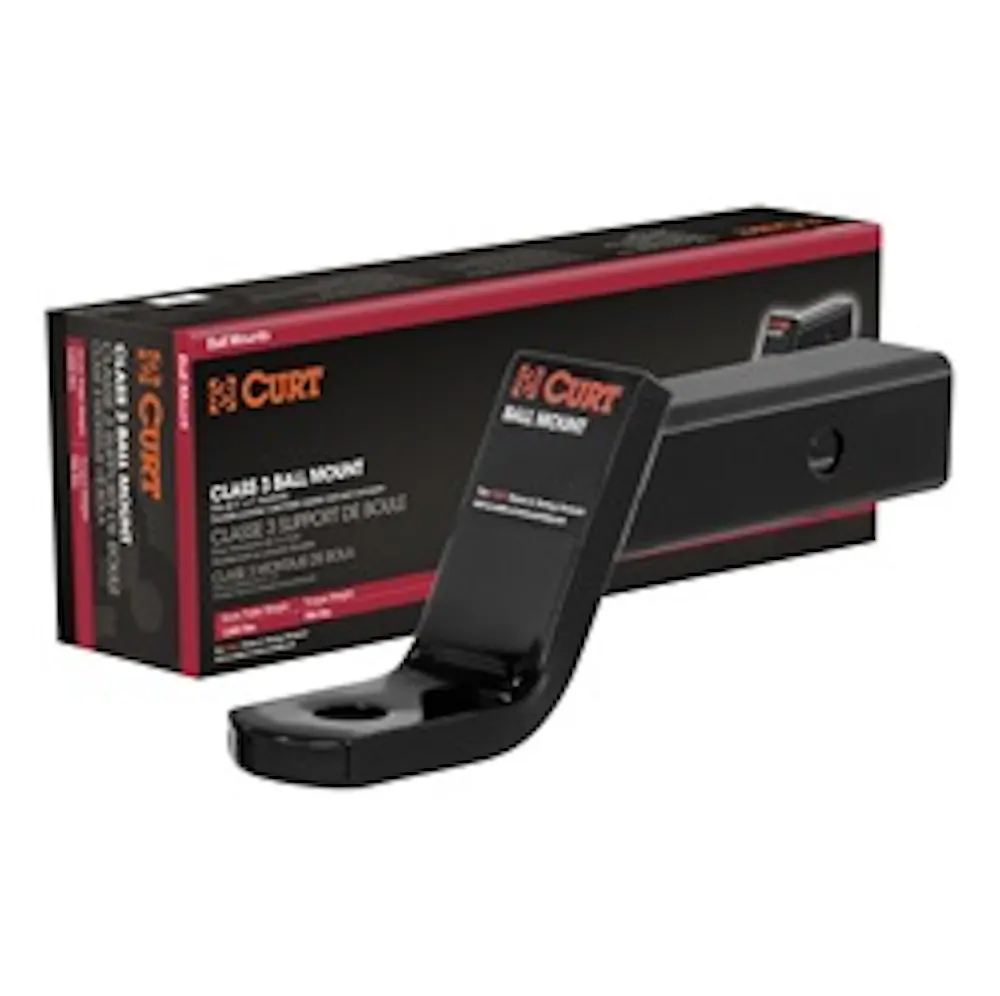

- Photo - In Package
