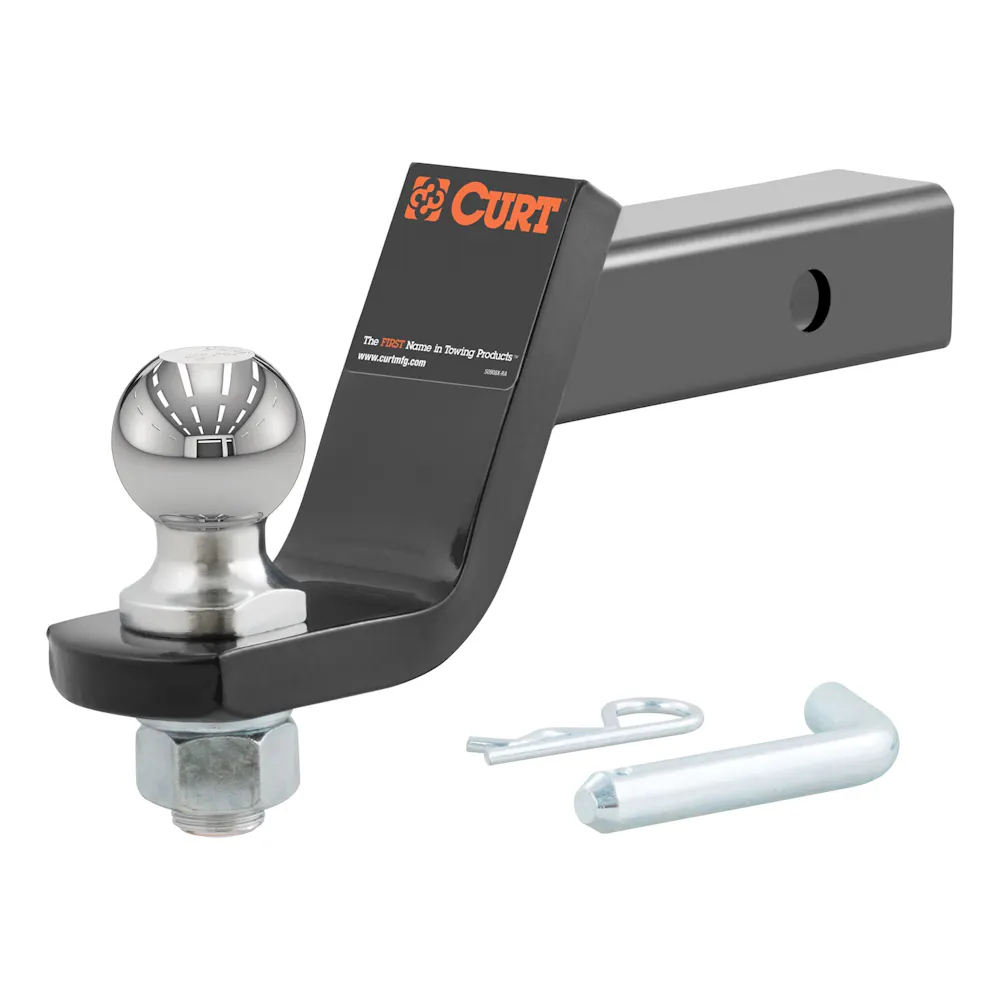

CURT / 45056

Part #: 45056
UPC: 612314055401

Loading availability... Loading...
Notify me when this item is in stock.

Brand: CURT Series: Ball Mounts

Description: Loaded Ball Mount with 2" Ball (2" Shank, 7,500 lbs., 4" Drop); CURT 45056 Loaded Ball Mount, 2" Shank, 2" Ball, 4" Drop, 7,500 lb

Description:

Description

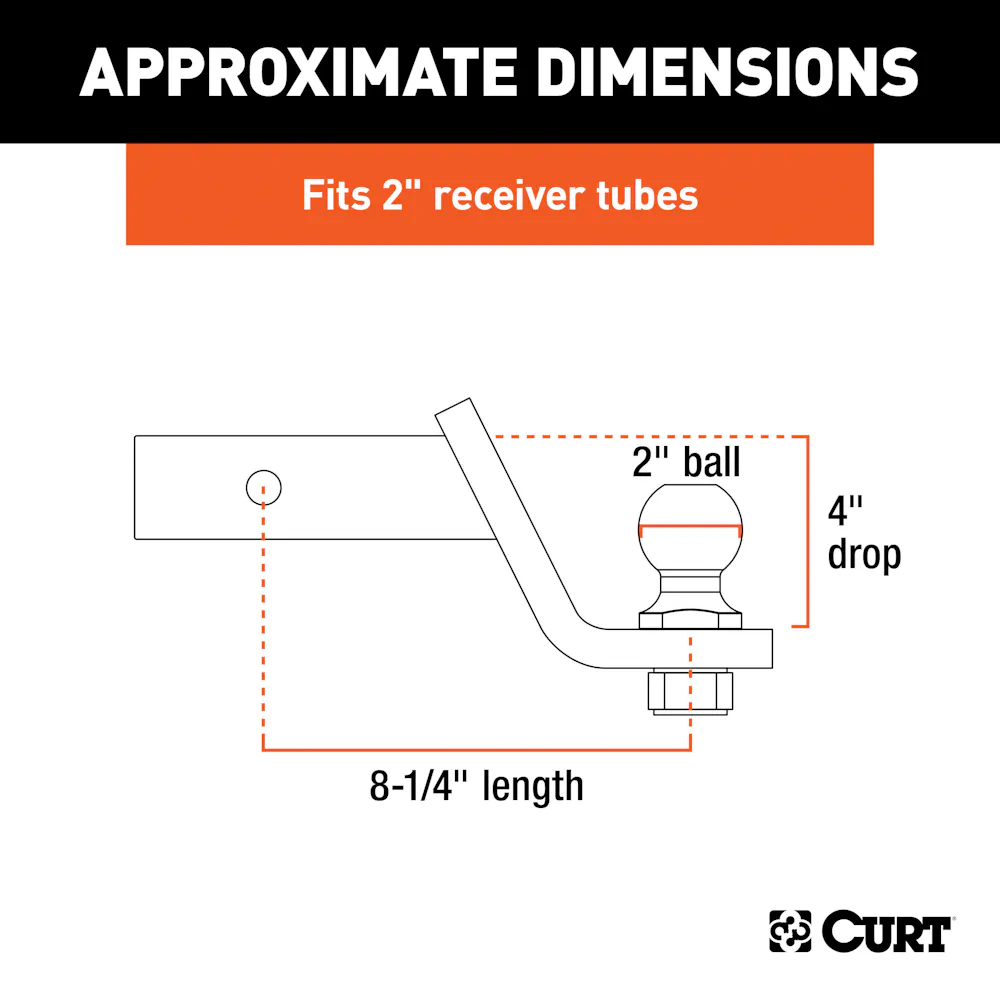

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2" trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/4", a drop of 4" and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.

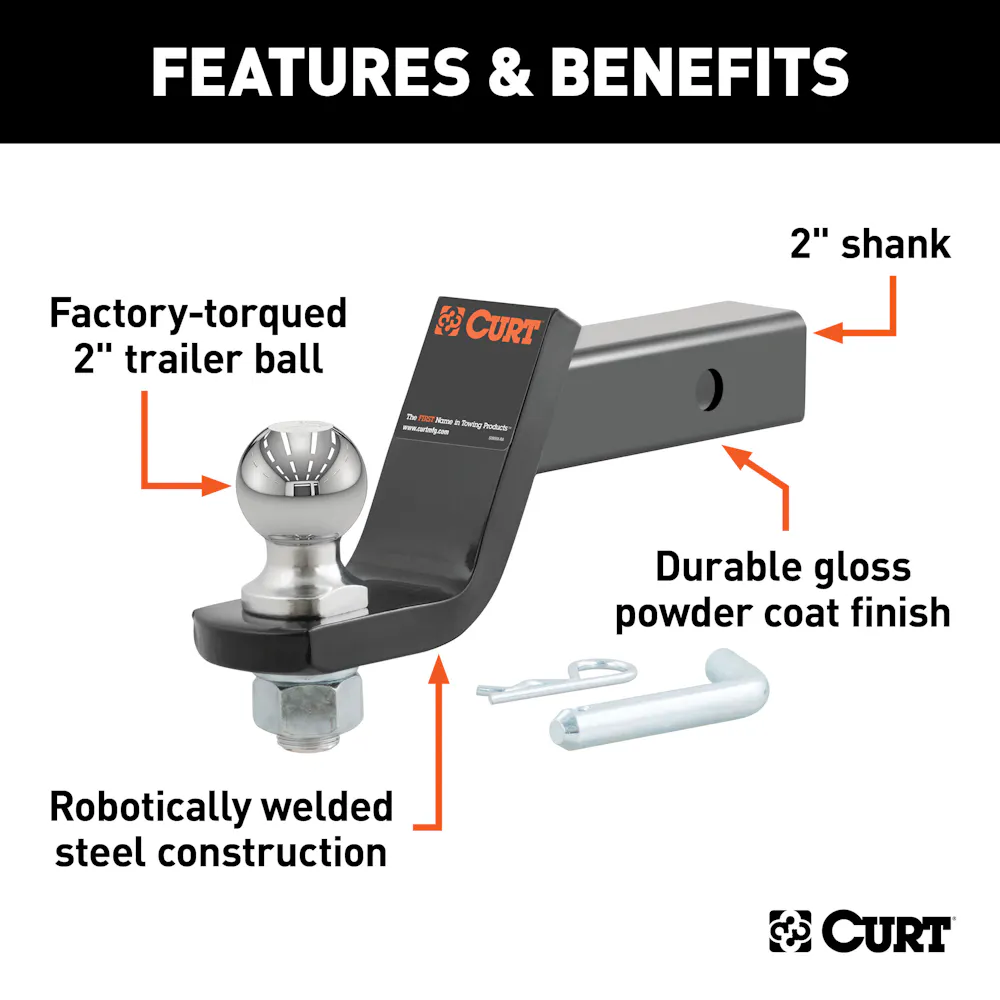

Features & benefits

  • Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
  • Trailer ball features a polished chrome-plated finish
  • 5/8" hitch pin & clip for secure mounting in receiver tube
  • Designed, welded, and coated in Wisconsin
  • Limited lifetime warranty (one-year finish, one-year parts)

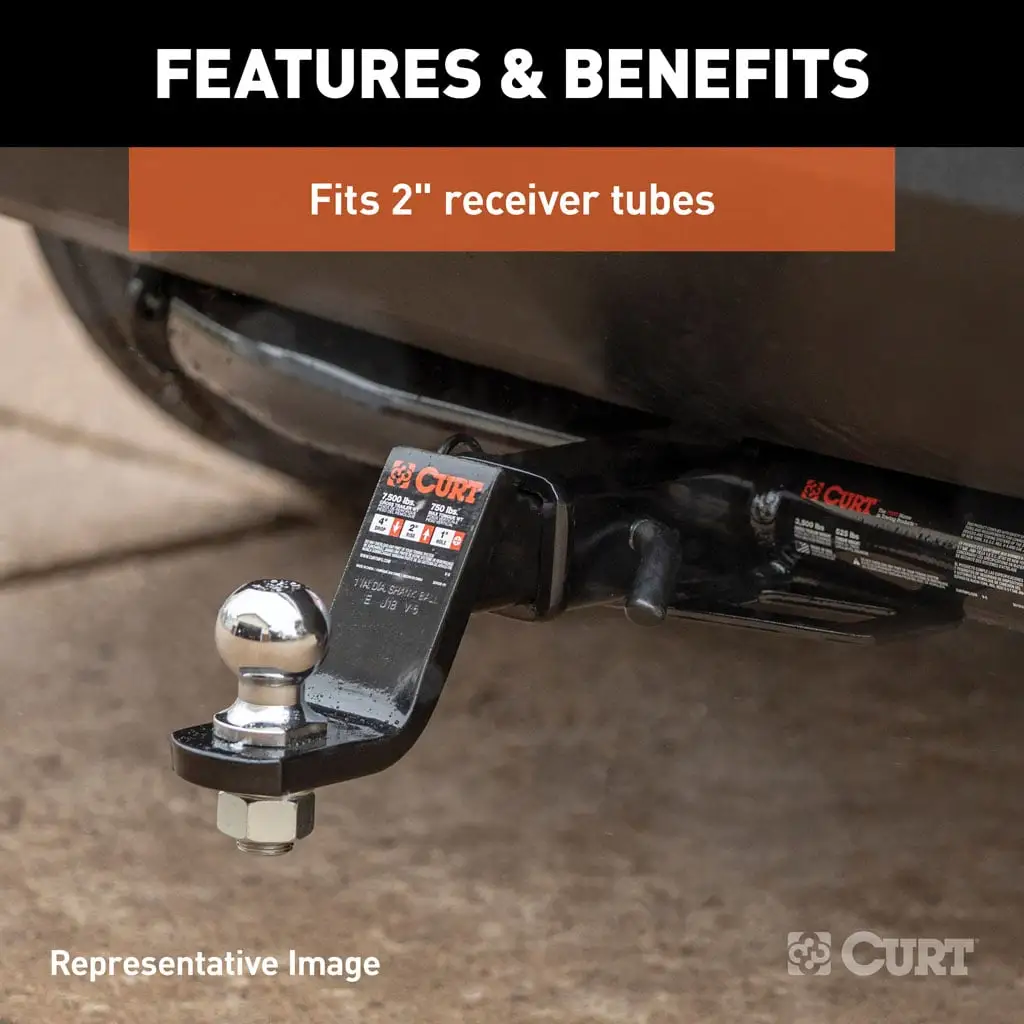

  • Fits trailer hitches with a 2" x 2" receiver tube opening

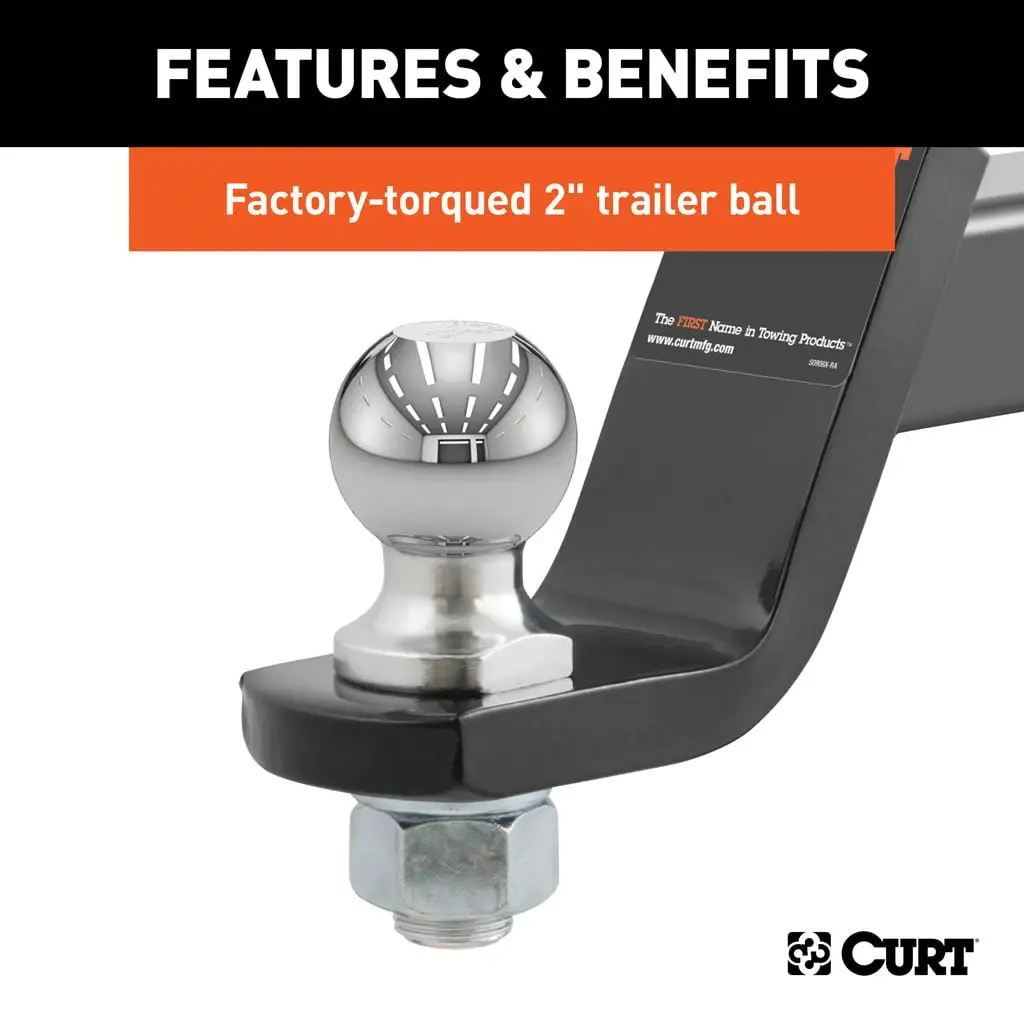

  • Factory-torqued CURT trailer ball accepts a 2" coupler
  • 4" drop for precise trailer leveling
  • Hollow shank weighs less and can be used with an anti-rattle kit
  • CNC-formed, robotically welded and mechanically descaled for a perfect fit
  • Protected by a durable powder coat finish

Information

Protected by a durable powder coat finish

Application summary

Year Make / model
5056 Trailer Hitch Mount with 2-Inch Ball & Pin, Fits 2-In Receiver, 7,500 lbs, 4-Inch Drop

Specifications

GTIN
00612314055401
Weight
9.75 lb
Height
3 in
Length
13 in
Width
6 in
Life cycle
Available to Order
AAM brand code
CUR
Warehouse brand code
CUR
AAIA brand code
BKDK

Attributes

AAM Long Description
4" Drop Loaded Ball Mount W/ 2" Ball 7.5K W/ Pin & Clip
Ball Diameter
2.000 in.
Ball Diameter (in.)
2
Box Height in Inches - XA
0
Box Length in Inches - XA
0
Box Width in Inches - XA
0
California Proposition 65
Yes
Class ID
0
Container Cases Qty - XA
0
Container Pallet Qty - XA
0
Container Unit Qty - XA
0
Container Volume Cubic Feet - XA
0.00000
Container Volume Cubic Meter - XA
0.00000
Container Weight KG - XA
0
Container Weight Lbs - XA
0
Drop
4.000 in.
Drop (in.)
4.000 in.
Finish
GLOSS BLACK POWDER COAT
Finish - XA
GLOSS BLACK POWDER COAT
Gross Trailer Weight
7500 lbs.
Gross Trailer Weight (GTW)
7,500 LB
Gross Trailer Weight (lbs.)
7500
Gross Trailer Weight(GTW)
7,500 LB
Item Class - XA
OMF
Item Height - XA
0.000
Item Length - XA
0.000
Item Width - XA
0.000
Master Case Height Inches - XA
3.000
Master Case ITF14
0
Master Case ITF14 - XA
0
Master Case Inner Pack Qty - XA
0
Master Case Length Inches - XA
14.000
Master Case Qty - XA
1
Master Case Volume Cubic Feet - XA
0.00000
Master Case Weight Lbs - XA
10.000
Master Case Width Inches - XA
5.000
Material - XA
Carbon Steel
Mount Type Description - XA
Blank
Overall Length
8.250 in.
Overall Length (in.)
8.250 in.
Pallet Case Per - XA
192
Pallet Case Per Layer - XA
24
Pallet Cases Per - XA
192
Pallet Cases Per Layer - XA
24
Pallet Layer of Cases - XA
8
Pallet Qty - XA
0.000
Pallet Total Height Inches - XA
29.000
Pallet Total Weight Per - XA
1960.000
Parcel Allowed - XA
Yes
Product Weight - XA
0.000
Rate Class - XA
60.0
Receiver Tube Size
2.000 in.
Retail Height - XA
3.000
Retail Length - XA
13.000
Retail Width - XA
6.000
Rise
2.000 in.
Rise (in.)
2.000 in.
Sales Family Code - XA
ACCES
Sales Family Description - XA
ACCESSORIES
Sales Group Description - XA
BALL MOUNT
Shipping Weight - XA
9.748
Side Application Type Description - XA
Blank
Style
Fixed
Tariff 301 - XA
No
Title
Loaded Ball Mount with 2" Ball (2" Shank, 7,500 lbs., 4" Drop)
Tongue Weight (TW)
750 LB
Tongue Weight(TW)
750 LB
Truckload Cases Qty - XA
4032
Truckload Pallets Qty - XA
21
Truckload Units Qty - XA
4032
Truckload Volume Cubic Feet - XA
0.00000
Truckload Weight - XA
41160
WC Tongue Weight
750
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Fitment status

This product is universal and will fit your application.

Application summary

CURT 45056 Trailer Hitch Mount with 2-Inch Ball & Pin, Fits 2-In Receiver, 7,500 lbs, 4-Inch Drop
